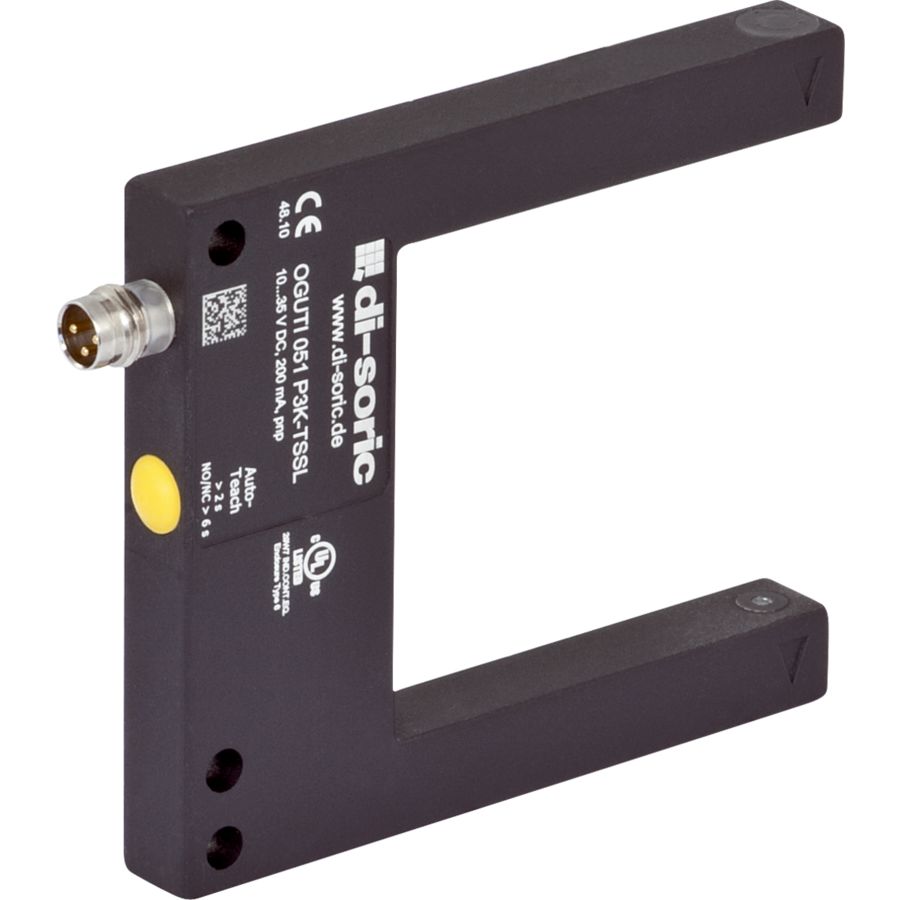

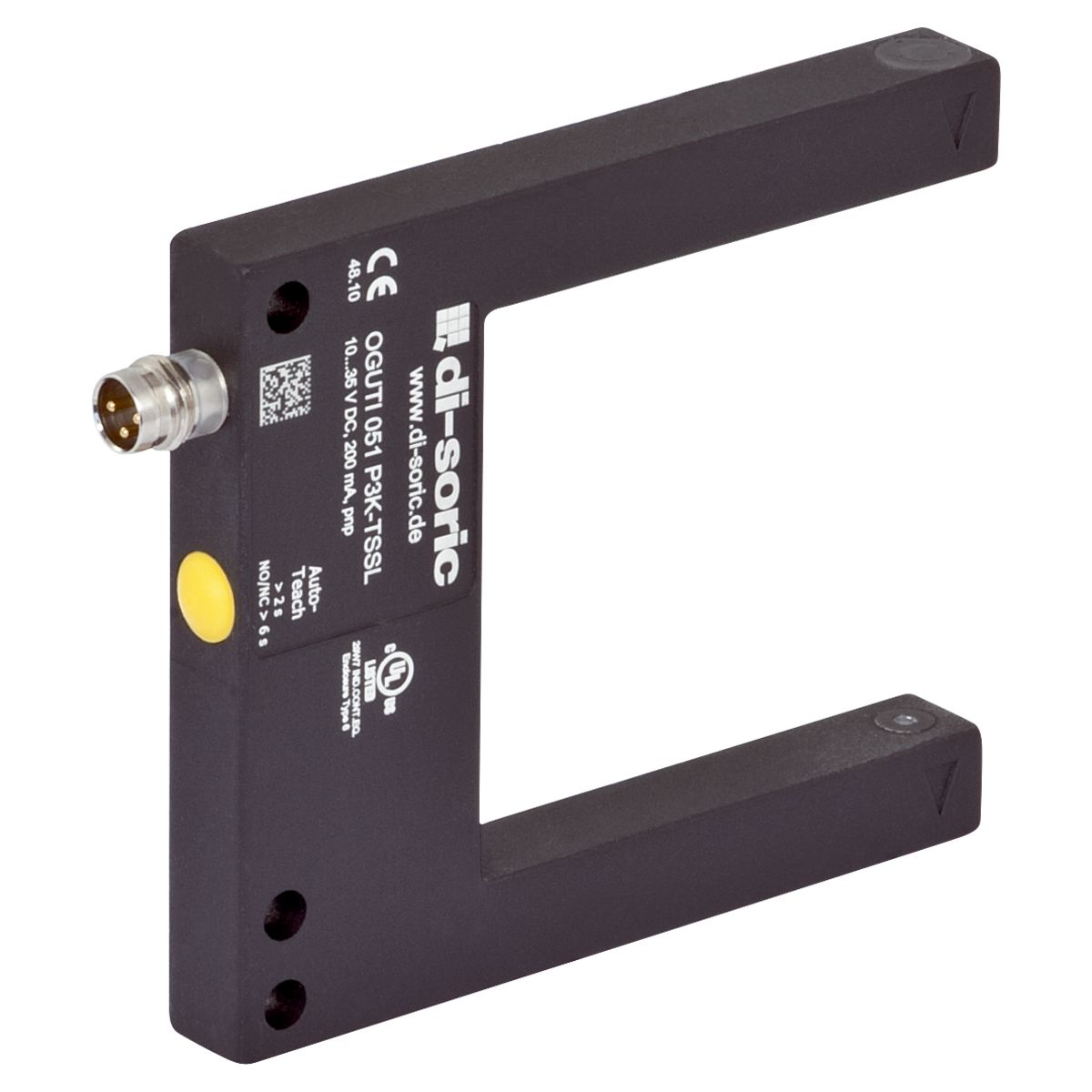

Fork Light Barrier - OGUTI 051 FP3K-TSSL

Part Number: OGUTI 051 FP3K-TSSL

Article Number: 202428

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Optical
Light color red
Fork opening 50 mm
Service voltage 10 … 35 V DC (Supply Class 2)
No-load current (max.) 30 mA

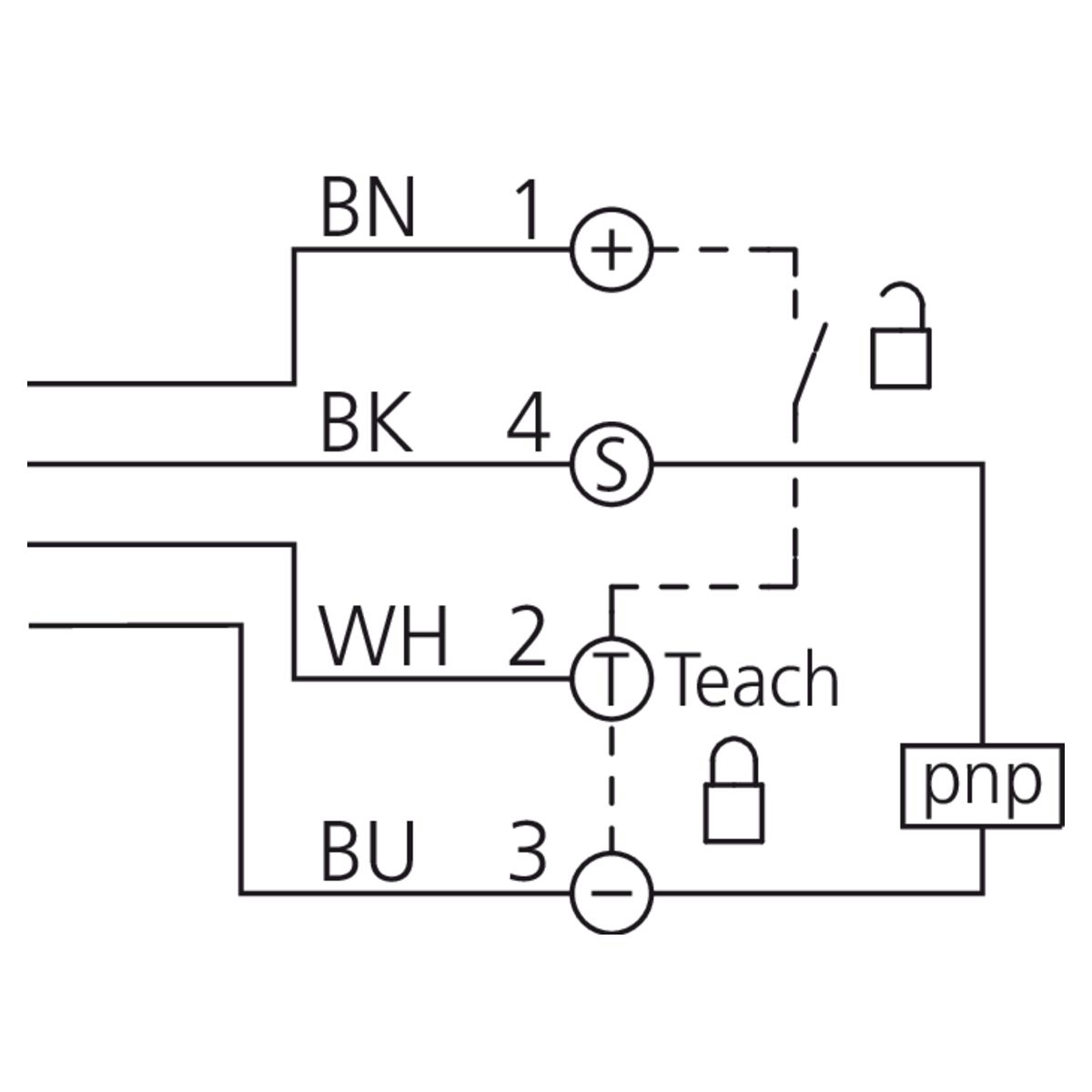

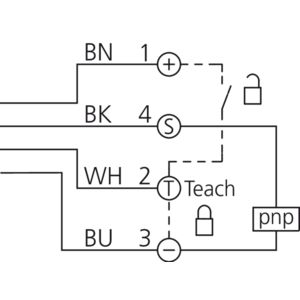

Switching output pnp, 200 mA, NO/NC
Housing material Die-cast zinc, Black (powder-coated)

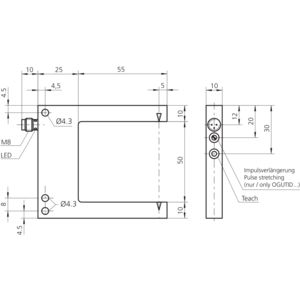

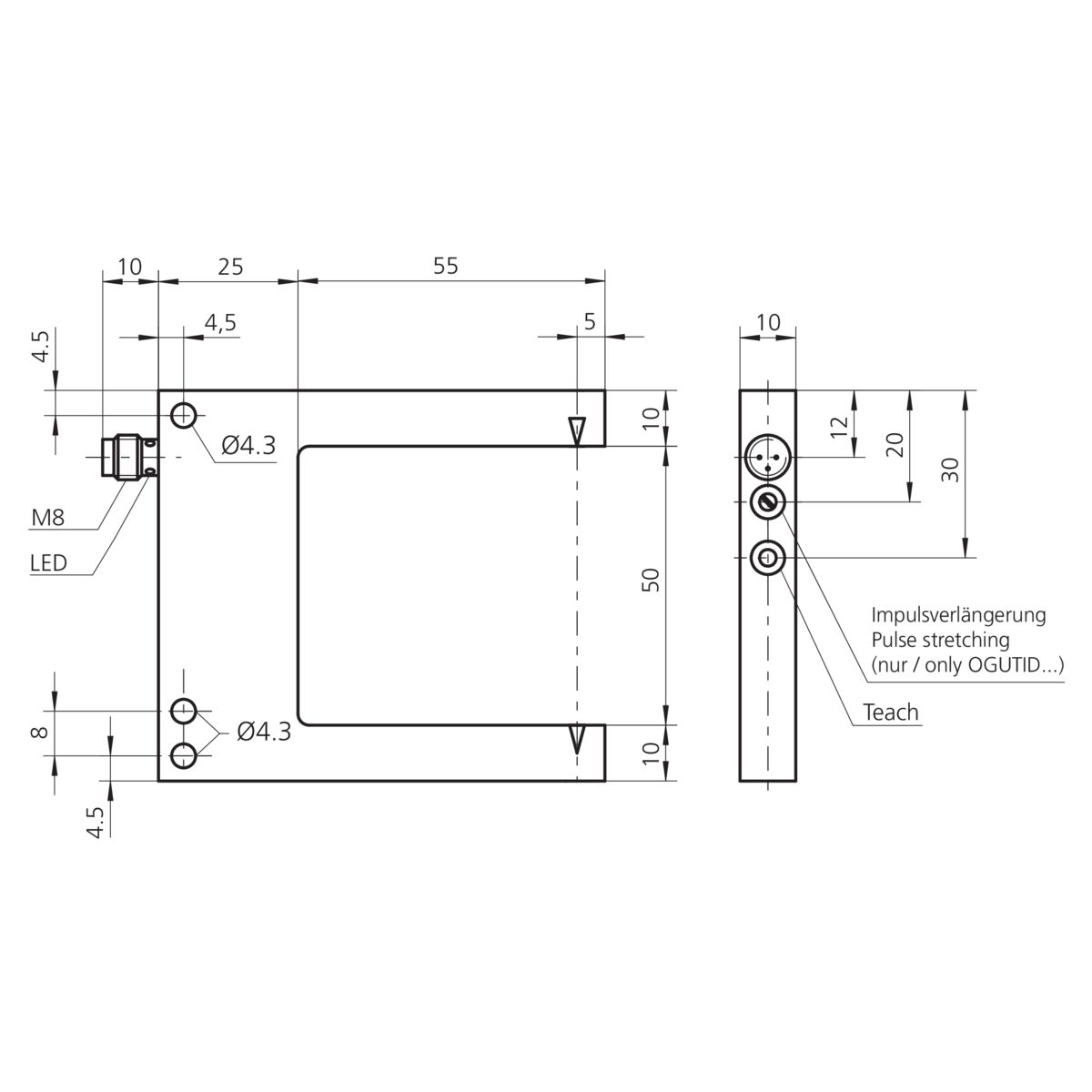

Size 70 x 80 x 10 mm
Ambient temperature during operation -10 … +60 °C
Connection Connector, M8, 4-pin
