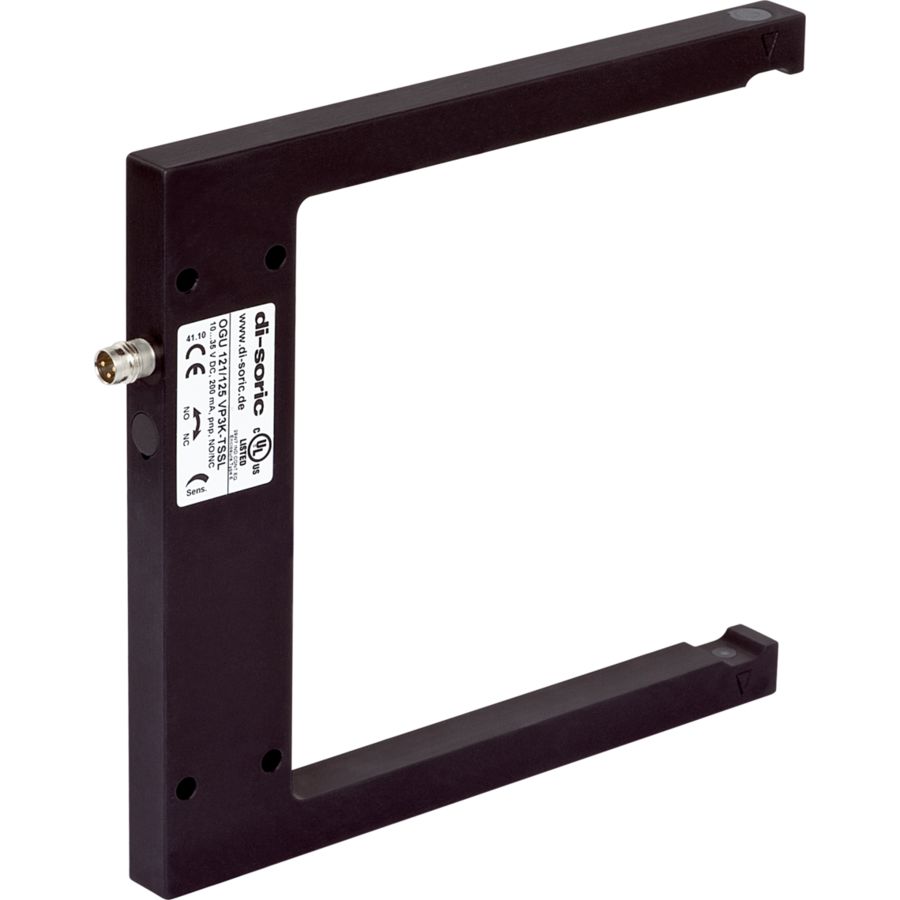

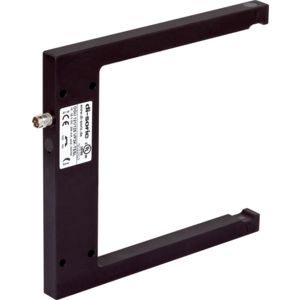

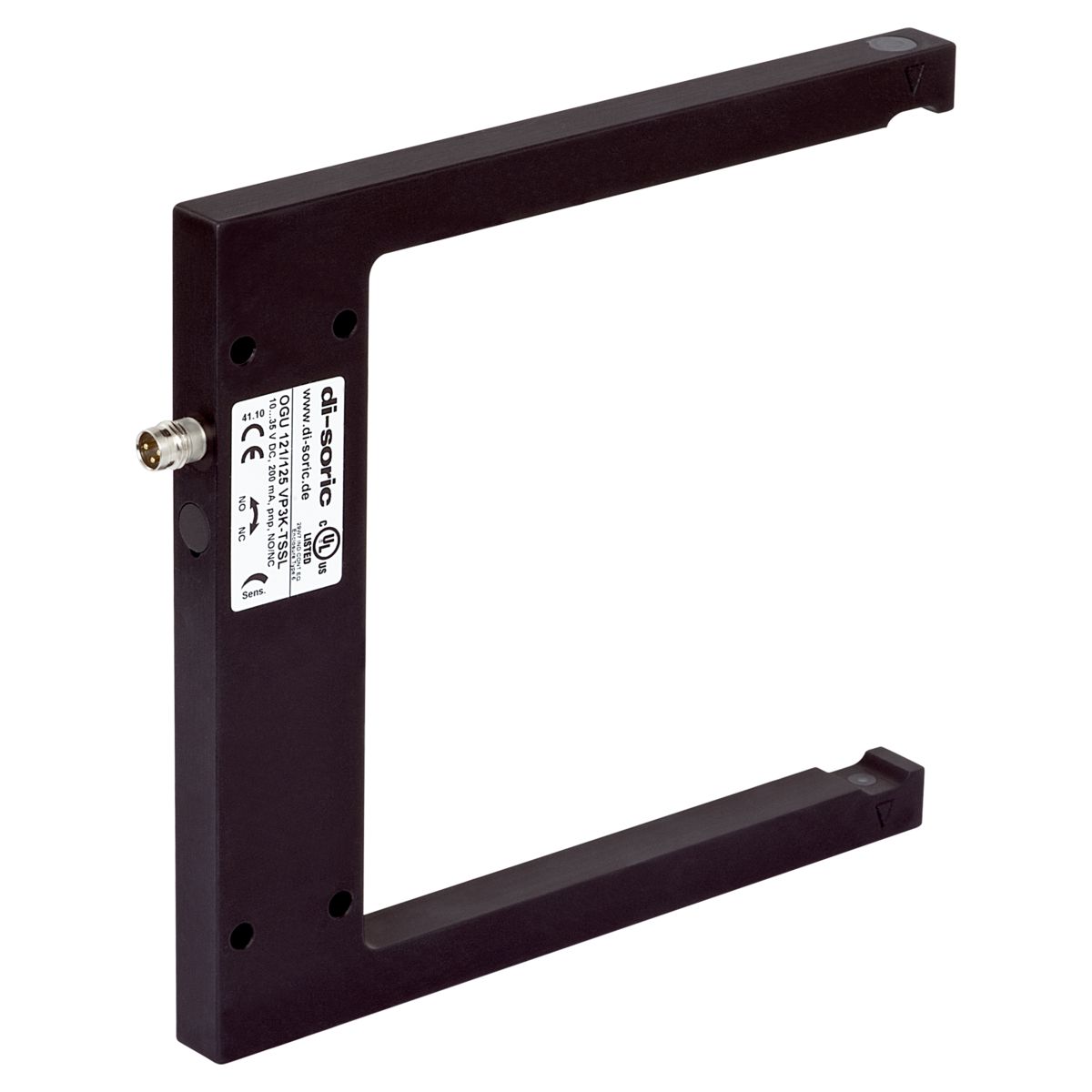

Fork Light Barrier - OGUFIX 121/125 P3K-TSSL-180L

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Through-beam sensor
Transmitter light source	LED
Light color	red / 660 nm

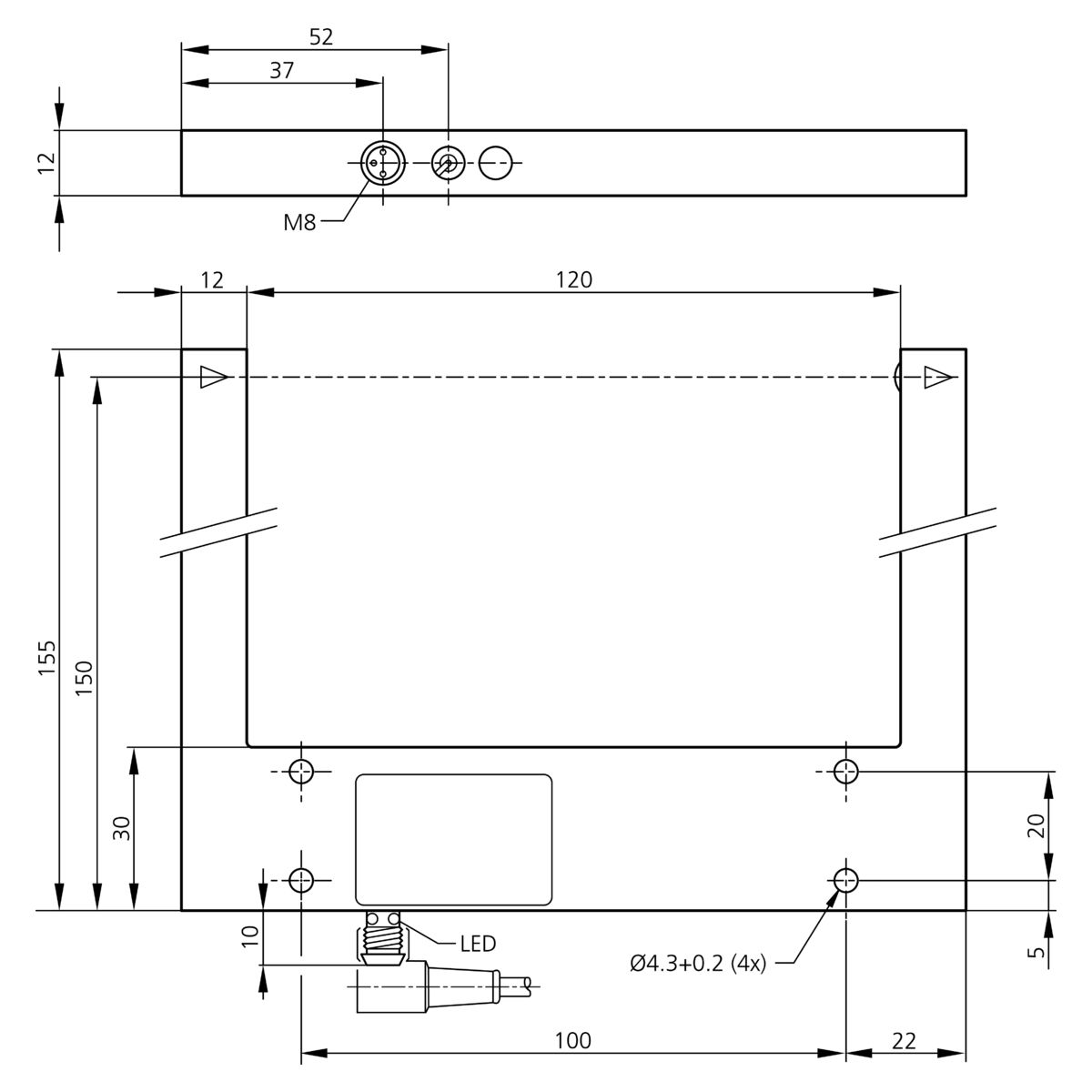

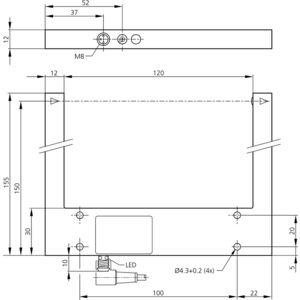

Fork opening	120 mm
Service voltage	10 V … 35 V DC
No-load current (max.)	40 mA
Switching output	pnp, 200 mA, NO/NC
Housing material	Aluminum, Black (Anodized)
Size	144 x 155 x 12 mm
Ambient temperature during operation	-10 … +60 °C
Connection	Connector, M8, 3-pin
