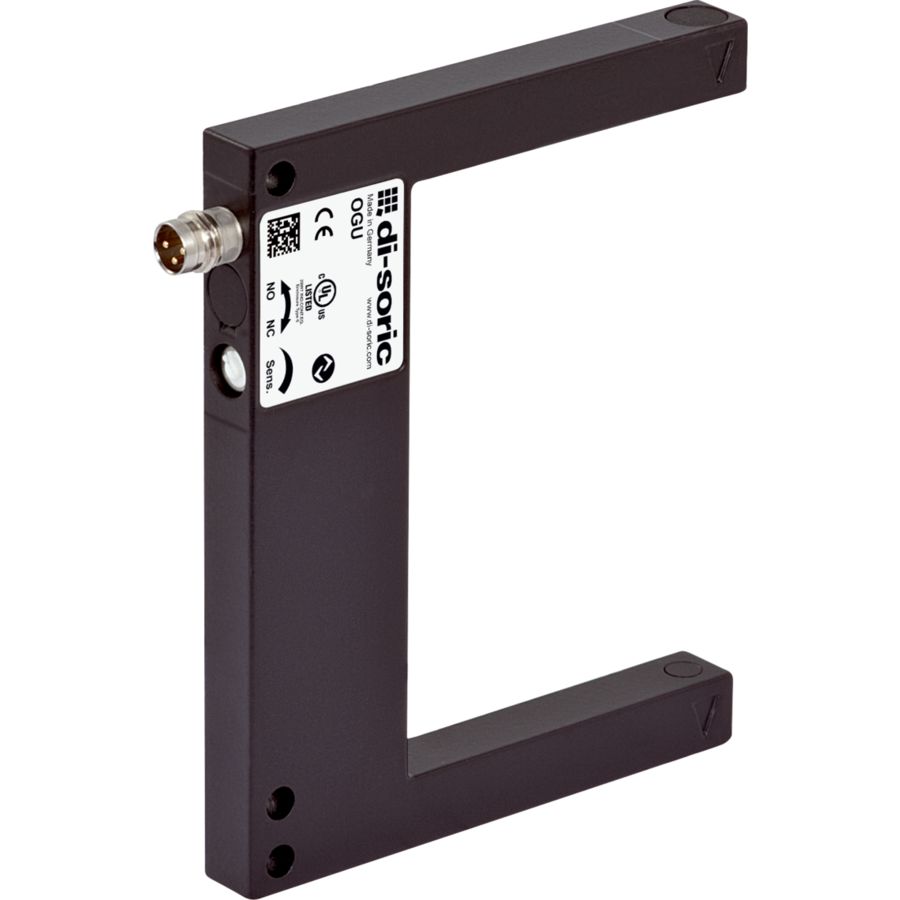

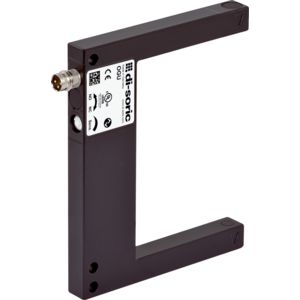

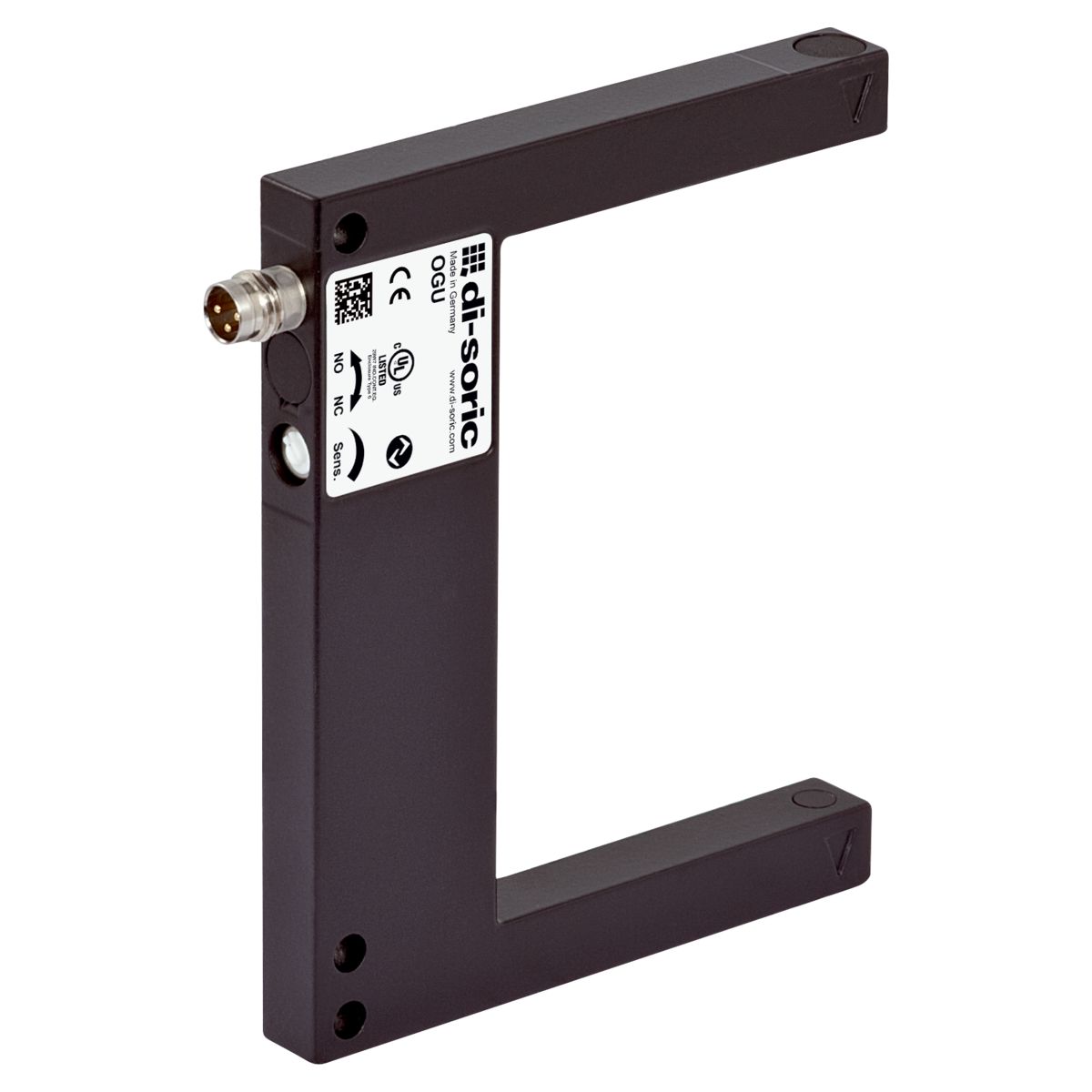

Fork Light Barrier - OGU 081 G3-T3

Part Number: OGU 081 G3-T3

Article Number: 210245

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Optical
Transmitter light source LED
Light color red
Fork opening 80 mm
Service voltage 10 … 30 V DC
No-load current (max.) 30 mA
Switching output Push-pull, 100 mA, NO/NC
Interface IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Housing material Die-cast zinc, Black (powder-coated)

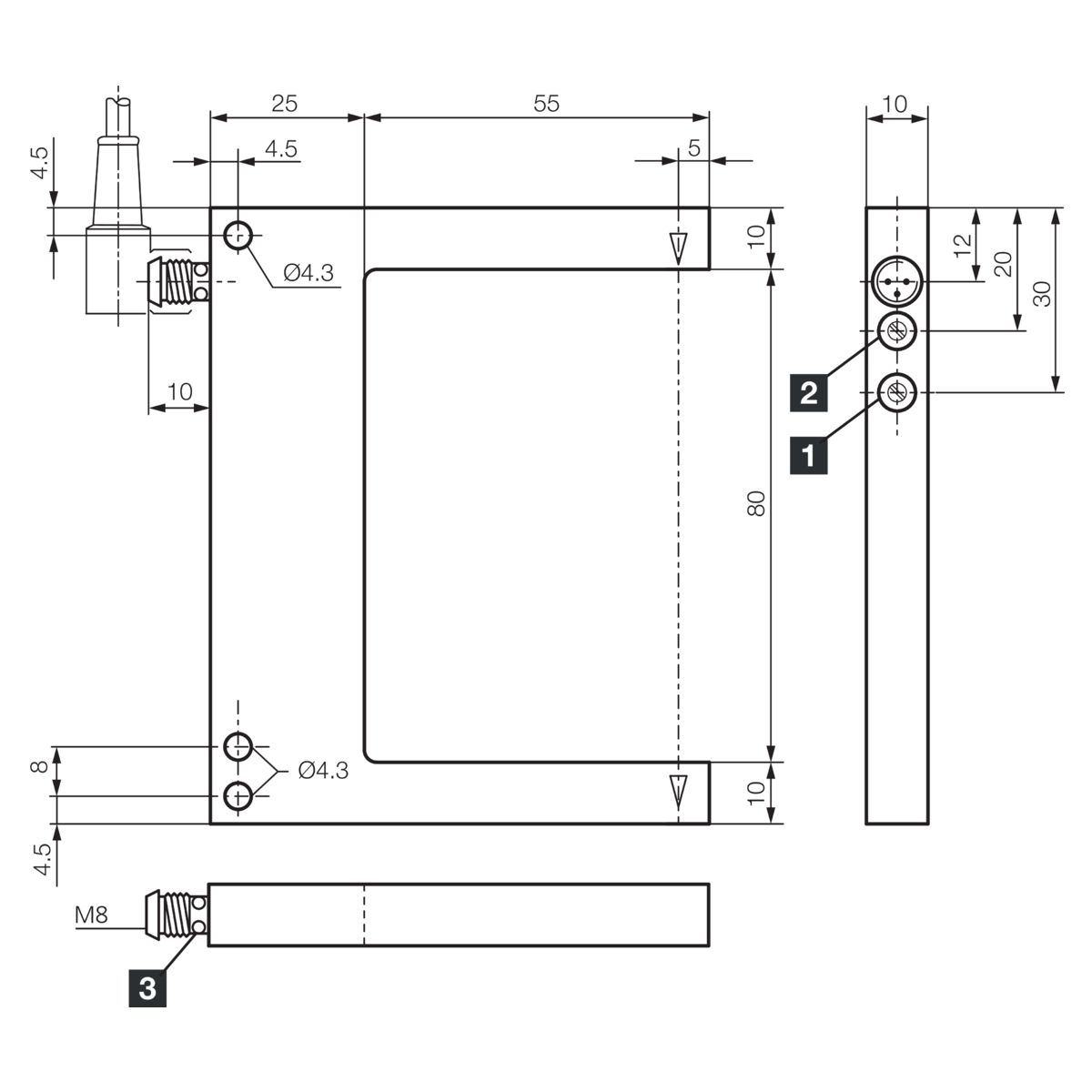

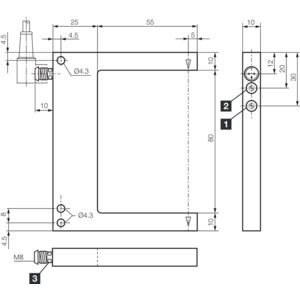

Size 100 x 80 x 10 mm
Ambient temperature during operation -25 … +60 °C
Connection Connector, M8, 3-pin
