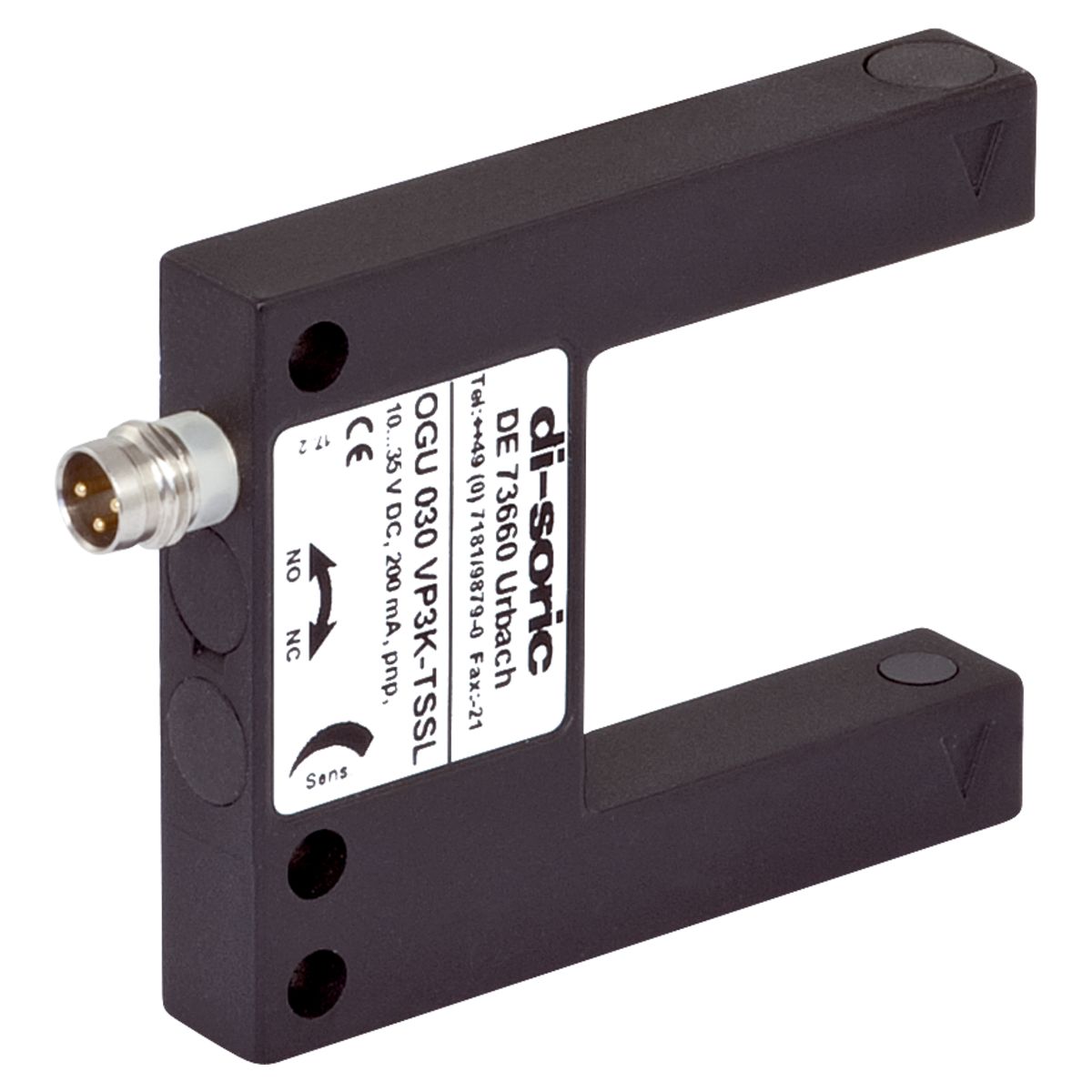

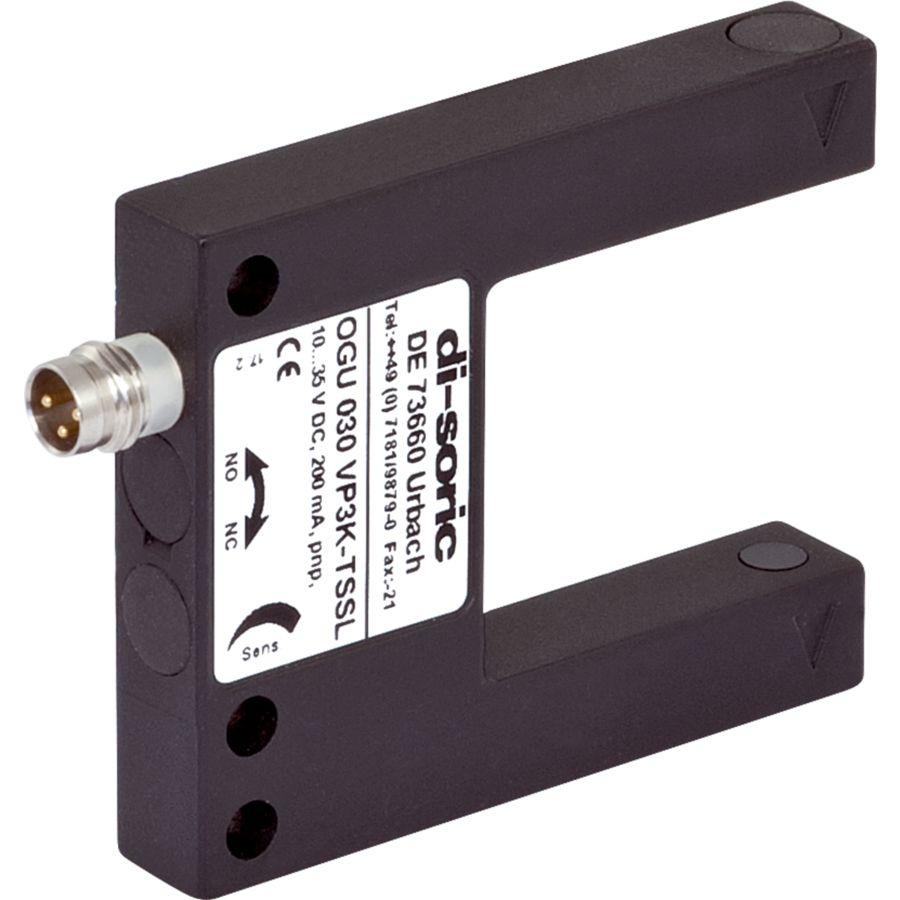

Fork Light Barrier - OGU 031 VP3K-TSSL

Part Number: OGU 031 VP3K-TSSL

Article Number: 201261

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Optical
Transmitter light source LED
Light color red
Fork opening 30 mm
Service voltage 10 … 35 V DC (Supply Class 2)
No-load current (max.) 30 mA
Switching output pnp, 200 mA, NO/NC
Housing material Die-cast zinc, Black (powder-coated)

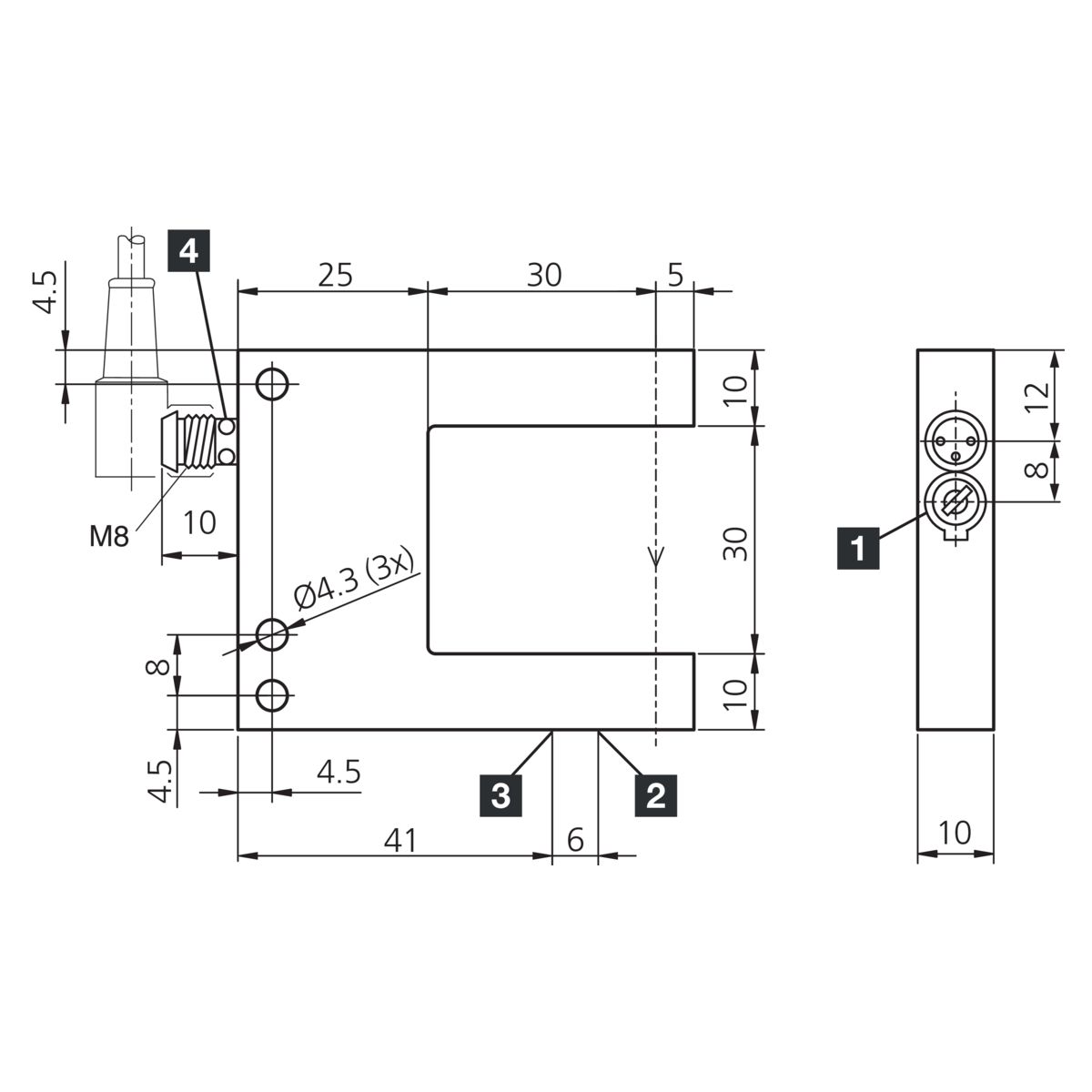

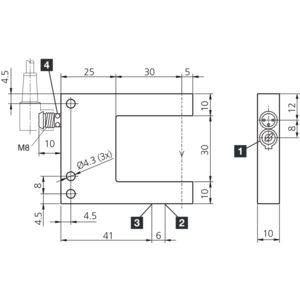

Size 50 x 60 x 10 mm
Ambient temperature during operation -10 … +60 °C
Connection Connector, M8, 3-pin
