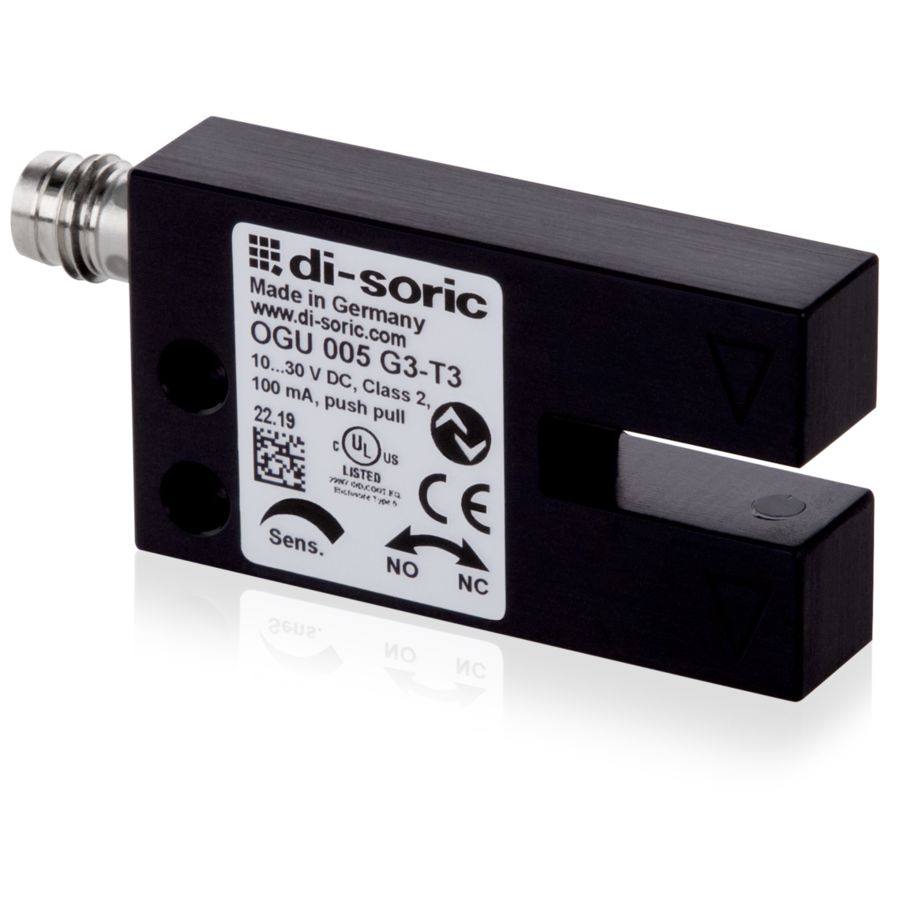

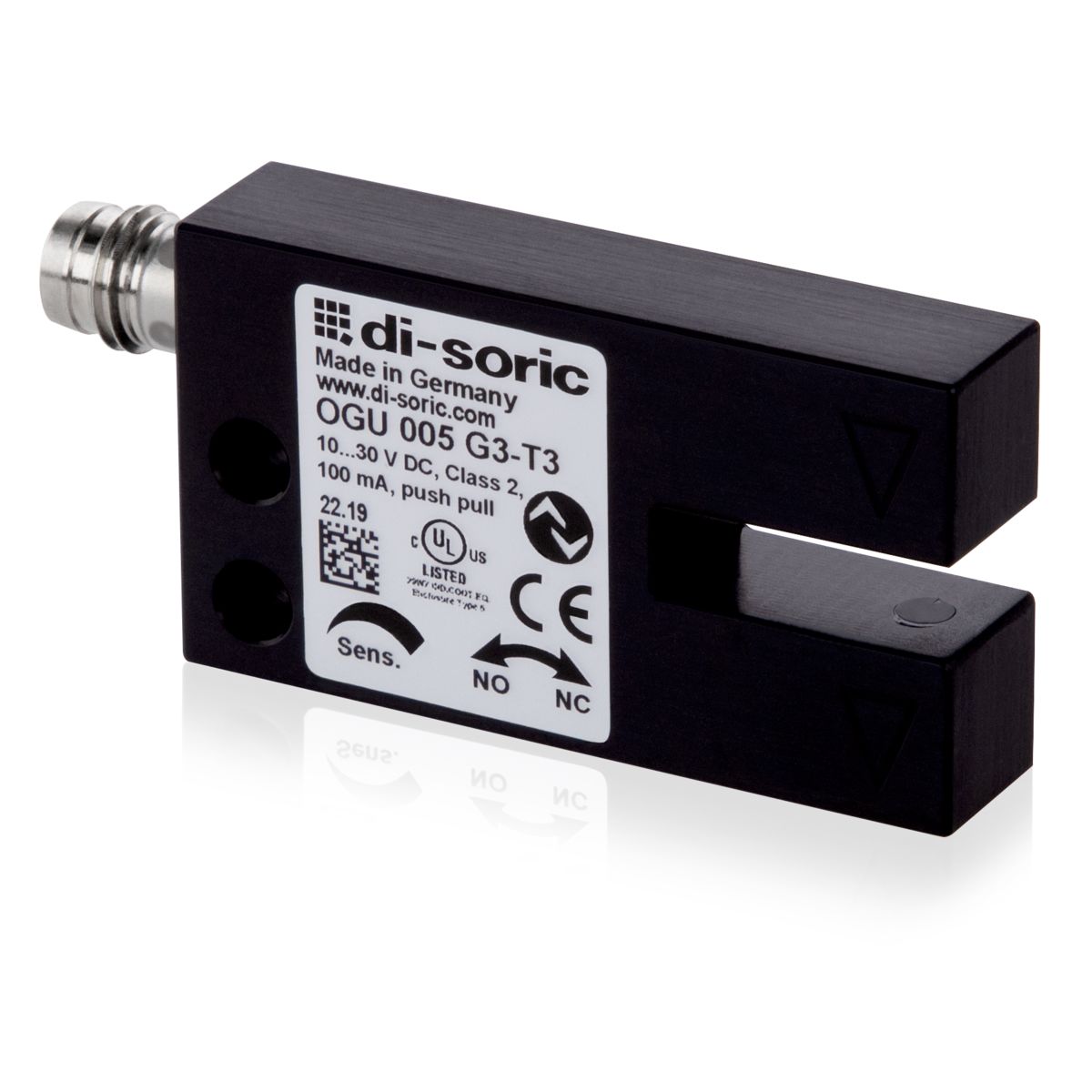

Fork Light Barrier - OGU 005 G3-T3

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Optical
Transmitter light source	LED
Light color	Infrared
Fork opening	5 mm
Service voltage	10 … 30 V DC (Supply Class 2)
No-load current (max.)	30 mA
Switching output	Push-pull, 100 mA, NO/NC
Interface	IO-Link
Housing material	Aluminum, Black (painted)

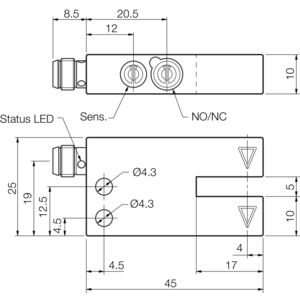

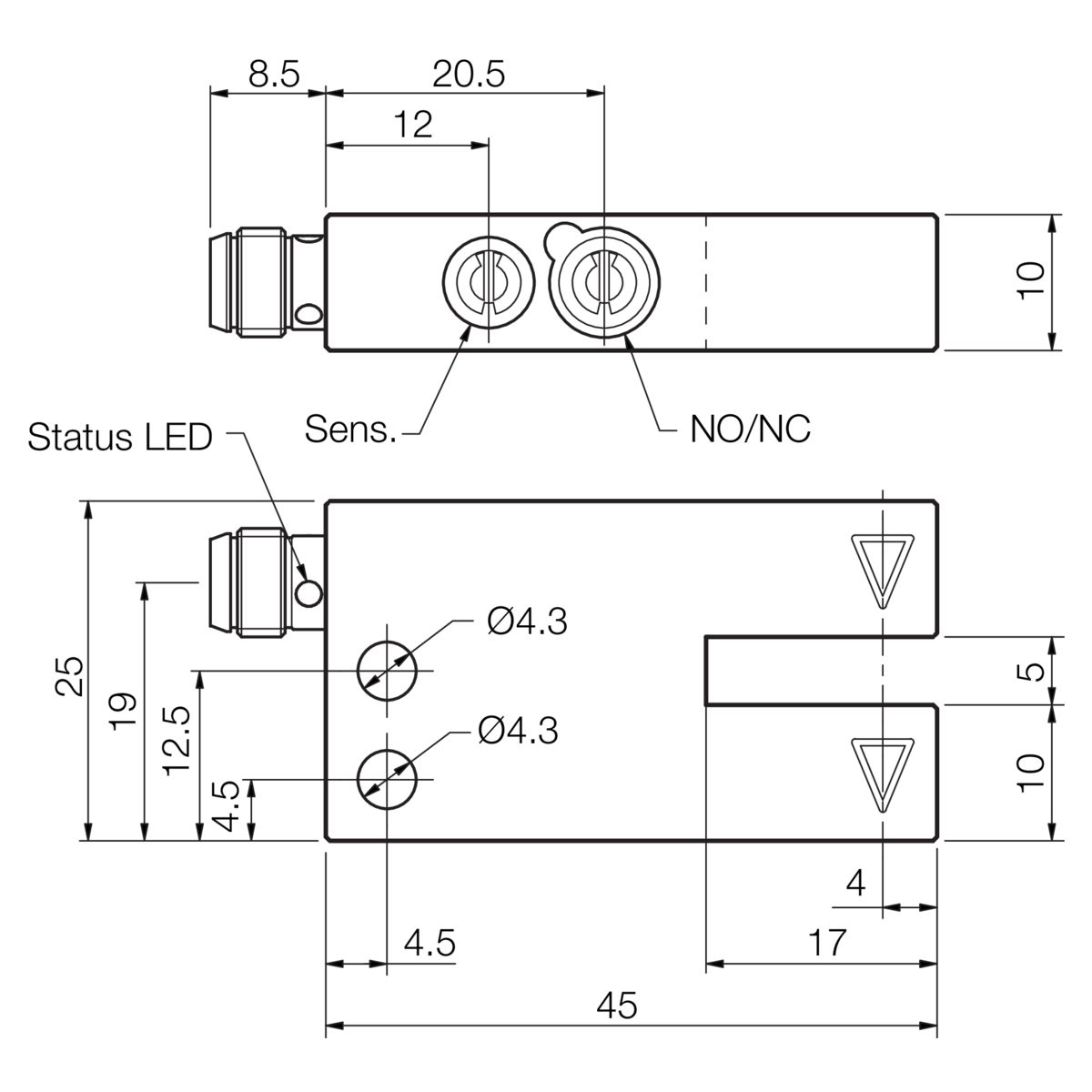

Size	25 x 45 x 10 mm
Ambient temperature during operation	-25 … +60 °C
Connection	Connector, M8, 3-pin
