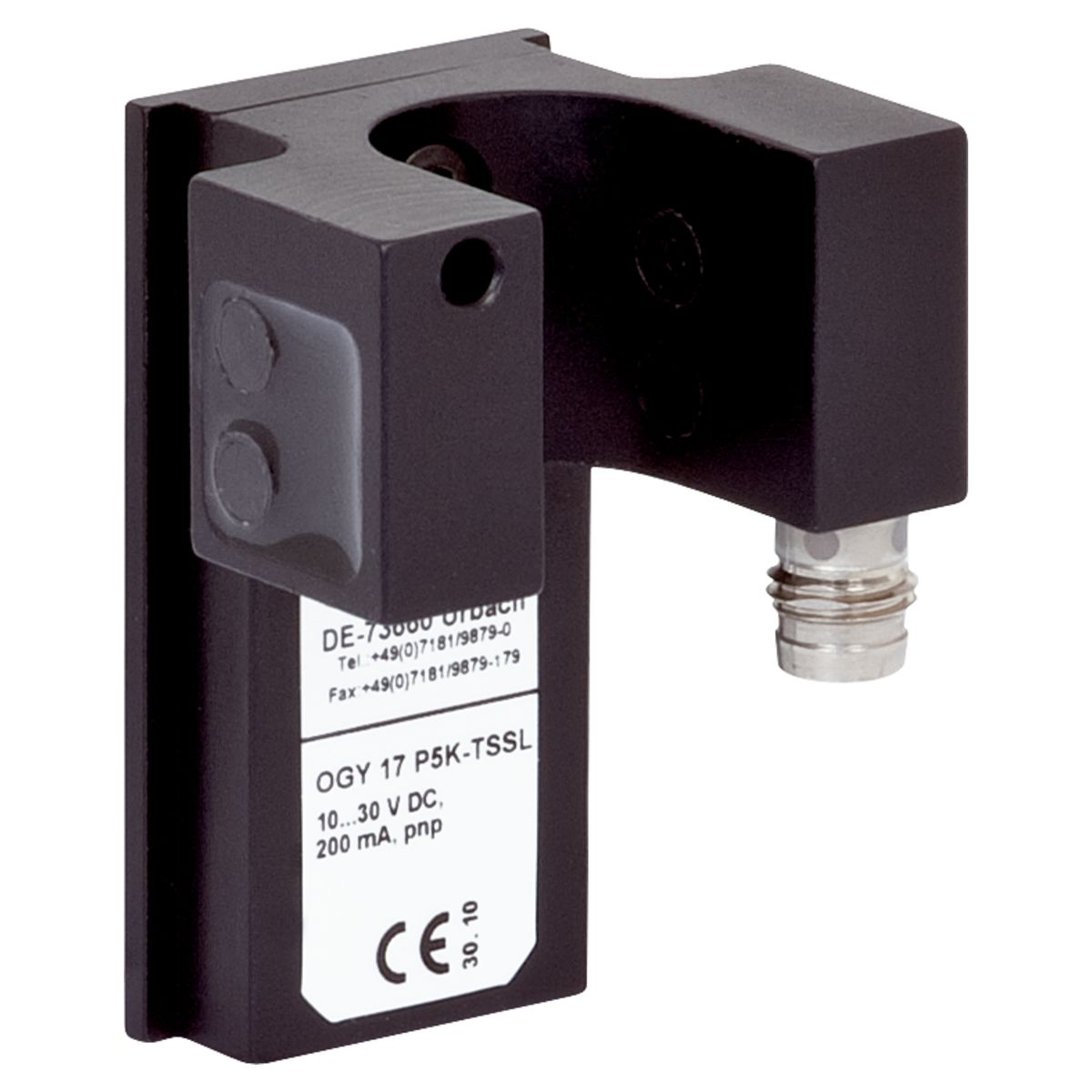

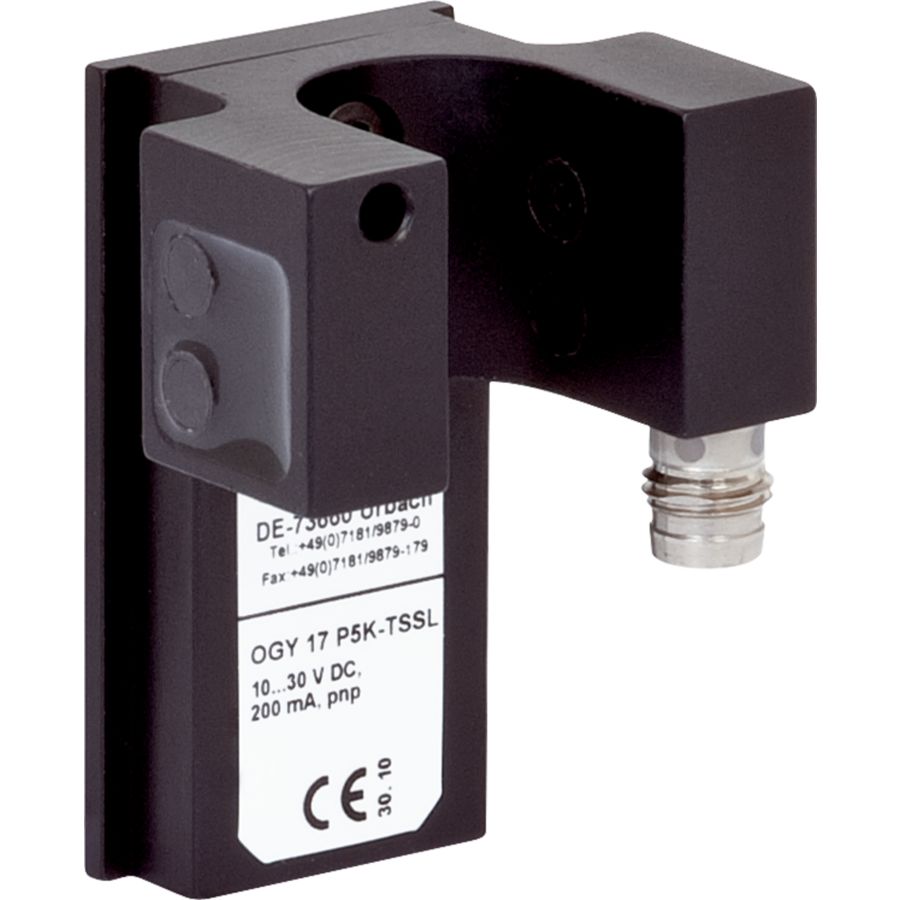

Fork Light Barrier For Flow Meter Control - OGY 17 P5K-TSSL

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Optical
Transmitter light source	LED
Light color	red / 660 nm
Fork opening	17 mm
Service voltage	10 … 30 V DC
No-load current (max.)	30 mA
Switching output	pnp, 200 mA, NO
Housing material	Aluminum, Black (Anodized)

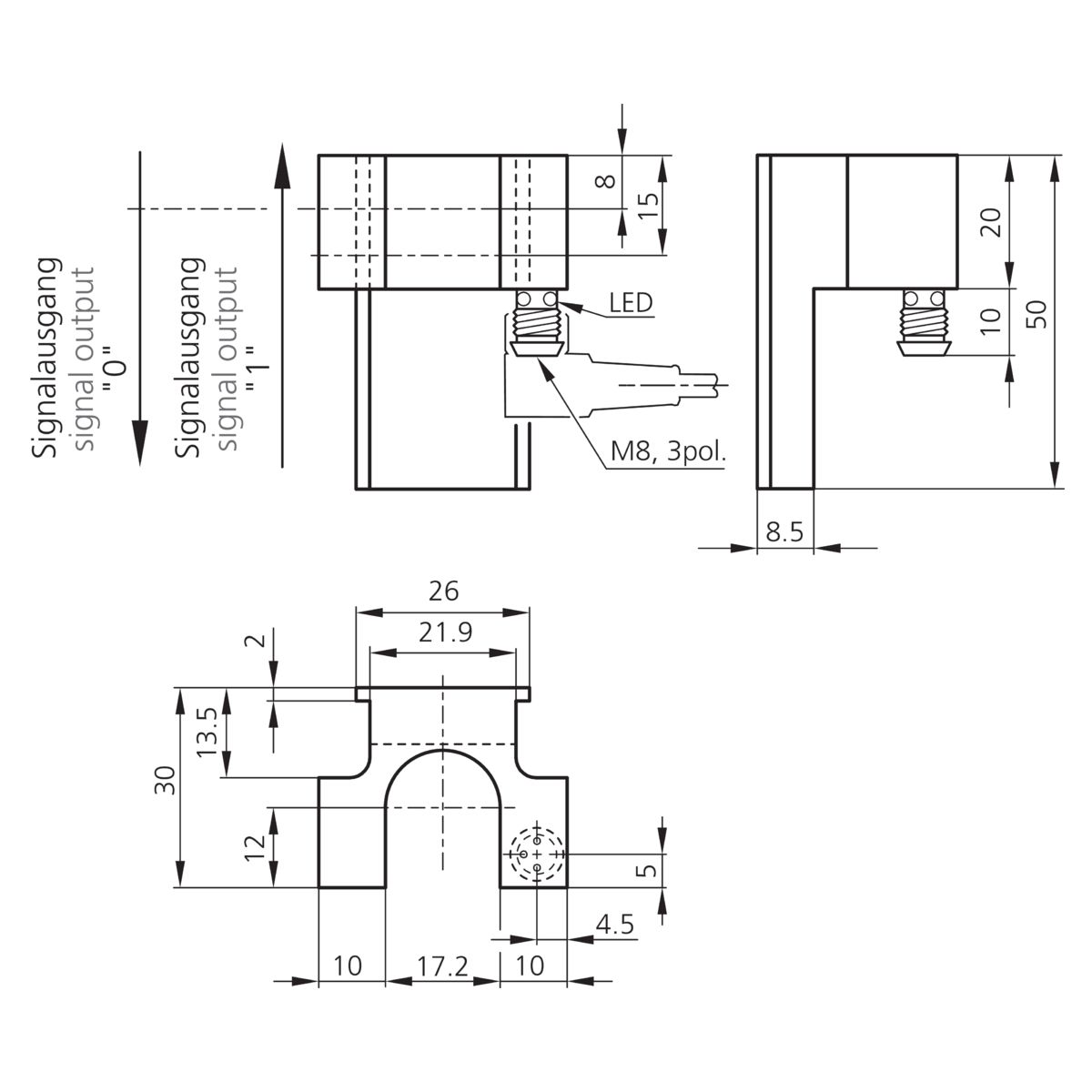

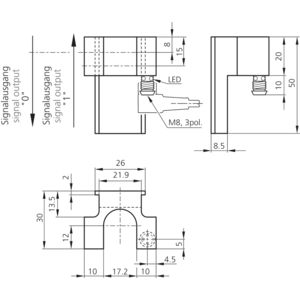

Size	37 x 50 x 30 mm
Ambient temperature during operation	-10 … +60 °C
Connection	Connector, M8, 3-pin
