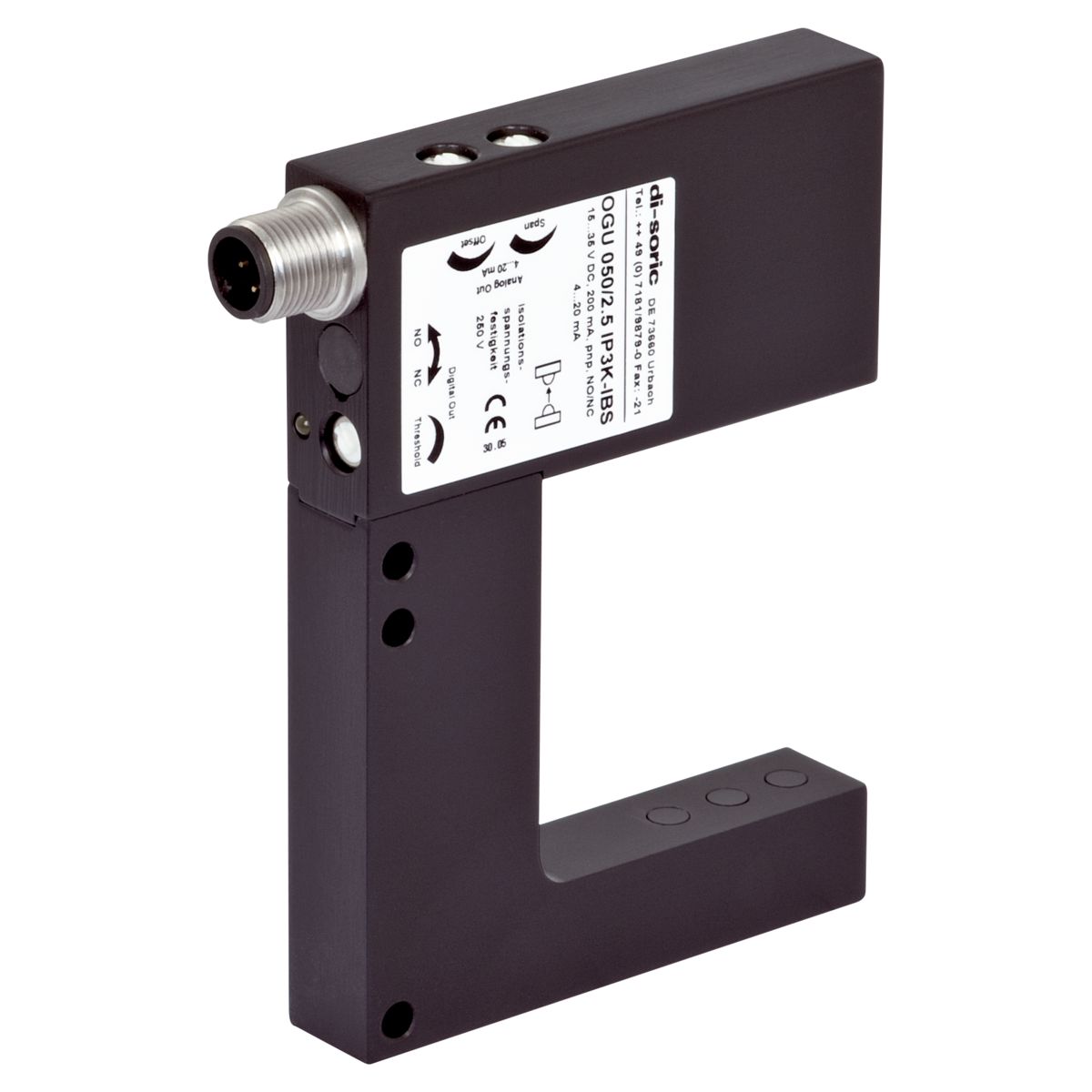

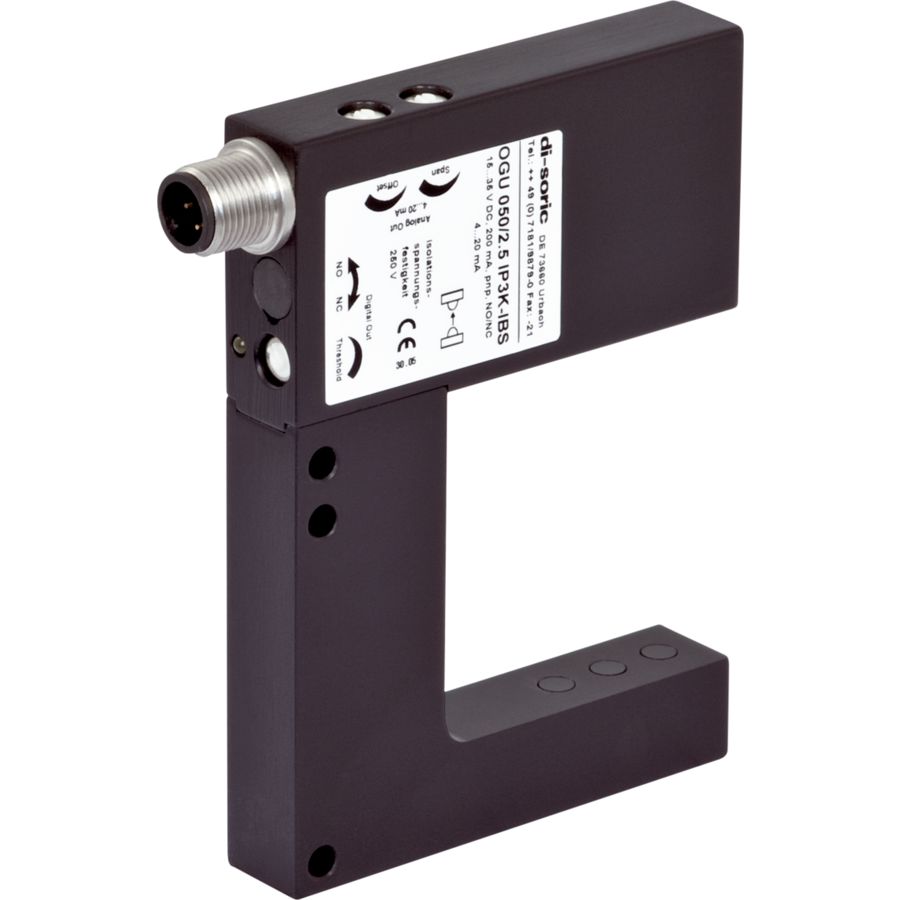

Fork Light Barrier, Analog - OGU 050/20 IP3K-IBS

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Optical
Transmitter light source	LED
Light color	Infrared
Fork opening	50 mm
Service voltage	15 … 35 V DC (Supply Class 2)
No-load current (max.)	80 mA
Switching output	pnp, 200 mA, NO/NC
Analog output current	4 … 20 mA
Housing material	Aluminum, Black (Anodized)

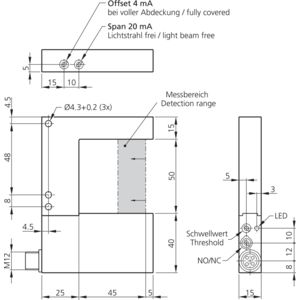

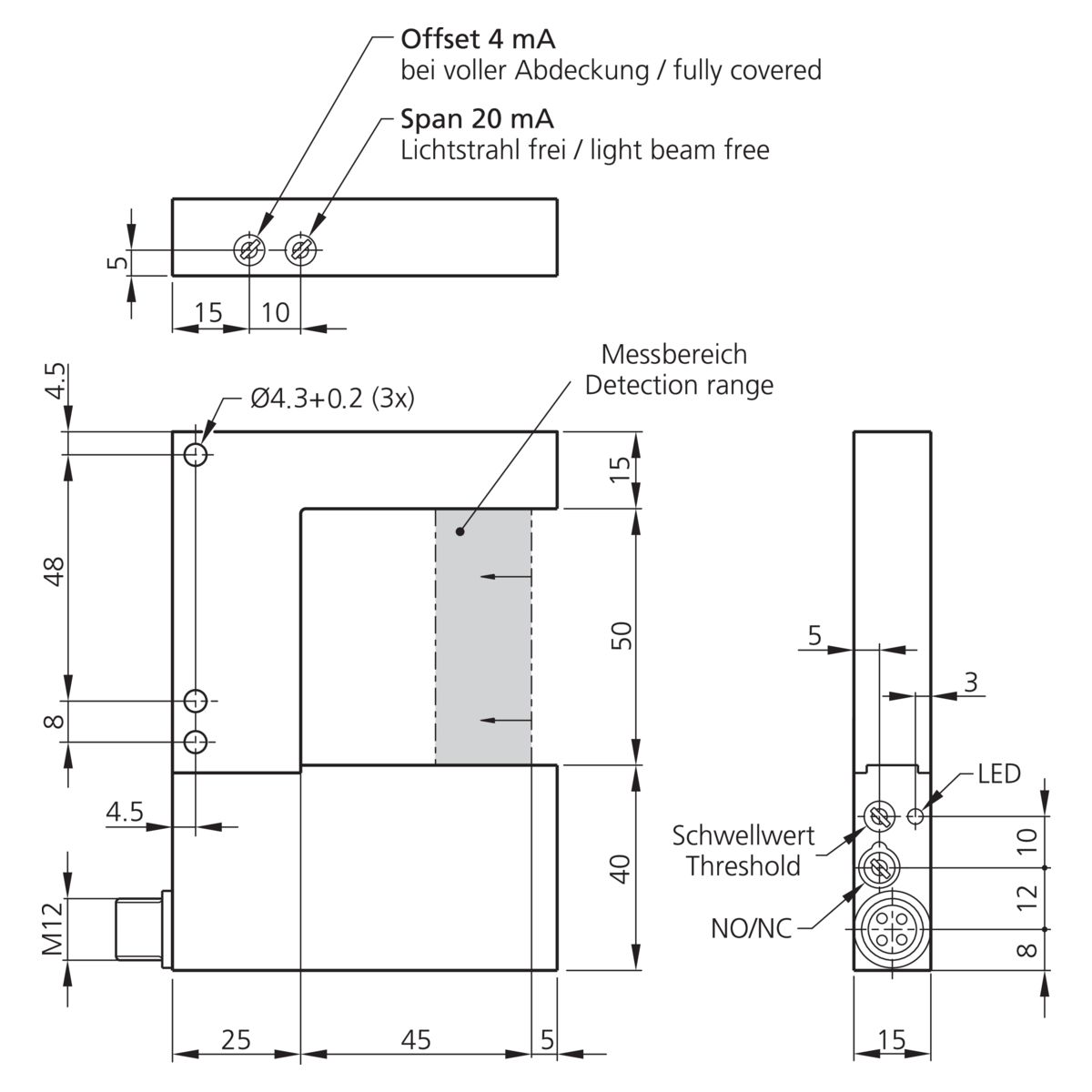

Size	105 x 75 x 15 mm
Ambient temperature during operation	+5 … +50 °C

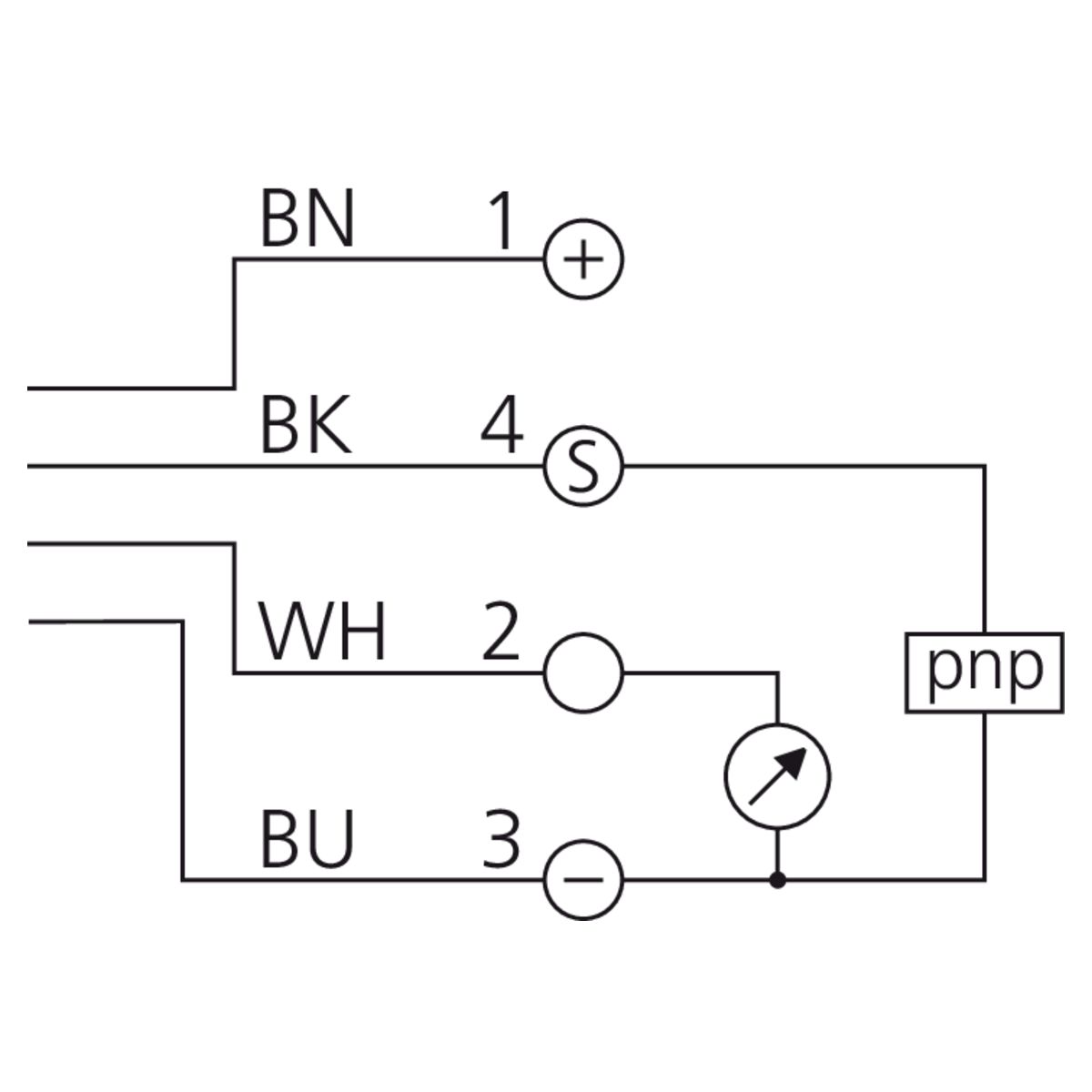

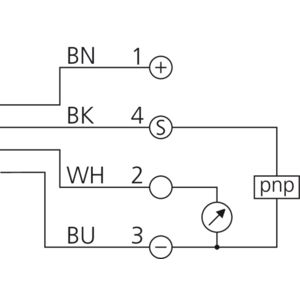

Connection	Connector, M12, 4-pin
