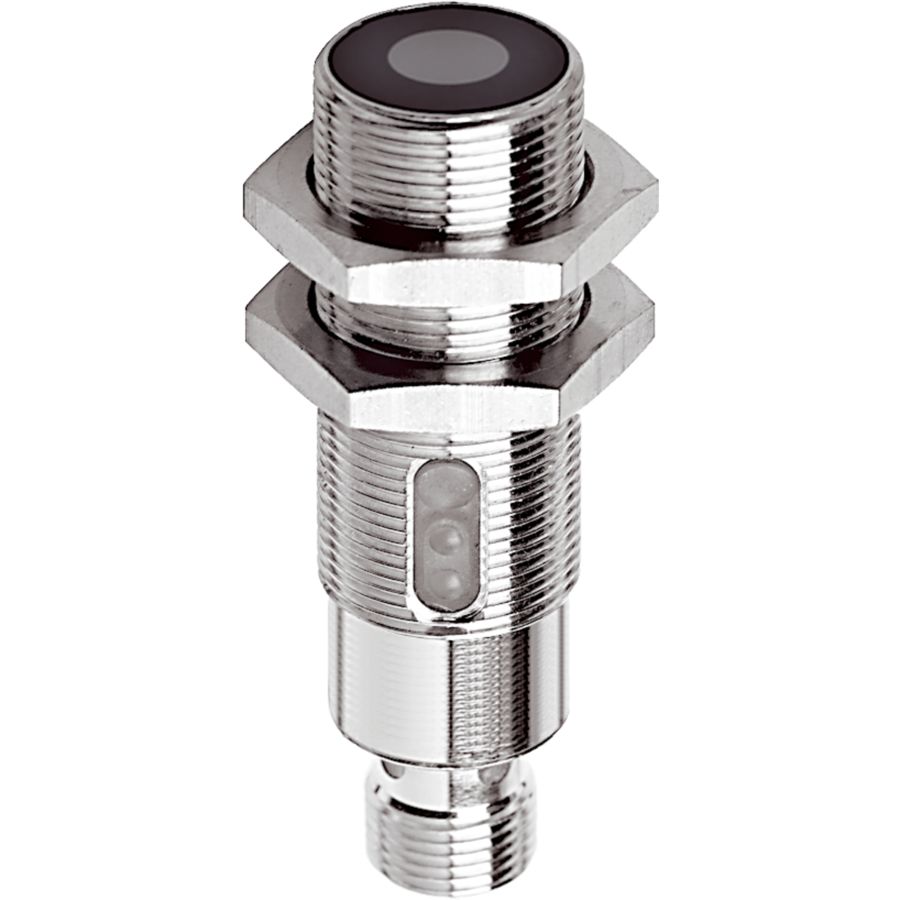

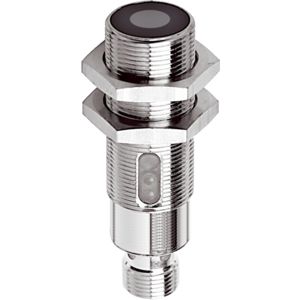

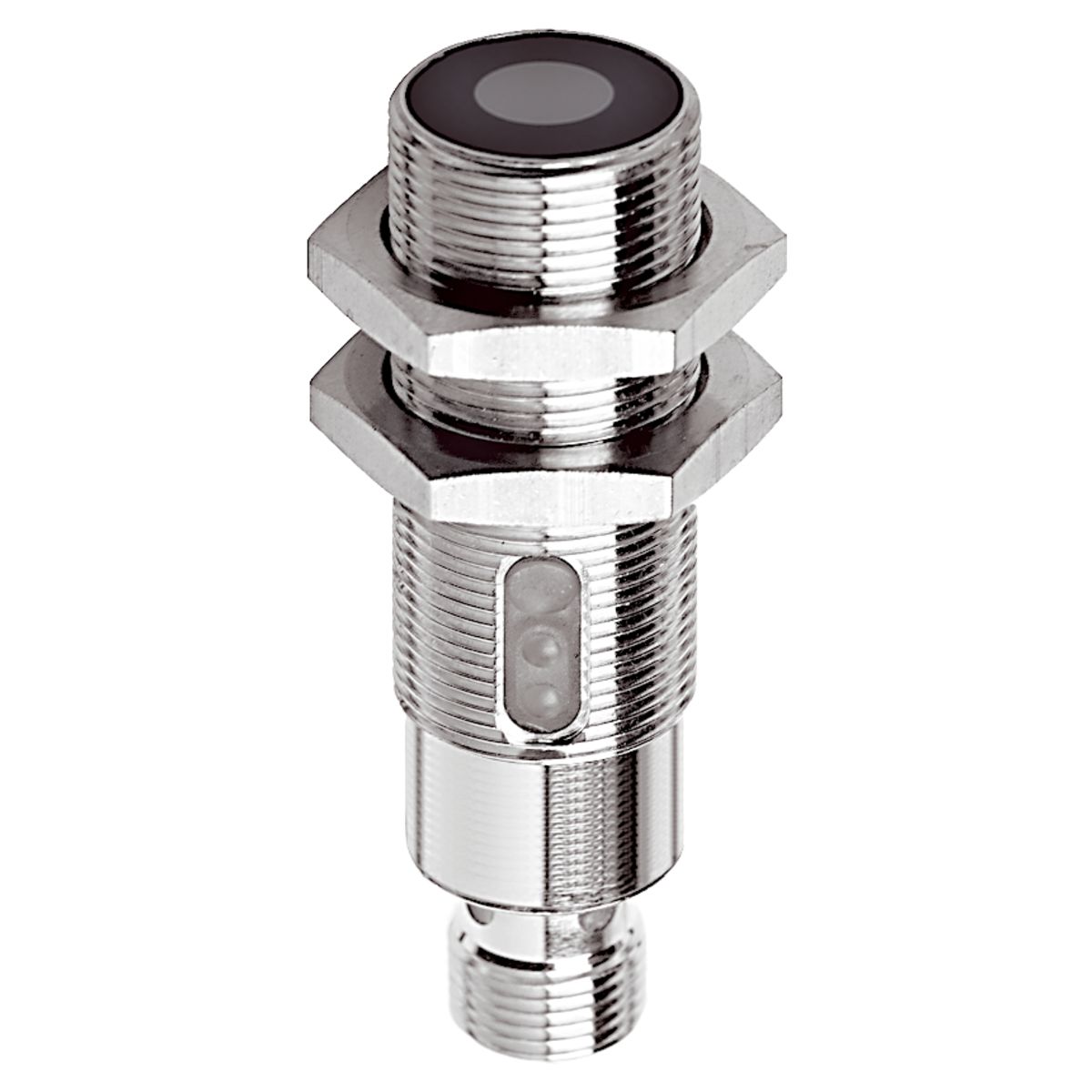

Diffuse Sensor With Background Suppression - OHT 18 M 120 P1K-IBSL

Part Number: OHT 18 M 120 P1K-IBSL

Article Number: 201418

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Diffuse sensor
Transmitter light source LED
Light color red / 660 nm
Scanning range 10 … 120 mm
Service voltage 10 … 35 V DC
Switching output pnp, 200 mA, NO
Ambient temperature during operation -25 … +55 °C
Protection class III, operation on protective low voltage
Connection Connector, M12, 4-pin
