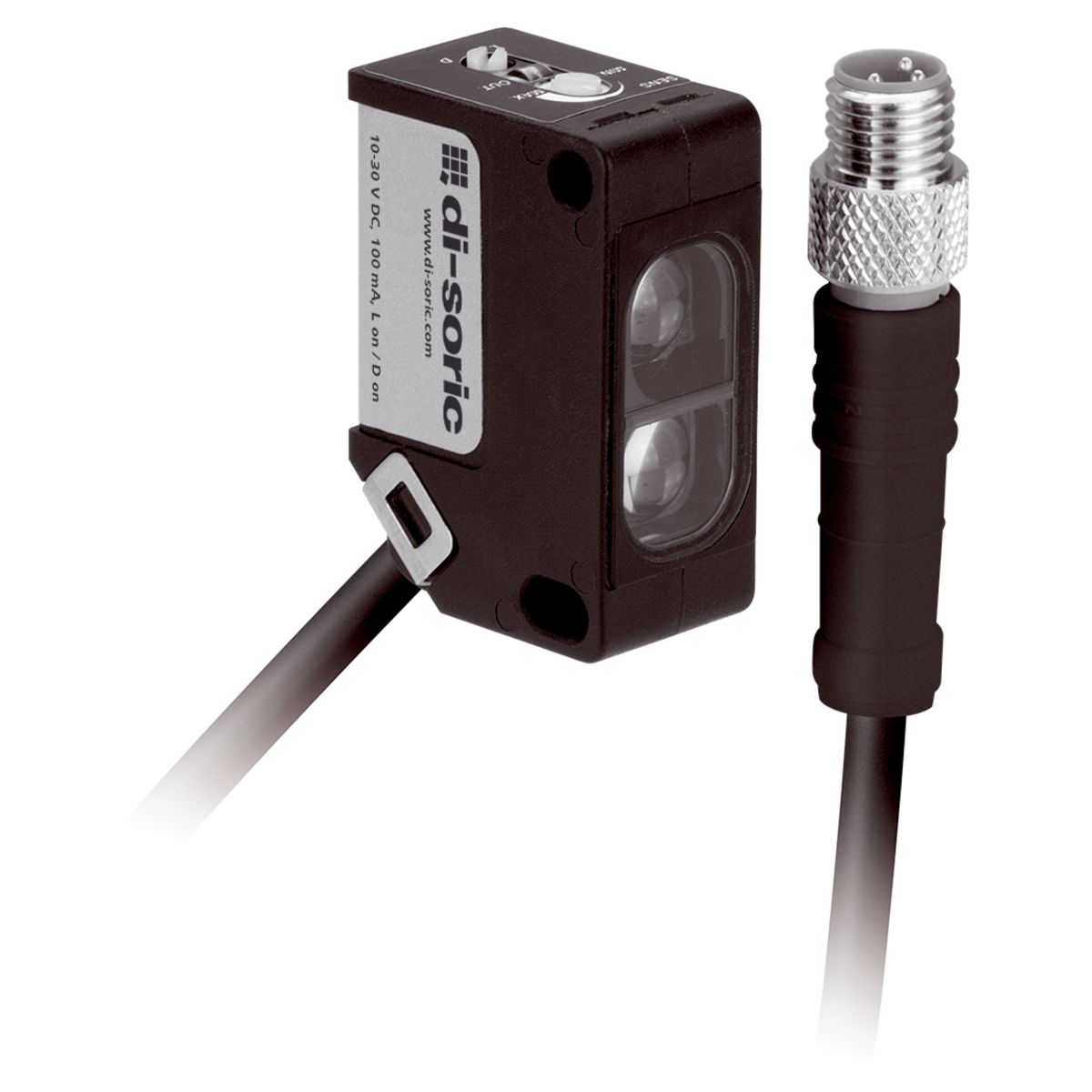

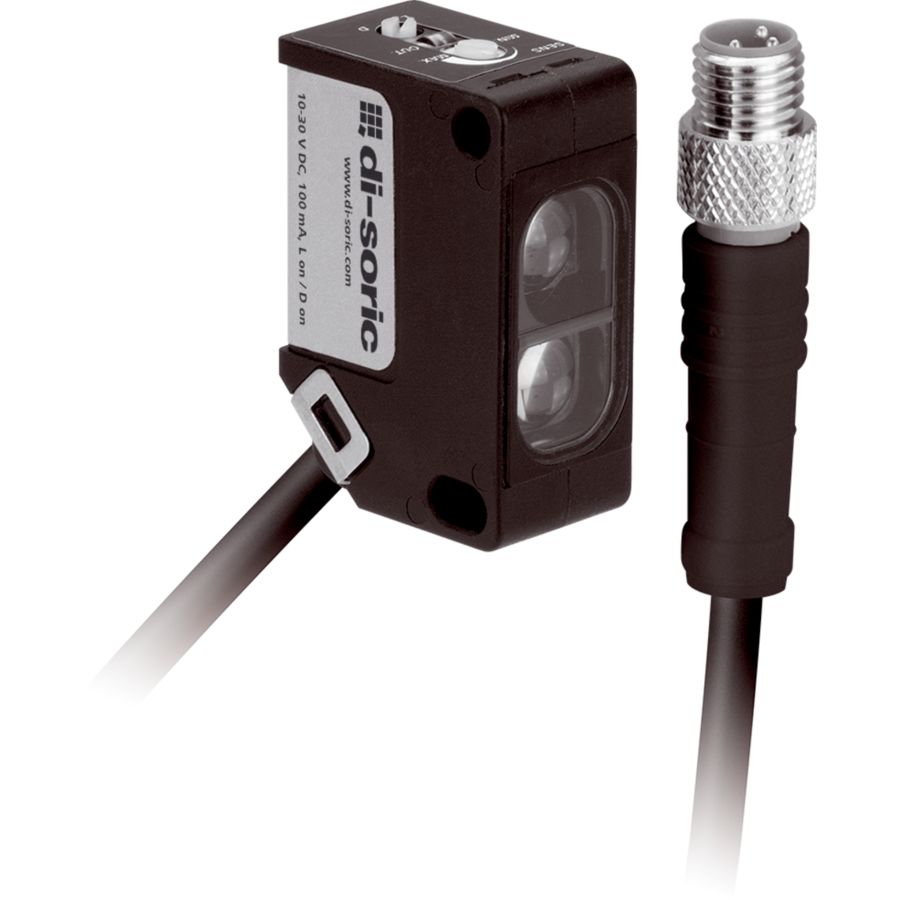

Diffuse Sensor With Background Suppression - OH 31 K 200 P3-K-T3

Part Number: OH 31 K 200 P3-K-T3

Article Number: 209228

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Diffuse sensor with background suppression
Transmitter light source LED
Light color red / 630 nm
Scanning range 30 … 200 mm
Service voltage 10 … 30 V DC

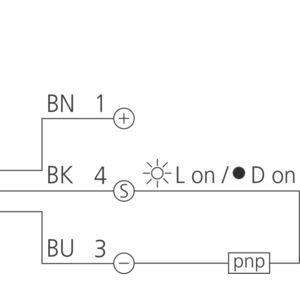

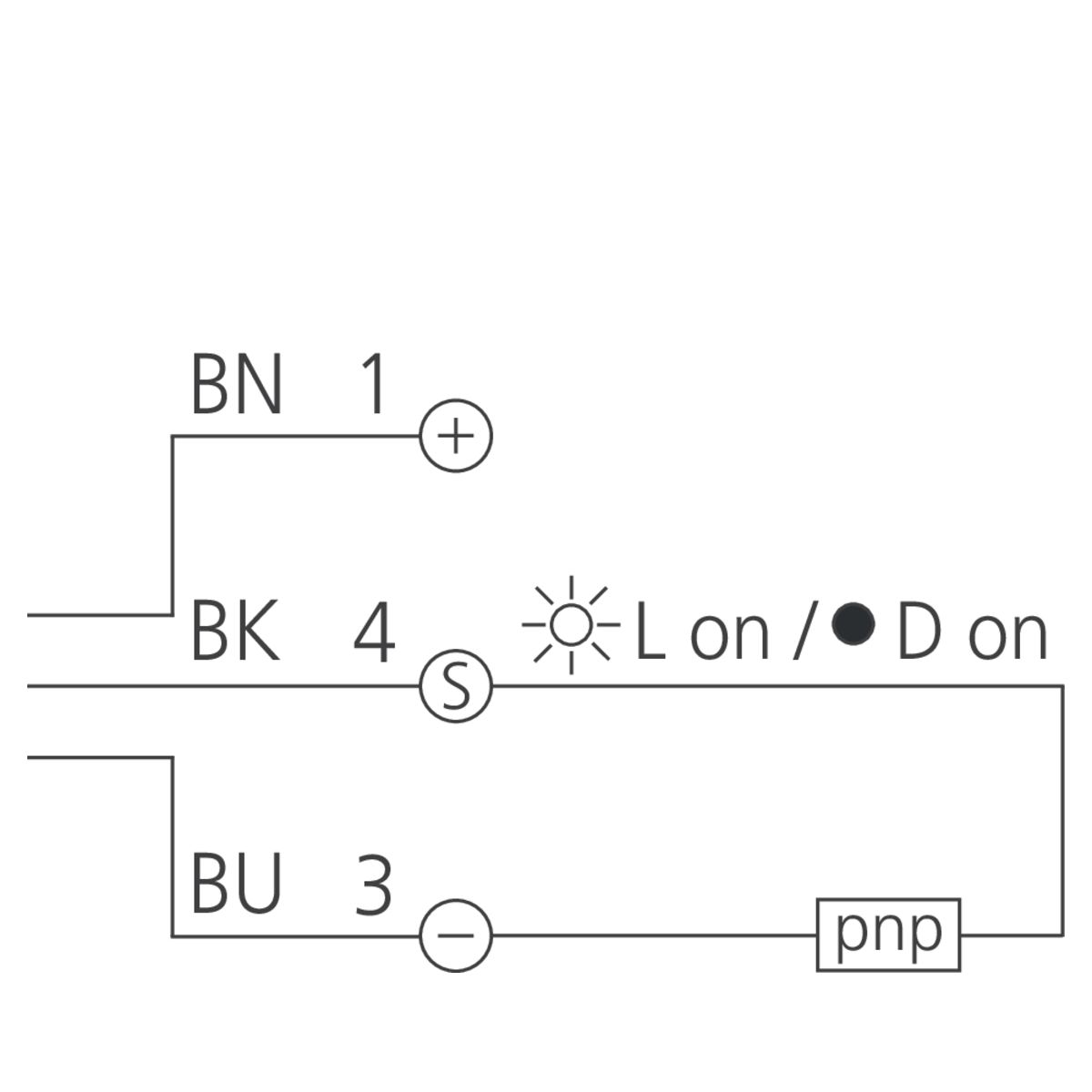

Switching output pnp, 100 mA, NO/NC
Ambient temperature during operation -25 … +70 °C
Protection class III, operation on protective low voltage
Connection Cable, Connector, 0,2 m, M8, 3-pin
