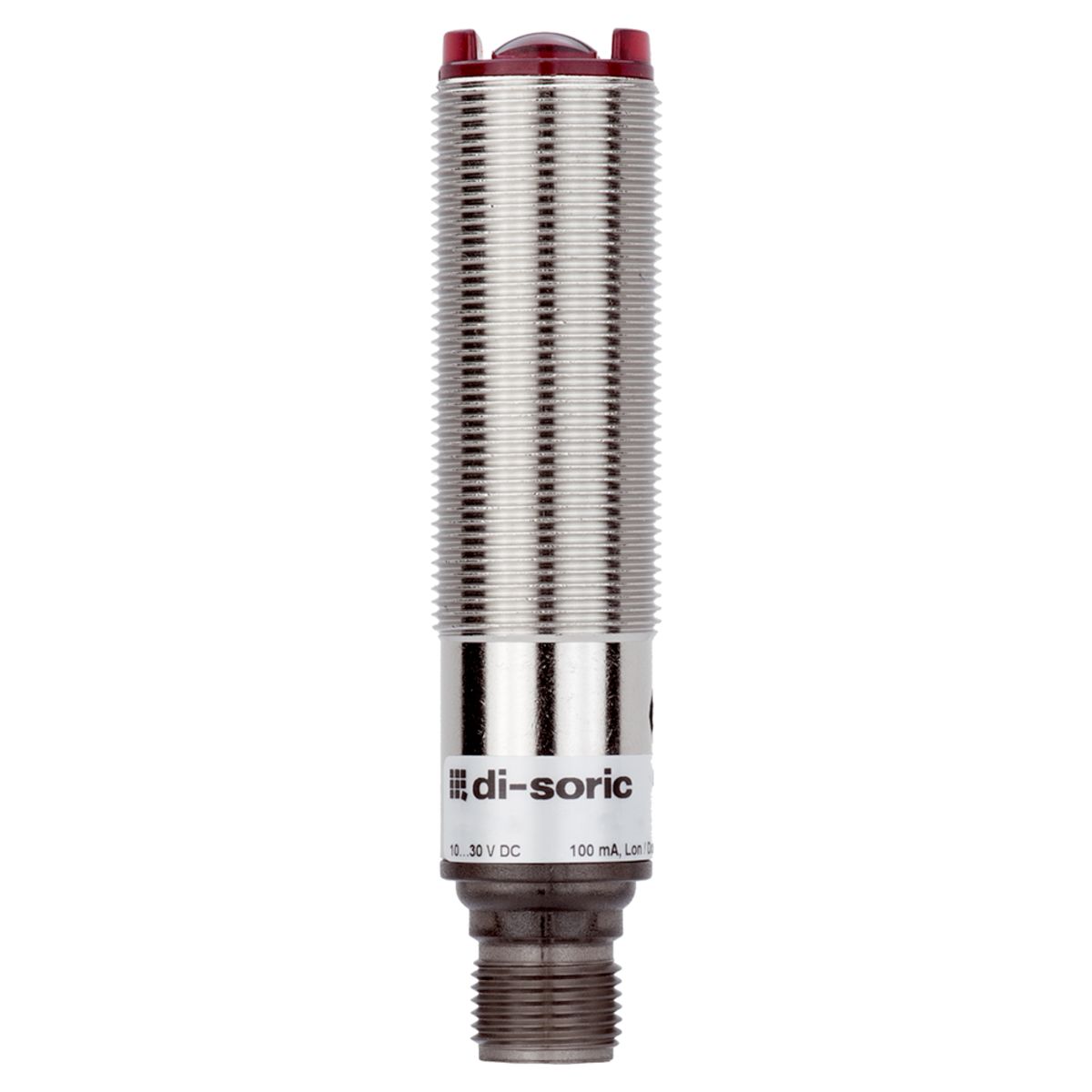

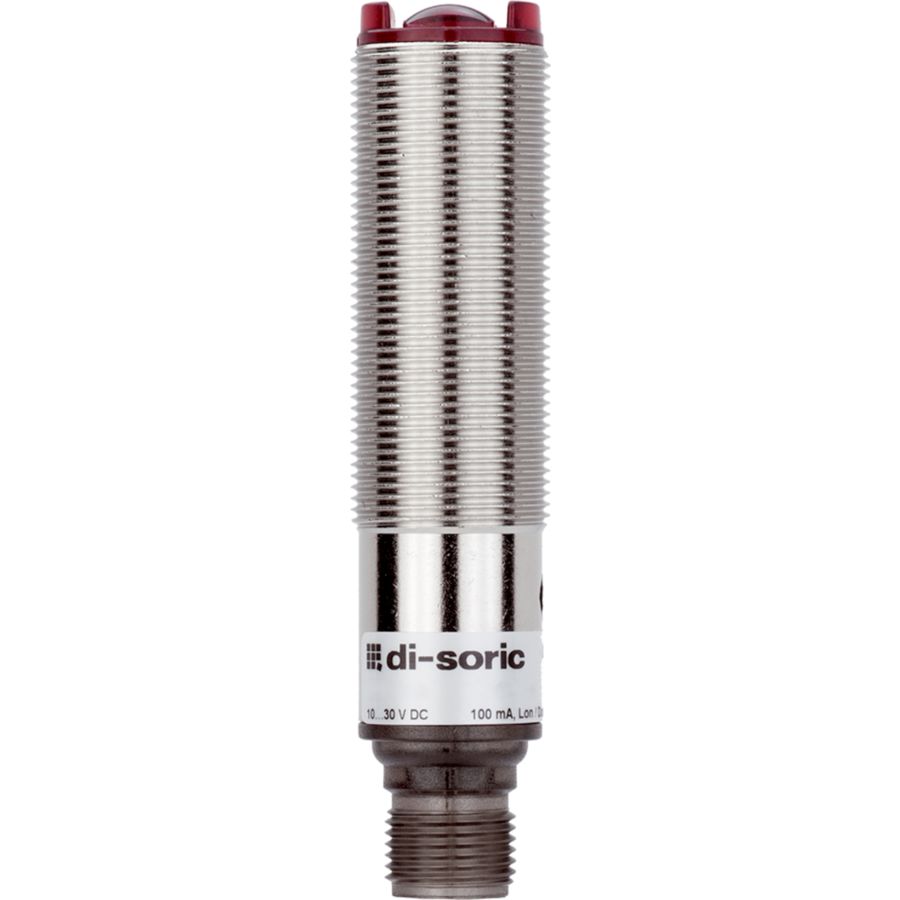

Diffuse Sensor With Background Suppression - OH 18-1 M 130 N4-B4

Part Number: OH 18-1 M 130 N4-B4

Article Number: 208323

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Diffuse sensor
Transmitter light source LED
Light color red / 660 nm
Scanning range 30 … 130 mm
Service voltage 10 … 30 V DC
Switching output npn, 100 mA, antivalent
Ambient temperature during operation -25 … +70 °C
Protection class III, operation on protective low voltage

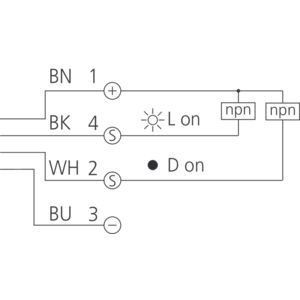

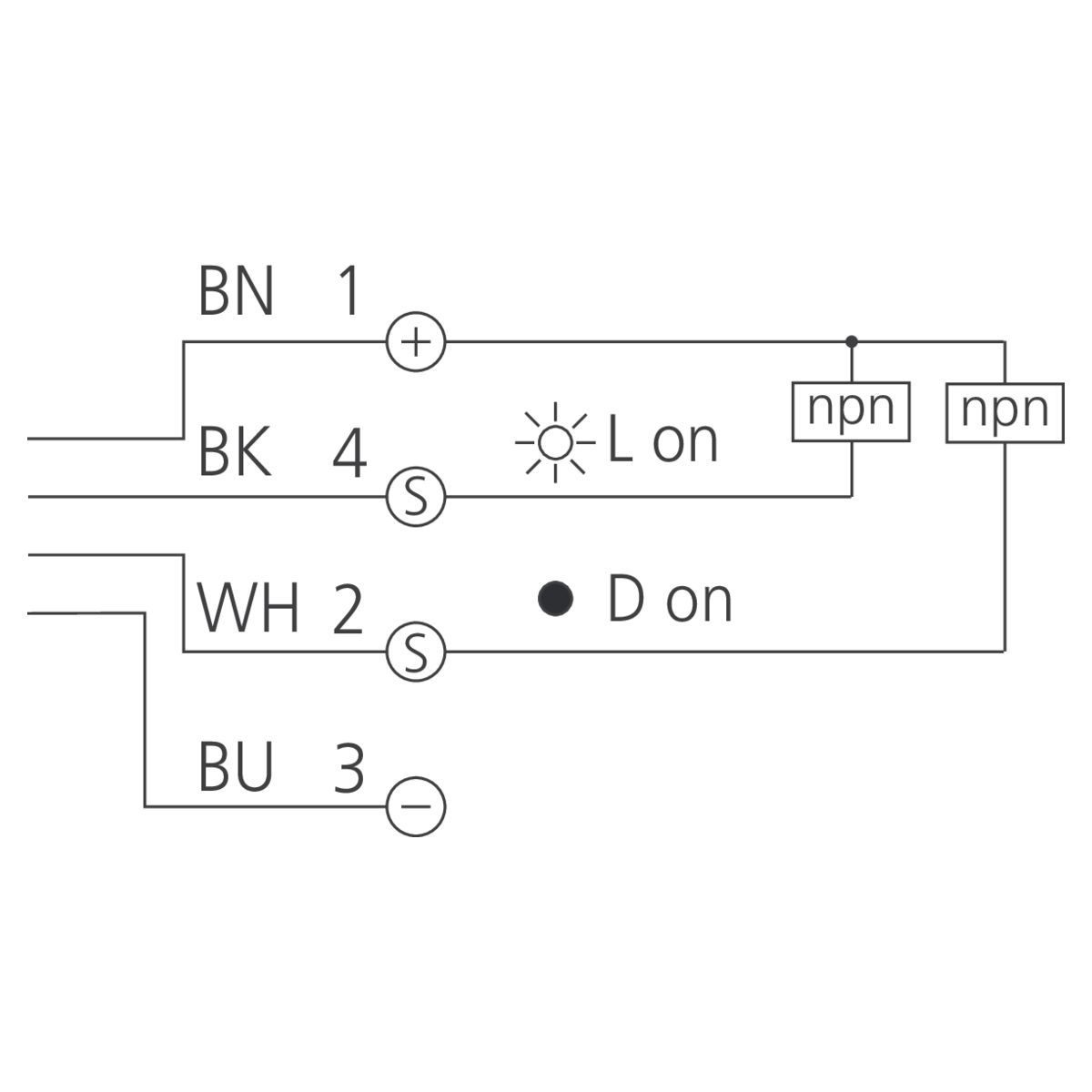

Connection Connector, M12, 4-pin
