Diffuse Sensor - OTT 41 M 1 FG3-T4

Part Number: OTT 41 M 1 FG3-T4

Article Number: 206976

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Diffuse sensor
Transmitter light source LED
Light color red / 630 nm
Scanning range 100 … 1.000 mm
Service voltage 10 … 30 V DC
Switching output Push-pull, 200 mA, NO/NC
Ambient temperature during operation -20 … +60 °C
Protection class III, operation on protective low voltage

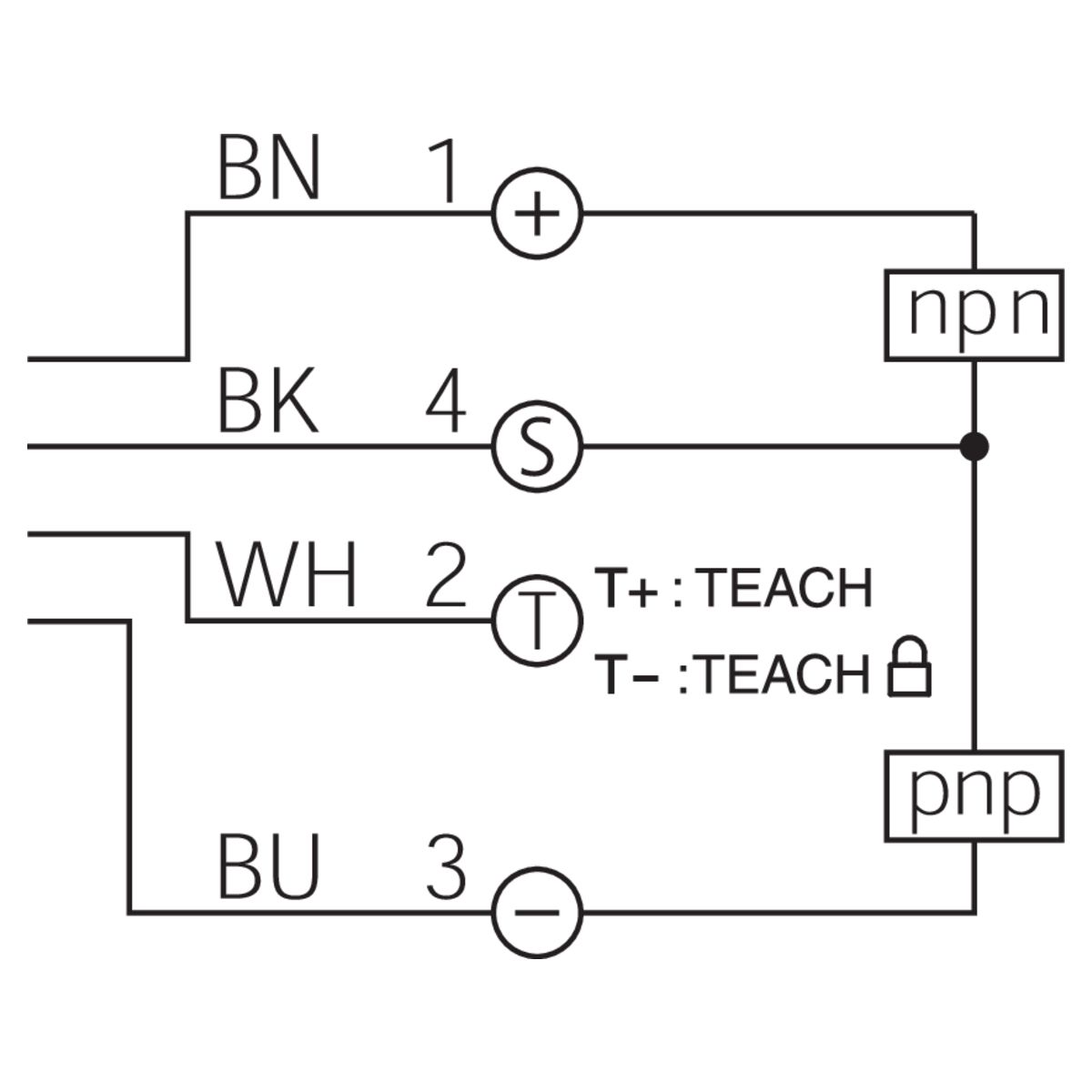

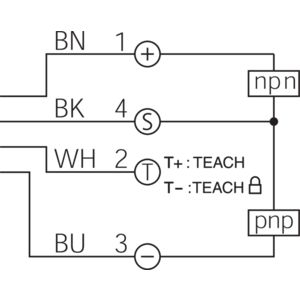

Connection Connector, M8, 4-pin
