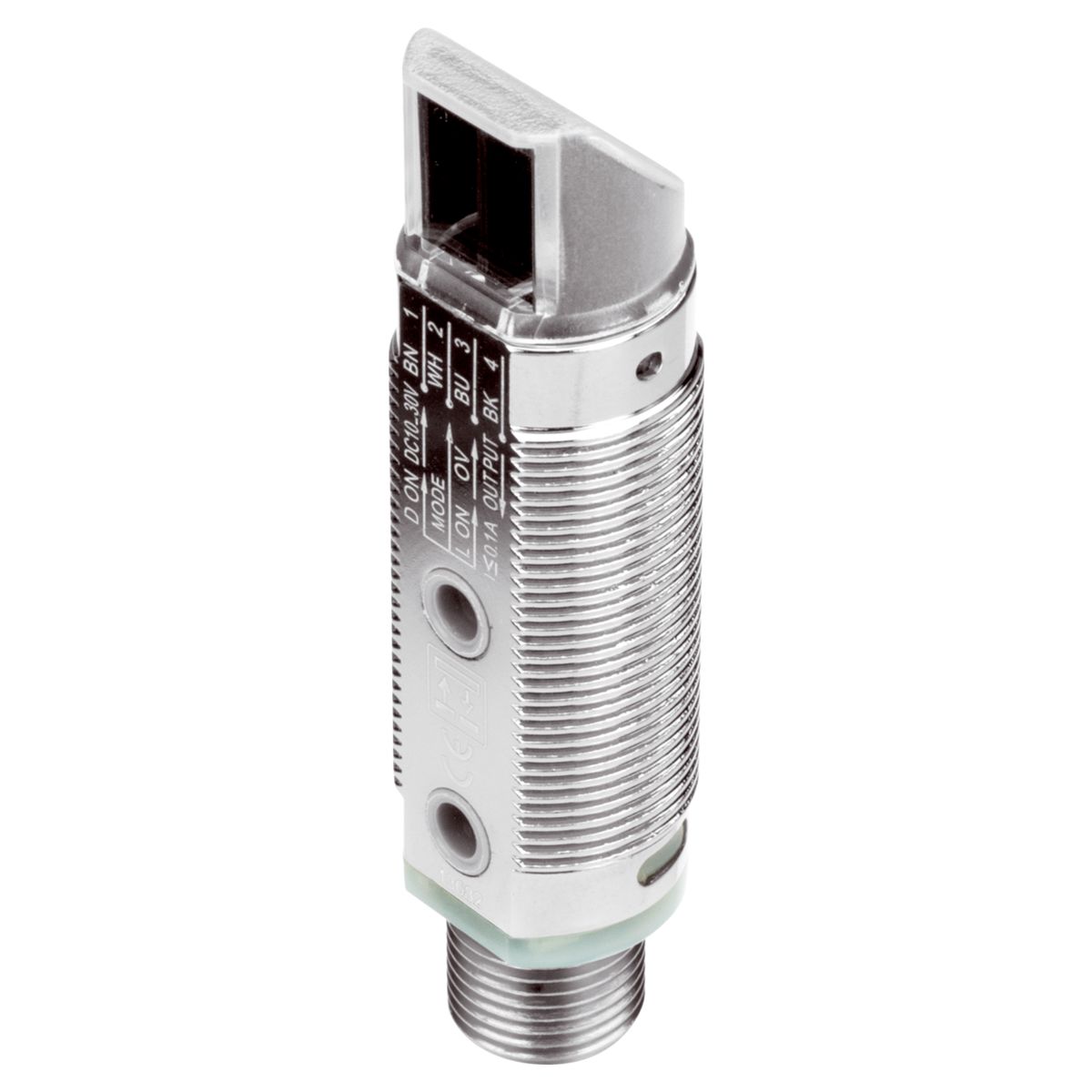

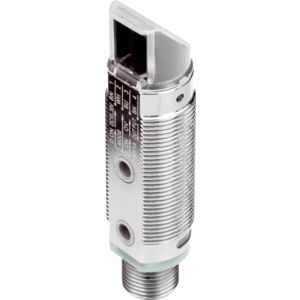

Diffuse Sensor - OT 18 FMR 600 P3-B4

Part Number: OT 18 FMR 600 P3-B4

Article Number: 207934

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Operating principle Diffuse sensor
Transmitter light source LED
Light color Infrared / 880 nm
Scanning range 600 mm
Service voltage 10 … 30 V DC

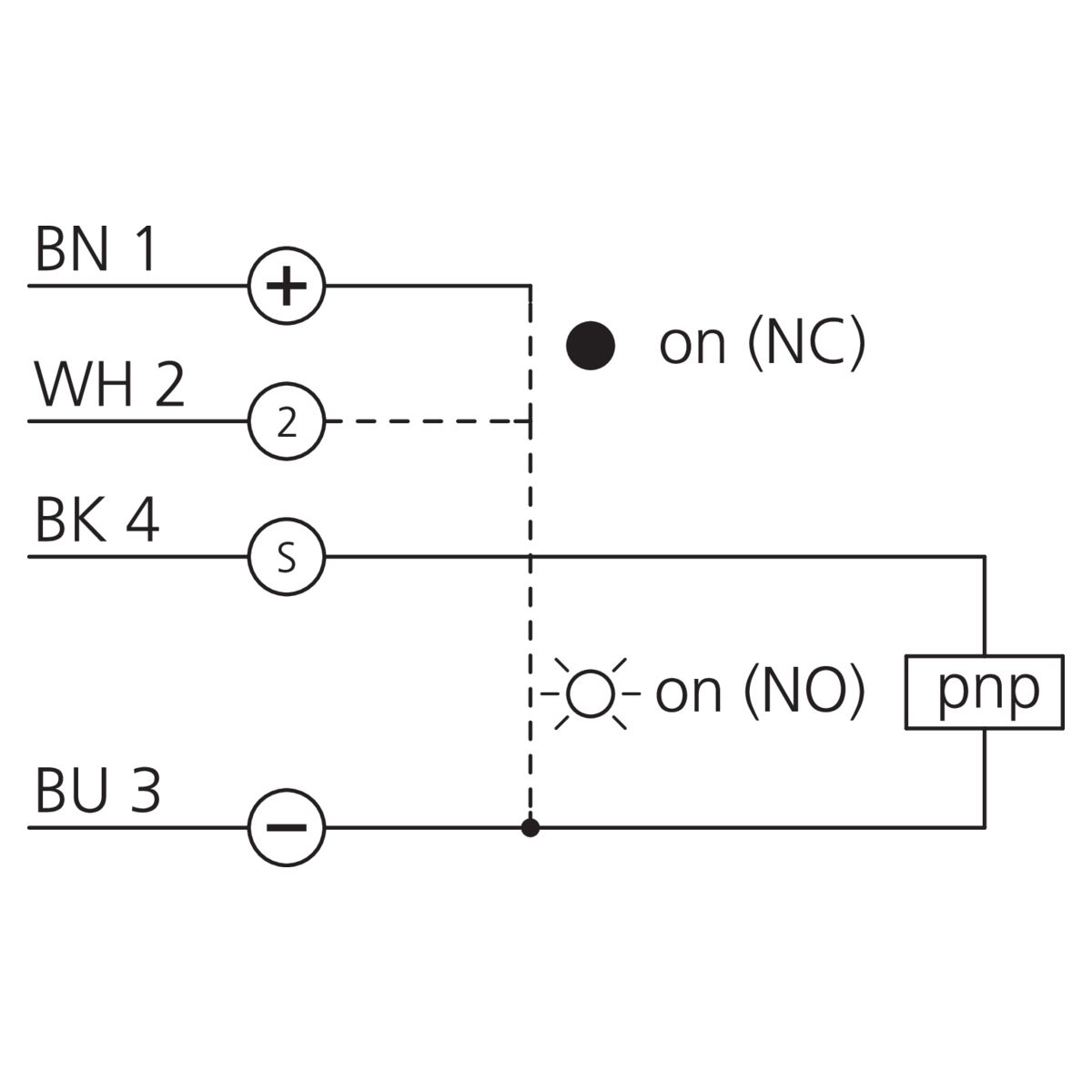

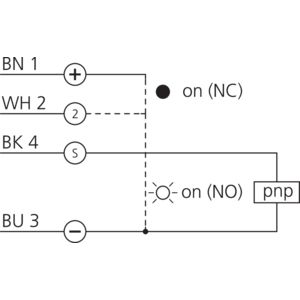

Switching output pnp, 100 mA, NO/NC
Ambient temperature during operation -25 … +55 °C
Protection class III, operation on protective low voltage
Connection Connector, M12, 4-pin
