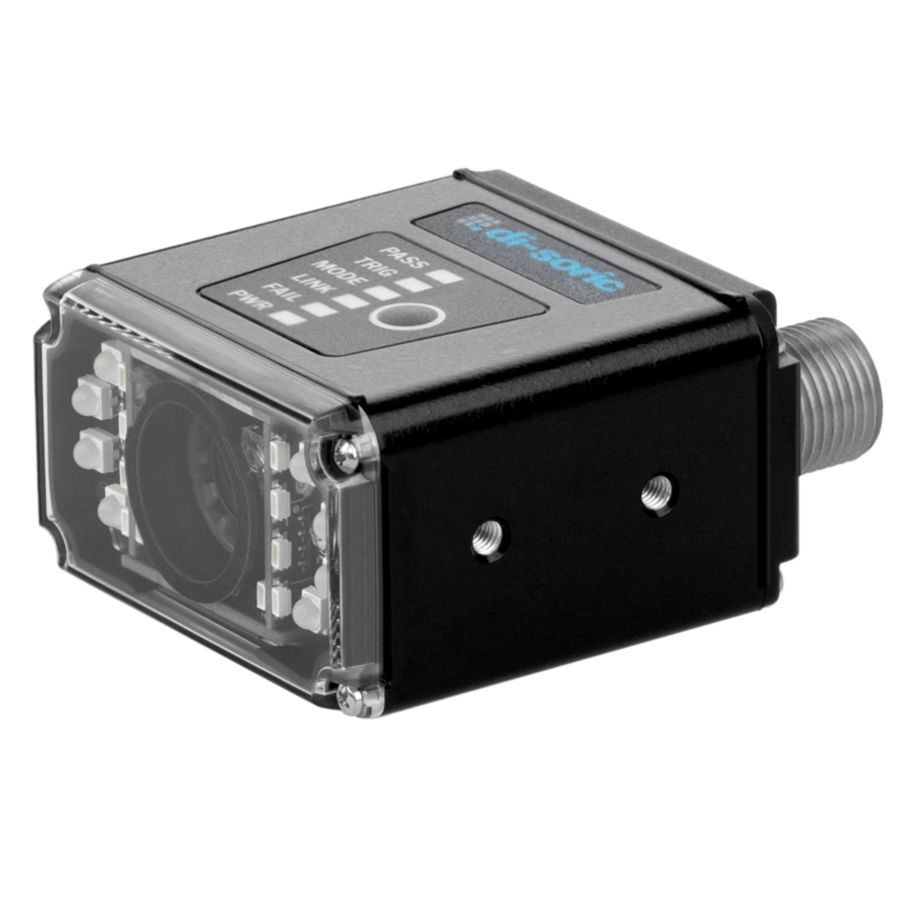

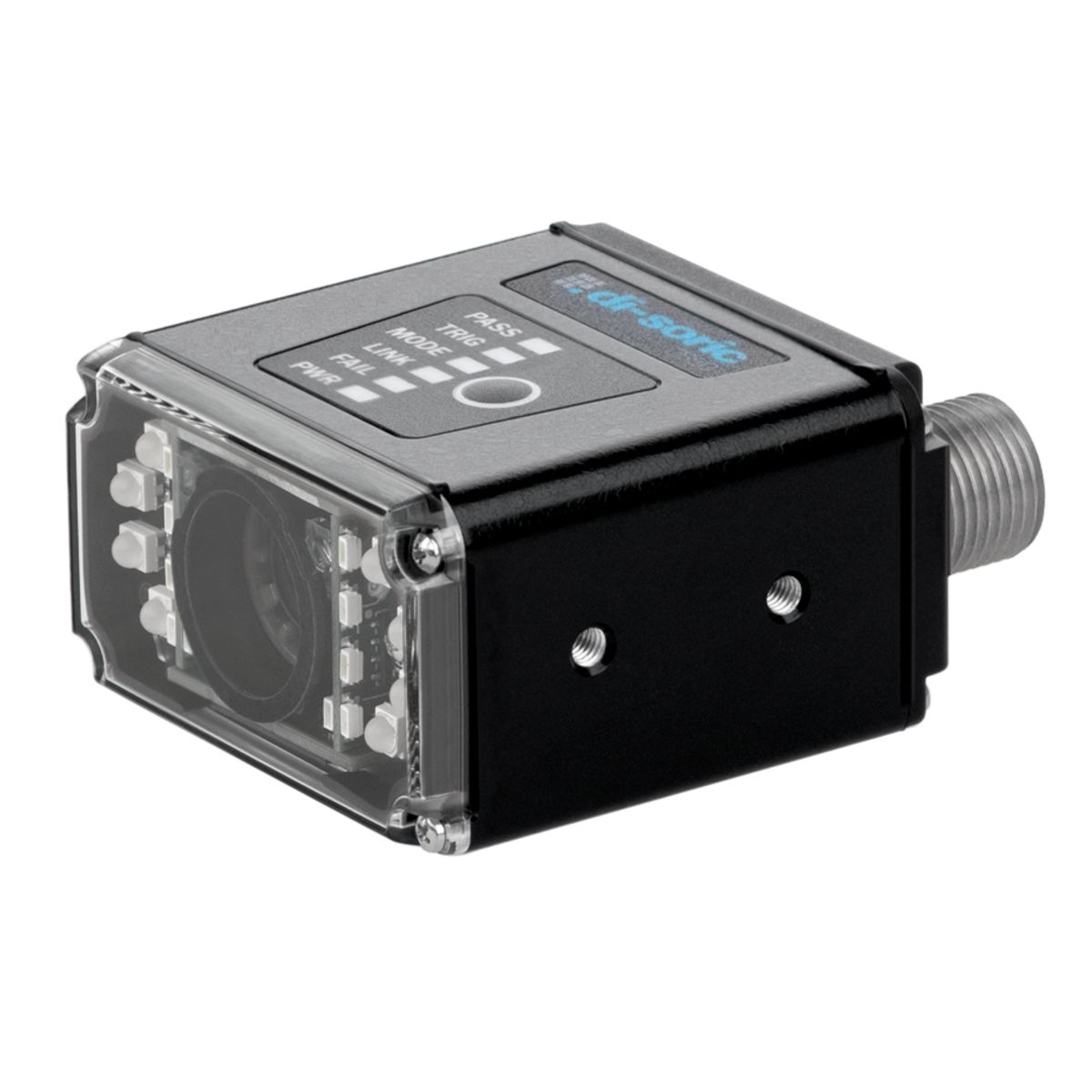

Cs 50 Vision Sensor - CS 50 BM2-4L-ES-G5

Part Number: CS 50 BM2-4L-ES-G5

Article Number: 210507

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Working distance 100 … 2.000 mm
Service voltage 4,75 … 30 V DC
Switching output < 100 mA (Per output, opto-isolated, power limitation via customer)
Inspection tasks Parts recognition, Presence, Measurement, Counting, Logic
Interface RS232, Ethernet, TCP, IP, Profinet
Housing material Aluminum, Black
Ambient temperature during operation 0 … +40 °C
Protection type IP 65, IP 67
Weight 68 g
Internal lights High power, white, Swappable (red / white / blue / IR)
Number of jobs Unlimited (1.4 GB), 1-255 for operation with Profinet
Exposure time 66 … 58.825 µs
