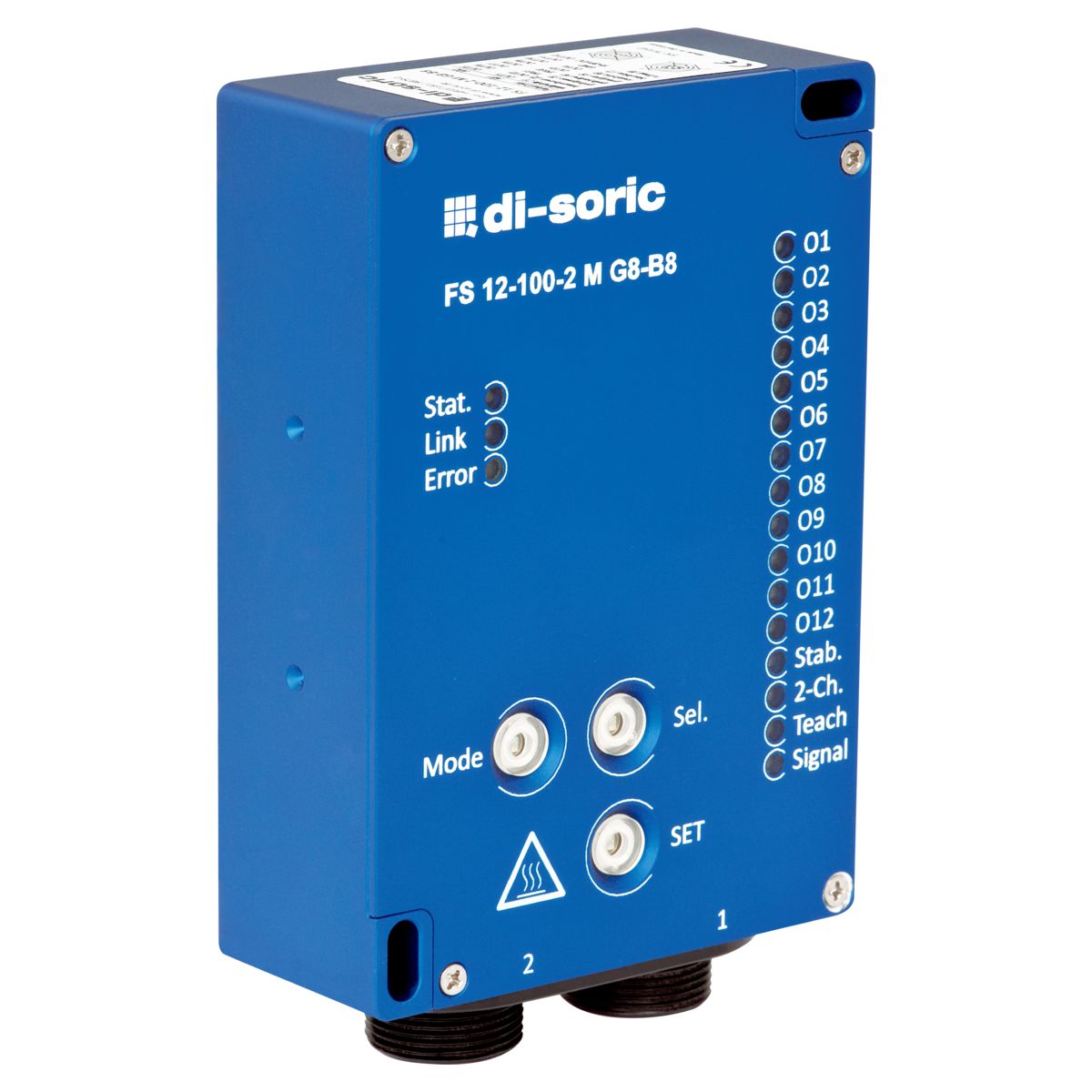

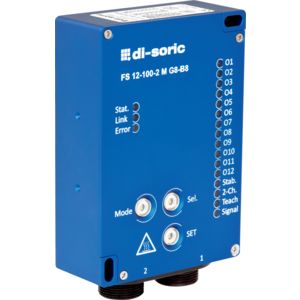

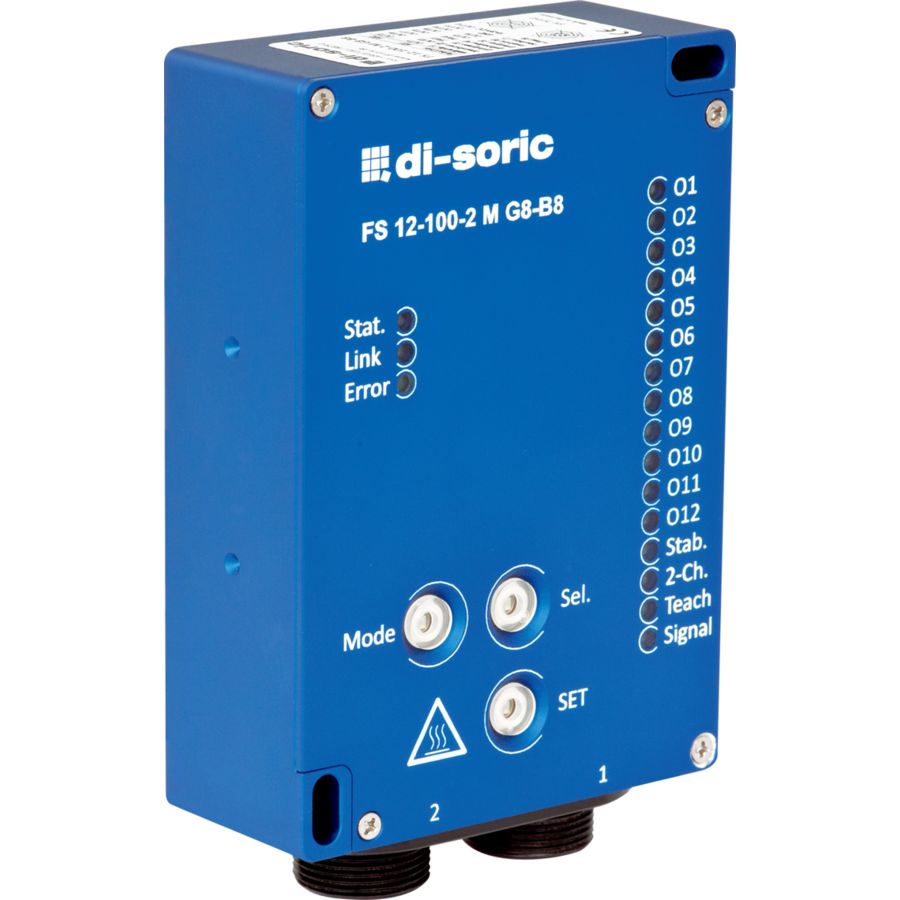

Color Sensor - FS 12-100-1 M G8-B8
Part Number: FS 12-100-1 M G8-B8
Article Number: 206409
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Switching output coding | pnp + npn, binary coded = 350 switching conditions, 12, 350 |
|---|---|
| Transmitter light source | LED |
| Light color | White |
| Fiber-optic cable connection / fixed optics | M18 x 1 |
| Color channels of sensor | 12, 15, 350 (Teachable via keys, Binary coding, Evaluation using software, with binary coding) |
| Color space mode | XYZ / xyY / u’v’L* / L*a*b* / xyl, XYZ / xyY / u’v’L / xyl (Body colors, Self-luminous objects) |
| Light spot size | Dependent on focus optics |
| Service voltage | 18 … 28 V DC |
| Switching output | Push-pull |
| Interface | RS232, USB |

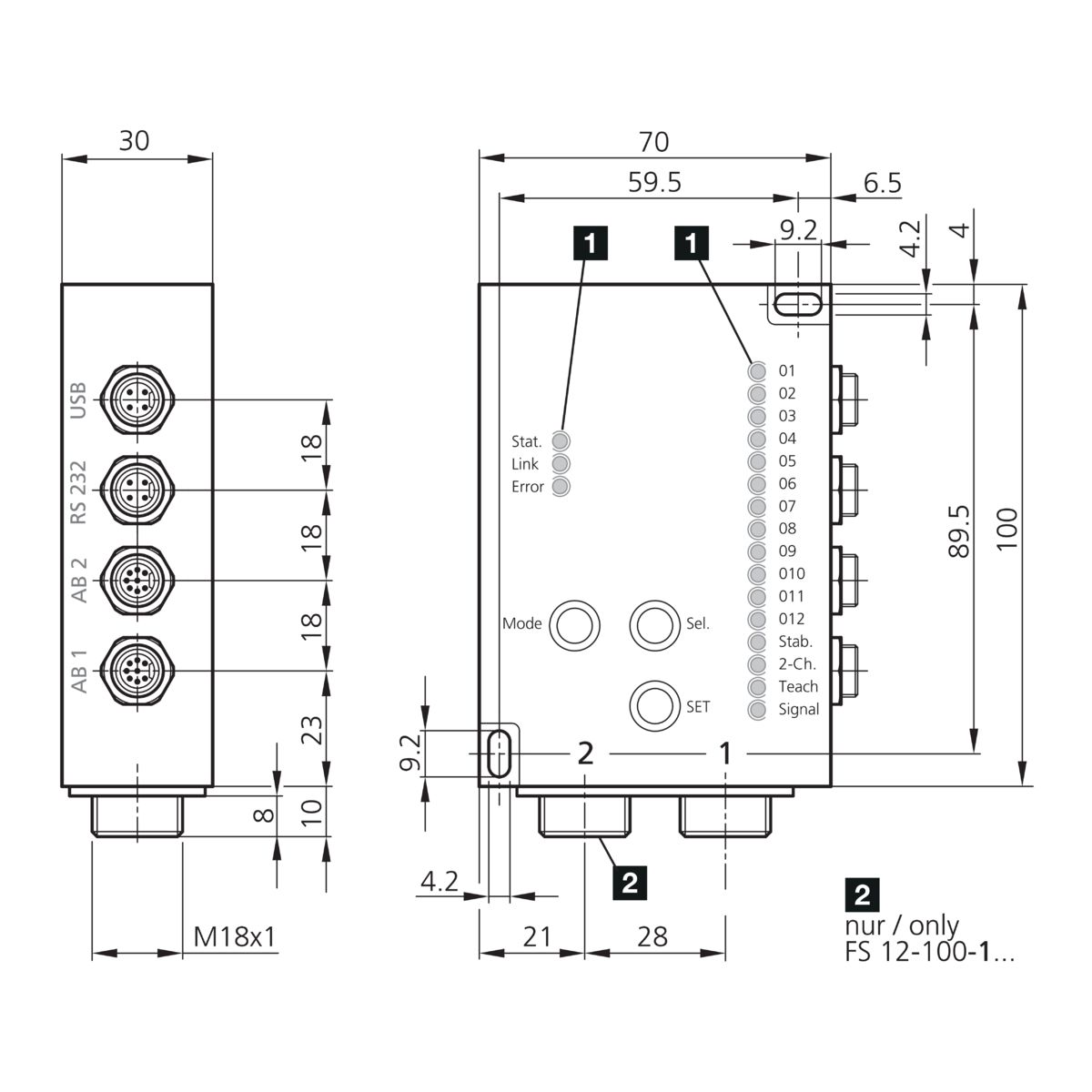

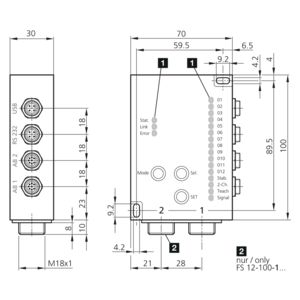

| Housing dimensions | 70 x 100 x 30 mm |
| Ambient temperature during operation | -10 … +55 °C |

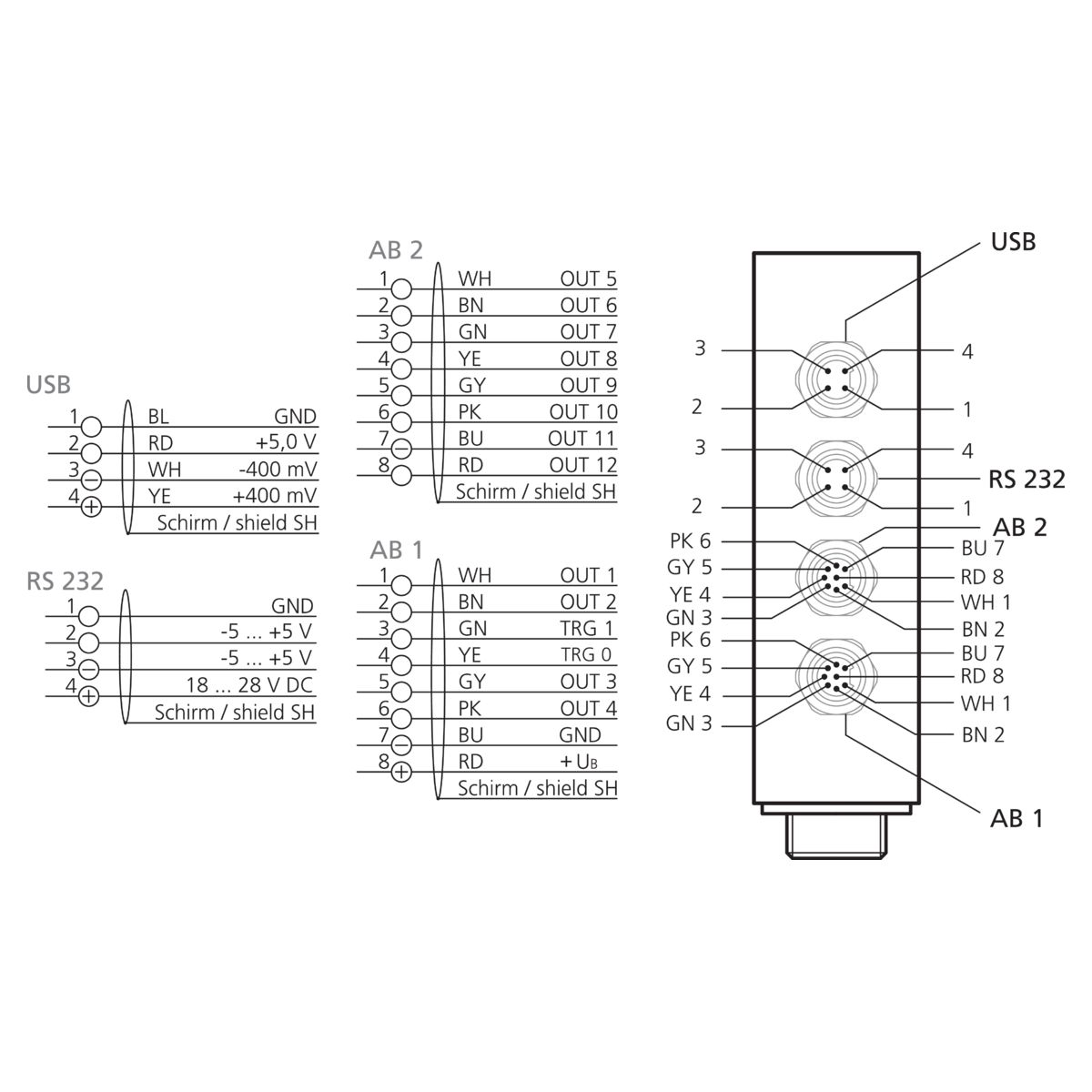

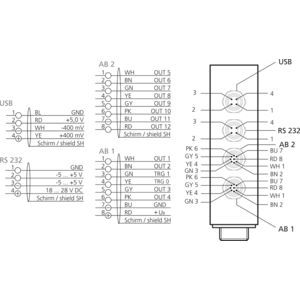

| Connection | Connector, M9, 8-pin |
