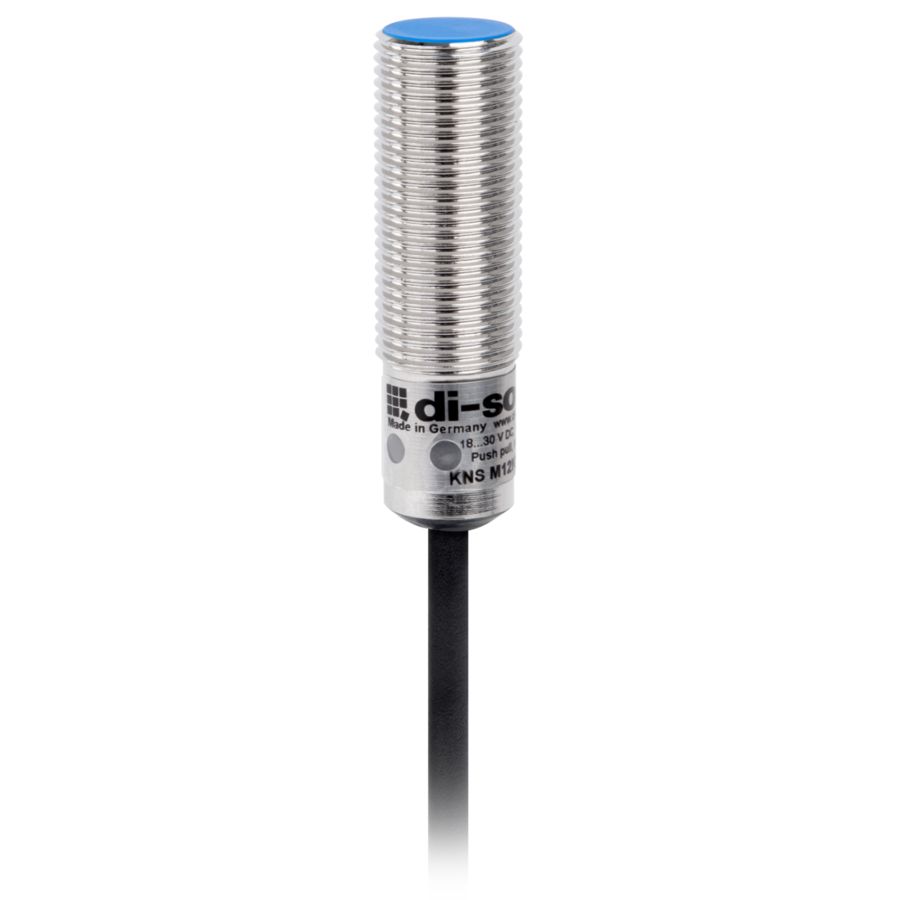

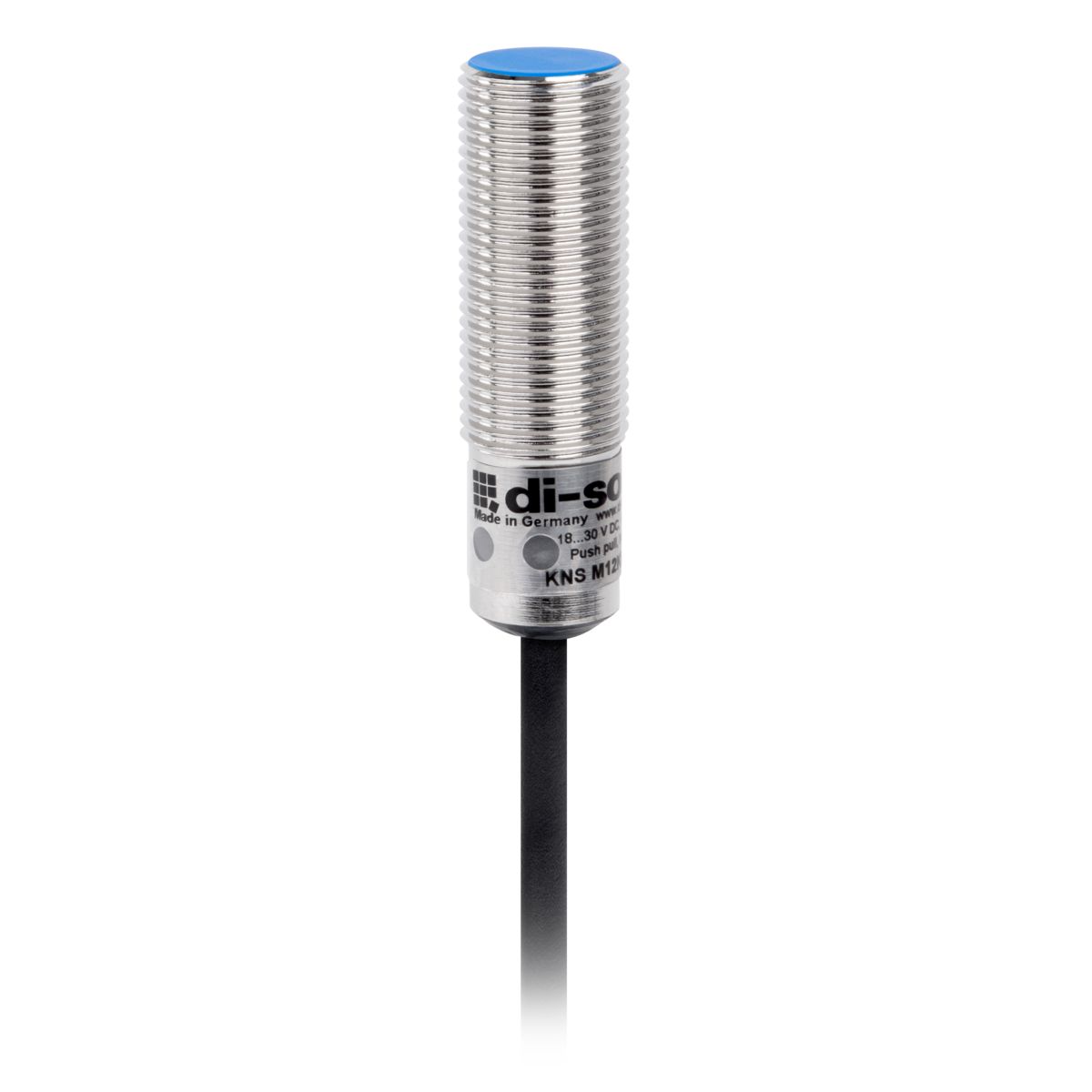

Capacitive Proximity Switch - KNS M12KM 4B G3-2R
Part Number: KNS M12KM 4B G3-2R
Article Number: 212680
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Operating principle | Capacitive |
|---|---|
| Installation type | Flush |
| Switching distance | 4 mm |
| Service voltage | 18 … 30 V DC |
| Switching output | Push-pull, 100 mA, NO/NC, switchable via IO-Link |
| No-load current (max.) | 15 mA (24 V DC) |
| Design | Thread |
| Housing material | Brass |
| Size | M12 x 1 |
| Protection type | IP 67 |
| Ambient temperature during operation | -20 … +70 °C |
| Connection | Cable, 2 m, 3-pin |
