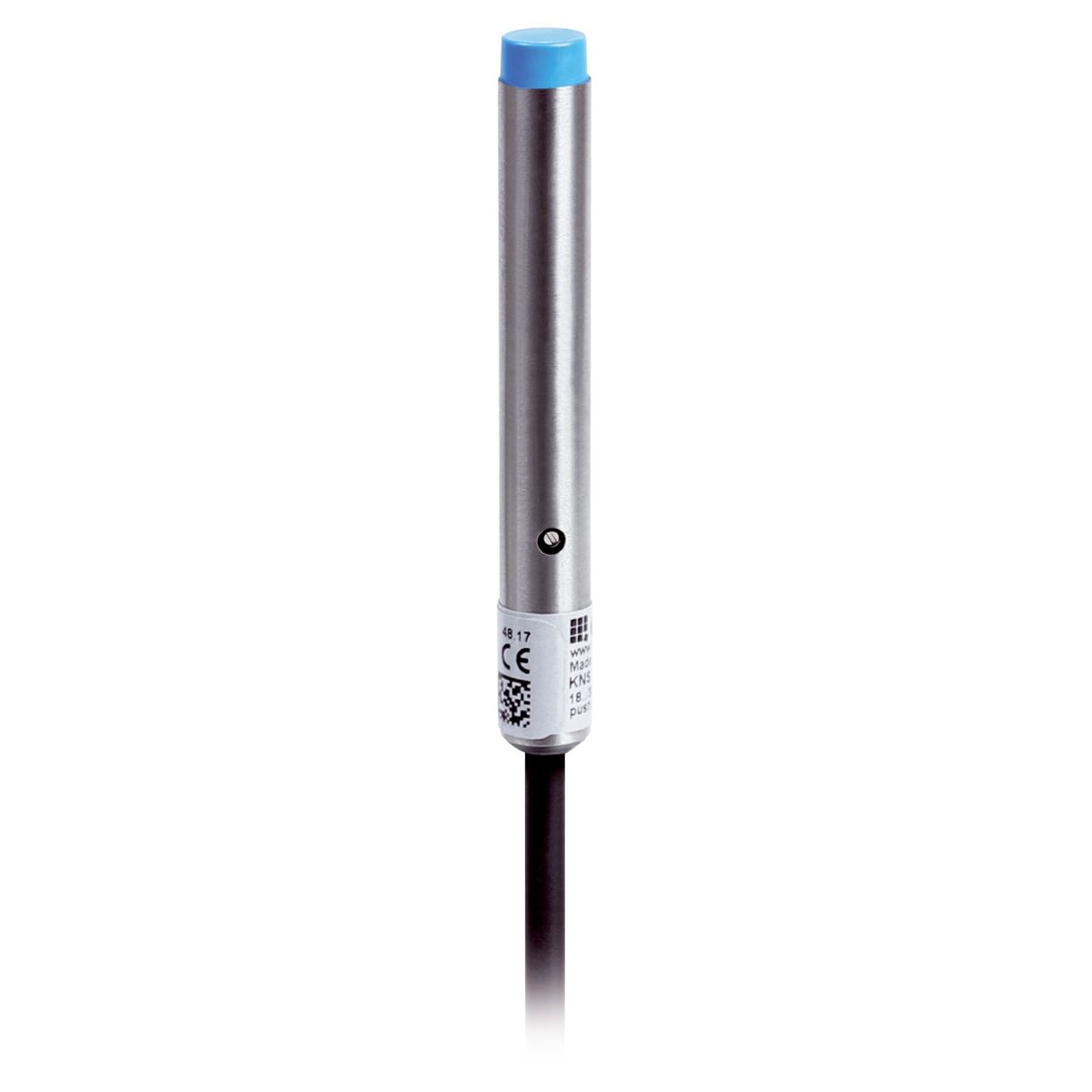

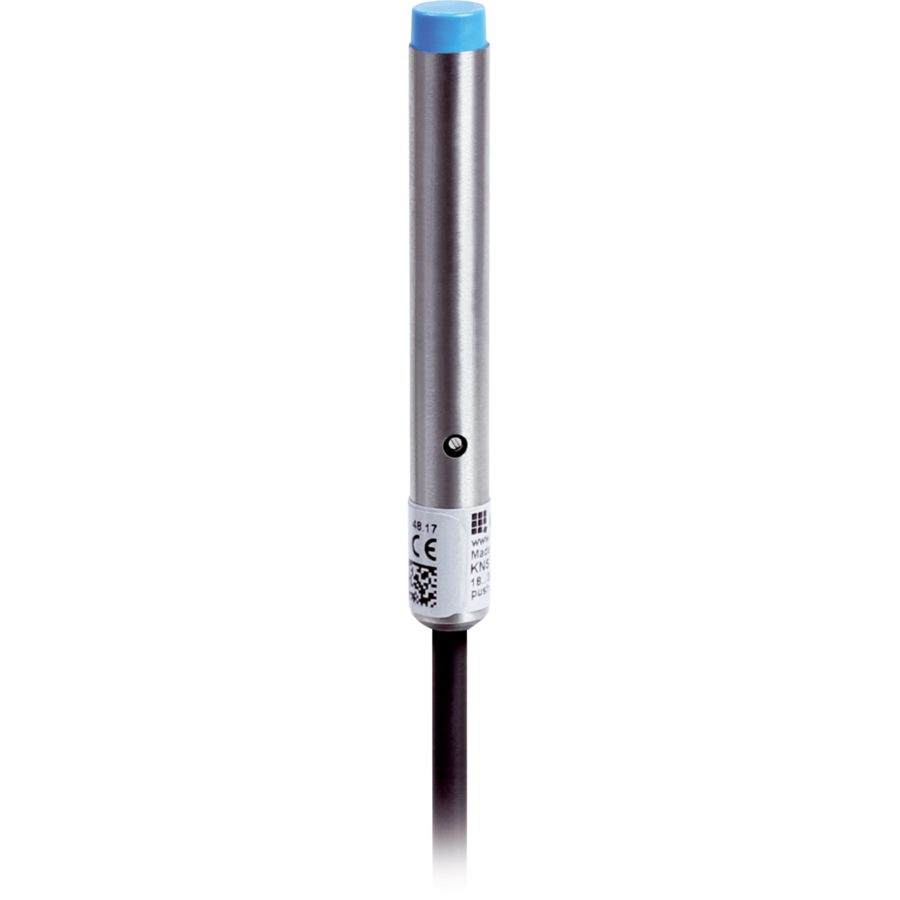

Capacitive Proximity Switch - KNS D6.5M 03N G3-2R

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Operating principle	Capacitive
Installation type	non-flush
Switching distance	3 mm
Service voltage	18 … 30 V DC
Switching output	Push-pull, 100 mA, NO/NC
No-load current (max.)	15 mA (24 V DC)
Design	Cylinder
Housing material	Stainless steel

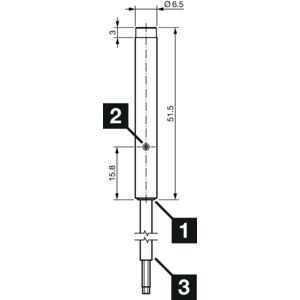

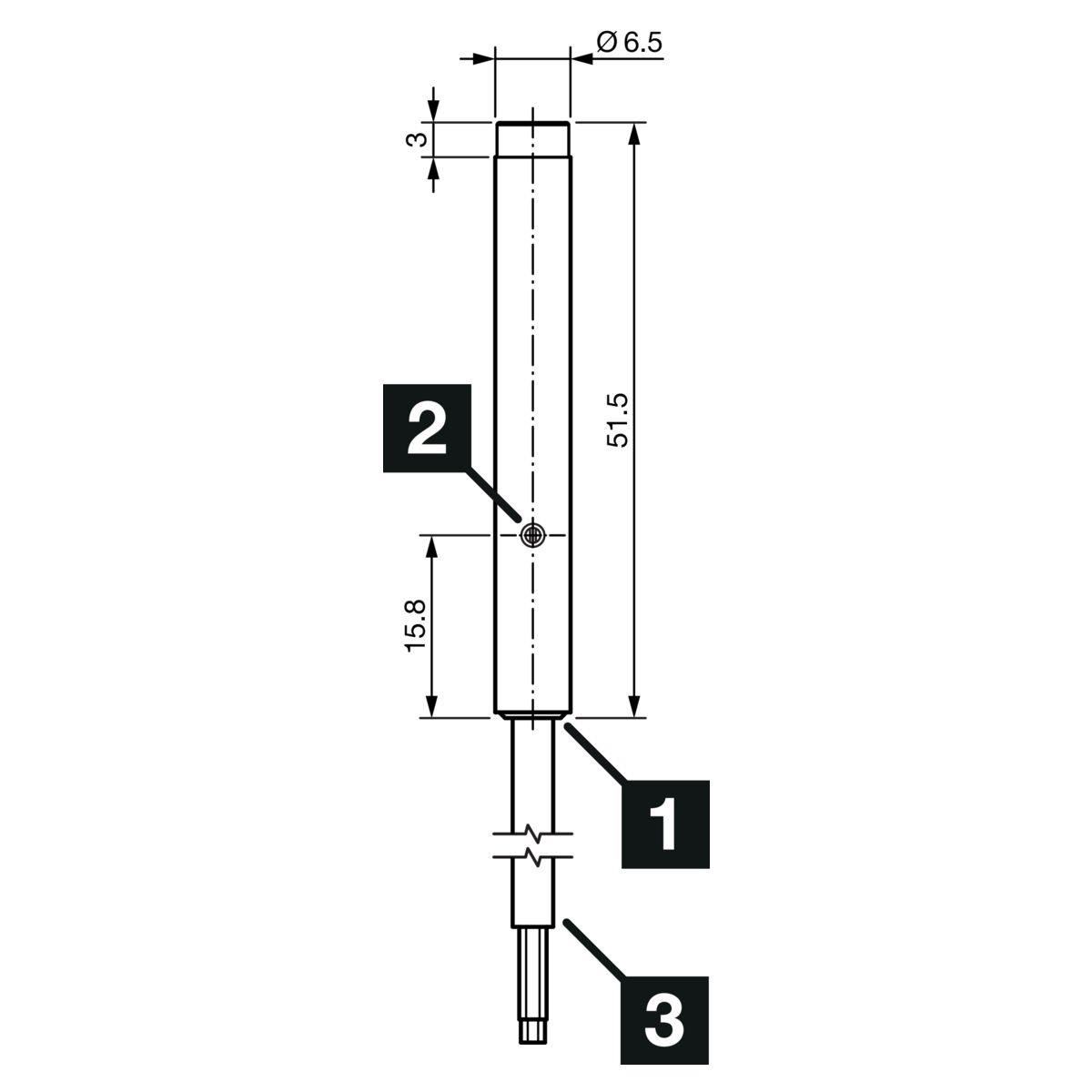

Size	Ø 6,5 mm
Protection type	IP 65, IP 67
Ambient temperature during operation	-25 … +70 °C
Connection	Cable, 2 m, 3-pin
