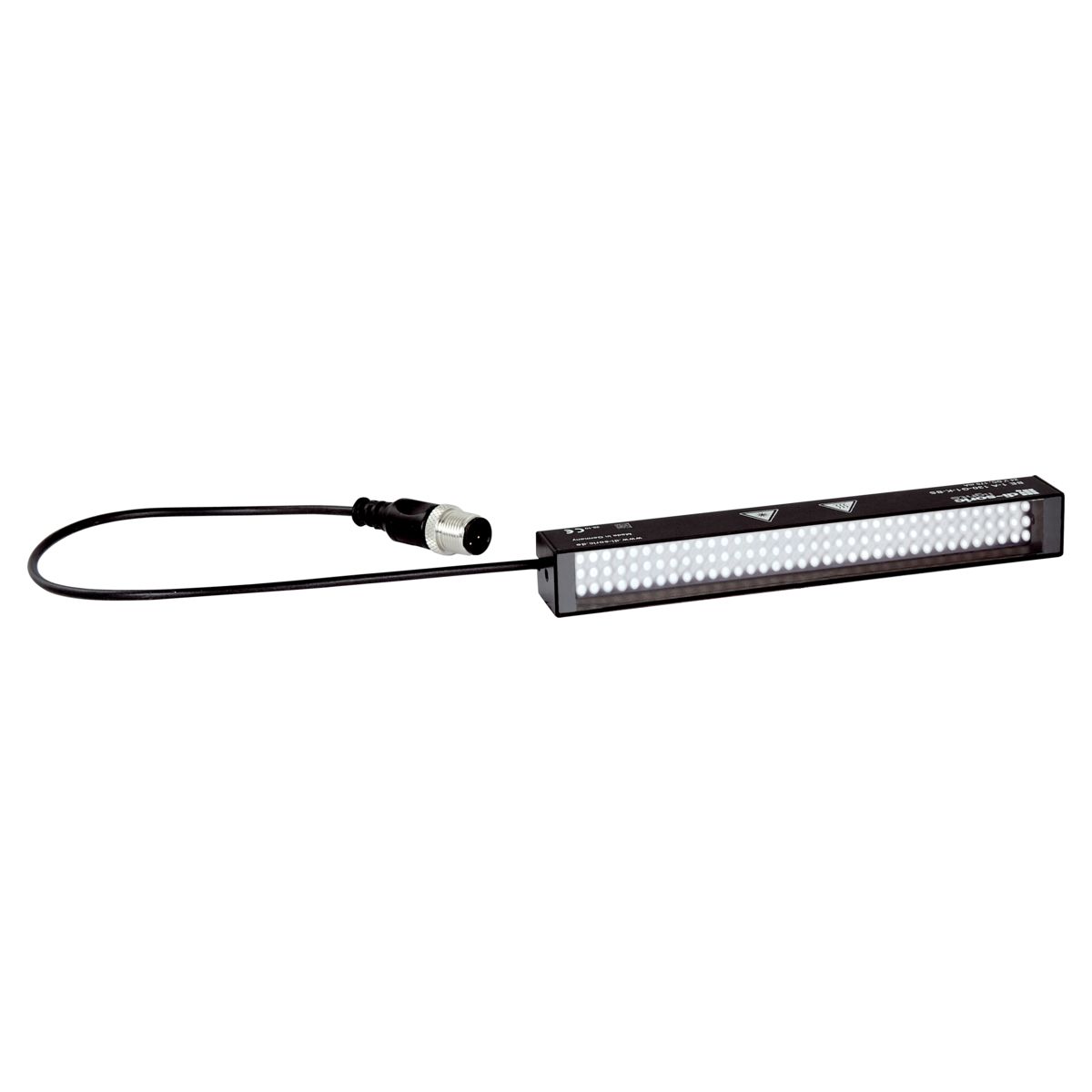

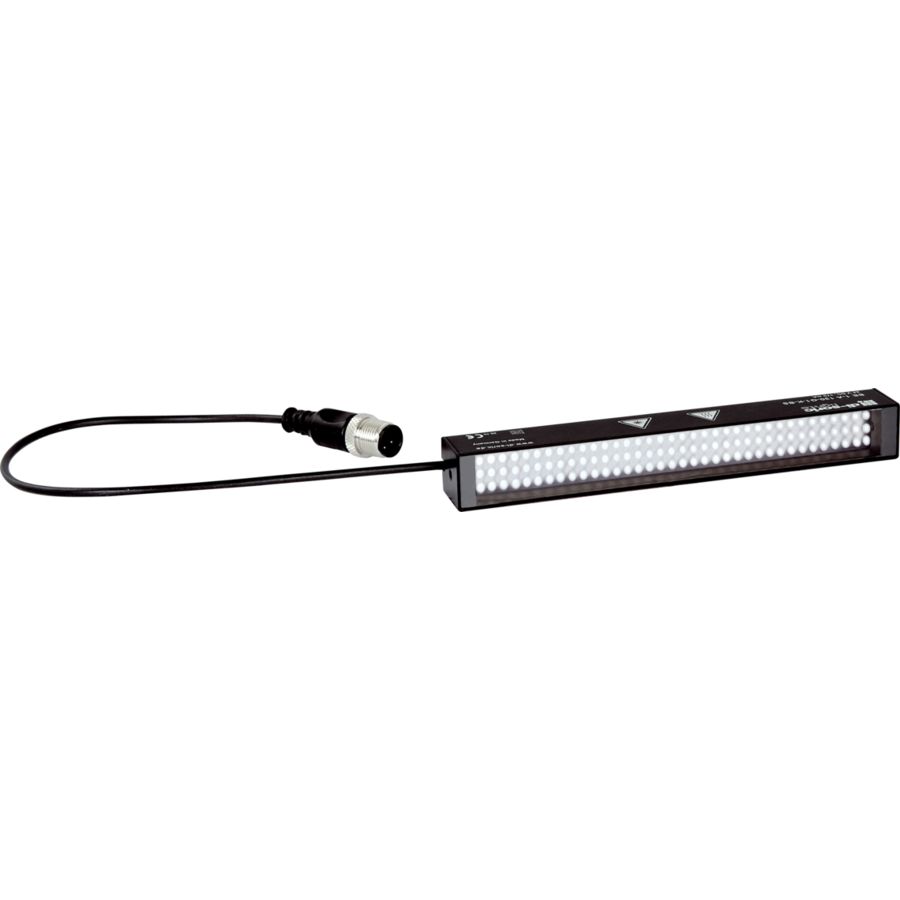

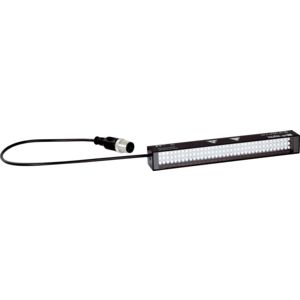

Barlight - BE 1-A130/120-G5-K-BS

Part Number: BE 1-A130/120-G5-K-BS

Article Number: 206308

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Contact Us

Technical Details

Transmitter light source LED
Light color White, 5.600 K
Service voltage 24 V DC (Supply Class 2)
No-load current (max.) 160 mA (24 V DC)
Housing material Aluminum (Anodized)

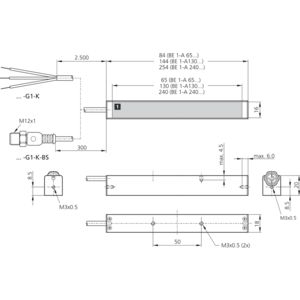

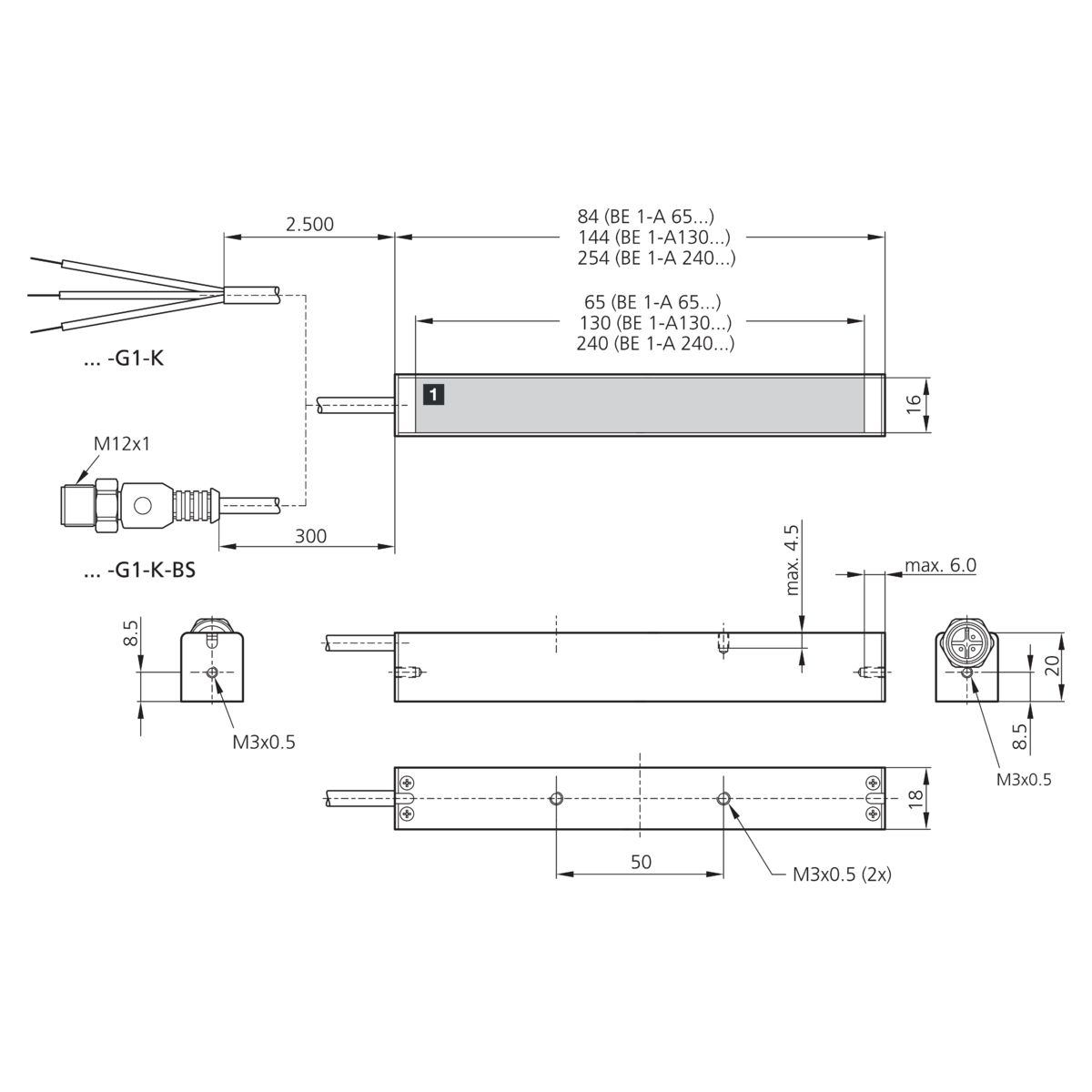

Größe 16 x 20 x 144 mm
Ambient temperature during operation 0 … +40 °C
Protection type IP 20
Risk group (DIN EN 62471) Free group
Protection class III, operation on protective low voltage

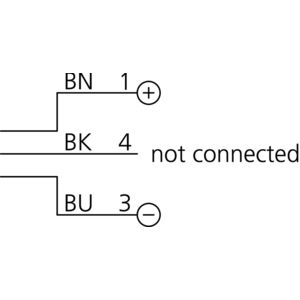

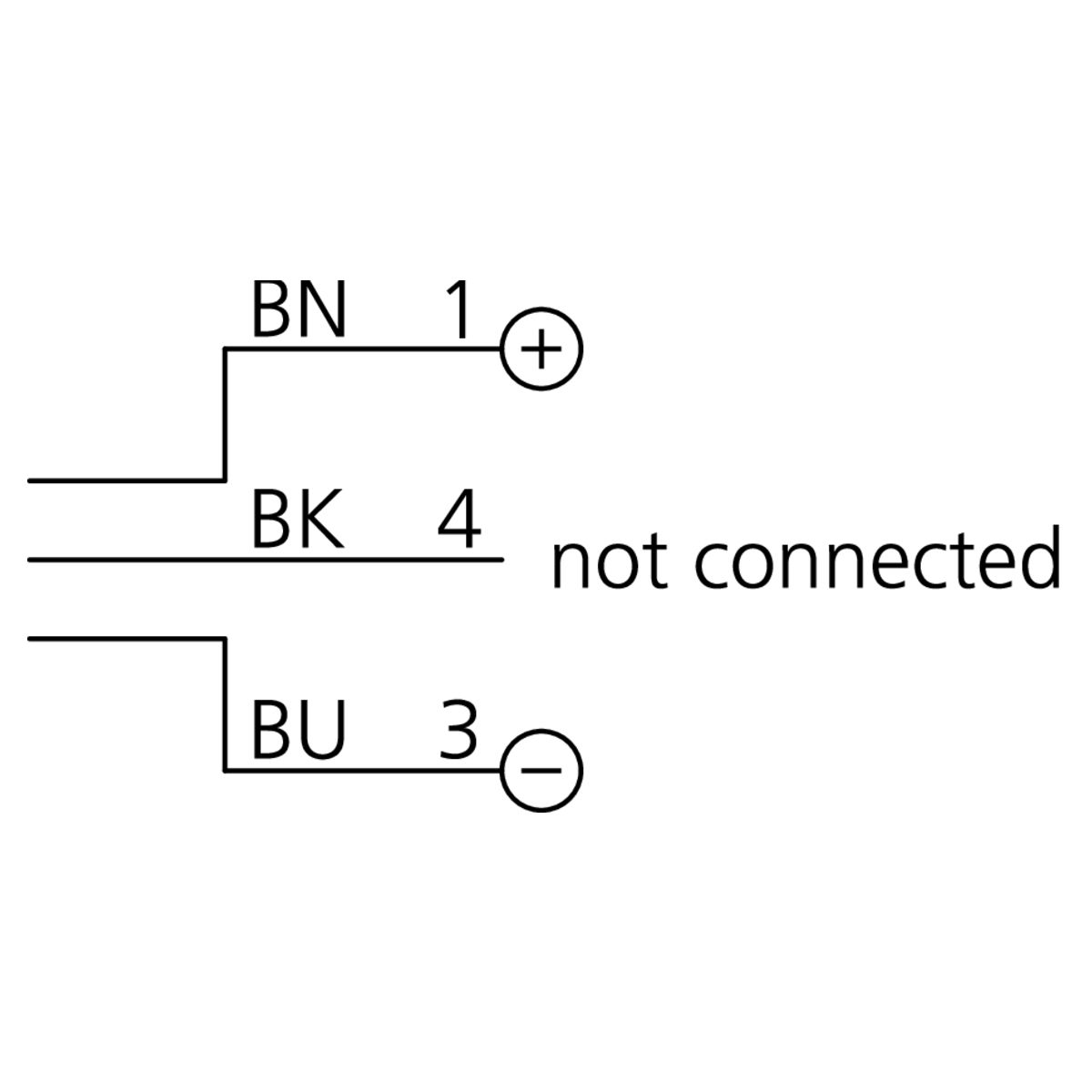

Anschluss Cable/connector, 0,3 m, M12
