Area Light - BEK-FL250/250-R50-G5T-IBS
Part Number: BEK-FL250/250-R50-G5T-IBS
Article Number: 212691
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Transmitter light source | LED |
|---|---|
| Lichtfarbe | White, 5.700 K |

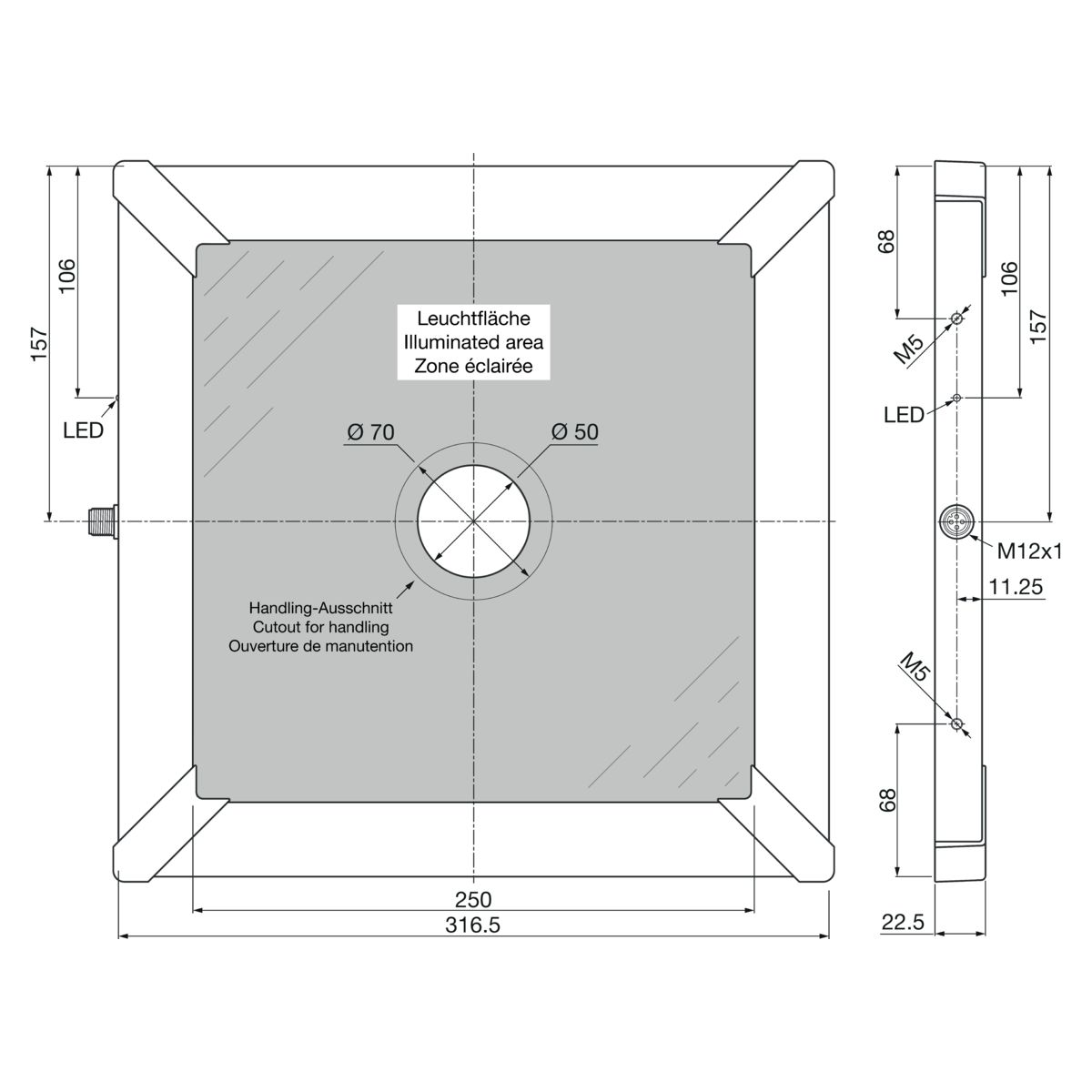

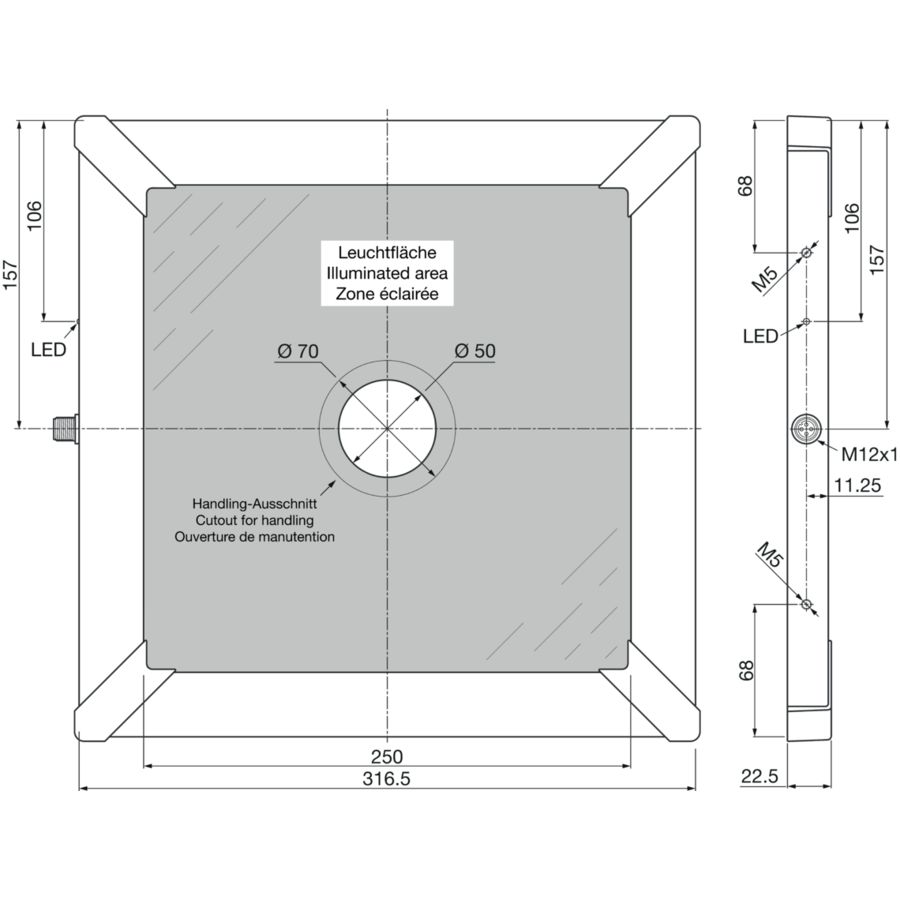

| Illuminated area | 250 x 250 mm |
| Service voltage | 24 V DC … ± 1,2 V (Supply Class 2) |
| No-load current (max.) | 800 mA (24 V DC) |
| Housing material | Aluminum, Black (Anodized) |
| Ambient temperature during operation | 0 … +40 °C |
| Protection type | IP 20 |
| Risk group (DIN EN 62471) | Free group |
| Protection class | III, operation on protective low voltage |

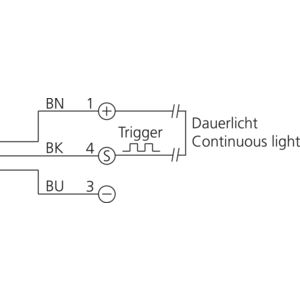

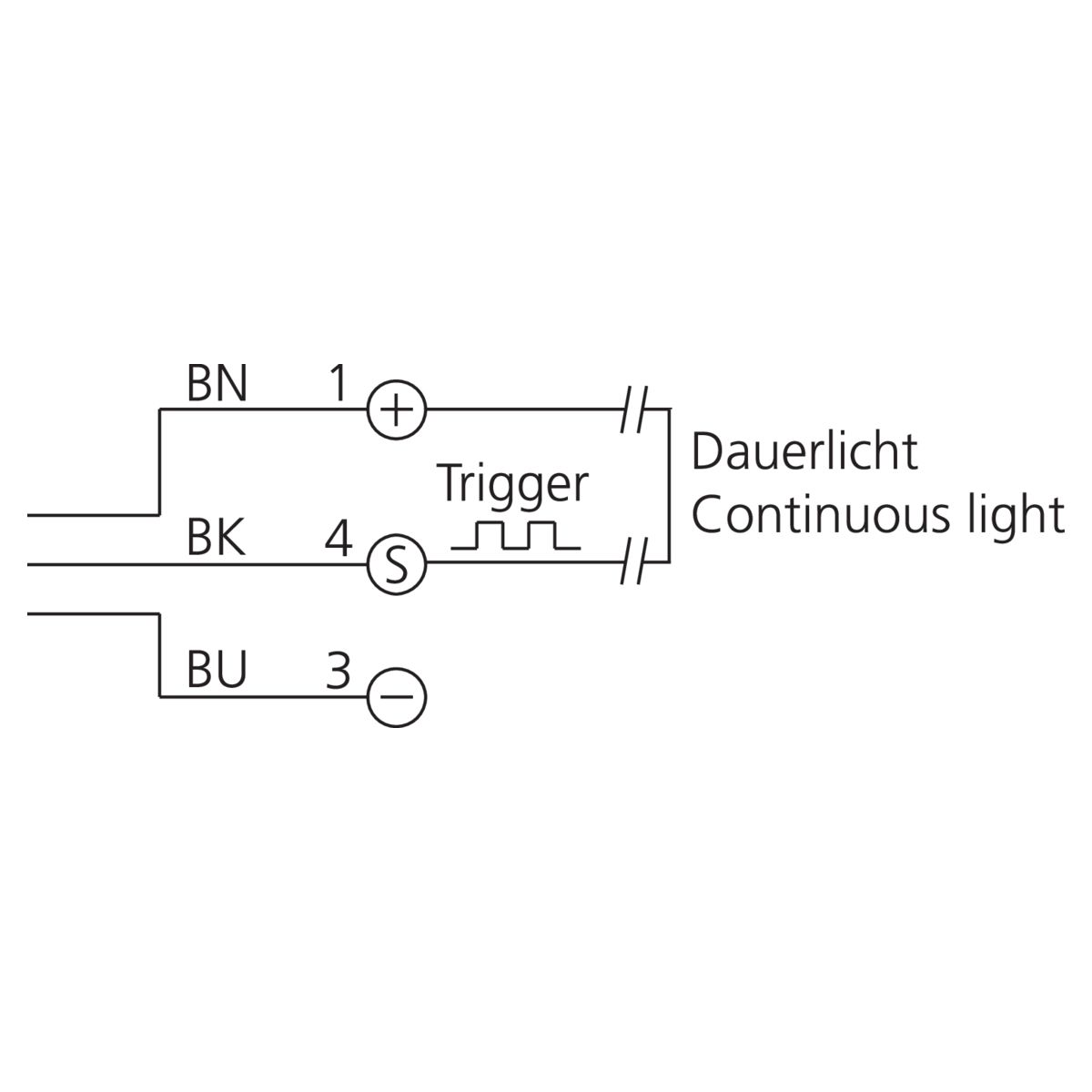

| Anschluss | Connector, M12, 3-pin |
