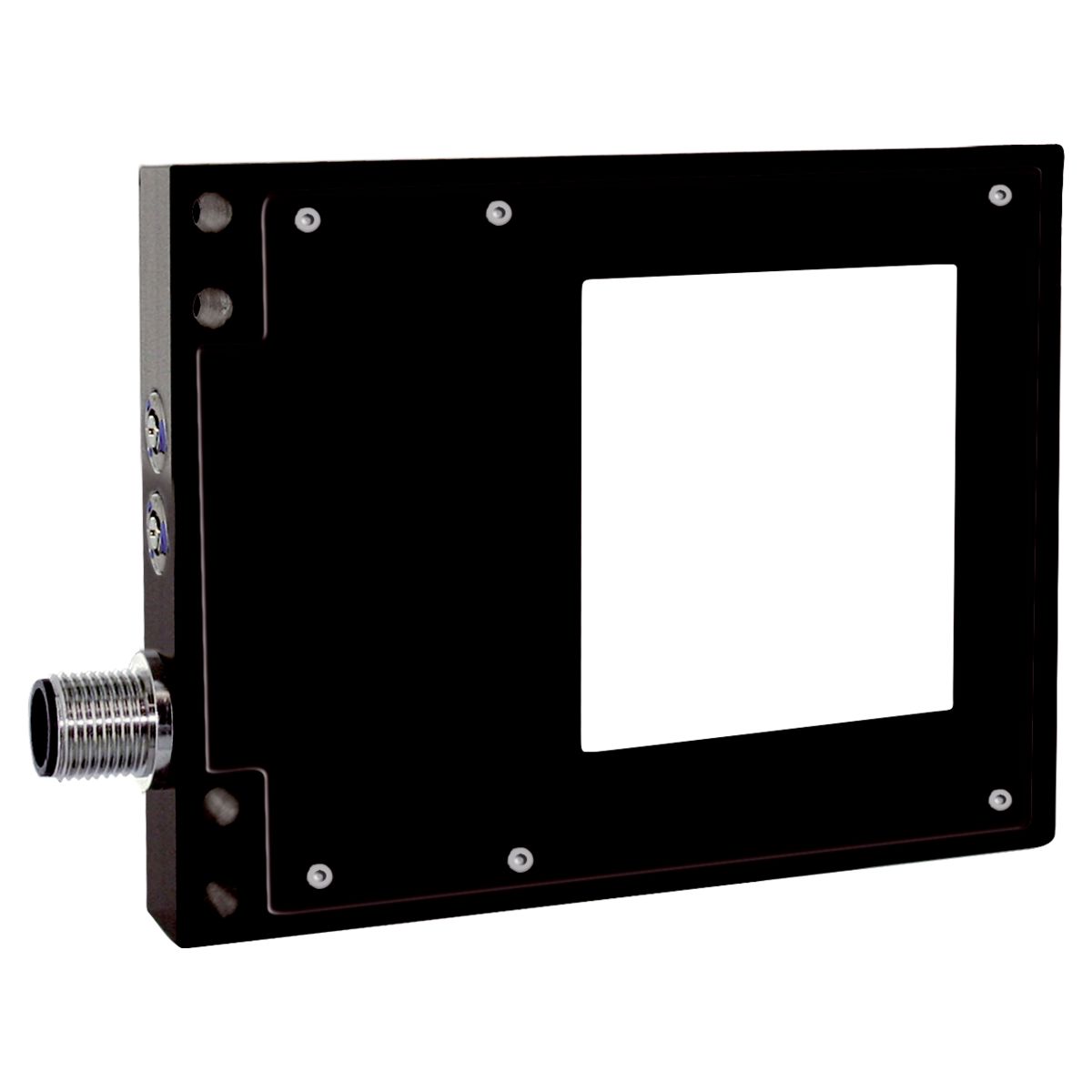

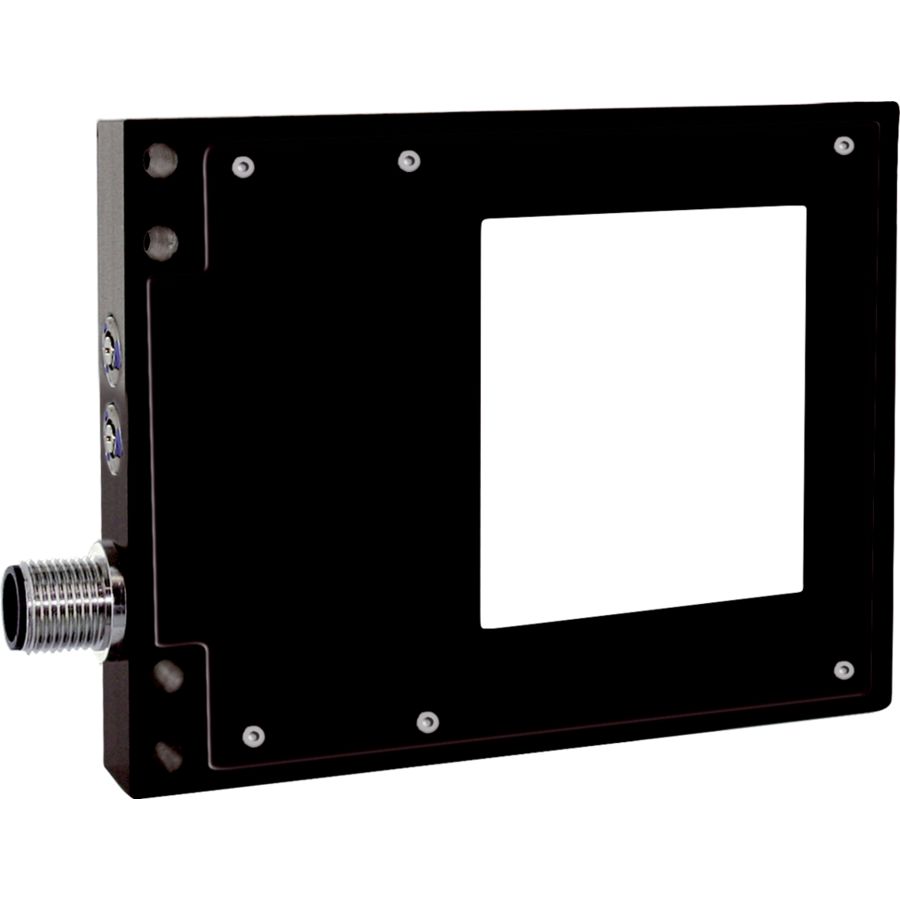

Area Light - BEK-F50/50-G0TI-IBS
Part Number: BEK-F50/50-G0TI-IBS
Article Number: 206803
We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.
Technical Details
| Transmitter light source | LED |
|---|---|
| Lichtfarbe | Infrared, 850 nm |
| Illuminated area | 50 x 50 mm |
| Service voltage | 15 … 35 V DC (Supply Class 2) |
| No-load current (max.) | 160 mA (24 V DC) |
| Housing material | Aluminum, Black (Anodized) |
| Ambient temperature during operation | 0 … +50 °C |
| Protection type | IP 67 |
| Risk group (DIN EN 62471) | Free group |
| Protection class | III, operation on protective low voltage |

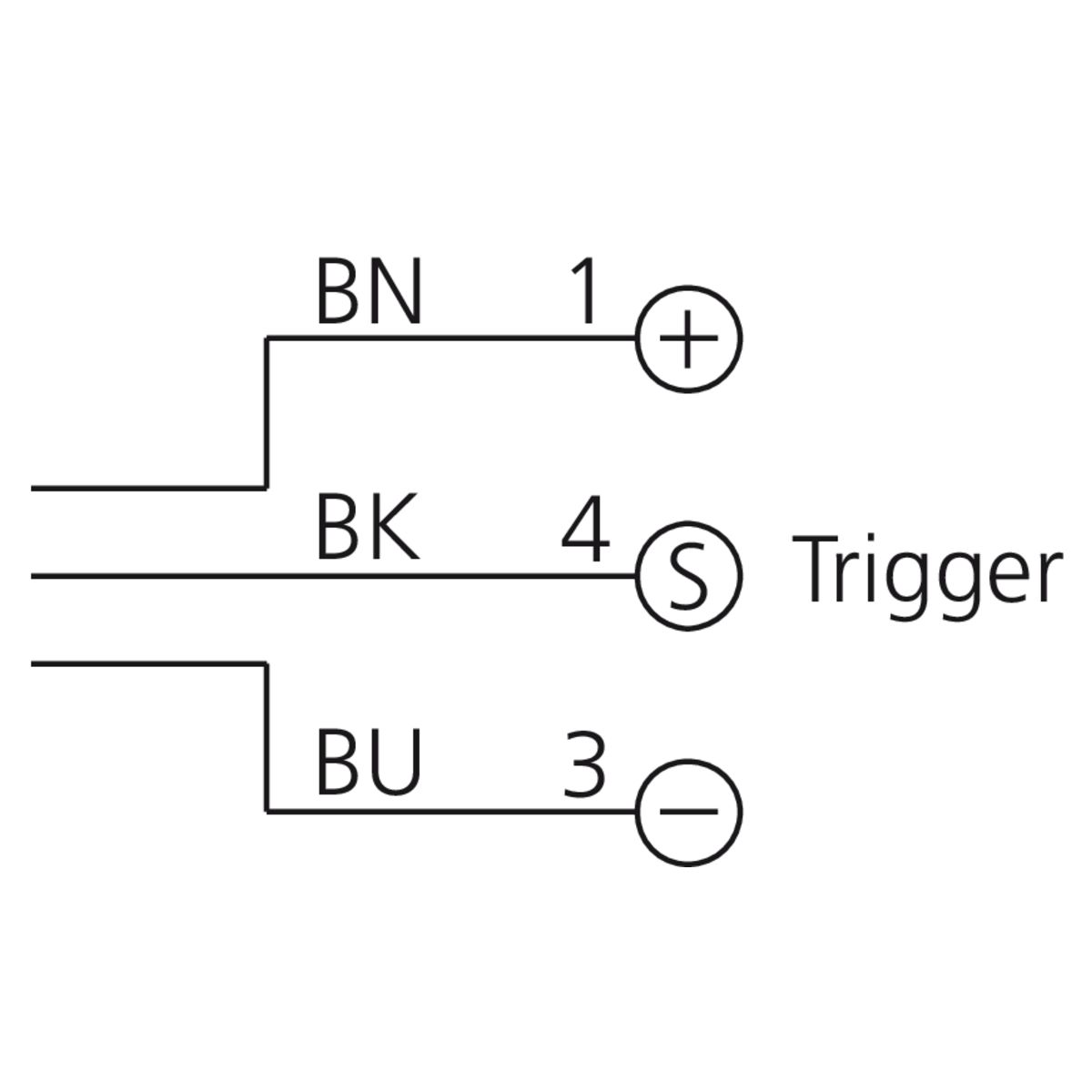

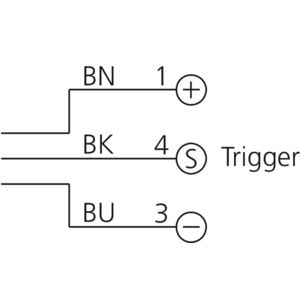

| Anschluss | Connector, M12, 3-pin |
