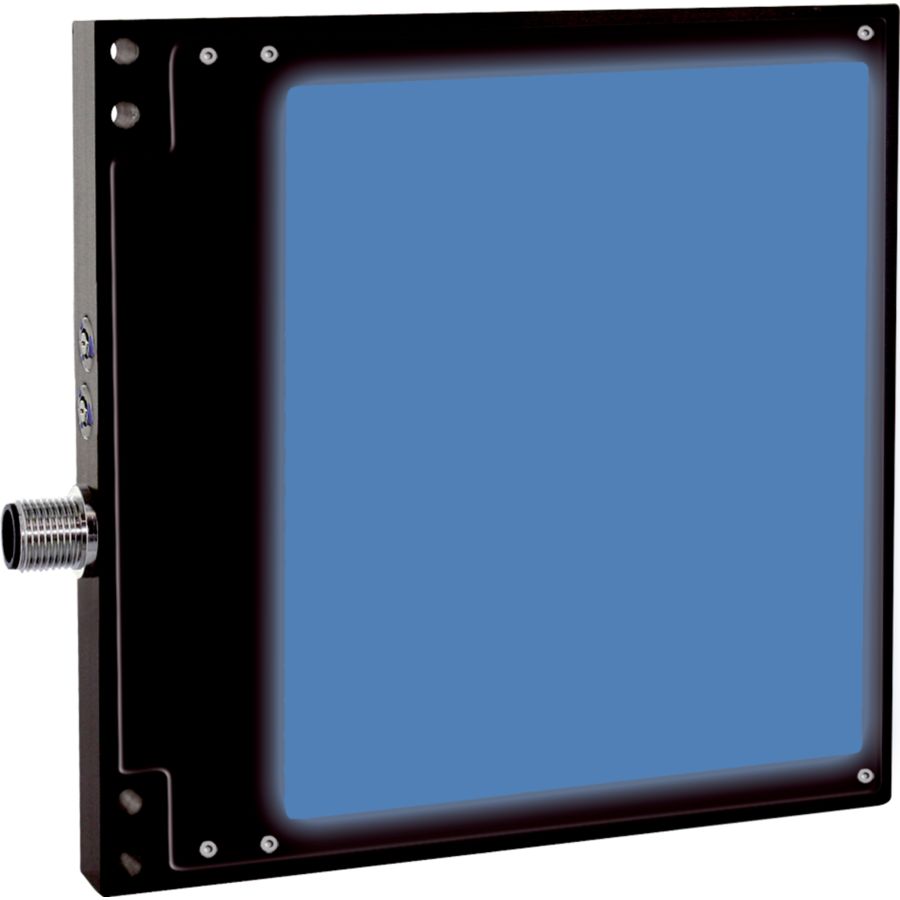

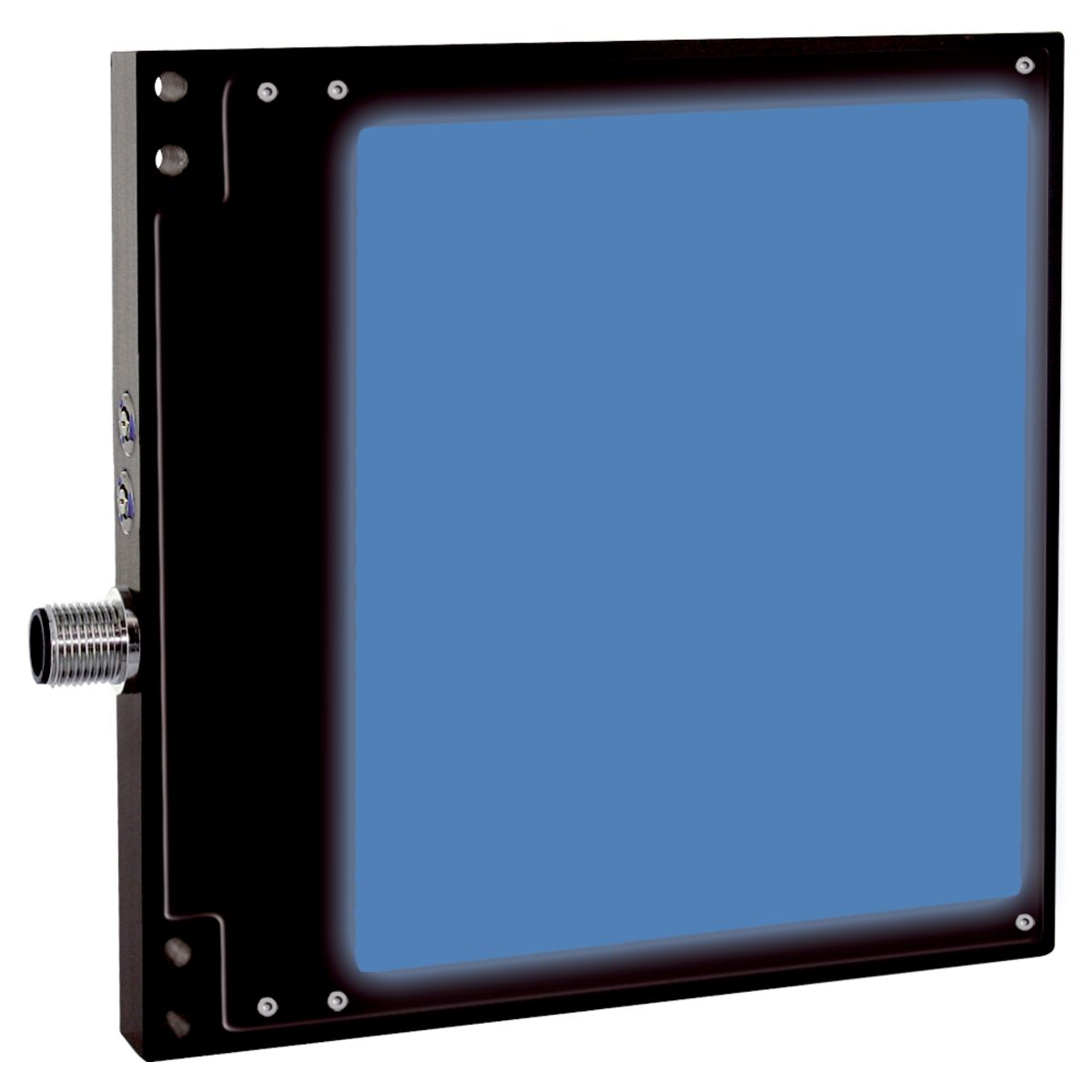

Area Light - BEK-F150/150-G3TI-IBS

We’re known for our depth of knowledge. If you’re looking for a new supplier of sensors for factory automation, contact us today.

Transmitter light source	LED
Lichtfarbe	Blue, 469 nm
Illuminated area	150 x 150 mm
Service voltage	18 … 35 V DC (Supply Class 2)
No-load current (max.)	400 mA (24 V DC)
Housing material	Aluminum, Black (Anodized)

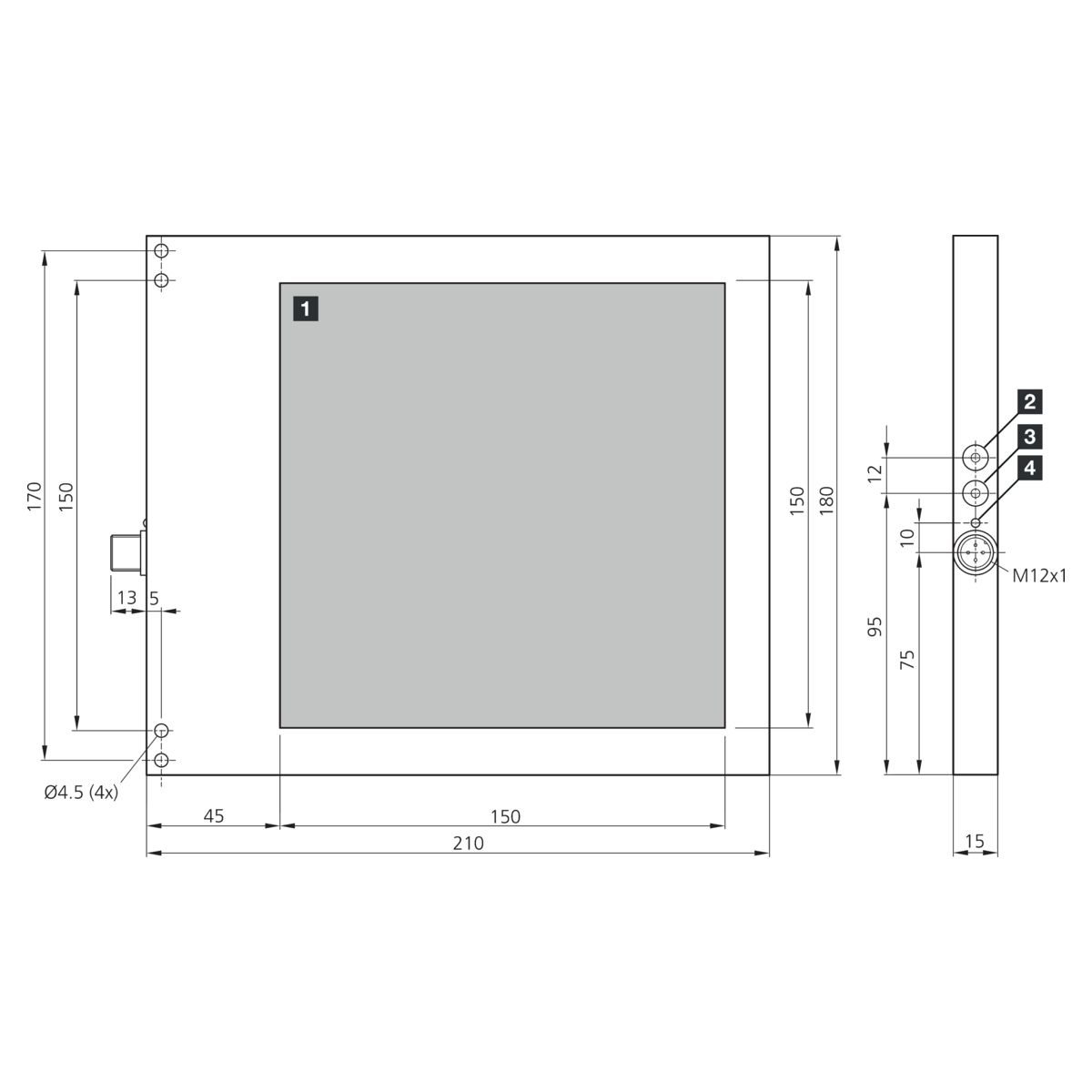

Größe	180 x 210 x 15 mm
Ambient temperature during operation	0 … +50 °C
Protection type	IP 67
Risk group (DIN EN 62471)	Free group
Protection class	III, operation on protective low voltage

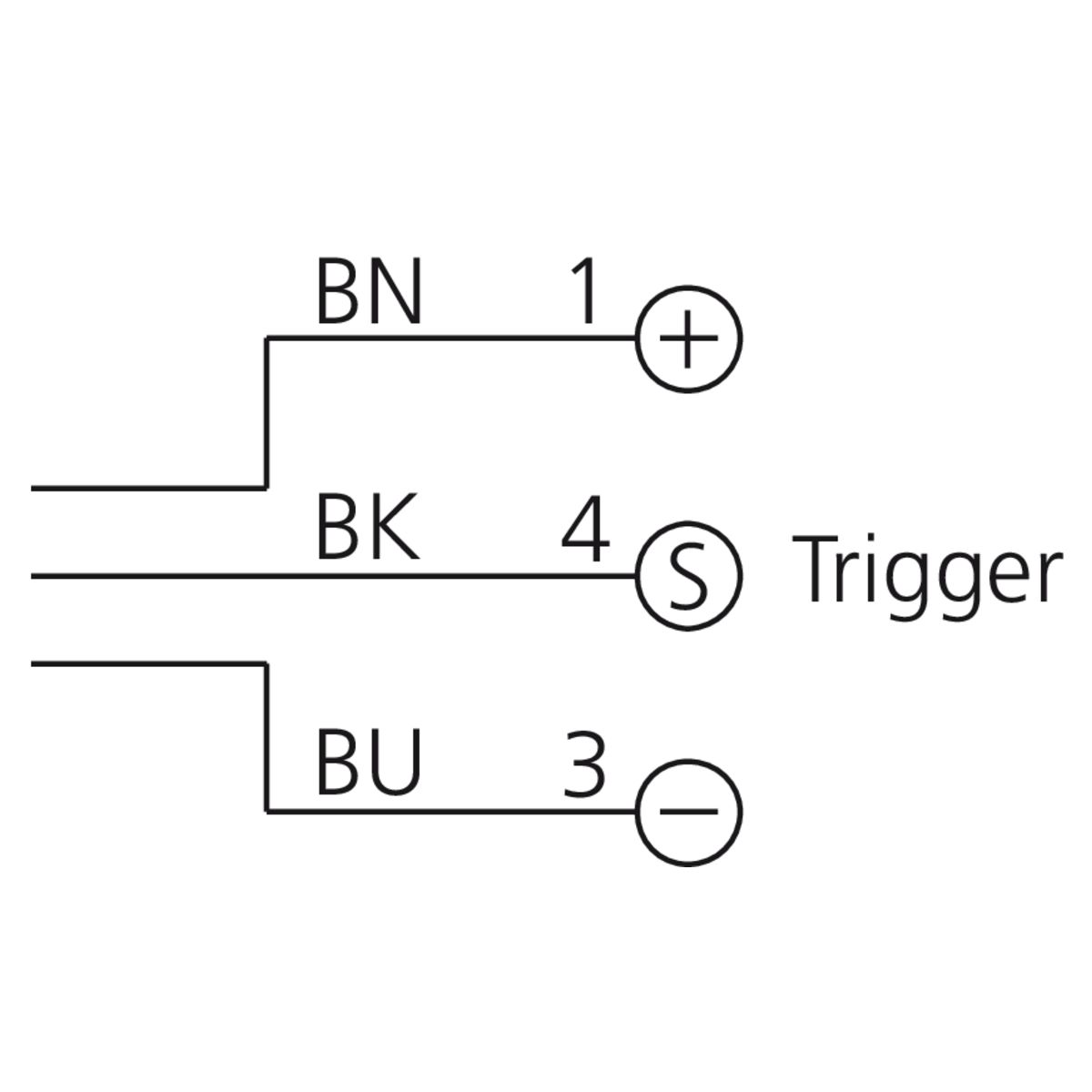

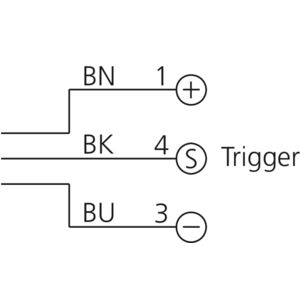

Anschluss	Connector, M12, 3-pin
