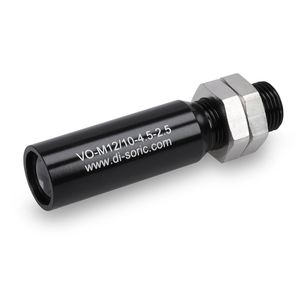

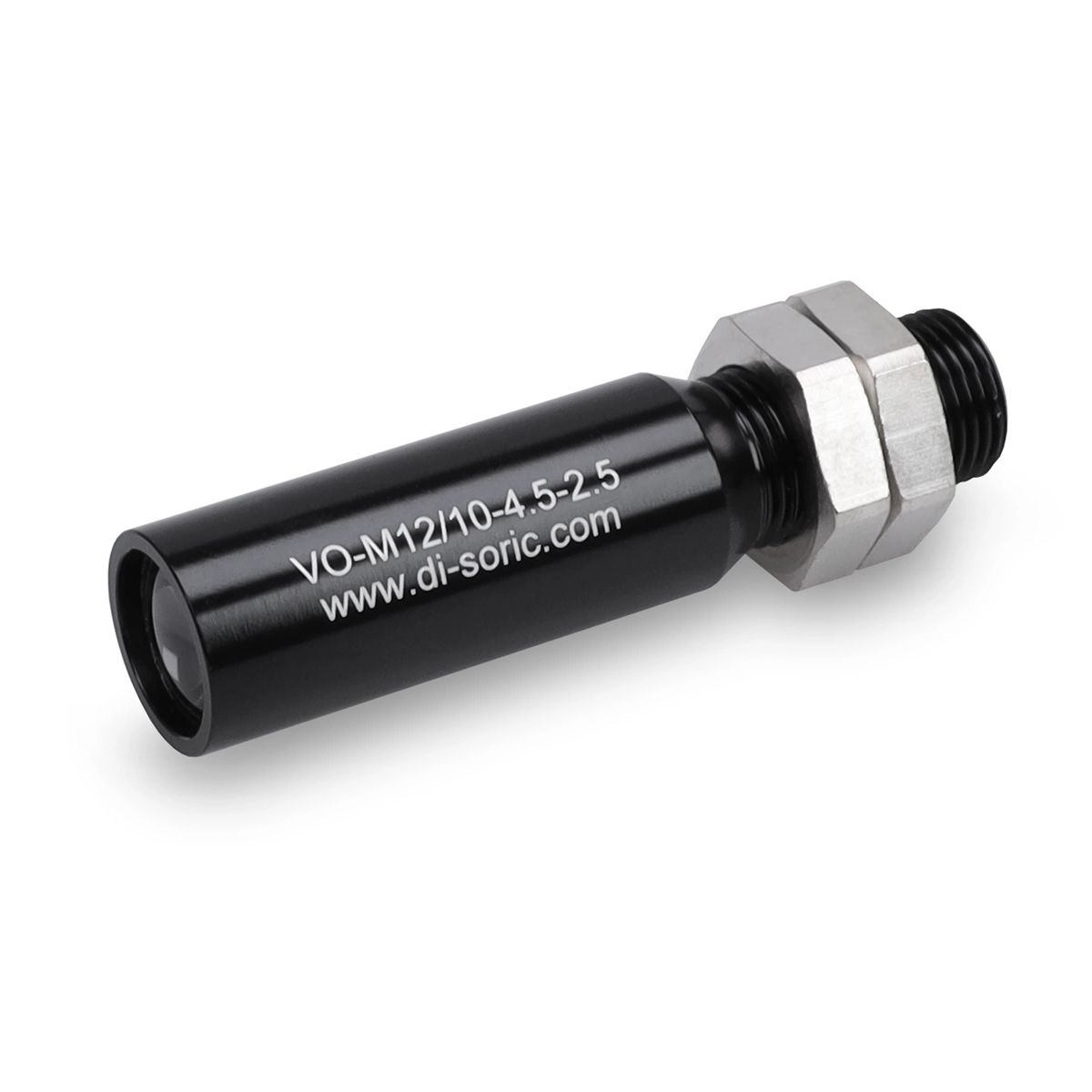

VO-M12/10-4.5-2.5
Part Number: VO-M12/10-4.5-2.5
Article Number: 203648
Technical Details
| Component | Focus optics |
|---|---|
| For FS 12 100 1 M G3 B8 | To be used with WRB 120 S-SG-4.5-2.5;To be used with WRB 120 P-SG-4.5-2.5 |
| For FS 12 100 1 M G3 B8 E | To be used with WRB 120 S-SG-4.5-2.5;To be used with WRB 120 P-SG-4.5-2.5 |
| For FS 12 100 2 M G3 B8 | To be used with WRB 120 S-SG-4.5-2.5;To be used with WRB 120 P-SG-4.5-2.5 |
| For FS 50 M G3 B8 | To be used with WRB 120 S-SG-4.5-2.5;To be used with WRB 120 P-SG-4.5-2.5 |
| For FSB 10 M G1 B8 | To be used with WRB 120 S-SG-4.5-2.5;To be used with WRB 120 P-SG-4.5-2.5 |
| For FSB 50 M 60 G3 B8 | To be used with WRB 120 S-SG-4.5-2.5;To be used with WRB 120 P-SG-4.5-2.5 |
| Light Spot Size | Ø 2 mm |
| Operation With | WRB 120 S-SG-4.5-2.5;WRB 120 P-SG-4.5-2.5 |
| Working Distance | 10.0 mm |
| Working Range | 10.0 mm 15.0 mm |
