TKHM-Z/TSM-Z/T4
Part Number: TKHM-Z/TSM-Z/T4
Article Number: 209541
Technical Details
| Ambient Temperature During Operation | -20.0 ... 70.0°C |
|---|---|
| Application | Digital signal |

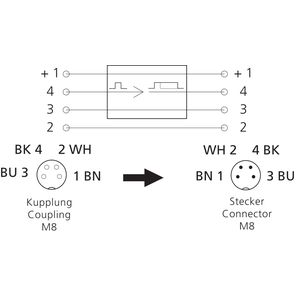

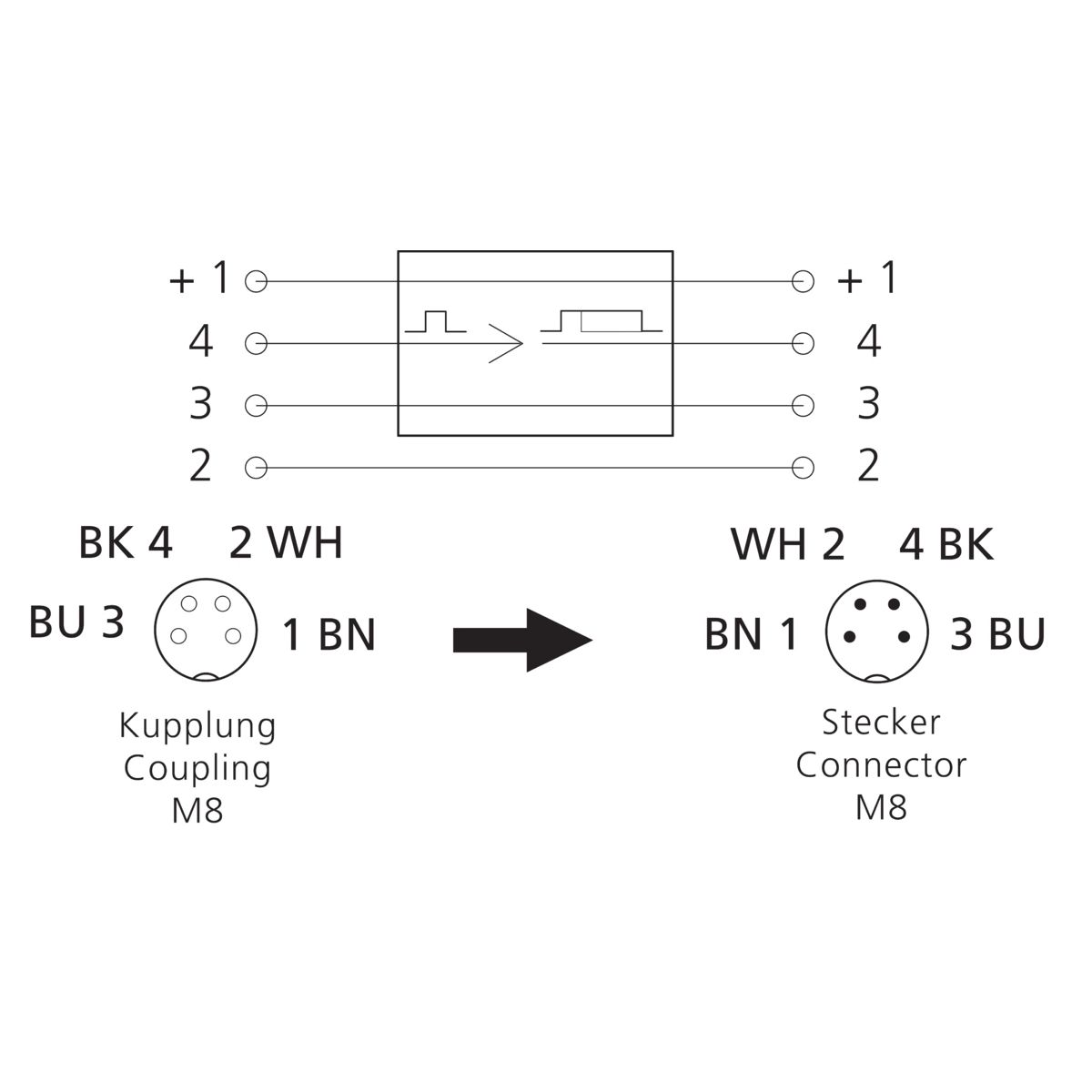

| Connection | Pigtail;Coupling M8 4-pin |
| Connection 2 | Pigtail;Connector M8 4-pin |
| Current Carrying Capacity | 200.0 mA short-circuit-proof |
| Function Selection | pnp |
| Housing Material | Plastic |
| No Load Current (max.) | 20.0 mA |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Service Voltage | 10.0 ... 35.0V DC |
| Switching Frequency | 500 Hz |
| Switching Output | pnp 1 ... 150 ms |

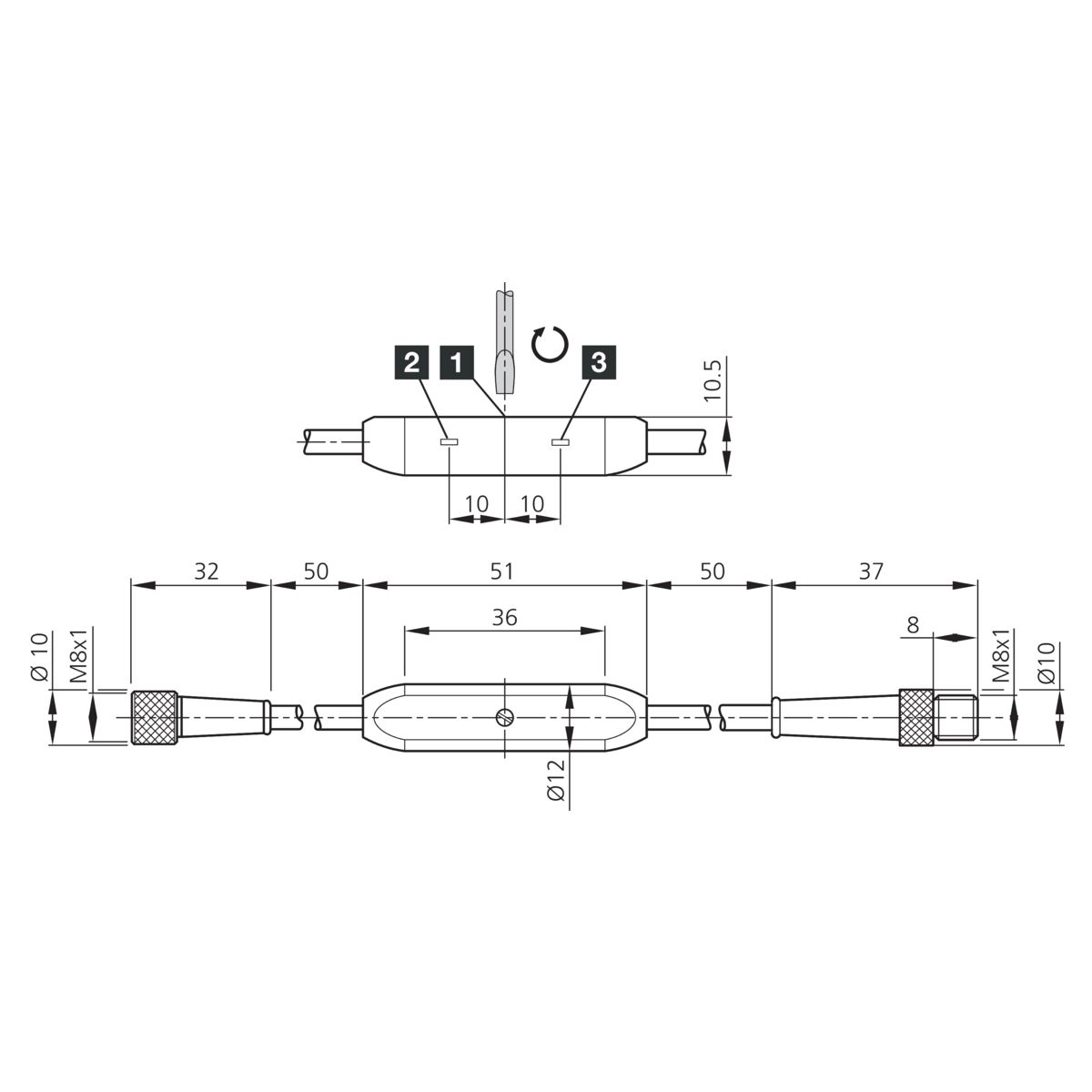

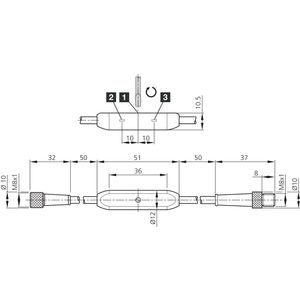

| Thread | M8 x 1 |
