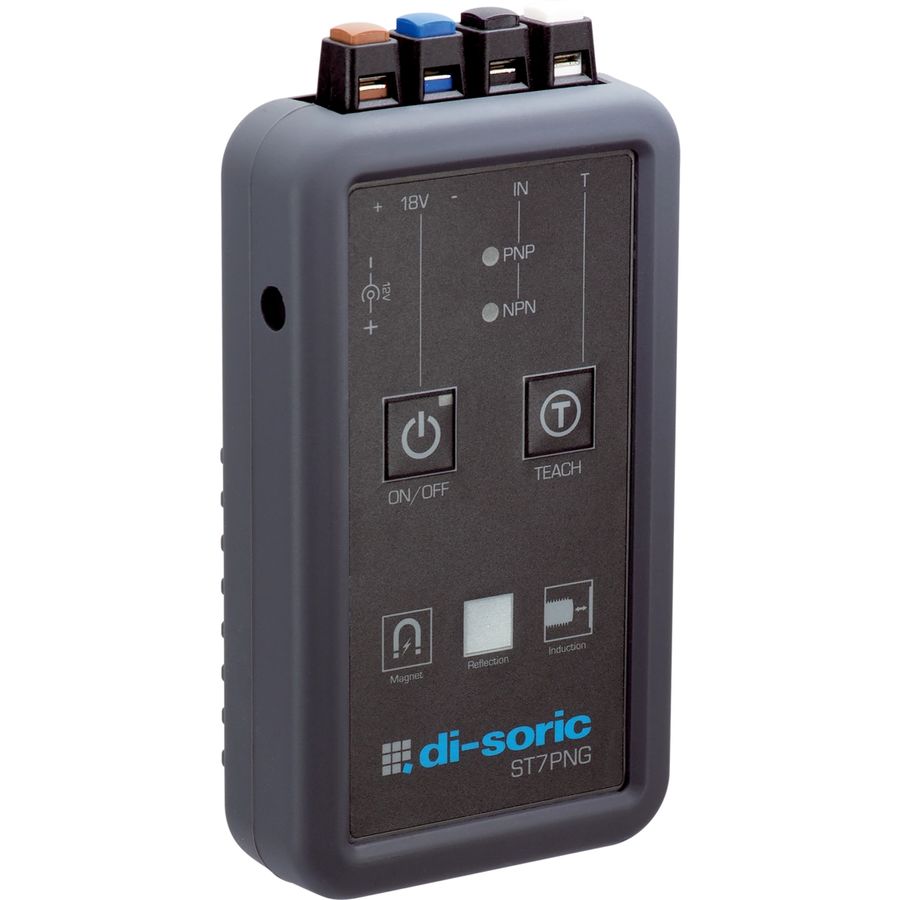

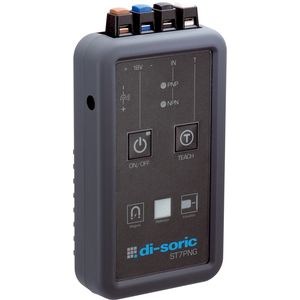

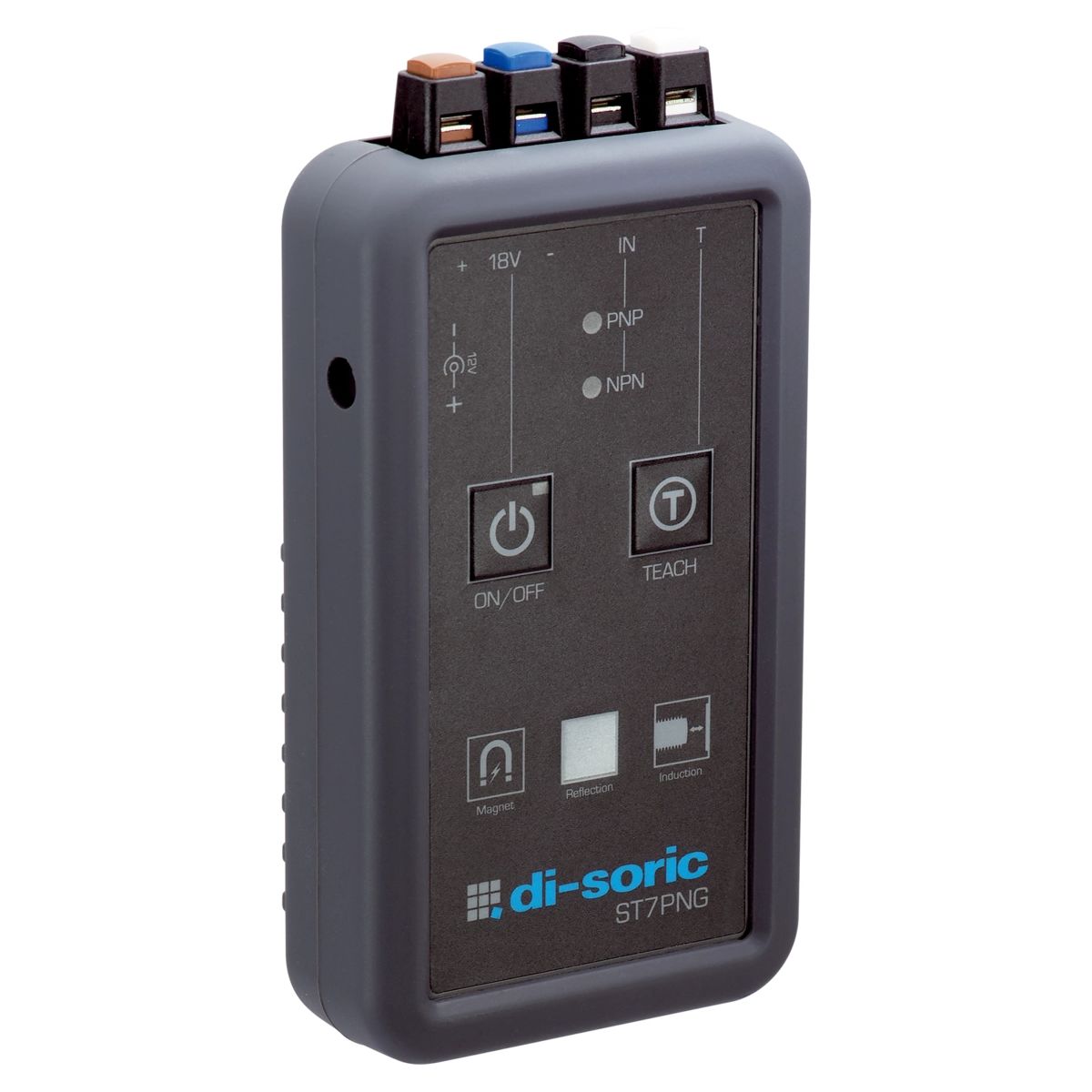

ST 7PNG
Part Number: ST 7PNG
Article Number: 209540
Technical Details
| Application | pnp, npn and push-pull sensors |
|---|---|
| Component | Sensor testers |

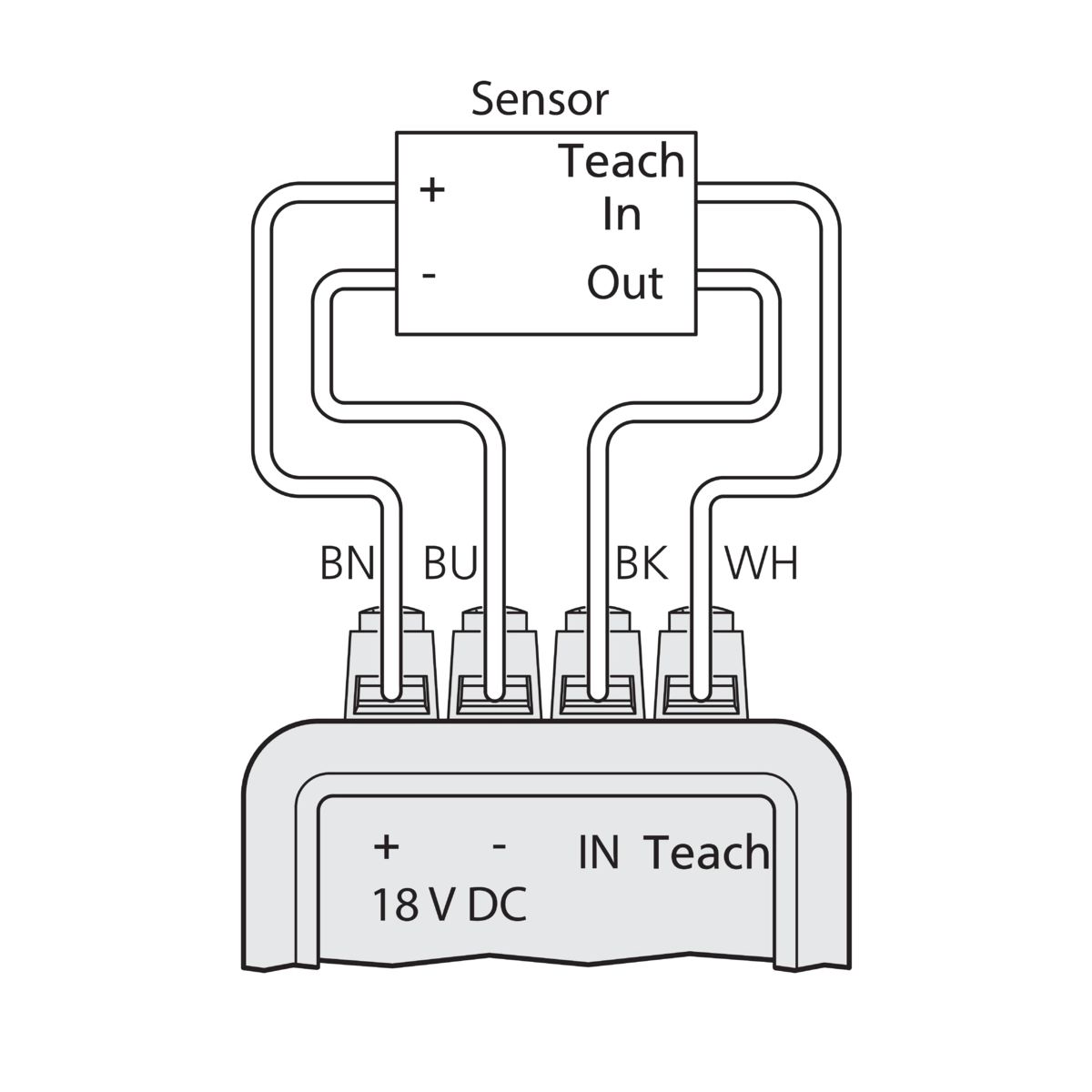

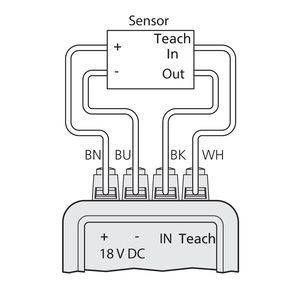

| Connection | Quick-action socket |
| Current Limiting | 60 mA in battery operation;240 mA in operation with external power supply unit |
| Green | Operation |

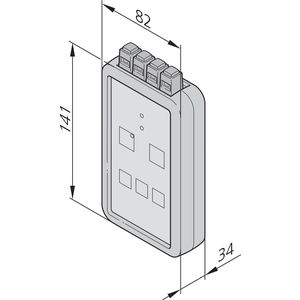

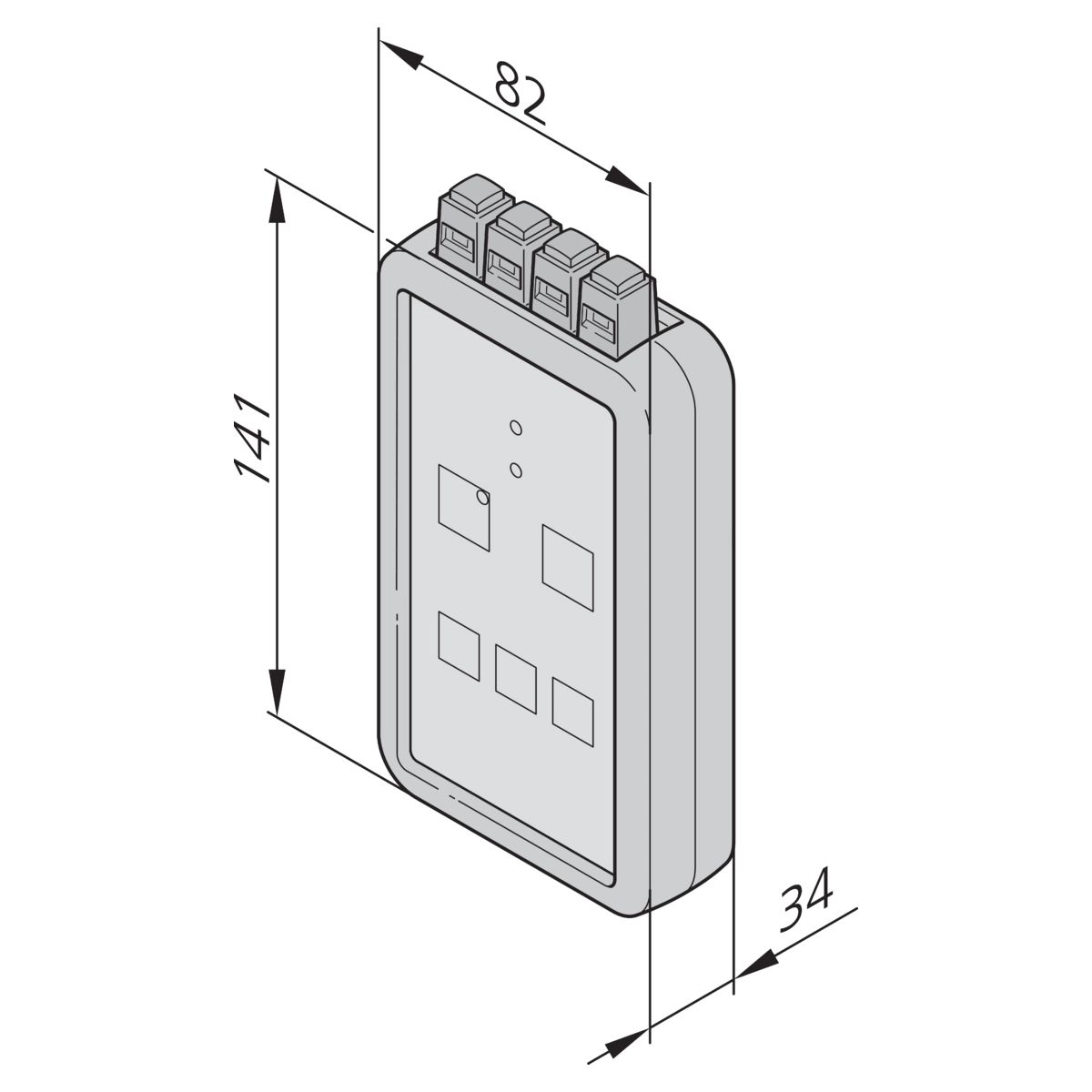

| Housing Dimensions | 141 x 82 x 34 mm |
| Housing Material | Plastic ABS Black |
| Material | Silicone Protective casing |
| No Load Current (max.) | 40.0 mA |
| Output Voltage | 18.0 V DC |
| Power Supply | 1.5 V batteries type AA (3x);External 12 V DC power supply unit (optional) |
| Protection Type | IP 21 |
| To Be Used For | pnp, npn and push-pull sensors |
| Yellow | Switching outputs |
