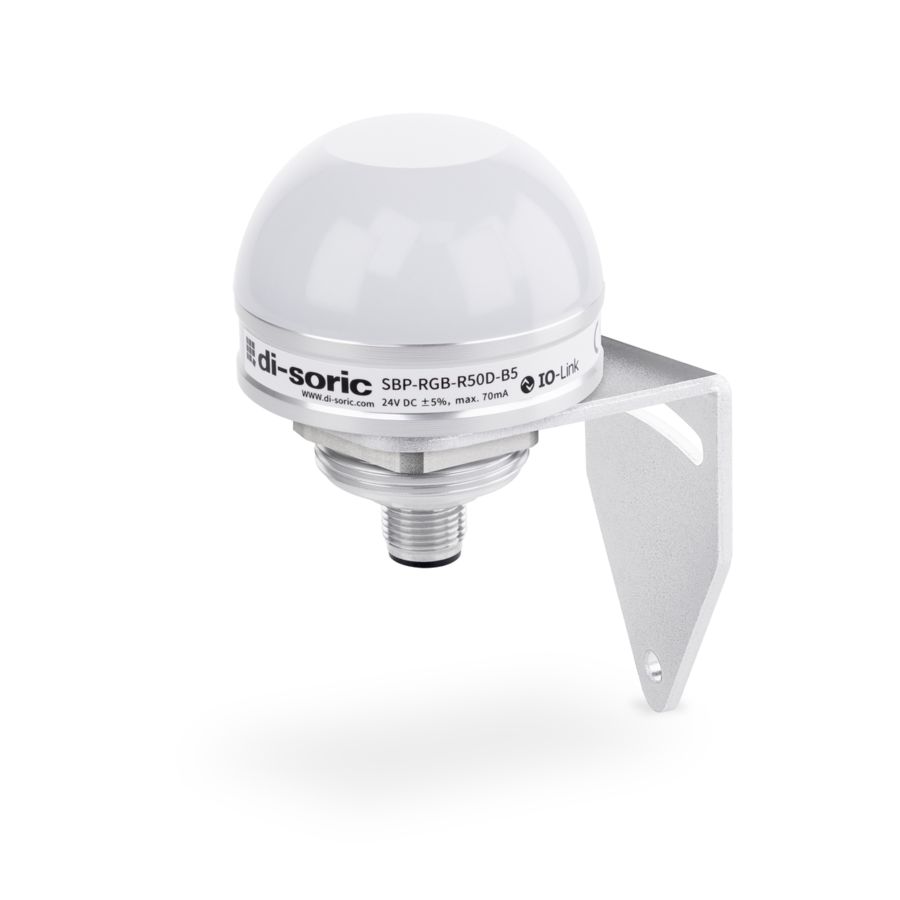

Signal Lighting - SBP-RGB-R50D-B5

Ambient Temperature During Operation	0.0 ... 50.0°C
Color	Red, green, yellow, blue, white, orange, pink, user-defined IO-Link
Connection	Connector M12 5-pin
Housing Material	Aluminum natural Anodized
Illuminated Area	50.0 mm 20.0 mm Ø x H
Illumination Time Pulse	1.0
Interface	IO-Link V1.1, COM2 38,4 kBd, 5000 µs;for parameterization (process data)
Internal Power Consumption	75.0 mA 24.0 V DC
Inverse Polarity Protection	Yes
Light Intensity Can Be Adjusted	10 to 100 %
Material	PC diffuse, dome-shaped Diffusor
Model	Signalleuchte
Operation Modes	Static / blinking / flashing
Power	1.8 W 24.0 V DC
Product Series	SBP-RGB Point
Protection Class	III
Protection Type	IP 67
Scope Of Delivery	Mounting bracket
Service Voltage	18 ... 30.0V DC
Trigger Input	8 color presets: selectable via trigger 1 + 2 +3
Trigger Input High Level	8.0 > V
Trigger Input Low Level	5.0 < V
Vibration Shock Resistance	10 to 55 Hz / 1.0 mm / 30 g / 11 ms
Weight	116.0 g
