OKTTI 55 M 30 FG3LK-IBS
Part Number: OKTTI 55 M 30 FG3LK-IBS
Article Number: 203675
Technical Details
| Ambient Light Immunity | 20 kLx |
|---|---|
| Ambient Temperature During Operation | -10.0 ... 60.0°C |
| Color | White |

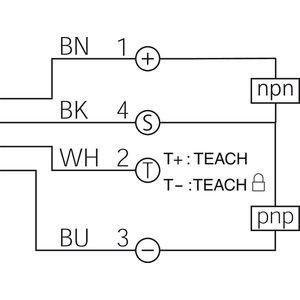

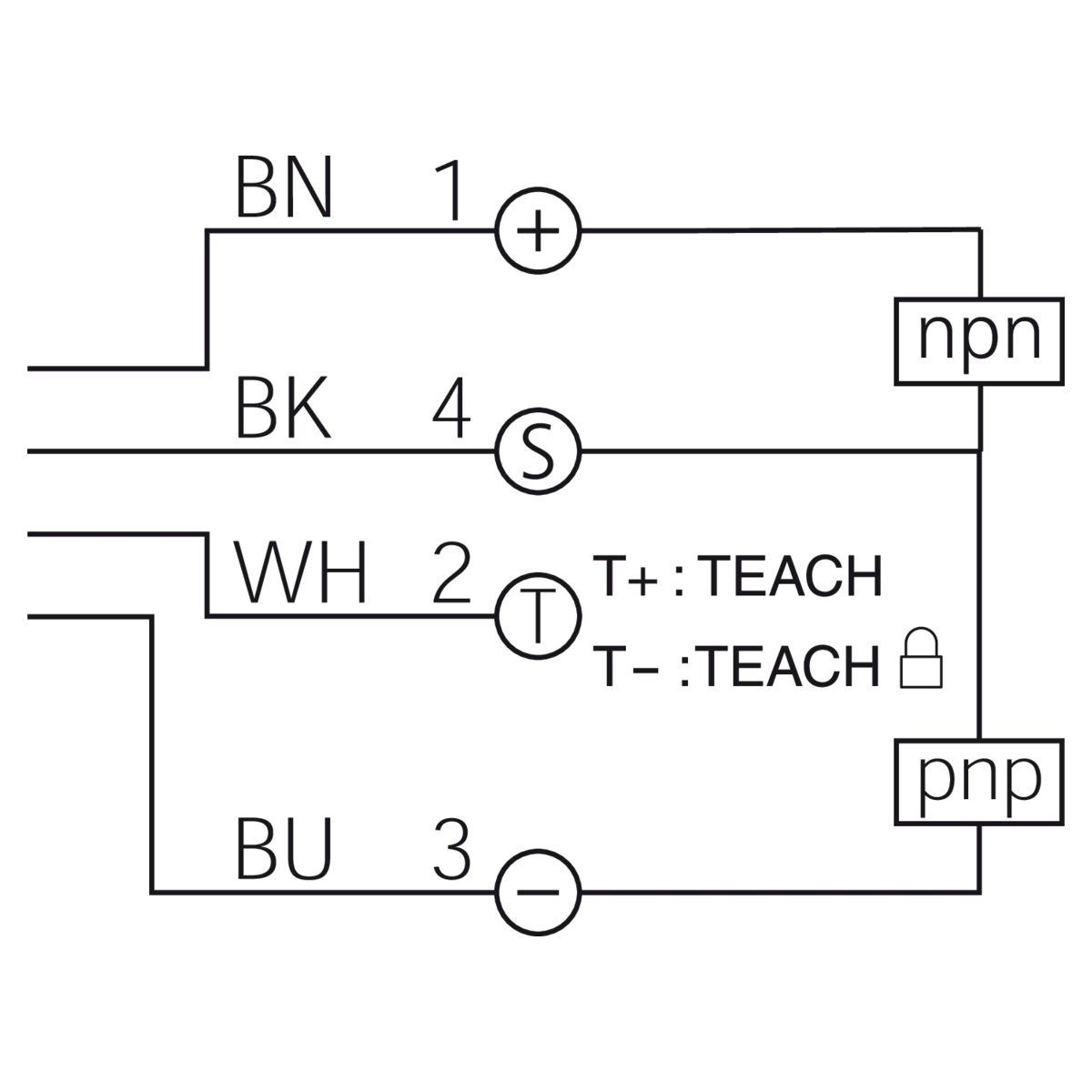

| Connection | Connector M12 4-pin |
| Connection Cable | VK ... |
| Design | Cuboid design |

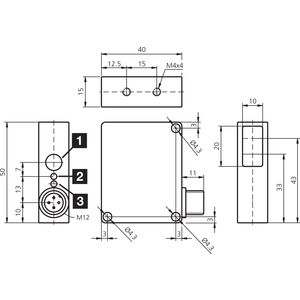

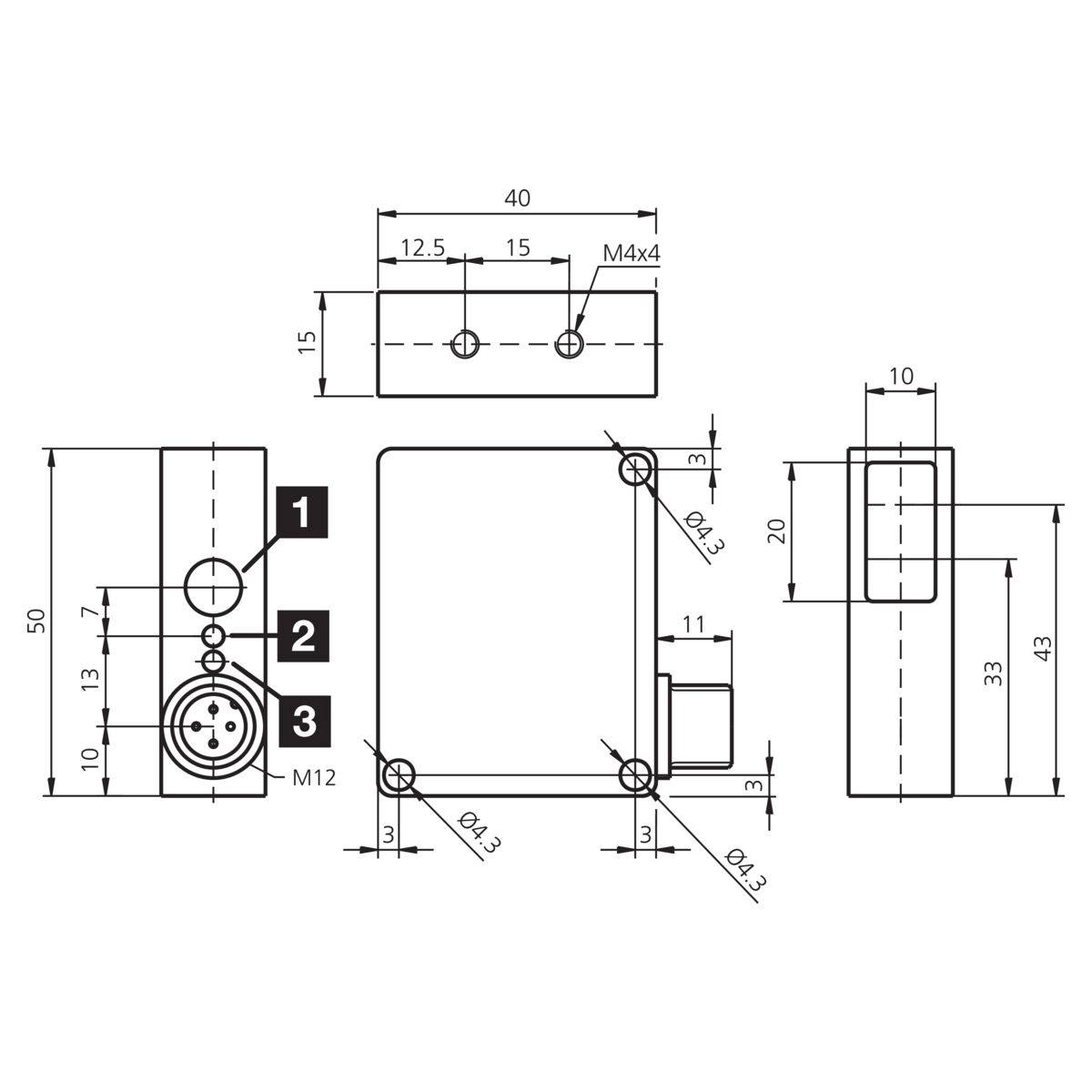

| Housing Dimensions | 50 x 40 x 15 mm |
| Housing length | 40.0 mm |
| Housing Material | Die-cast zinc Black painted |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Light Source | LED |
| Light Spot Size | Ø 3 mm |
| Modulation | Clocked |
| No Load Current (max.) | 40.0 mA |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Resolution | 0.7 mm |
| Sensitivity Adjustment | Teach button;Remote teach |
| Service Voltage | 10 ... 35.0V DC |
| Switching Distance | 27 mm 33 mm |
| Switching Frequency | 3000.0 Hz |
| Switching Hysteresis (max.) | 0.01 mm |
| Switching Output | Push-pull 200.0 mA NO/NC switchable |
| Voltage Drop (max.) | 2.0 V |
