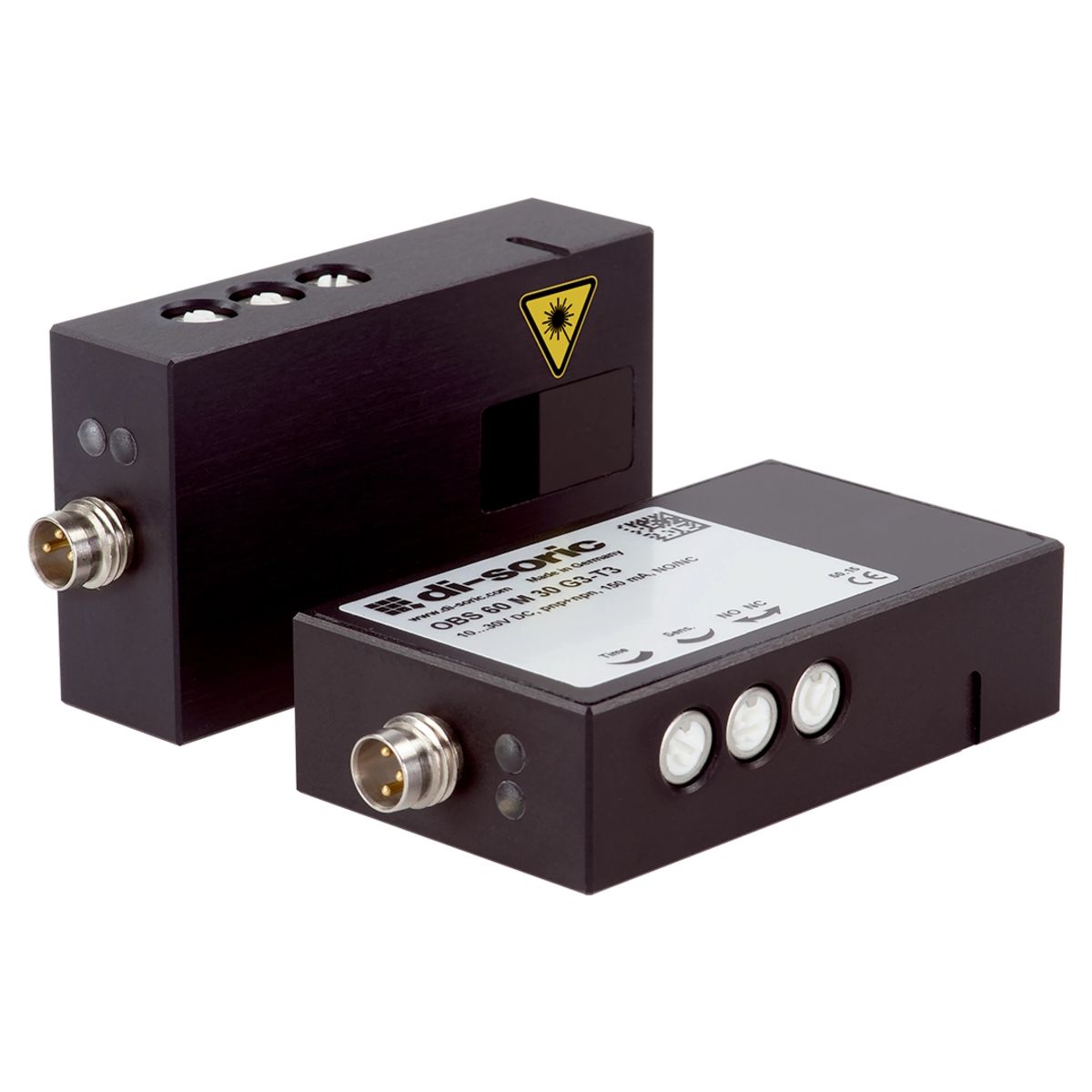

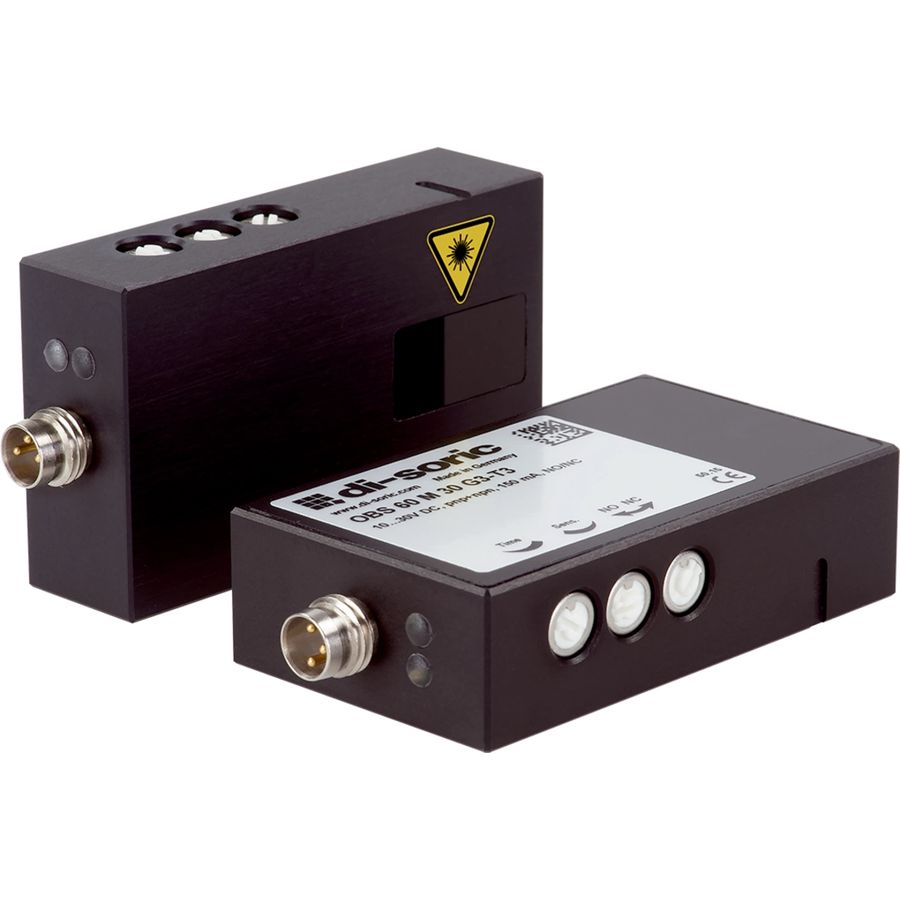

OBS 60 M 30 G3-T3
Part Number: OBS 60 M 30 G3-T3
Article Number: 207826
Technical Details
| Activation Time | 10 ms |
|---|---|
| Ambient Light Immunity | 5 kLx |
| Ambient Temperature During Operation | 5.0 ... 45.0°C |
| Characteristics | For contactless feed control, also suitable at low speed and with wires |
| Color | Infrared |

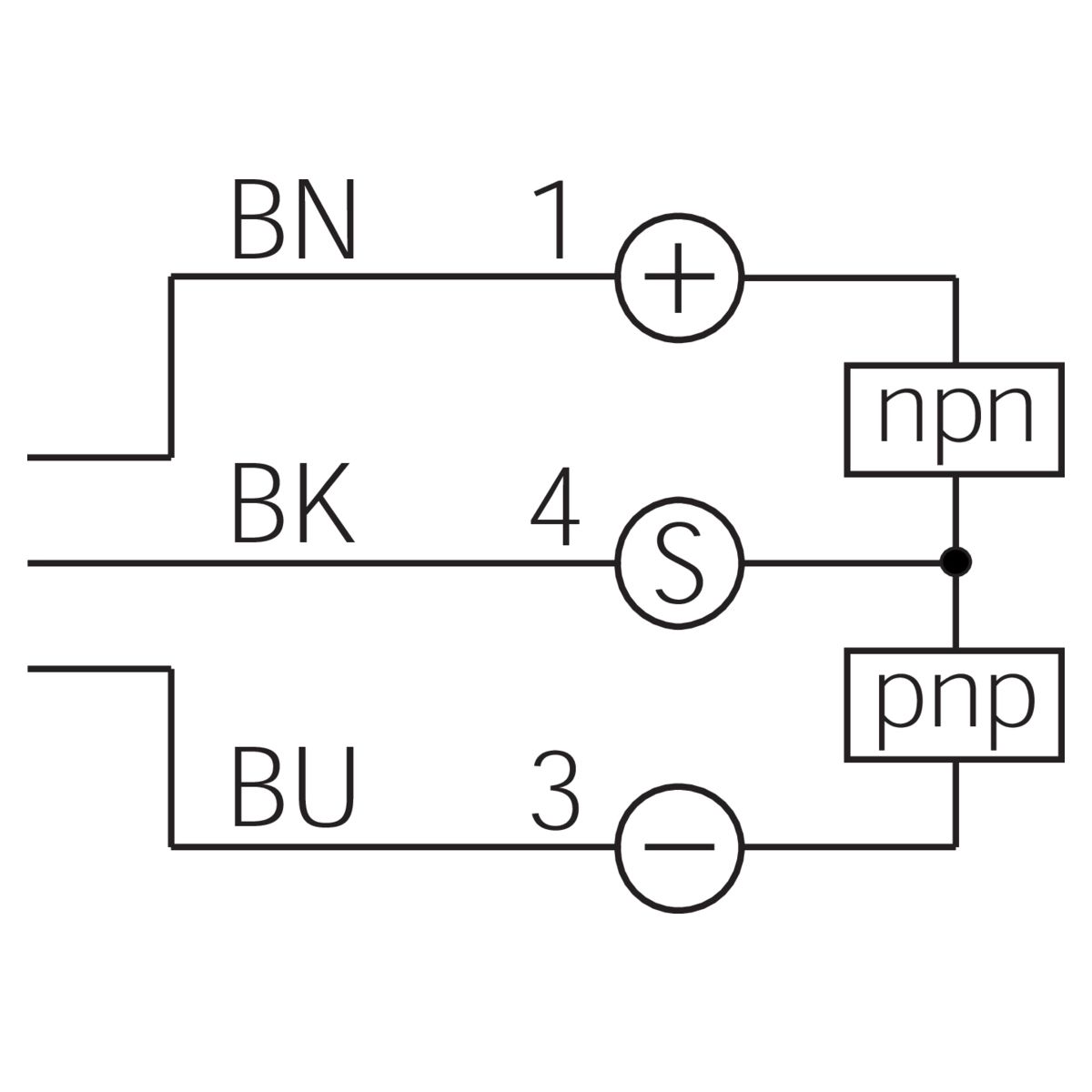

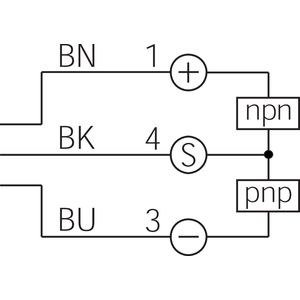

| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |

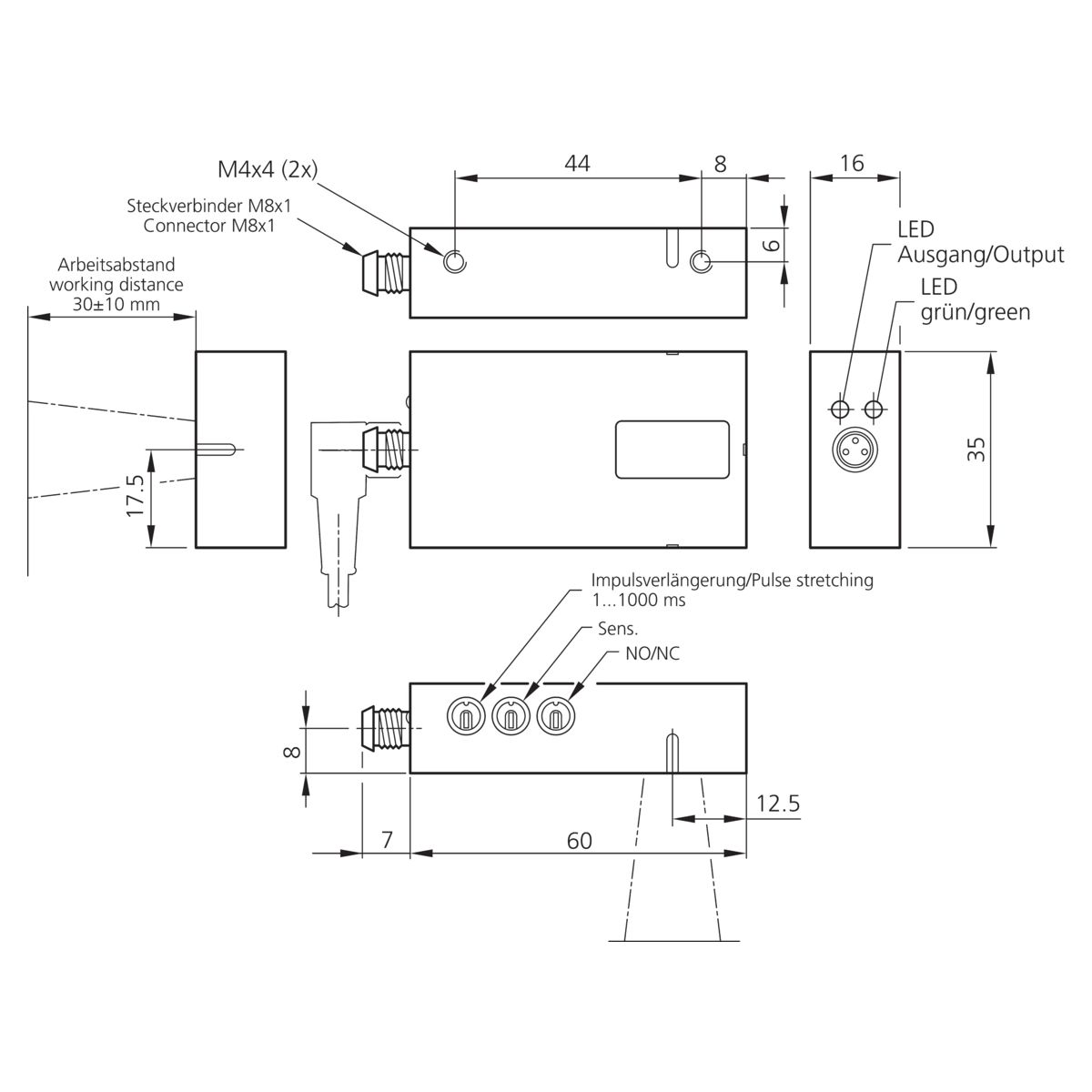

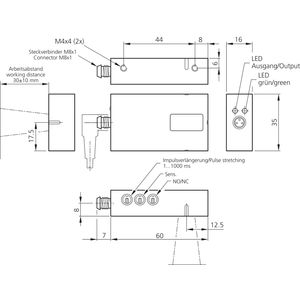

| Design | Cuboid design |
| Evaluation | digital |
| Green | Operation |
| Housing Material | Aluminum Black Anodized |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Laser Class | 1M (EN 60825-1) |
| Light Source | Laser |
| Light Spot Size | Ø 2 mm |
| Material | PMMA Window |
| No Load Current (max.) | 30.0 mA |
| Operating Principle | Optical |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Pulse Stretching | 1.0 ms 1000.0 ms adjustable |
| Sensitivity Adjustment | Potentiometer |
| Service Voltage | 10.0 ... 30.0V DC |
| Speed Of Parts (max.) | 5.0 m/s material-dependent |
| Switching Distance | 20.0 mm 40.0 mm |
| Switching Hysteresis (max.) | Fixed 16 % max. 0.1 m/s |
| Switching Output | Push-pull 150.0 mA NO/NC switchable |
| Voltage Drop (max.) | 2.5 V |
| Wavelength | 850 nm |
| Yellow | Switching output |
