MZERTI 20 PSK-TSSL
Part Number: MZERTI 20 PSK-TSSL
Article Number: 207750
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Characteristics | Allen screw SW 2.5 mm |
| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Current Carrying Capacity | 200.0 mA short-circuit-proof |
| Cylinder Groove | T-groove Can be inserted into the groove from above |
| Housing Material | Die-cast zinc |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Mounting | Locknut |
| No Load Current (max.) | 10.0 mA |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Reproducibility | 0.1 mm |
| Service Voltage | 10.0 ... 30.0V DC |
| Switching Frequency | 1000 Hz |

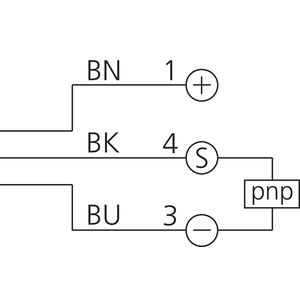

| Switching Output | pnp 200.0 mA NO |
| Voltage Drop (max.) | 2.0 V |
| Yellow | Output signal |
