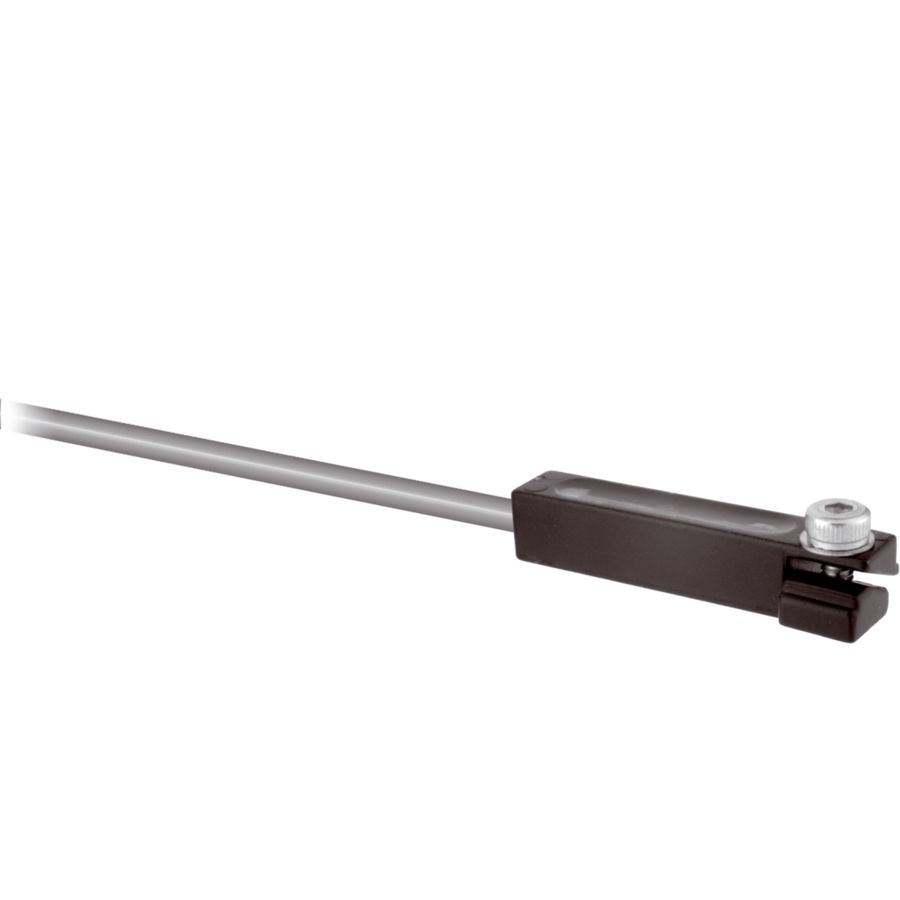

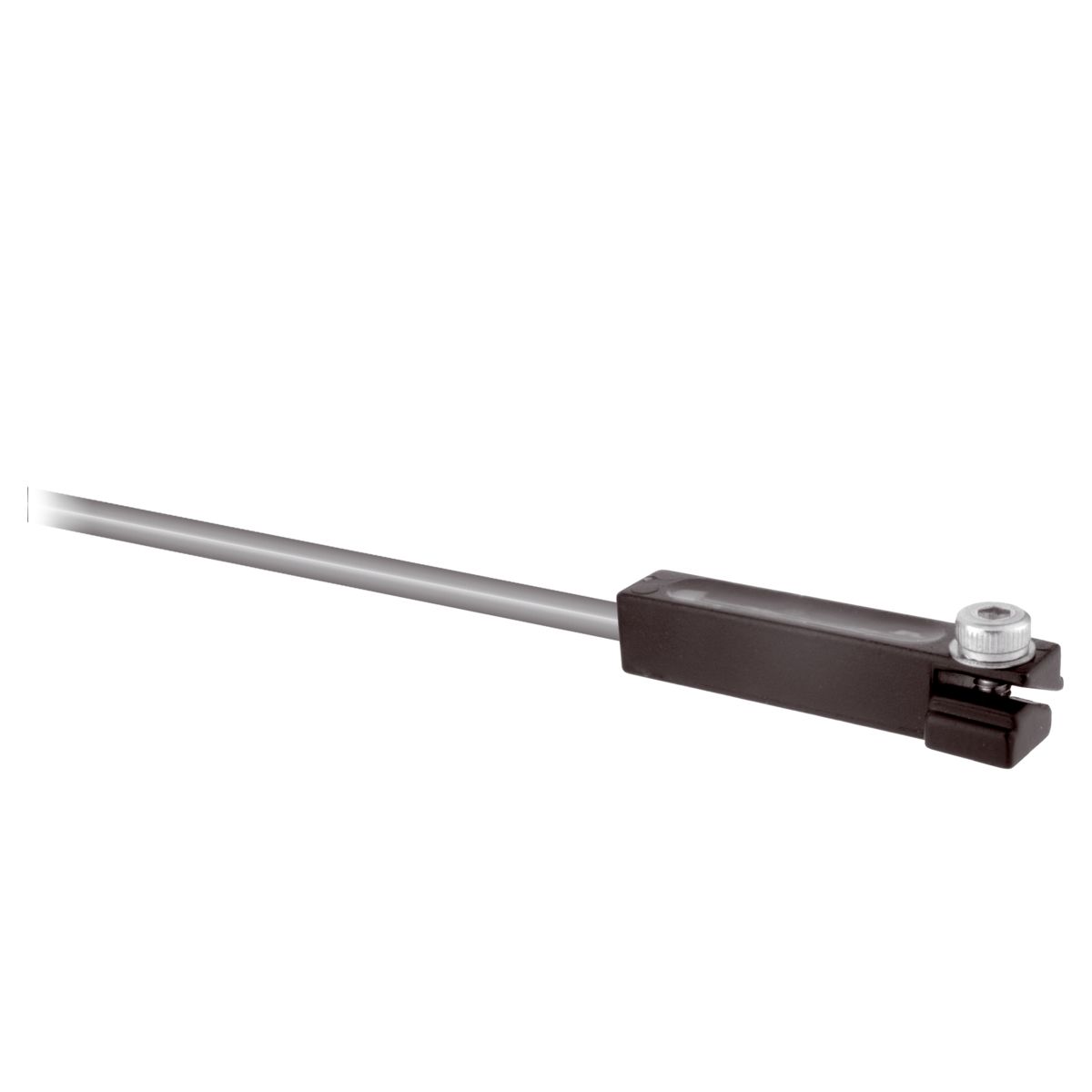

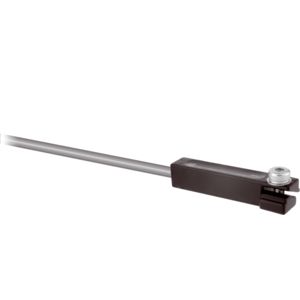

MZEKS 25 PSL
Part Number: MZEKS 25 PSL
Article Number: 204806
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Connection | Cable 2.5 m flying leads |
| Current Carrying Capacity | 100.0 mA not short-circuit-proof polarity-safe |
| Cylinder Groove | T-groove Can be inserted into the groove from above |
| Housing Material | Die-cast zinc |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Material Of Cable | Polyurethane |
| Mounting | Clamping block |
| No Load Current (max.) | 12.0 mA |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 68;IP 67 Device and cable;Connection plug |
| Reproducibility | < 0.1 mm |
| Service Voltage | 10 ... 35.0V DC |
| Switching Capacity | 3 < W 30 V, 100 mA |
| Switching Frequency | 1000.0 Hz |

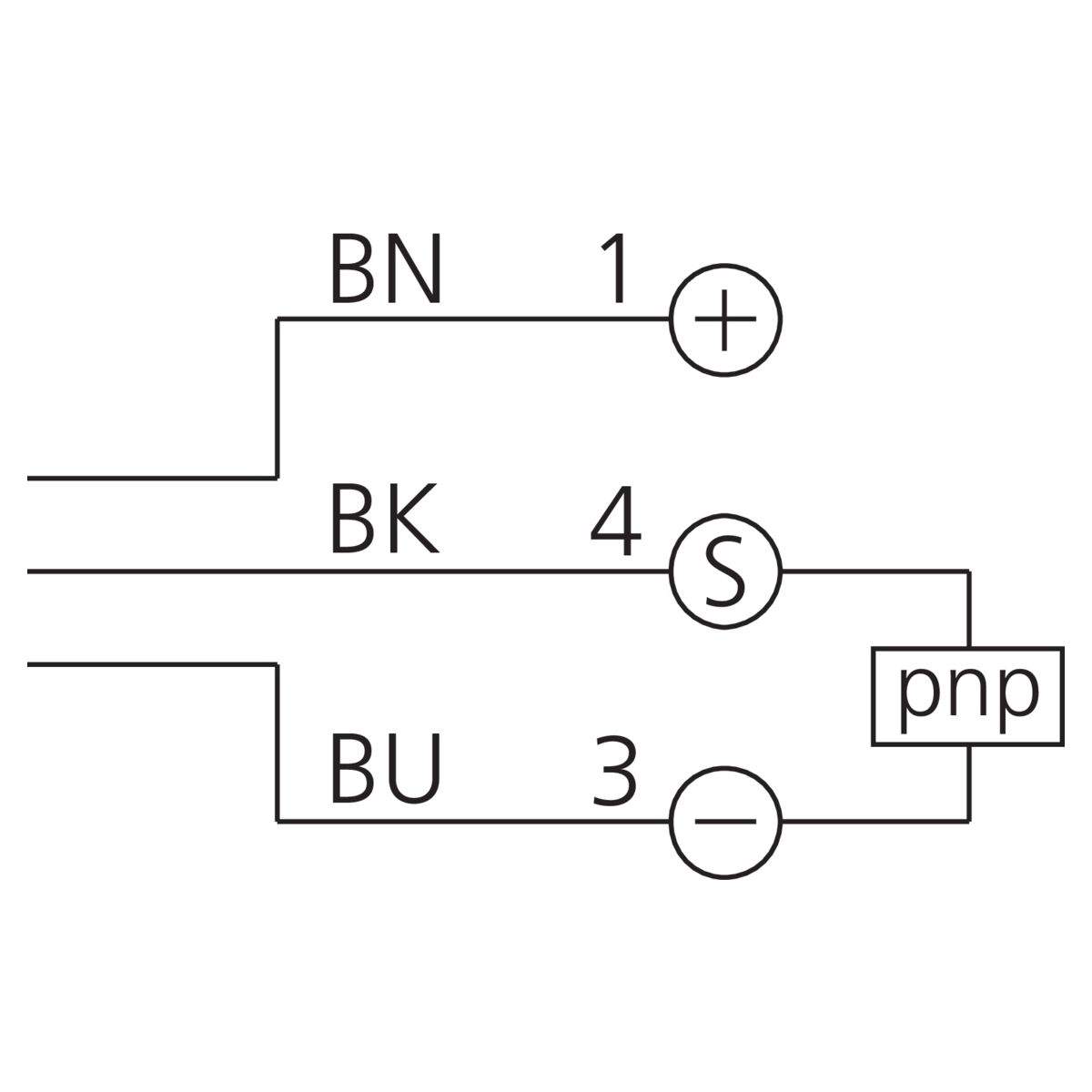

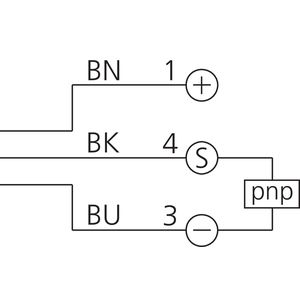

| Switching Output | pnp NO short-circuit-proof |
| Voltage Drop (max.) | 2.0 V |
| Yellow | Output signal |
