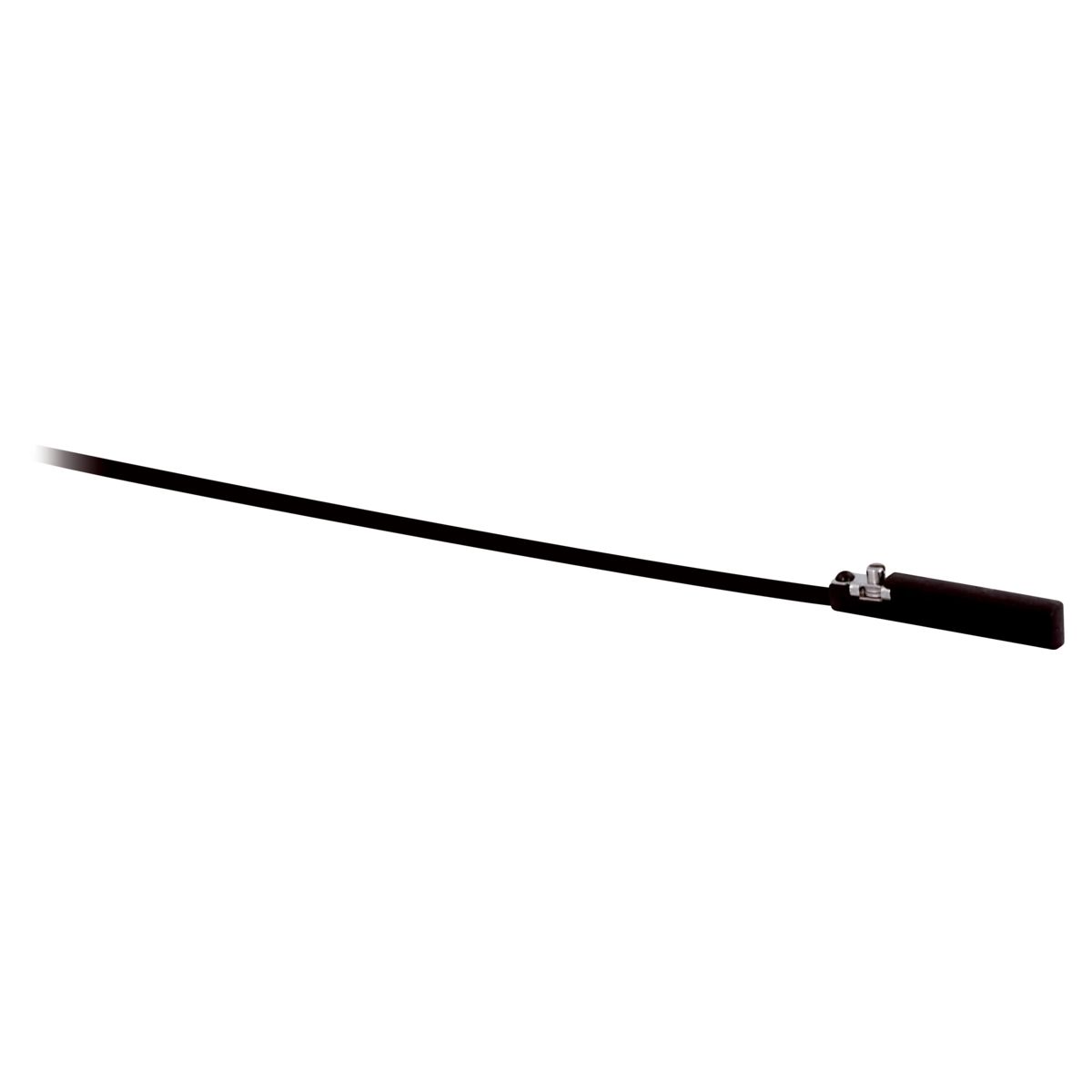

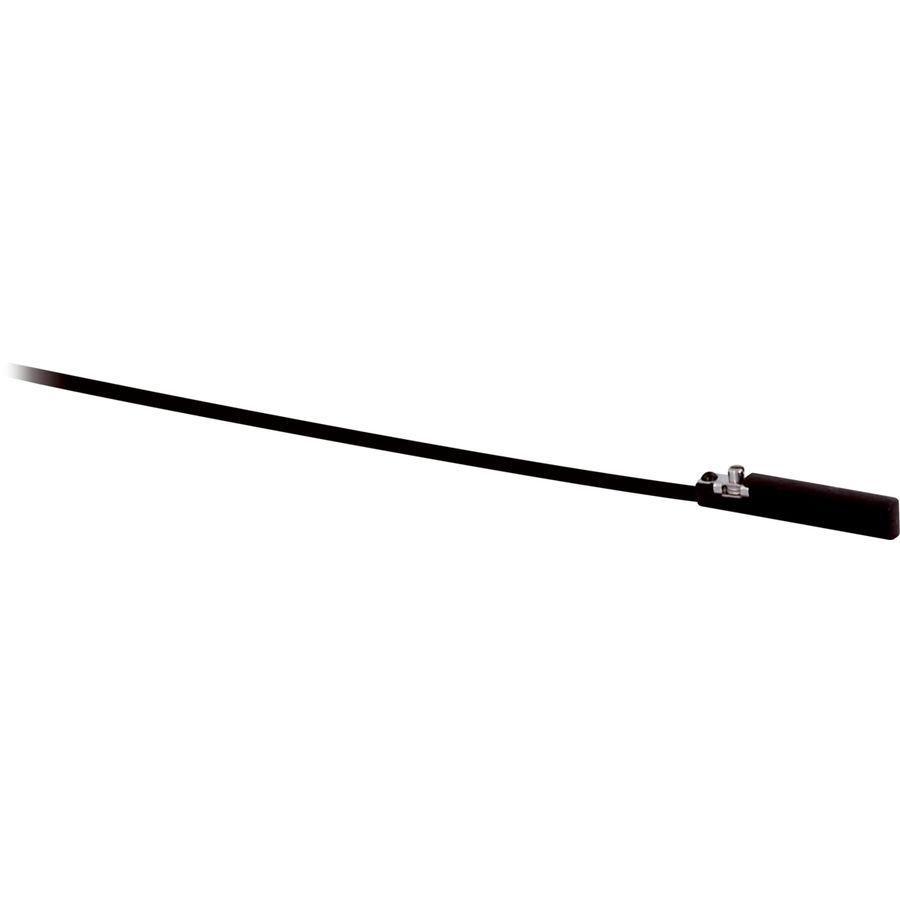

MZEC 9-26 PSL

Ambient Temperature During Operation	-20.0 ... 70.0°C
Connection	Cable 2.0 m 3-pin
Connection1	3 x 0.08 mm²
Current Carrying Capacity	100.0 mA short-circuit-proof polarity-safe
Cylinder Groove	C-groove 3.7;4 mm;mm Can be inserted into the groove from above
Housing Material	Plastic PA
Illumination Time Pulse	1.0
Insulation Voltage Endurance	500.0 V
Material	Stainless steel Fastening excentric
Material Of Cable	Polyurethane
Mounting	Excentric
No Load Current (max.)	10.0 mA
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Reproducibility	0.2 mm
Service Voltage	10 ... 30.0V DC
Switching Frequency	10000.0 Hz

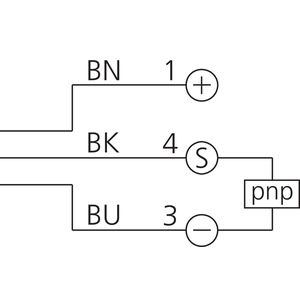

Switching Output	pnp 100.0 mA NO short-circuit-proof
Voltage Drop (max.)	2.5 V
Yellow	Output signal
