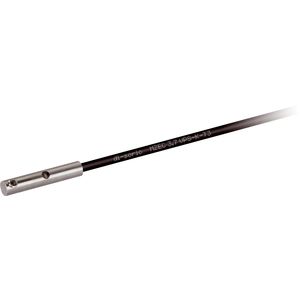

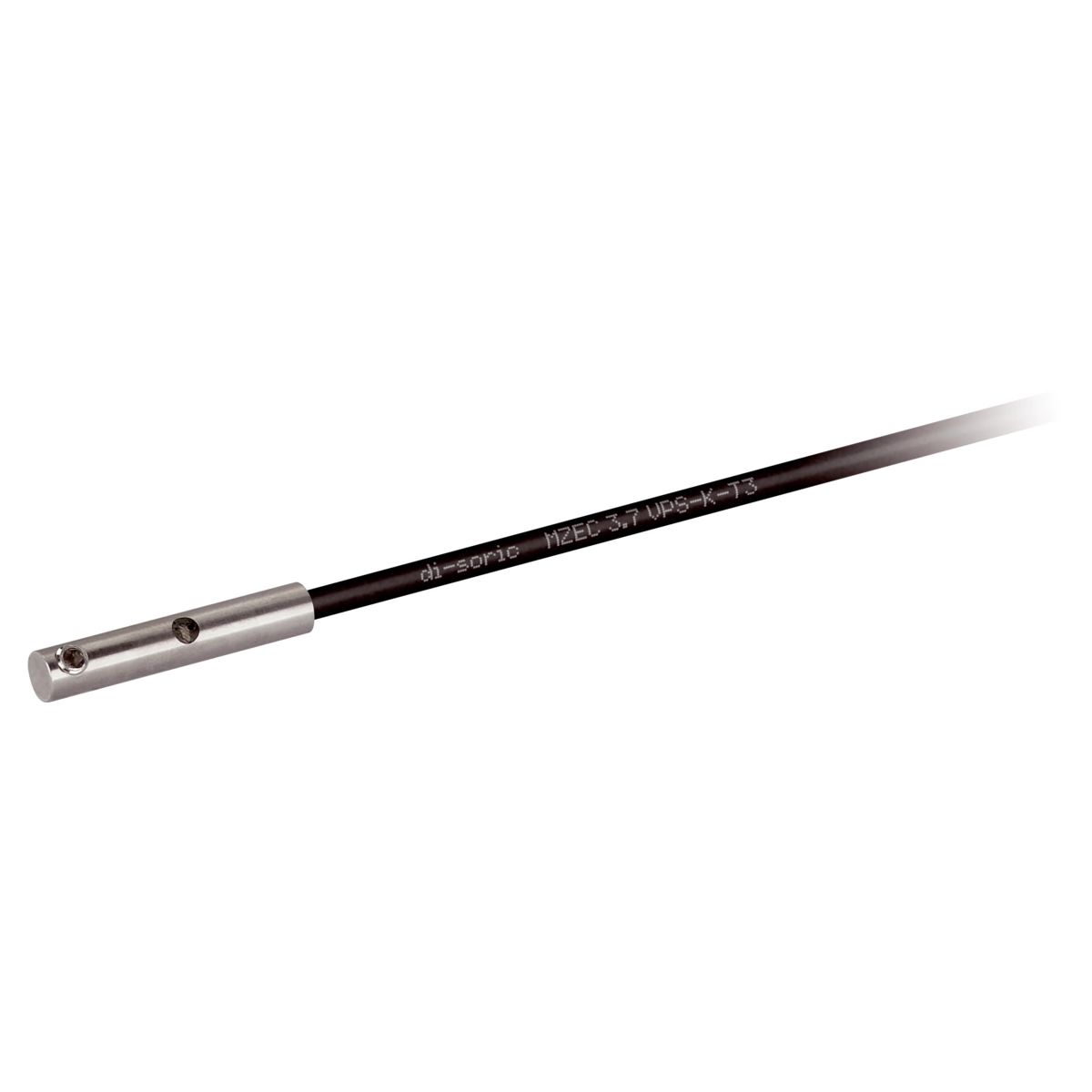

MZEC 3.7 VNS-K-T3

Ambient Temperature During Operation	-20.0 ... 70.0°C

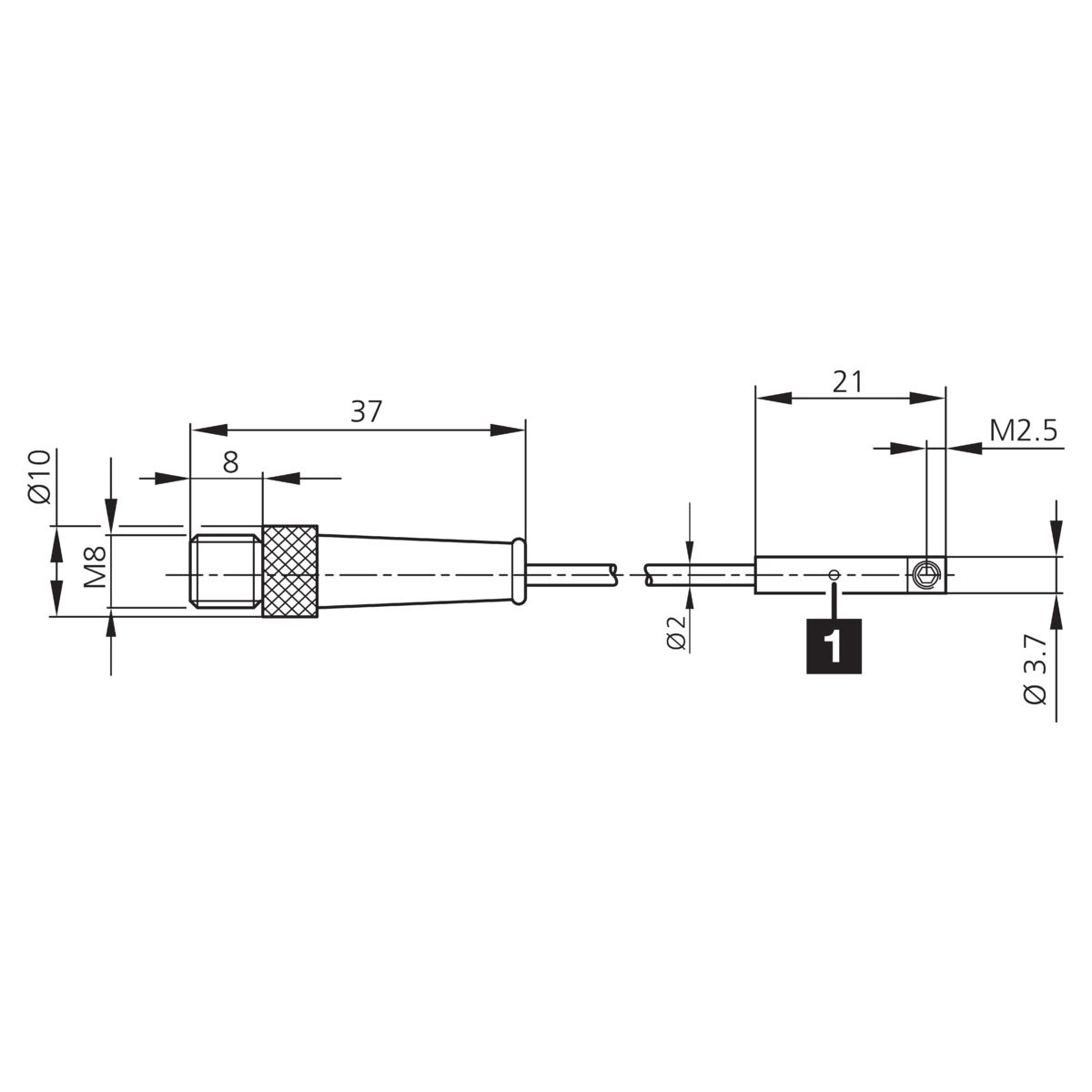

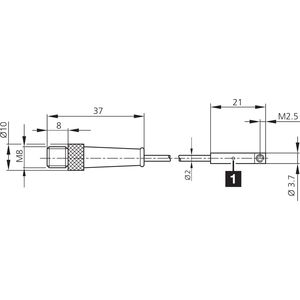

Connection	Pigtail 0.3 m M8 3-pin
Connection Cable	TK ...
Connection1	3 x 0.08 mm²
Current Carrying Capacity	100.0 mA not short-circuit-proof polarity-safe
Cylinder Groove	C-groove 3.7 mm insertion in lateral direction of groove
Housing Material	Stainless steel V2A 1.4305 / AISI 303
Illumination Time Pulse	1.0
Insulation Voltage Endurance	500.0 V
Material Of Cable	TPU
Mounting	Locking screw Allen screw SW 1.3 mm
No Load Current (max.)	12.0 mA
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Reproducibility	< 0.1 mm
Service Voltage	10.0 ... 30.0V DC
Switching Capacity	3 < W 30 V, 100 mA
Switching Frequency	1000 Hz

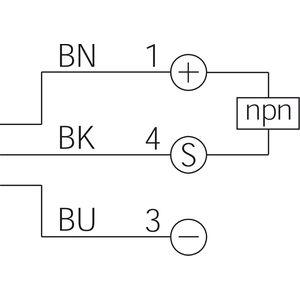

Switching Output	npn 100.0 mA NO
Voltage Drop (max.)	2.0 V
Yellow	Output signal
