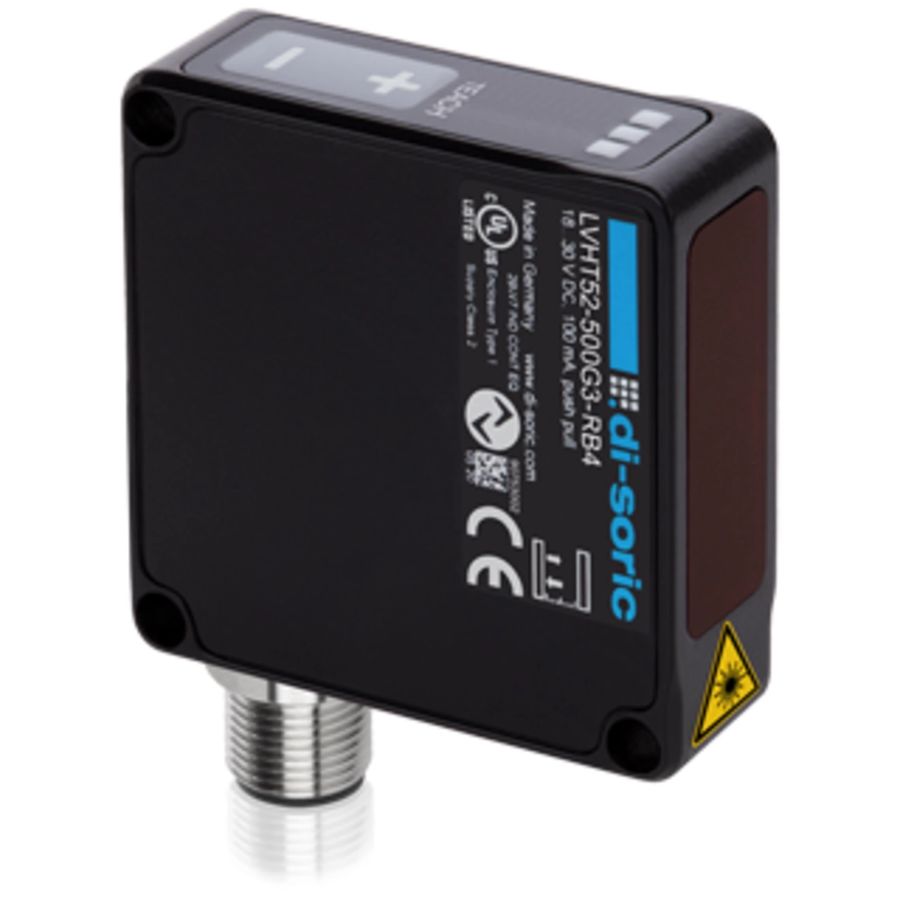

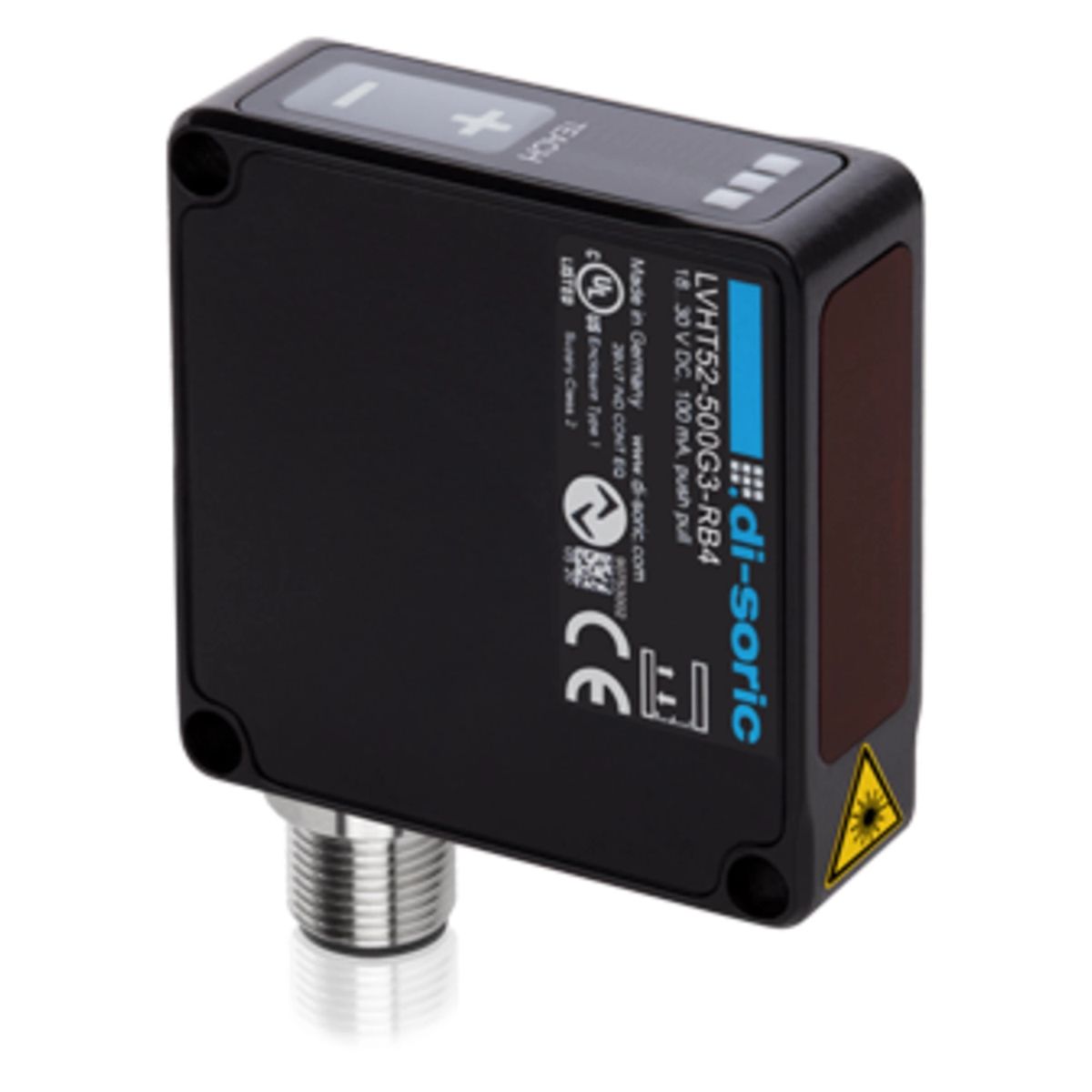

LVHT52-500G3-RB4

Ambient Temperature During Operation	0.0 ... 50.0°C
Characteristics	Radial plug connection
Color	Red

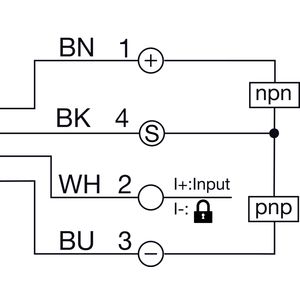

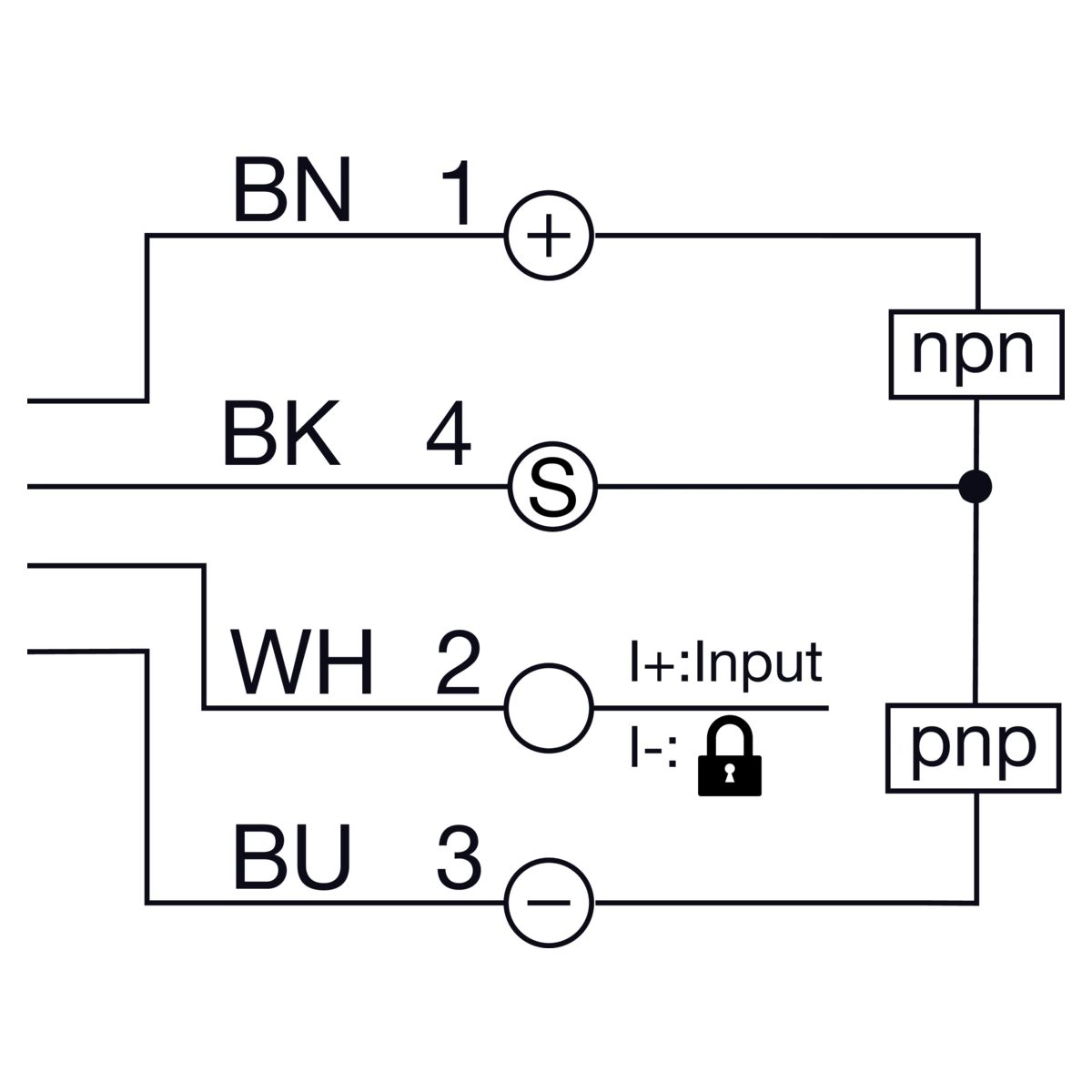

Connection	Connector M12 4-pin
Connection Cable	VK ... /5
Design	Cuboid design
Green	Status

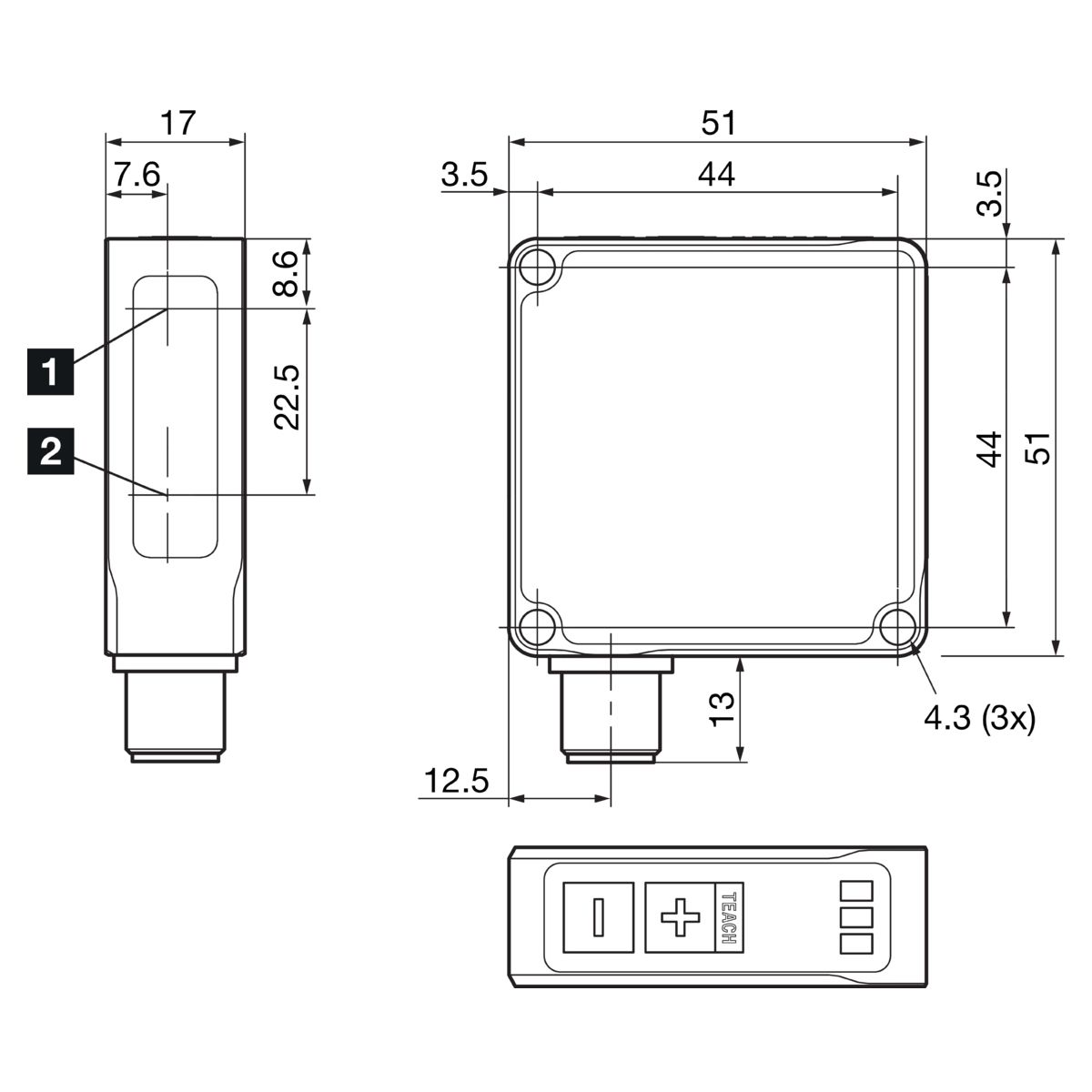

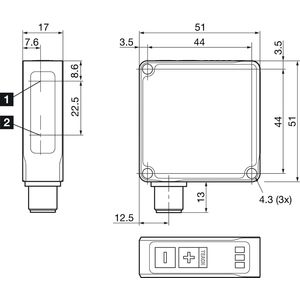

Housing Dimensions	51 x 51 x 17 mm
Housing Material	Die-cast zinc Black powder-coated
Illumination Time Pulse	1.0
Insulation Voltage Endurance	500.0 V
Interface	IO-Link V1.1, COM2;Smart Sensor Profile
Laser Class	1 (IEC 60825-1:2014 / EN 60825-1:2014)
Light Source	Laser
Light Spot Size	Ø 1.0 mm
Measuring Range	50.0 mm
Measuring Range 1	50.0 mm 300.0 mm 6 to 90 % remission
Measuring Range 2	300.0 mm 500.0 mm 6 to 90 % remission
No Load Current (max.)	60.0 mA
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Readiness Delay (max.)	300.0 ms
Red	Signal weak
Reproducibility	0.5 mm mm 0.5 mm at 50 ... 300 mm, mode: standard, mean value 16;1.0 mm at 300 ... 500 mm, mode: standard, mean value 16
Resolution	0.3 mm 0.5 mm
Resolution1	0.3 mm at 50 ... 300 mm, mode: standard, mean value 16;0.5 mm at 300 ... 500 mm, mode: standard, mean value 16
Sensitivity Adjustment	Keypad
Service Voltage	18 ... 30.0V DC
Shock Vibration Load	30 g, 10 ... 55 Hz / 0.5 mm
Switching Frequency	100.0 Hz Max. 600 Hz in Speed sensor mode without filter
Switching Output	Push-pull 1.0 100.0 mA NO/NC
Temperature Drift	0.04 %/K
Voltage Drop (max.)	2.0 V
Wavelength	650.0 nm
Weight	102.0 g
Yellow	Switching output
