LVE
Part Number: LVE
Article Number: 204047
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Assembly | DIN-rail mountable |
| Beam Evaluation | Parameters can be configured horizontally / diagonally |
| Cycle Time Per Light Beam | 0.05 ms abhängig von Konfiguration und Reichweite der Lichtgitterleisten |
| EMC Directives | EN 61000-6-3:2001 / EN 61000-6-1:2001 |

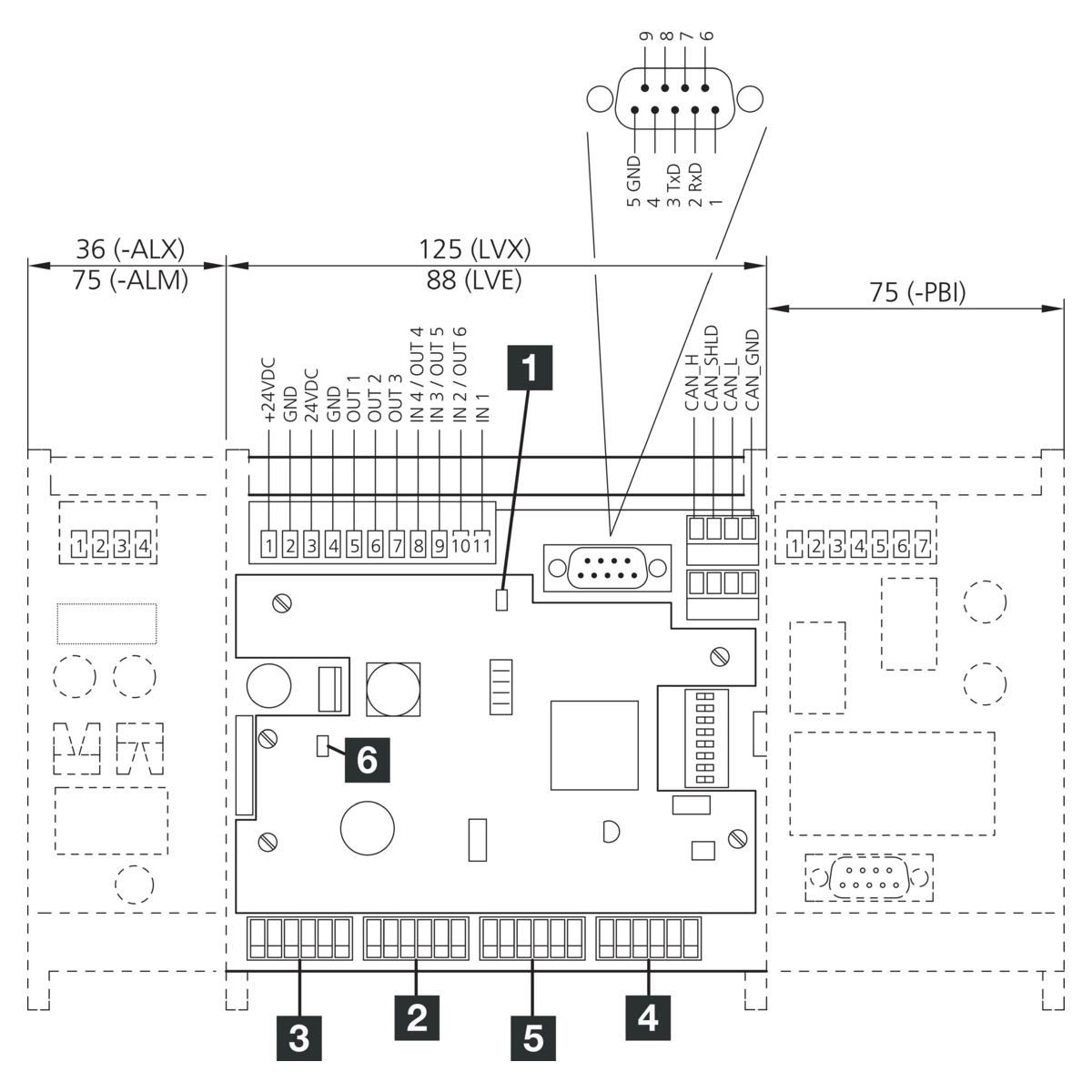

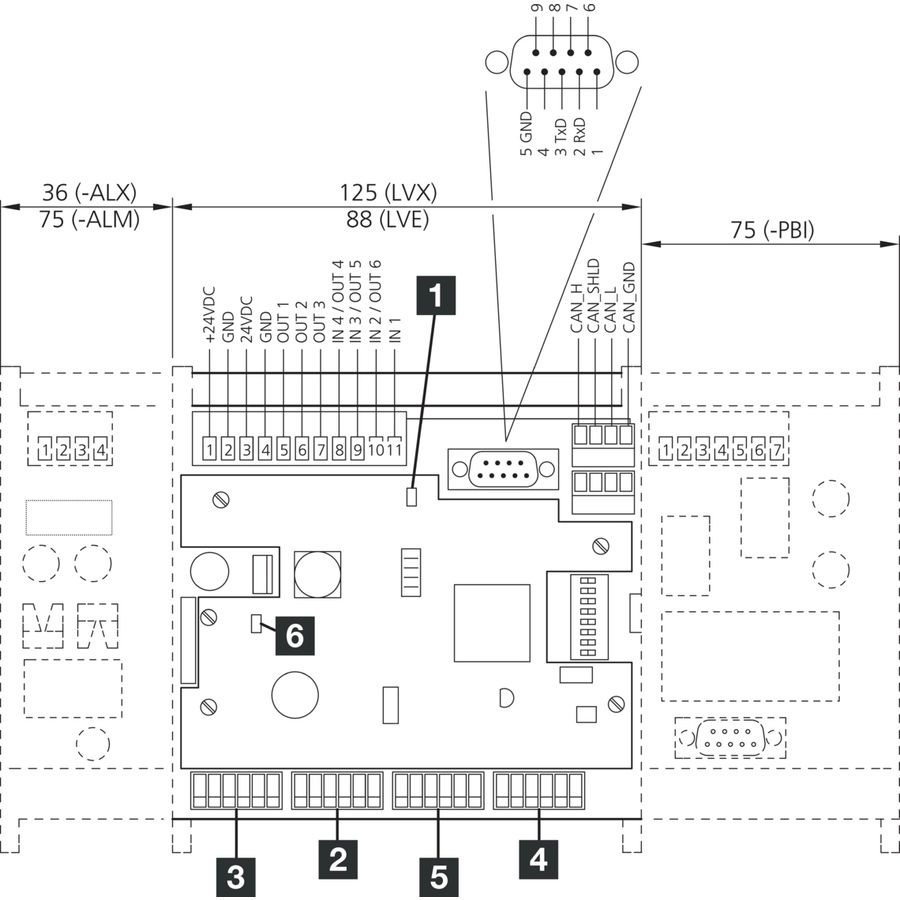

| Housing Dimensions | 88 x 126 x 60 mm |
| Housing Material | Plastic |
| Illumination Time Pulse | 1.0 |
| Inputs For Which Parameters Can Be Set | 24 V DC, 12 mA, 3,000 Hz (1x) |
| Interface | Combined IOs;RS232 3x |
| LED | Error indicator |
| Number Of Beams | 500.0 Max. evaluable |
| Number Of Inputs Outputs | 3.0 |
| Output Function | configurable |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 00 |
| Quantity | 1.0 number of Light curtains to be operated |
| Service Voltage | 20 ... 26.0V DC |
| Switching Capacity | 7 < W |
| Switching Output | pnp 1.0 250.0 mA 24 V DC |
