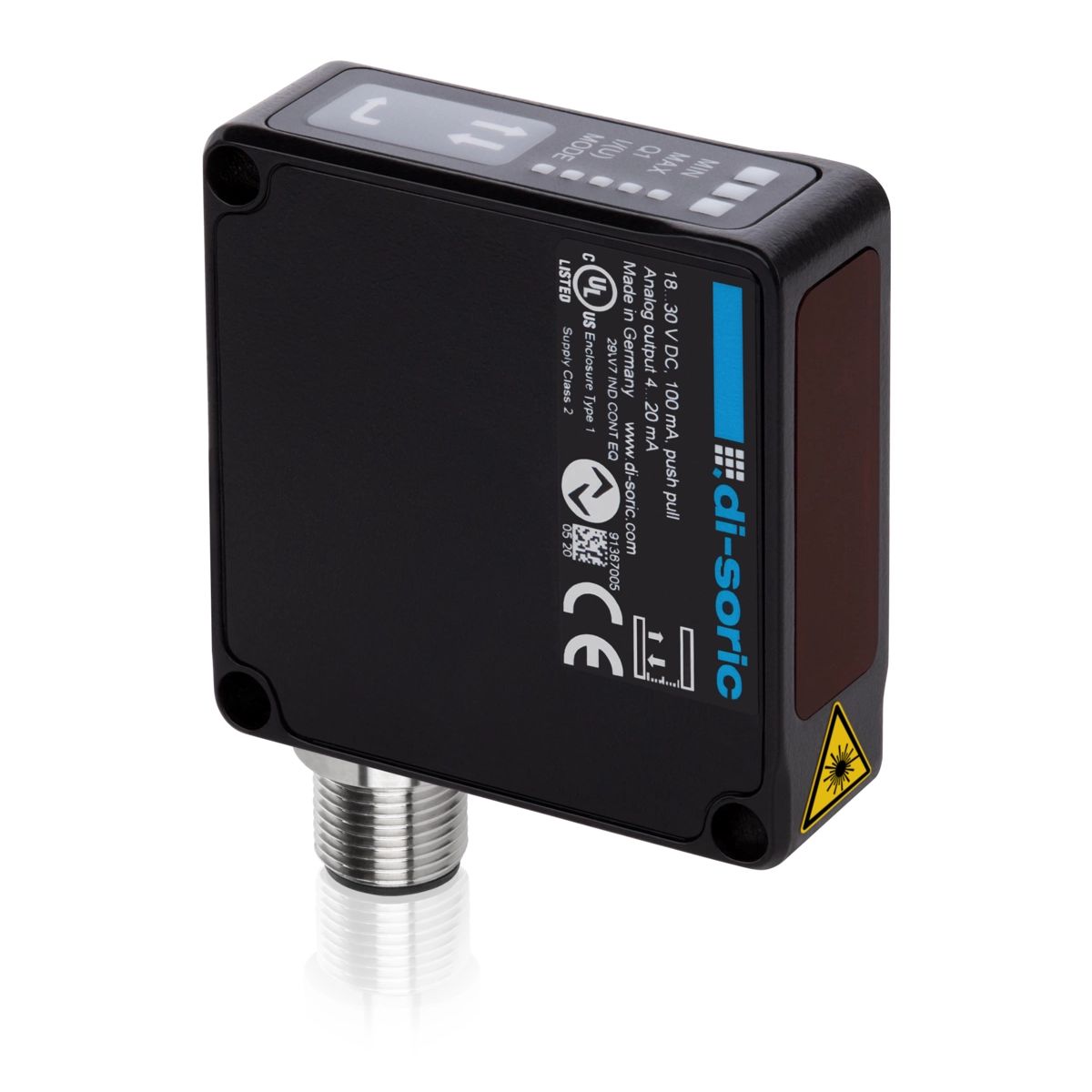

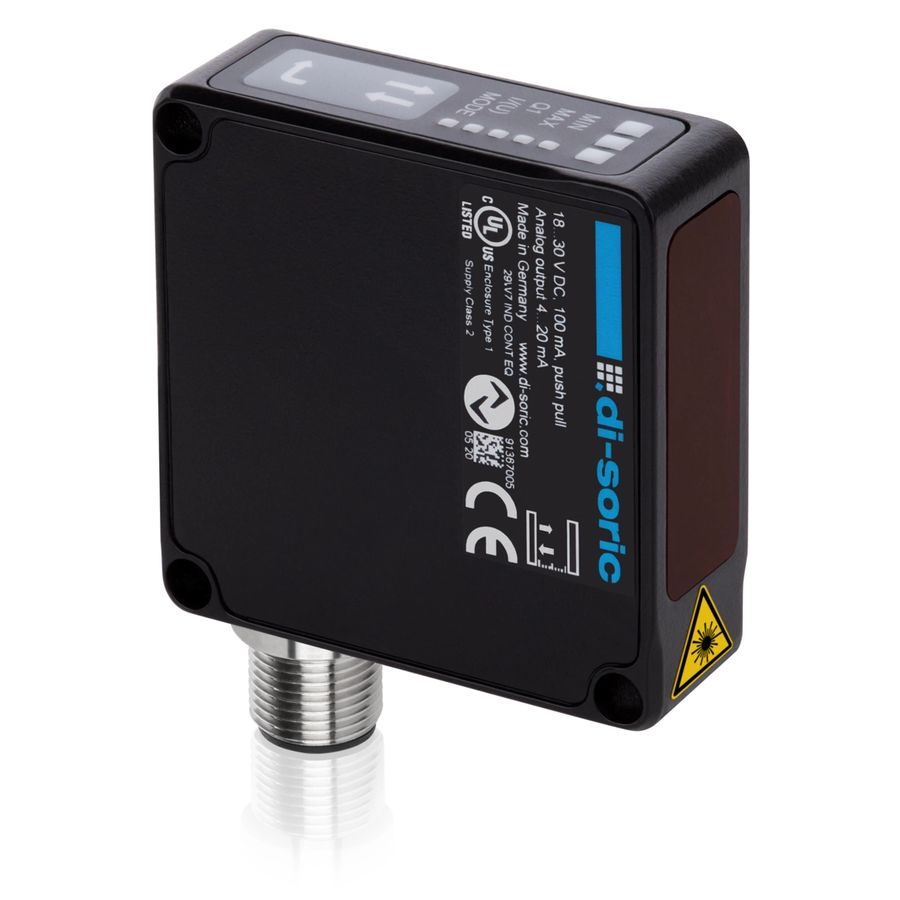

LAT52-80IU-RB5

Ambient Temperature During Operation	0.0 ... 50.0°C
Analog Output	0.0 V 10.0 V 4.0 mA 20.0 mA
Characteristics	Radial plug connection
Color	Red

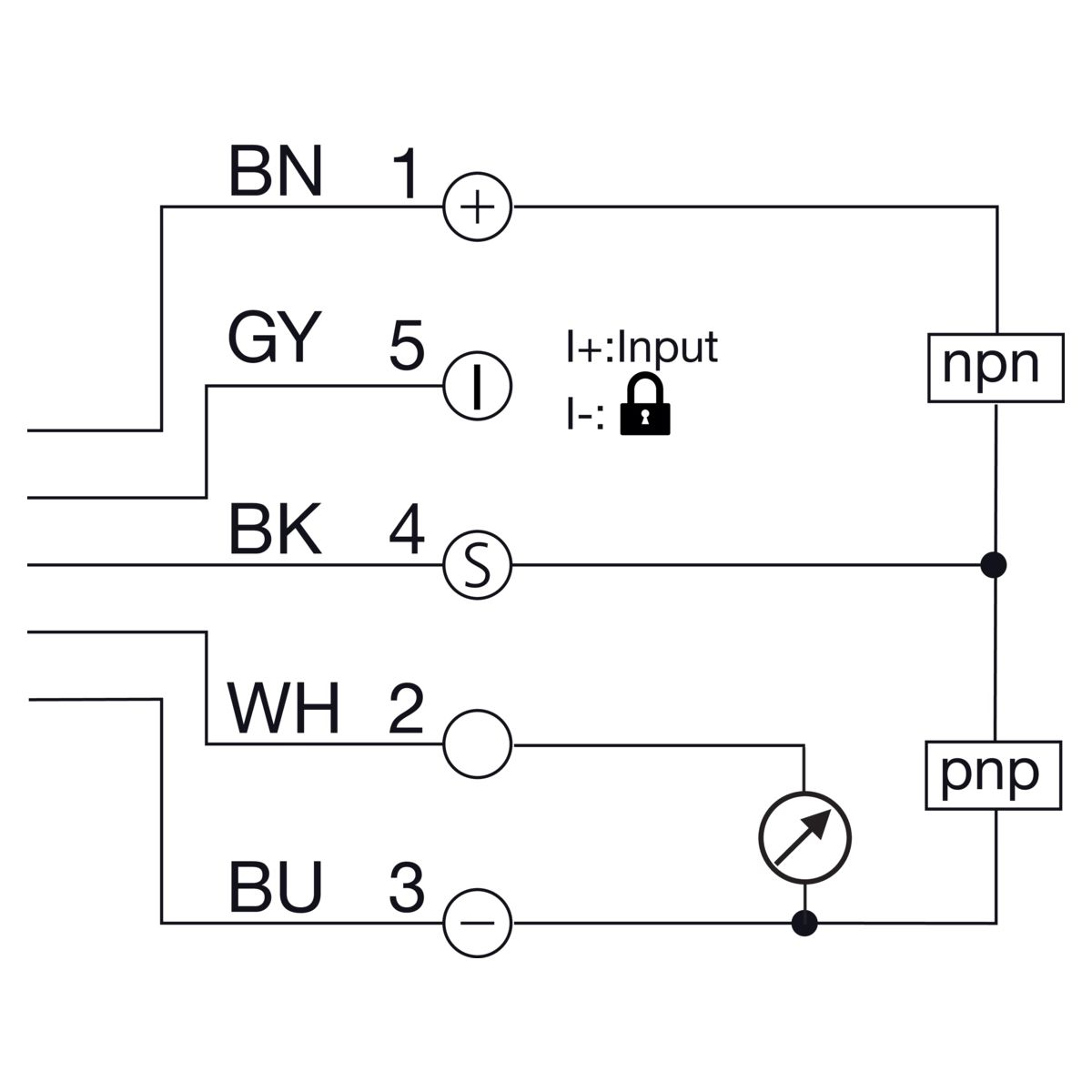

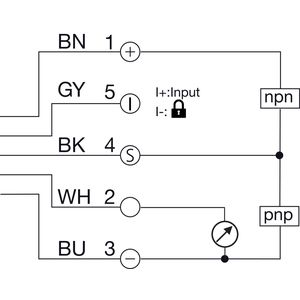

Connection	Connector M12 5-pin
Connection Cable	VK ... /5
Design	Cuboid design
Green	Status

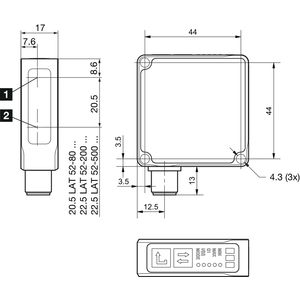

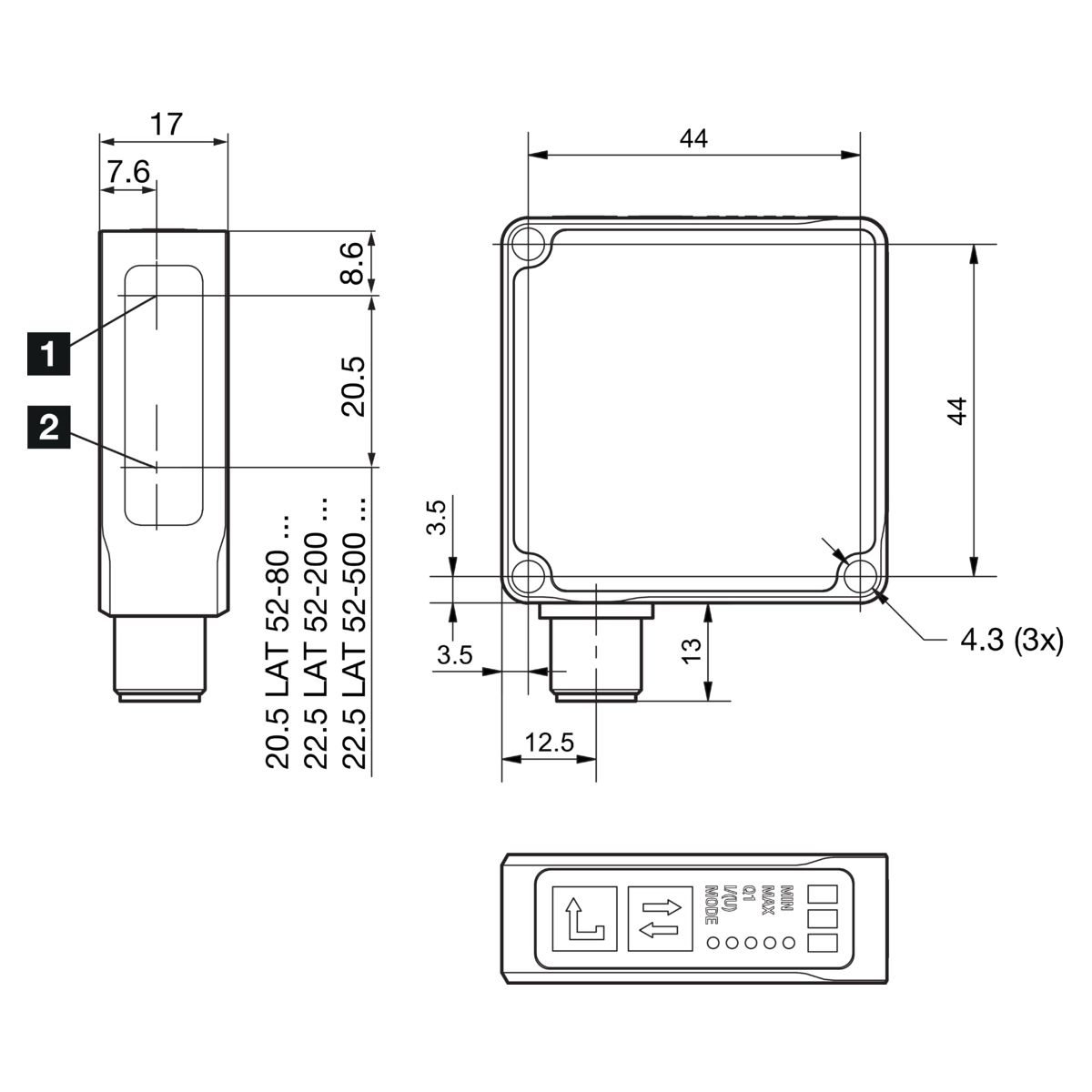

Housing Dimensions	51 x 51 x 17 mm
Housing Material	Die-cast zinc Black powder-coated
Illumination Time Pulse	1.0
Insulation Voltage Endurance	500.0 V
Interface	IO-Link V1.1, COM2;Smart Sensor Profile
Laser Class	1 (IEC 60825-1:2014 / EN 60825-1:2014)
Light Source	Laser
Light Spot Size	Ø 0.5 mm
Linearity Error	0.1 % Mode: Standard, median value 16
Measuring Frequency	1000.0 Hz (max. 1200 Hz in Speed sensor mode without filter)
Measuring Range	30.0 mm 6 to 90 % remission
No Load Current (max.)	60.0 mA
Operation Modes	Standard operating modes: General applications;Speed: Quick measurement (measuring rate 1,200 Hz);Power: For dark objects
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Readiness Delay (max.)	300.0 ms
Red	Signal weak
Reproducibility	0.02 mm;Mode: Standard, median value 16
Resolution	0.01 mm
Resolution1	Mode: Standard, median value 16
Sensitivity Adjustment	Keypad
Service Voltage	18.0 ... 30.0V DC
Shock Vibration Load	30 g, 10 ... 55 Hz / 0.5 mm
Switching Output	Push-pull 1.0 100.0 mA NO/NC
Temperature Drift	0.04 %/K
Voltage Drop (max.)	2.0 V
Wavelength	650 nm
Weight	102.0 g
Yellow	Switching output
