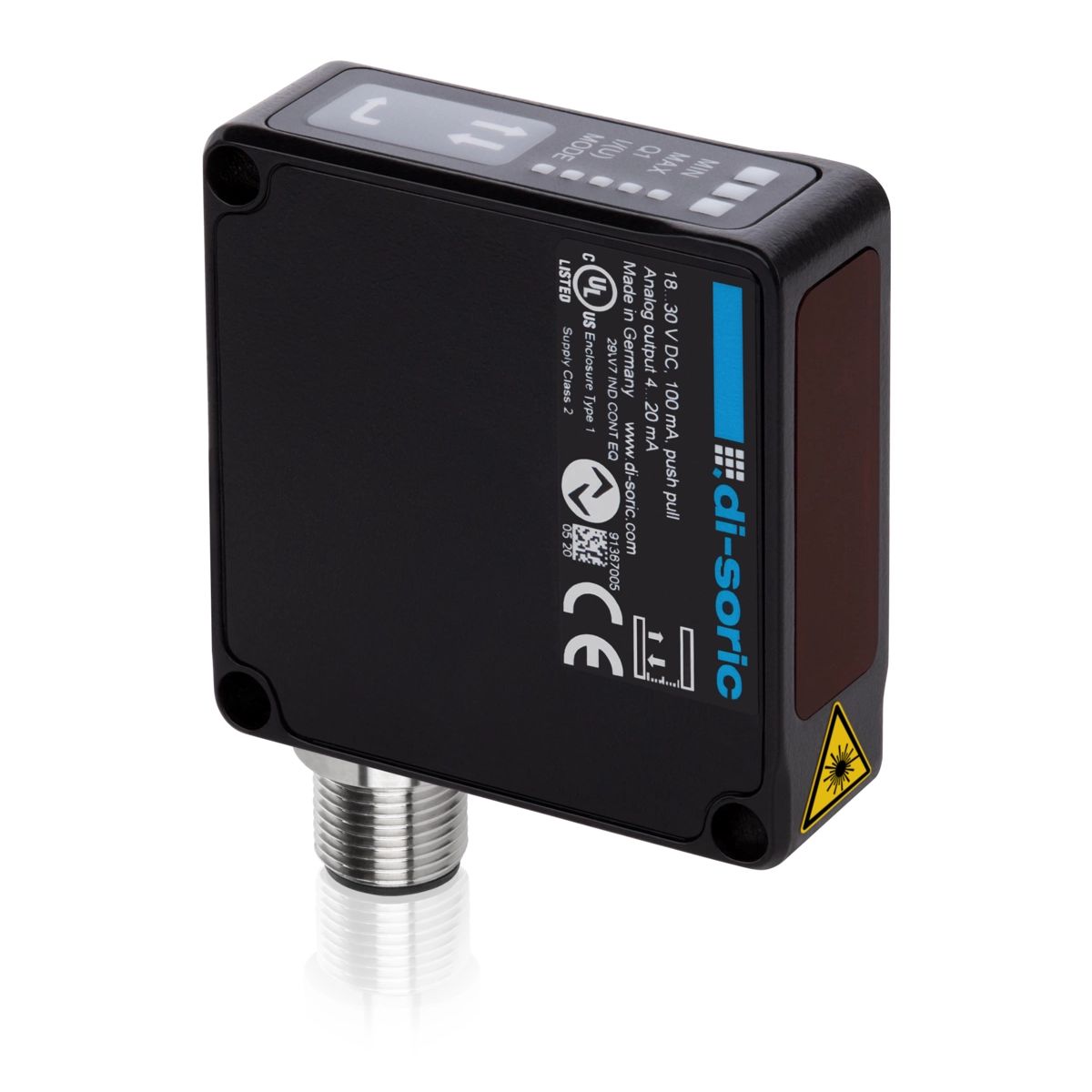

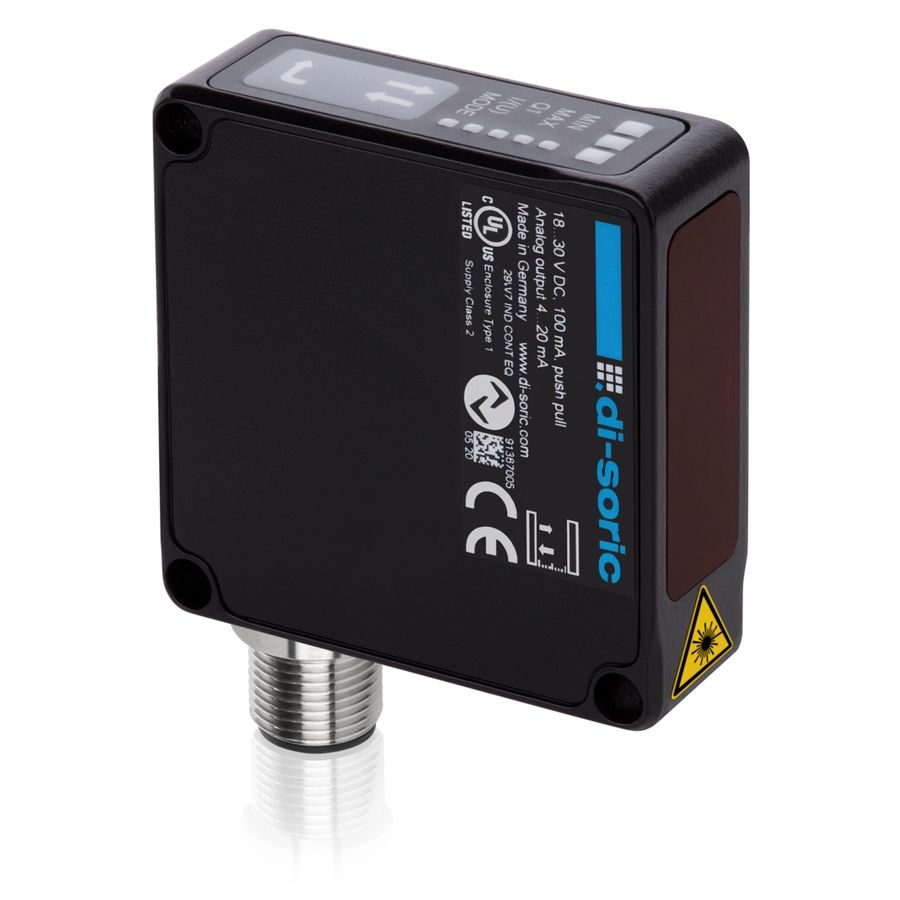

| Ambient Temperature During Operation |
0.0 ... 50.0°C |
| Analog Output |
0.0 V 10.0 V 4.0 mA 20.0 mA |
| Characteristics |
Radial plug connection |
| Color |
Red |

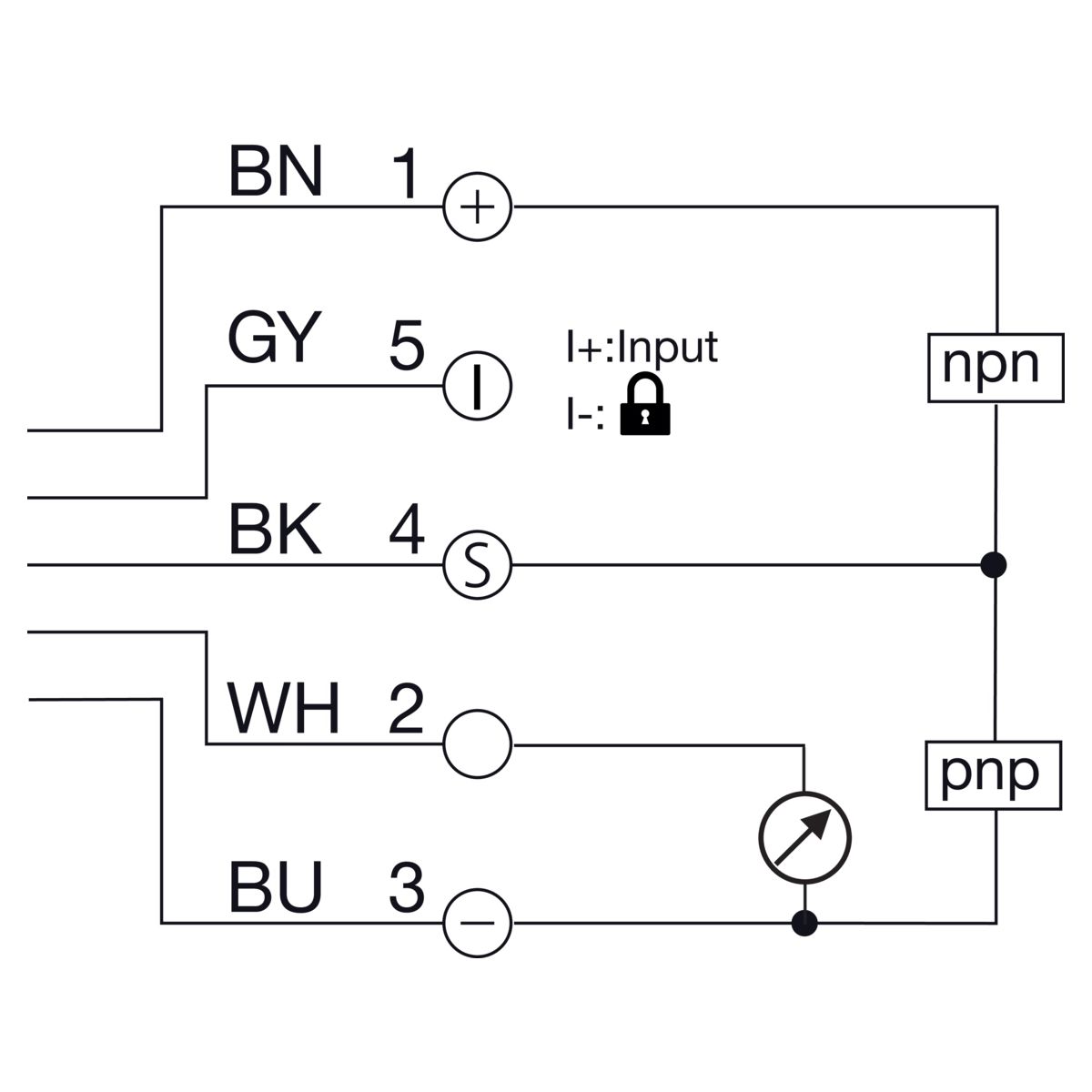

| Connection |
Connector M12 5-pin |
| Connection Cable |
VK ... /5 |
| Design |
Cuboid design |
| Green |
Status |

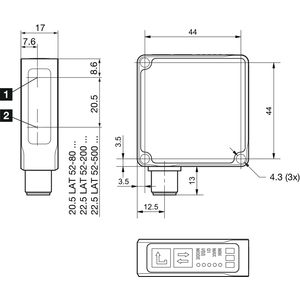

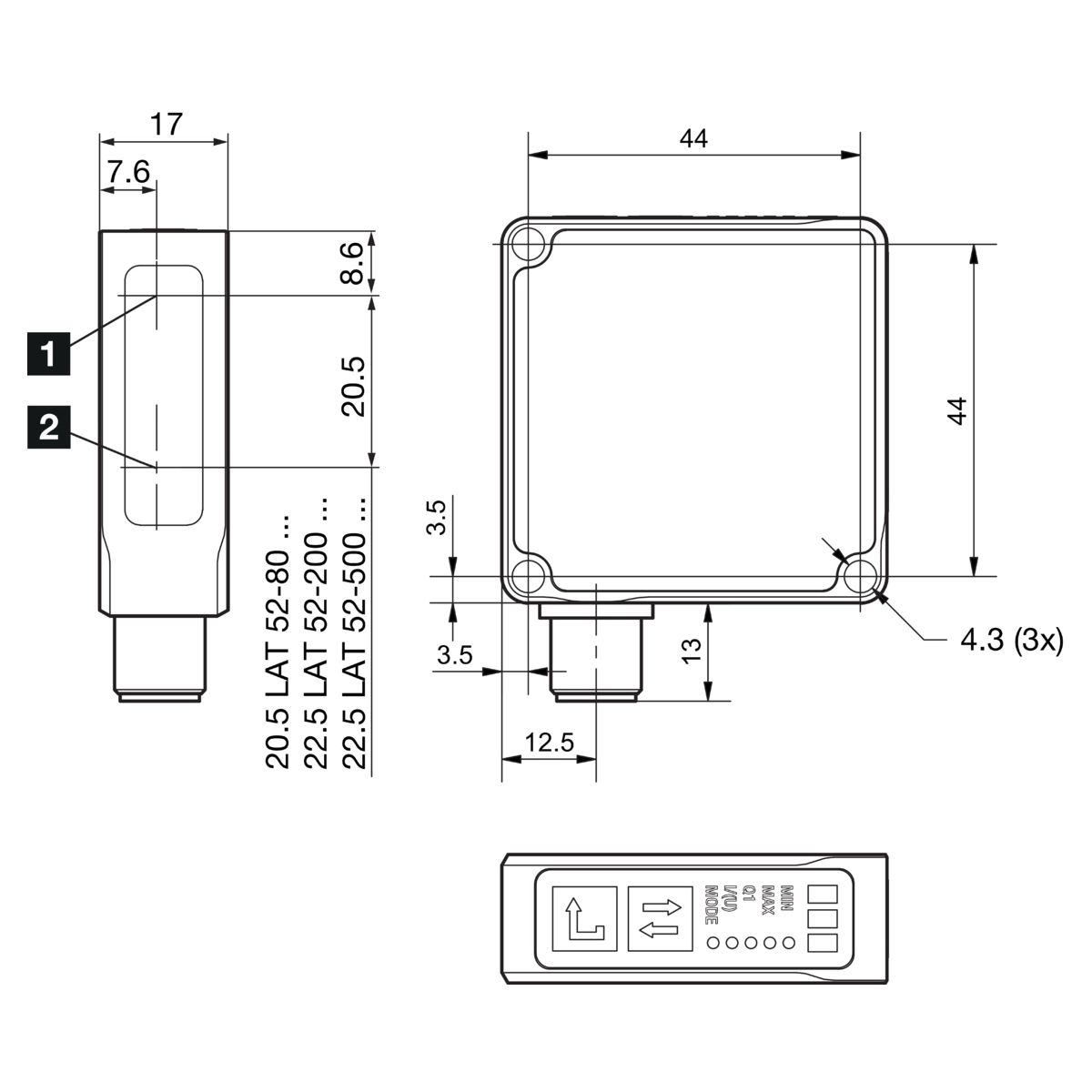

| Housing Dimensions |
51 x 51 x 17 mm |
| Housing Material |
Die-cast zinc Black powder-coated |
| Illumination Time Pulse |
1.0 |
| Insulation Voltage Endurance |
500.0 V |
| Interface |
IO-Link V1.1, COM2;Smart Sensor Profile |
| Laser Class |
1 (IEC 60825-1:2014 / EN 60825-1:2014) |
| Light Source |
Laser Clocked |
| Light Spot Size |
Ø 1.0 mm |
| Linearity Error |
0.07 % mm ± 0.1 mm at 50 ... 100 mm, Mode: Standard, median value 16;± 0.2 mm at 100 ... 200 mm, mode: standard, mean value 16 |
| Measuring Frequency |
750.0 Hz (max. 1200 Hz in Speed sensor mode without filter) |
| Measuring Range |
50.0 mm 6 to 90 % remission |
| Measuring Range 1 |
50.0 mm 100.0 mm 6 to 90 % remission |
| Measuring Range 2 |
100.0 mm 200.0 mm 6 to 90 % remission |
| No Load Current (max.) |
60.0 mA |
| Operation Modes |
Standard operating modes: General applications;Speed: Quick measurement (measuring rate 1,200 Hz);Power: For dark objects |
| Protection Class |
III, operation on protective low voltage |
| Protection Type |
IP 67 |
| Readiness Delay (max.) |
300.0 ms |
| Red |
Signal weak |
| Reproducibility |
0.05 mm mm 0.05 mm at 50 ... 100 mm, mode: standard, mean value 16;± 0.1 mm at 50 ... 100 mm, Mode: Standard, median value 16 |
| Resolution |
0.02 mm 0.05 mm |
| Resolution1 |
0.02 mm at 50 ... 100 mm, mode: standard, mean value 16);0.05 mm with 100 to 200 mm, mode: Standard, median value 16) |
| Sensitivity Adjustment |
Keypad |
| Service Voltage |
18.0 ... 30.0V DC |
| Shock Vibration Load |
30 g, 10 ... 55 Hz / 0.5 mm |
| Switching Output |
Push-pull 1.0 100.0 mA NO/NC |
| Temperature Drift |
0.04 %/K |
| Voltage Drop (max.) |
2.0 V |
| Wavelength |
650 nm |
| Weight |
102.0 g |
| Yellow |
Switching output |
