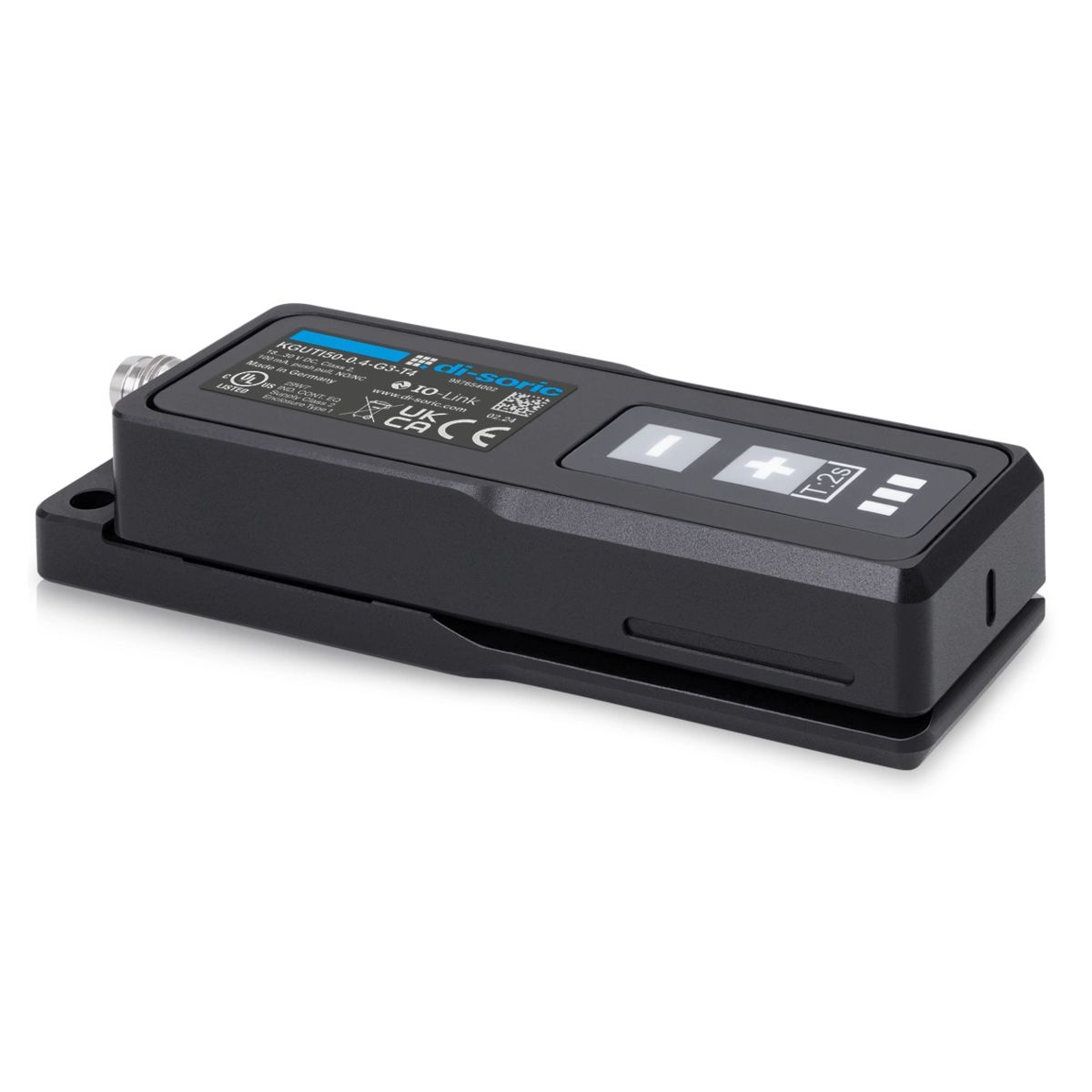

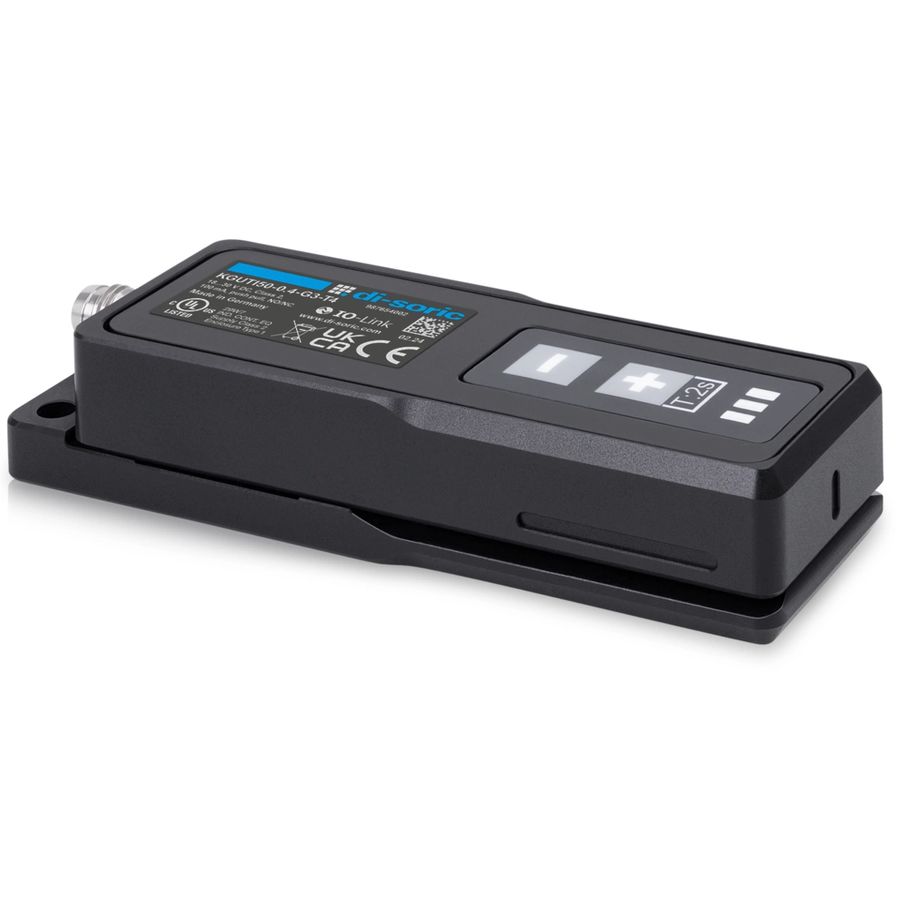

KGUTI50-1-G3-T3
Part Number: KGUTI50-1-G3-T3
Article Number: 214206
Technical Details
| Ambient Temperature During Operation | 0.0 ... 60.0°C |
|---|---|
| Characteristics | Connector outlet at the back |

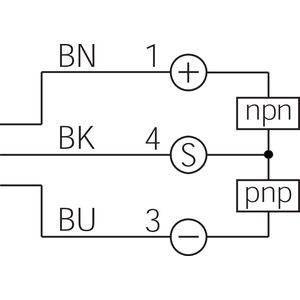

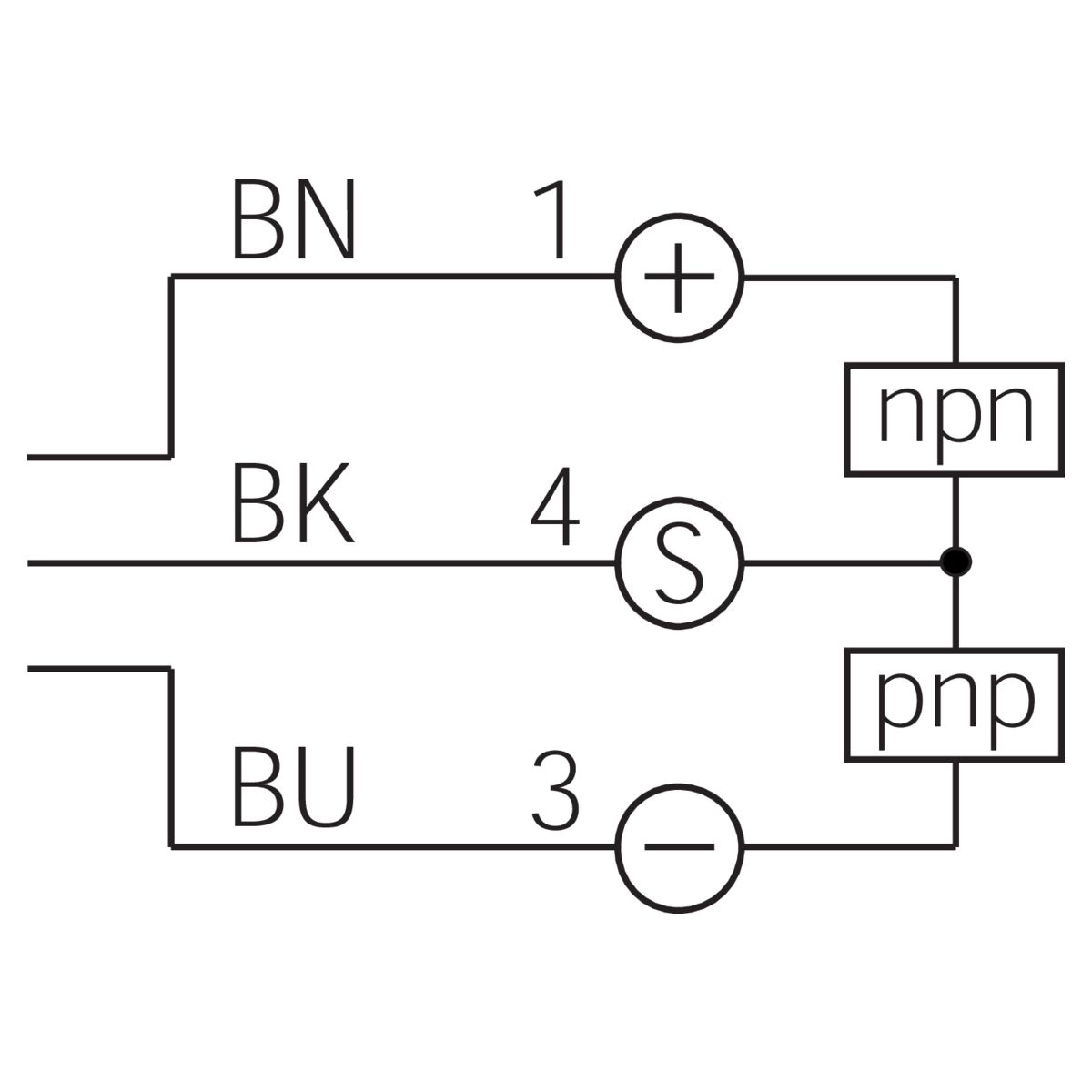

| Connection | Connector M8 3-pin |
| Connection Cable | TK ... |
| Design | Fork |
| Fork Opening | 1.0 mm |
| Green | Status |

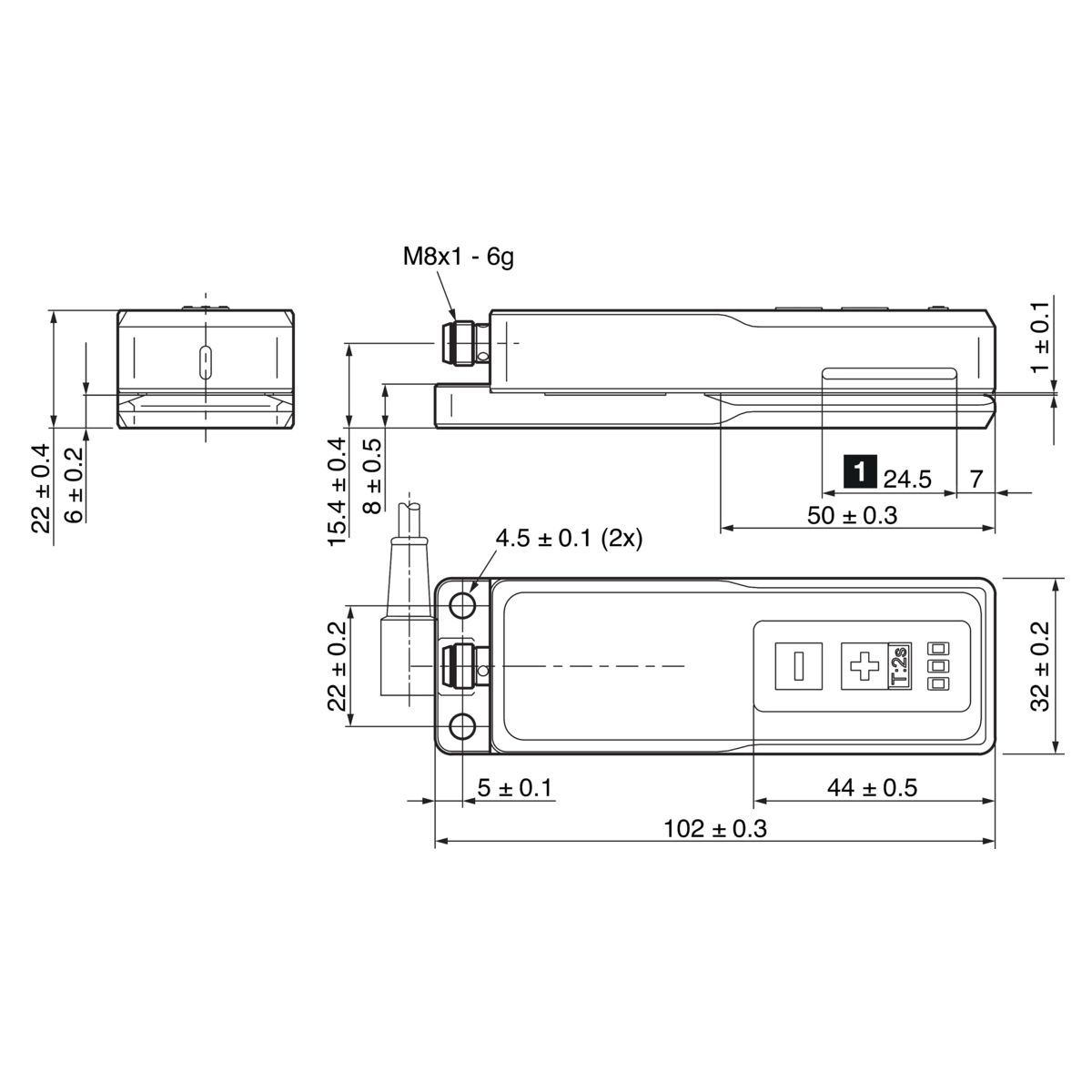

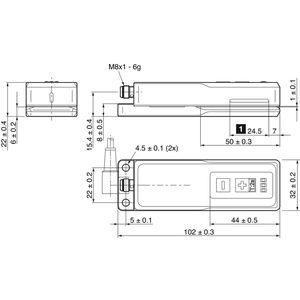

| Housing Dimensions | 32 x 22 x 102 mm |
| Housing length | 102.0 mm |
| Housing Material | Aluminum Black Anodized |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Interface | IO-Link V1.1.3, COM2 Smart Sensor Profile 2nd Edition V1.1 SSP 4.1.1 |
| Label Interspace | 2.0 > mm |
| Label Length | 2.0 > mm |
| Label Thickness | 0.9 < mm |
| Leg Length Internal | 50.0 mm |
| No Load Current (max.) | 40.0 < mA |
| Operating Modes | STANDARD;HIGH RESOLUTION;SPEED |
| Operating Principle | Capacitive |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Readiness Delay (max.) | 300.0 ms |
| Red | Warning |
| Reproducibility (HIGH RESOLUTION) | < 0.1 mm |
| Reproducibility (SPEED) | < 0.2 mm |
| Reproducibility (STANDARD) | < 0.15 mm |
| Scope Of Delivery | Sensor;Instructions available online |
| Sensitivity Adjustment | Keypad;IO-Link |
| Service Voltage | 18 ... 30.0V DC |
| Switching Output | Push-pull 100.0 mA NO/NC switchable |
| Voltage Drop (max.) | 2.5 V |
| Yellow | Switching output |
