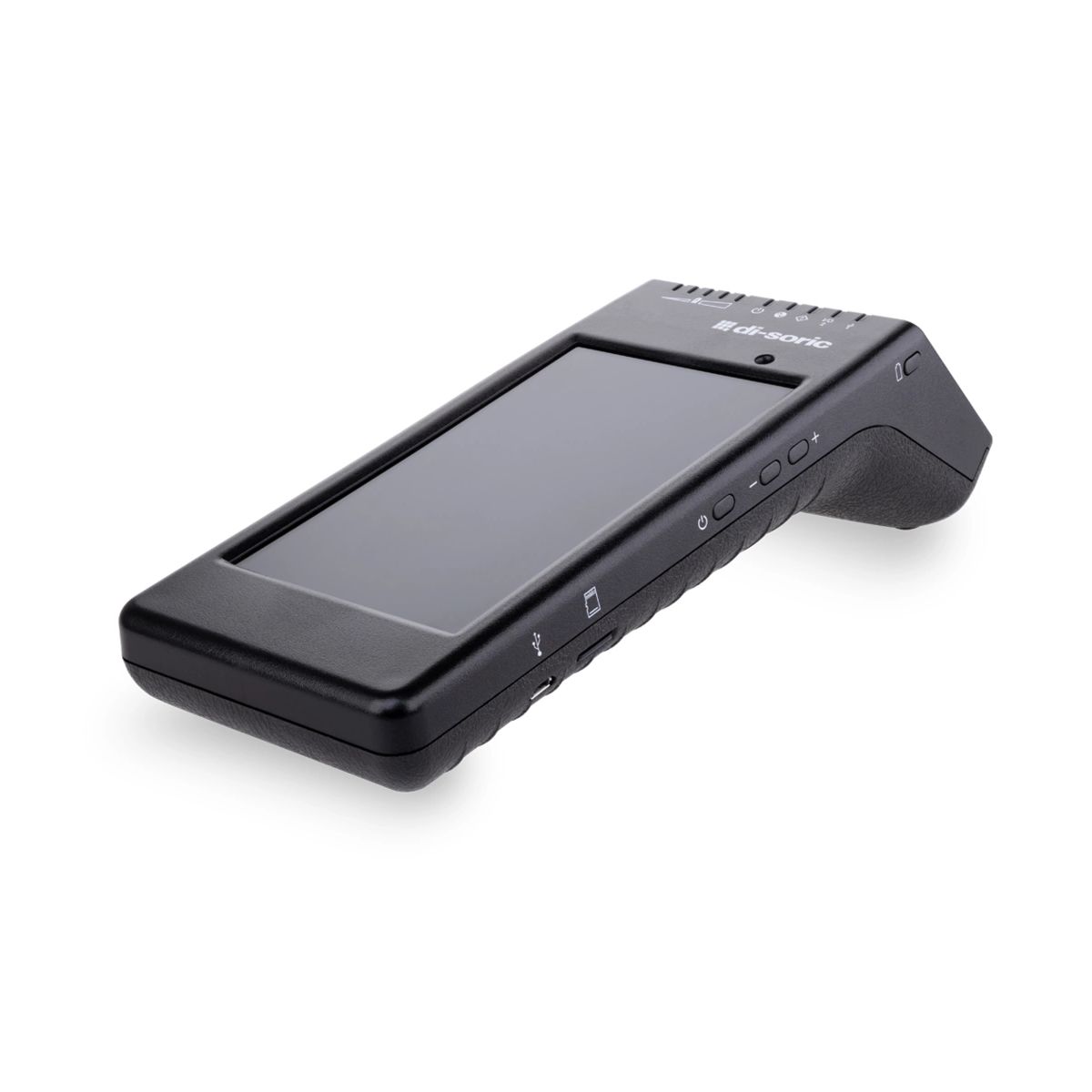

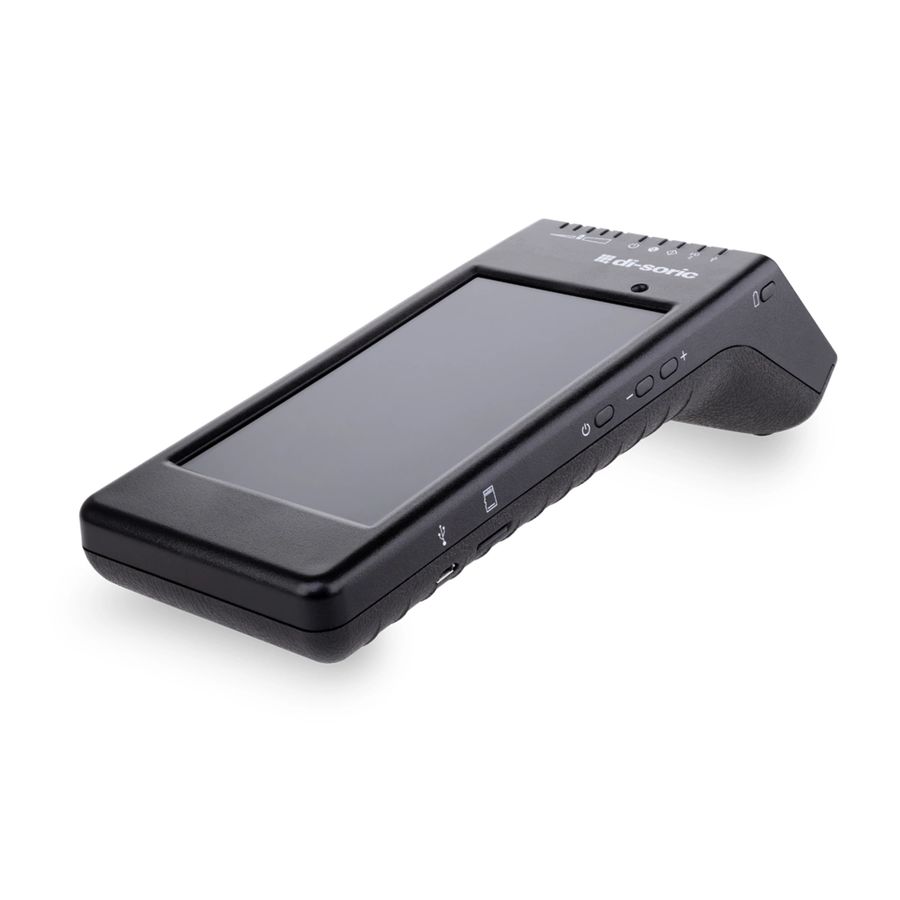

IOL-Portable

Ambient Temperature During Operation	0.0 ... 40.0°C
Communication	IO-Link specification V 1.1;IO-Link port class A
Connection	Socket M8 3-pin
Connection 2	Socket M8 4-pin
Connection 3	Socket M12 4-pin
Functions	Without computer
Housing Dimensions	62 x 222 x 90 mm
Housing Material	Polycarbonate
Inverse Polarity Protection	Yes
Power Consumption	80.0 mA
Power Supply	24V / 80 mA (IO-Link Device from battery)
Protection Class	III, operation on protective low voltage
Protection Type	IP 30
Scope Of Delivery	IO-Link Hand Held Master, cable with clamps 0,3 m with connector M12, 4-wires;Protection bag;Micro-USB-cable;Quick-start-guide
To Be Used For	For devices with IODD Specification 1.1
