ID-100-IM3-2-US
Part Number: ID-100-IM3-2-US
Article Number: 210543
Technical Details
| Ambient Temperature During Operation | -20.0 ... 55.0°C |
|---|---|
| Code Type 1D Codes (Barcodes) | BC 412;Codabar;Code 128;Code 39;Code 11;Code 32;Pharmacode;GS1 DataBar (RSS);Hong Kong 2 of 5;IATA 2 of 5;Interleaved 2 of 5;Matrix 2 of 5;MSI Plessey;NEC 2 of 5;Plessey;Straight 2 of 5;Telepen;Trioptic;UPC / EAN / JAN;UPC / EAN |
| Code Type 2D Codes | Aztec Code;QR;Micro QR Code;Data Matrix (ECC 0-200);Codablock F;Han Xin;Maxi Code |
| Connection | RJ 45 RJ 50 |
| Design | Handgerät |

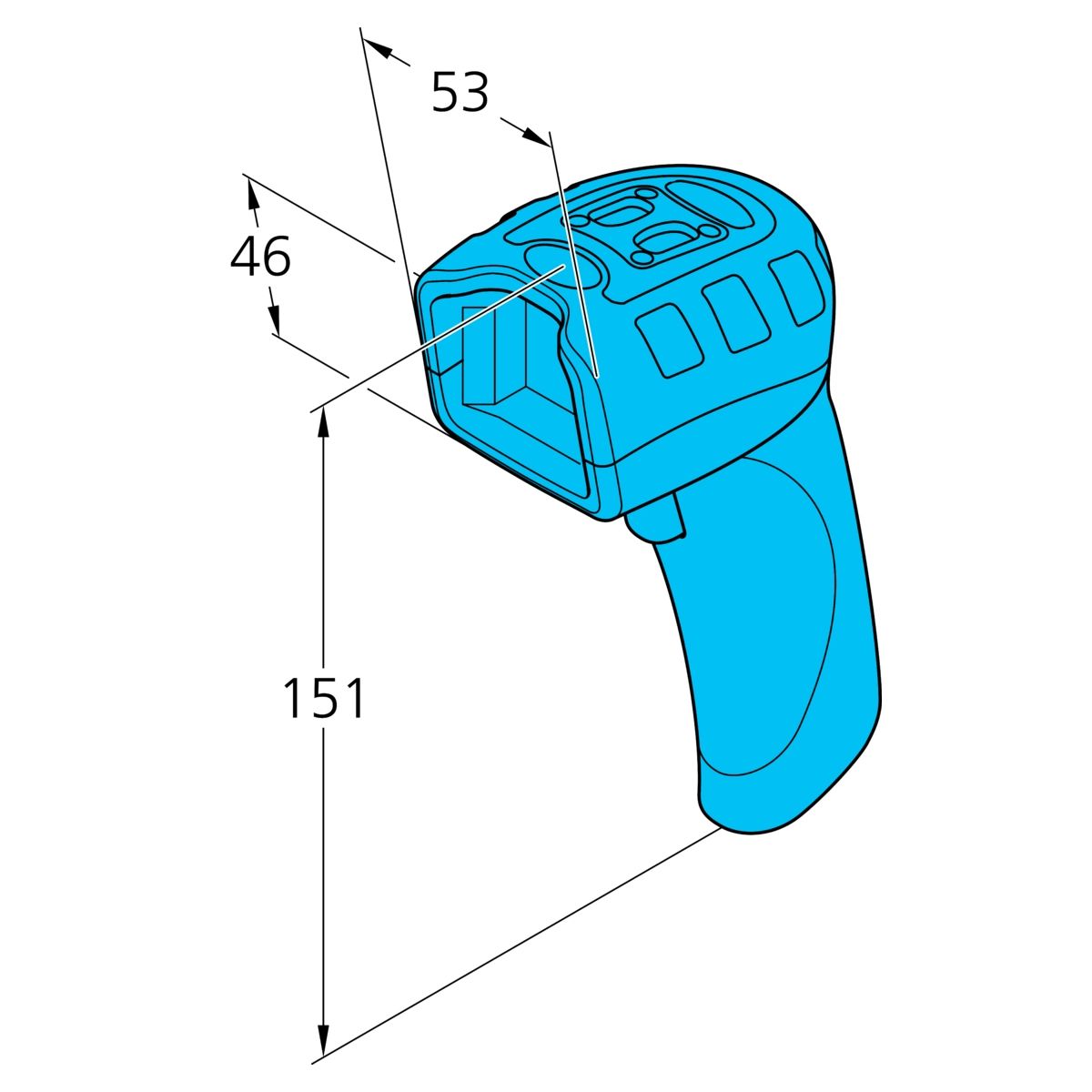

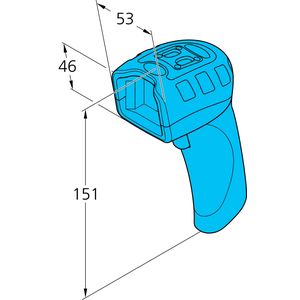

| Housing Dimensions | 151 x 46 x 53 mm |
| Housing Material | Plastic |
| Illumination Time Pulse | 1.0 |
| Interface | RS232;USB In operation with ID-K-SD/DCJ-RJ50-2;Type A operation with ID-K-RJ50/U-2 |
| No Load Current (max.) | 250.0 mA |

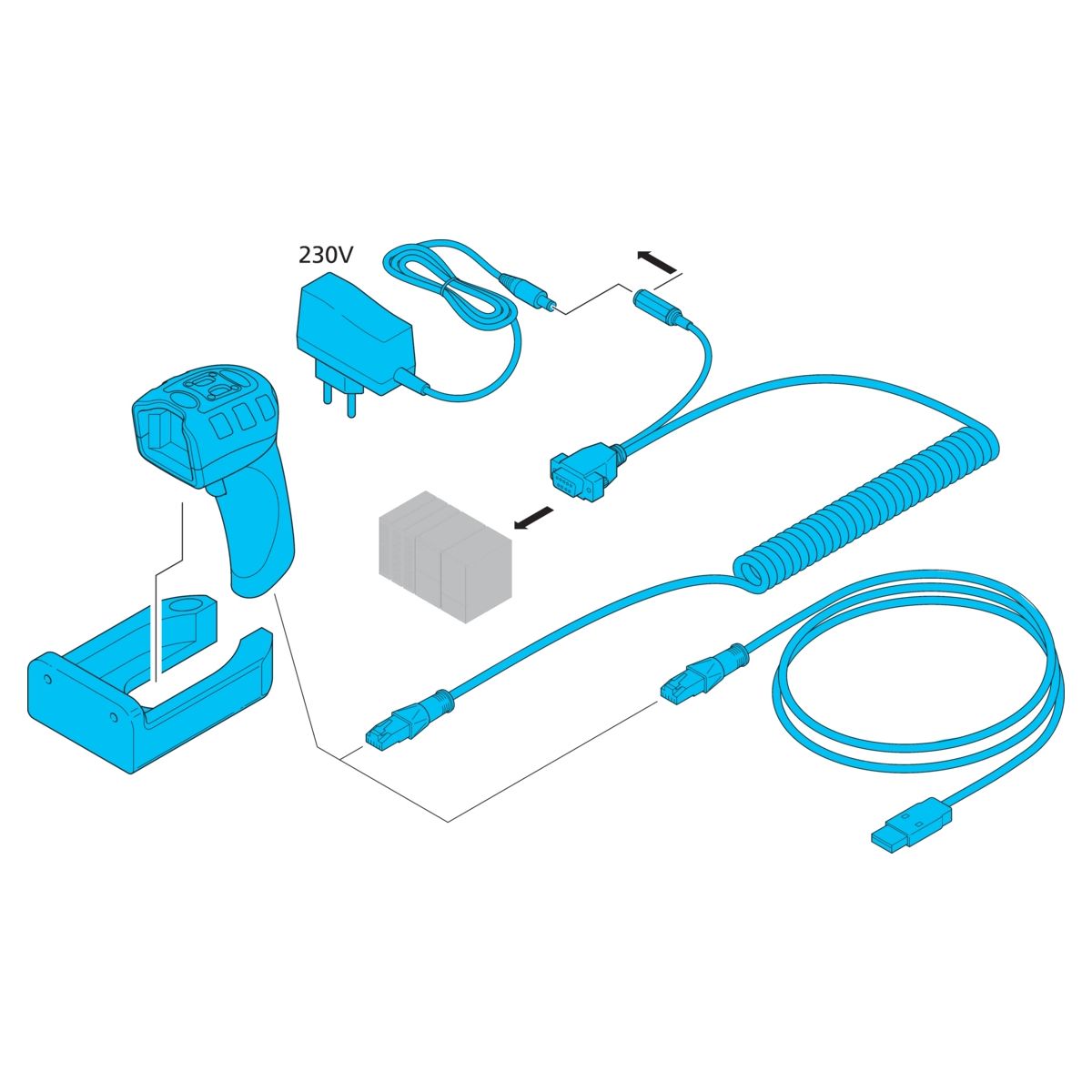

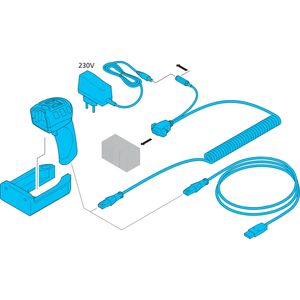

| Note | Additional components are required for operation |
| Protection Type | IP 54 |
| Resolution | 1280.0 Pixel 960.0 Pixel |
| Service Voltage | 5.0 |
| Weight | 130.0 g |
