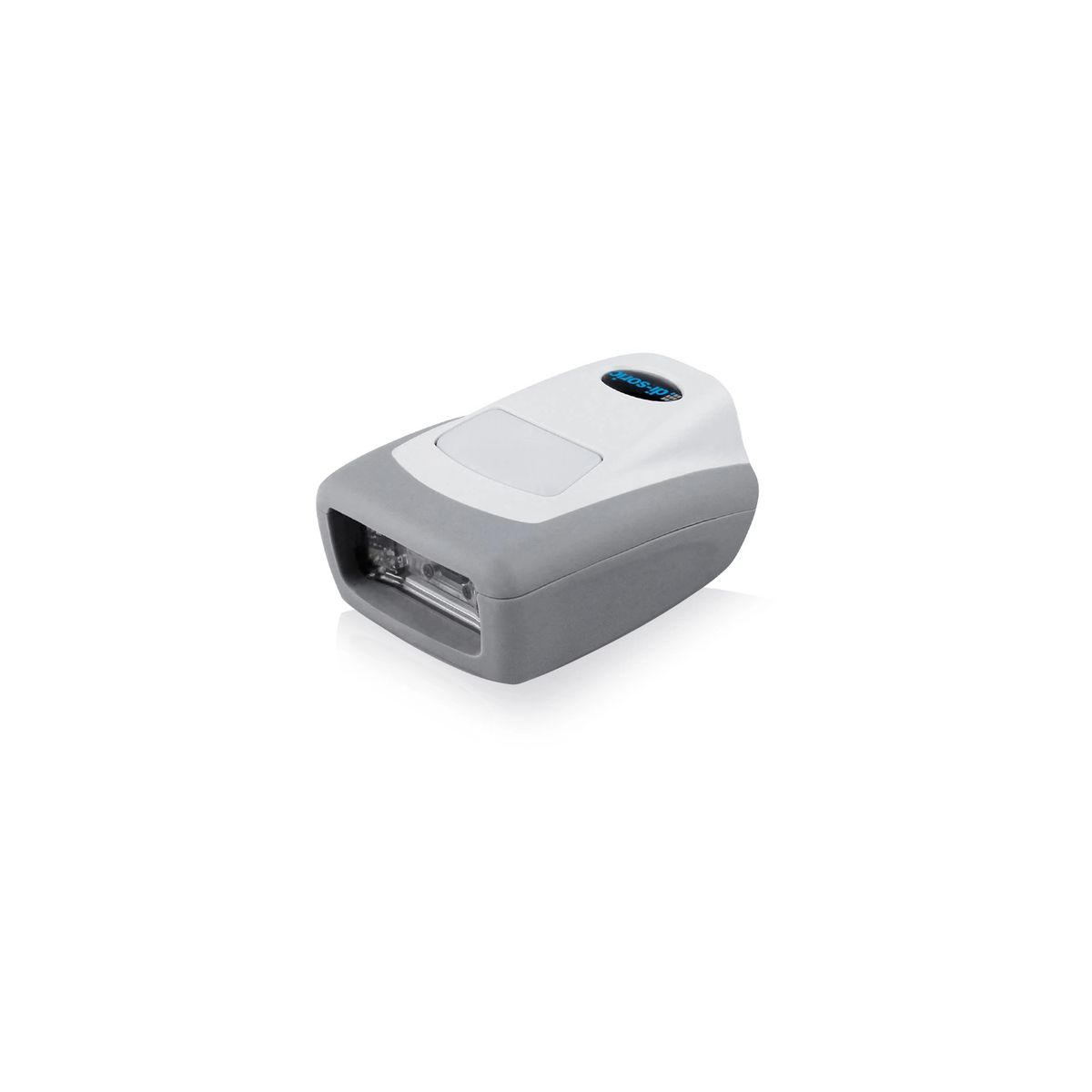

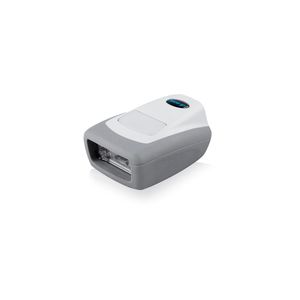

ID-10-IM3-2-US
Part Number: ID-10-IM3-2-US
Article Number: 211080
Technical Details
| Ambient Temperature During Operation | -20.0 ... 55.0°C |
|---|---|
| Code Type 1D Codes (Barcodes) | BC 412;Codabar;Code 128;Code 39;Code 11;Code 32;Pharmacode;GSI DataBar;Hong Kong 2 of 5;IATA 2 of 5;Interleaved 2 of 5;Matrix 2 of 5;MSI Plessey;NEC 2 of 5;Plessey;Straight 2 of 5;Telepen;Trioptic;UPC / EAN / JAN |
| Code Type 2D Codes | Aztec Code;Data Matrix;QR code;Micro QR Code;QR Model 1;Han Xin;Maxi Code;Data Matrix Rectangular Extension |
| Connection | RJ 50 |
| Design | Festmontage |

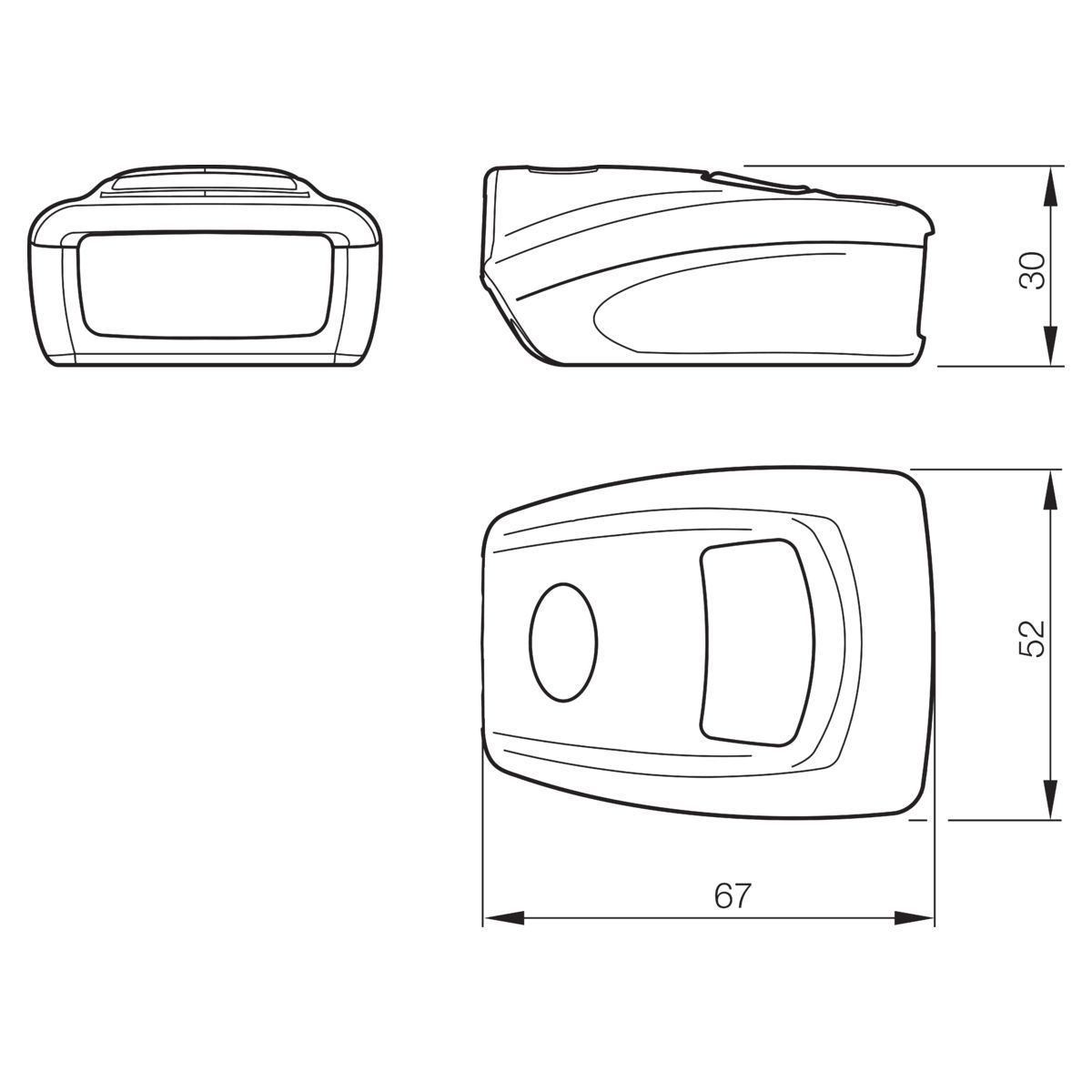

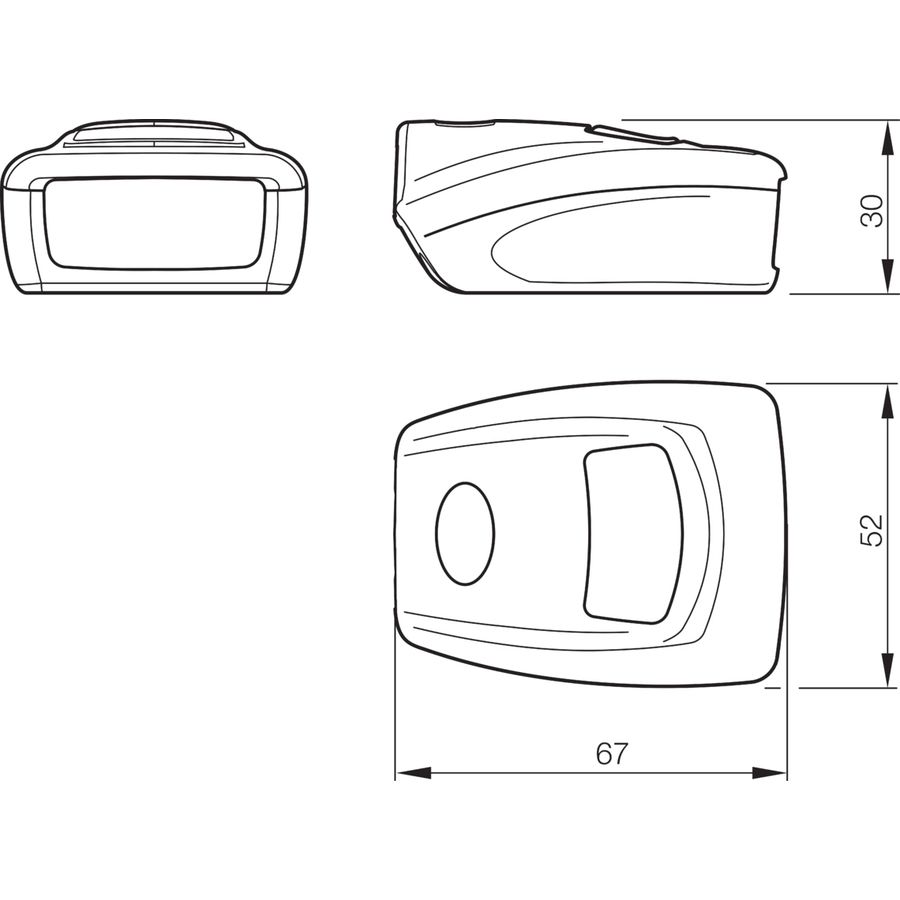

| Housing Dimensions | 30 x 67 x 52 mm |
| Illumination Time Pulse | 1.0 |
| Interface | RS232;USB;USB-A In operation with ID-K-SD/DCJ-RJ50-2;In operation with ID-K-M12/U-2;In operation with ID-K-RJ50/U-2 |
| Note | Additional components are required for operation |
| Resolution | 960.0 Pixel 640.0 Pixel |
| Service Voltage | 5.0 |
