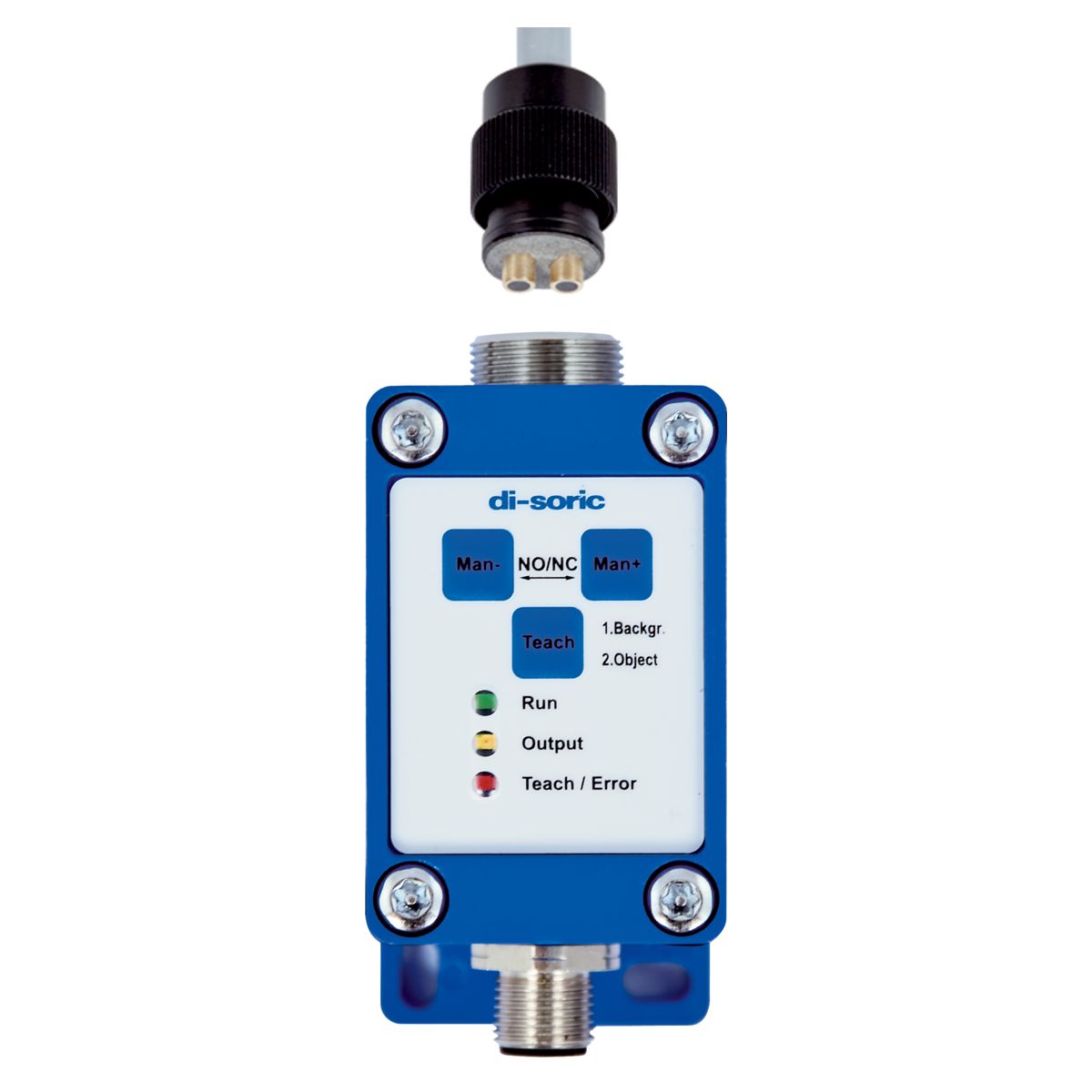

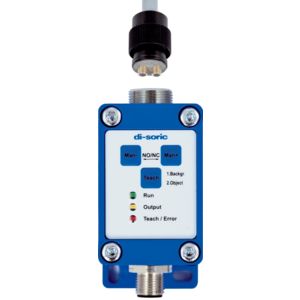

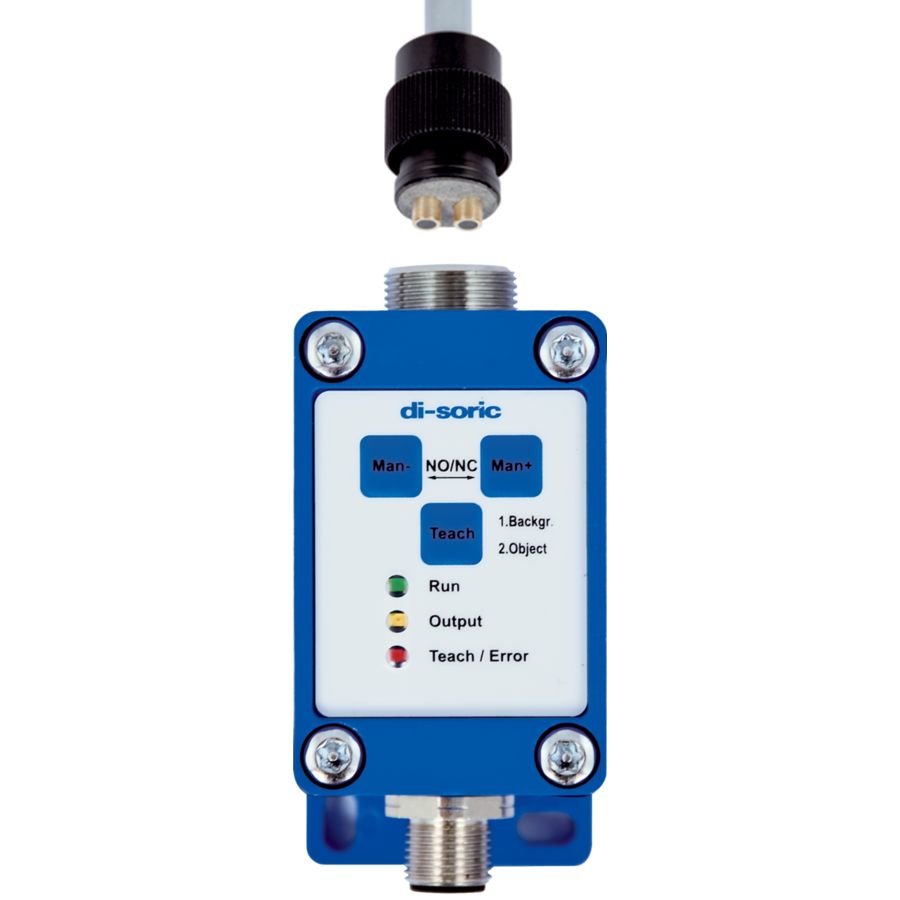

Glass Fiber-optic Amplifier - OLVTI 40 P3K-IBS
Part Number: OLVTI 40 P3K-IBS
Article Number: 201470
Technical Details
| Ambient Light Immunity | 50 kLx |
|---|---|
| Ambient Temperature During Operation | -10.0 ... 60.0°C |
| Amplifier For | Glass fiber optics M18 |
| Color | Infrared |

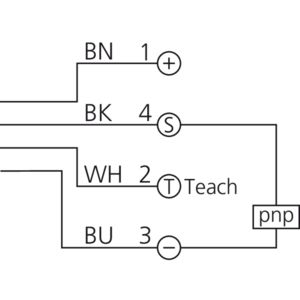

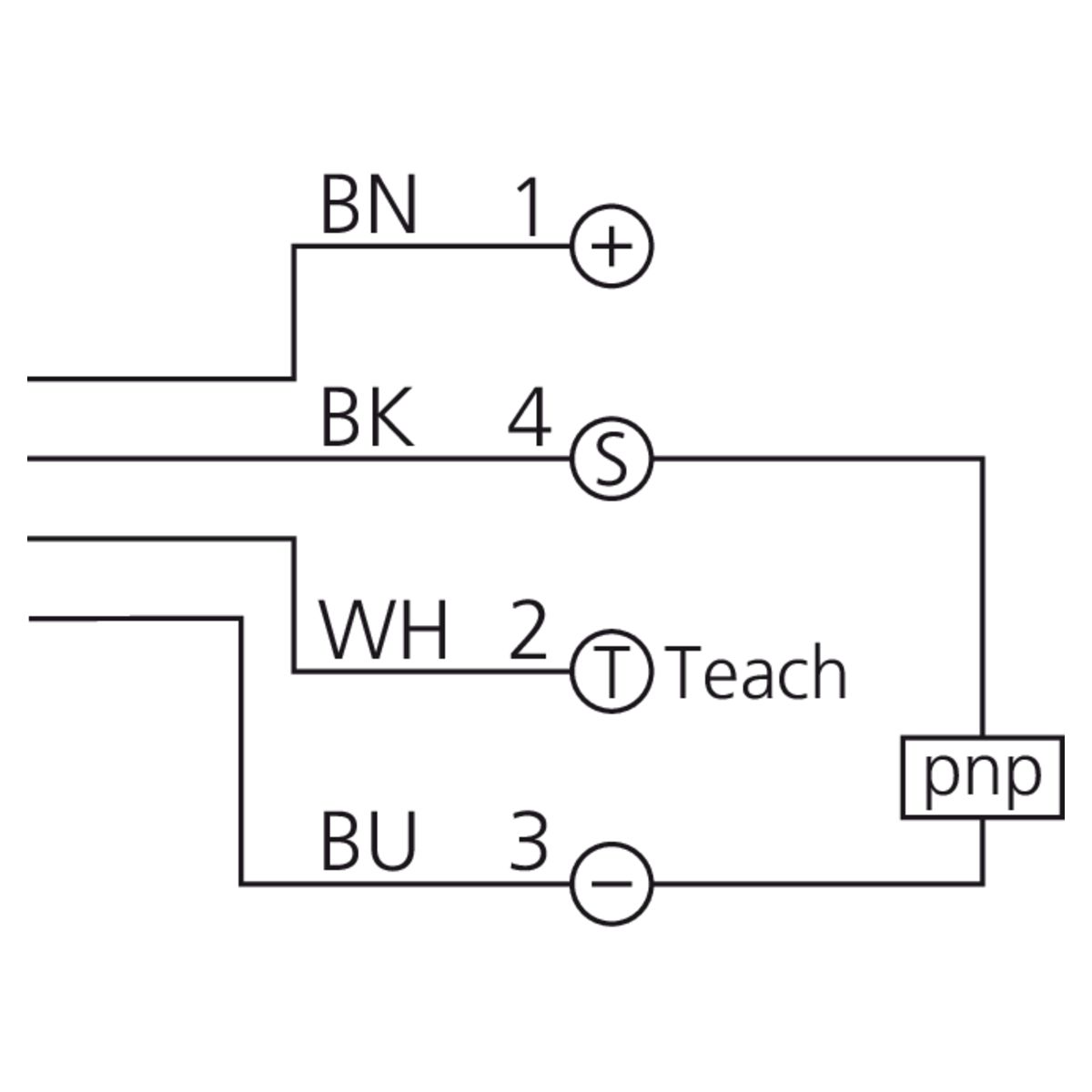

| Connection | Connector M12 4-pin |
| Design | Cuboid design |
| Evaluation | digital |
| Green | Run |

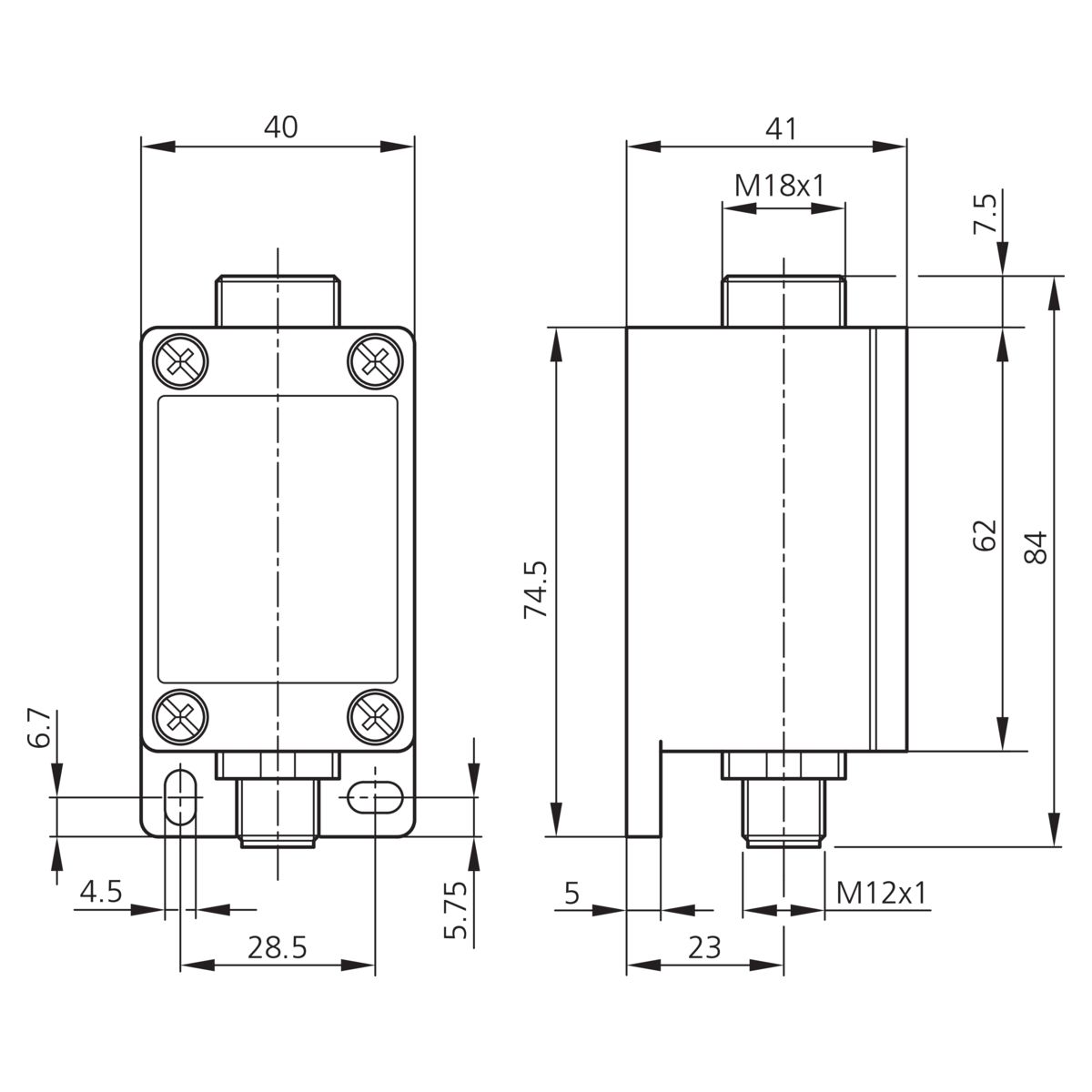

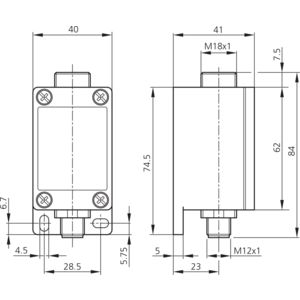

| Housing length | 74.5 mm |
| Housing Material | Die-cast zinc painted |
| Illumination Time Pulse | 1.0 |
| Insulation Voltage Endurance | 500.0 V |
| Light Source | LED |
| Modulation | Clocked |
| No Load Current (max.) | 45.0 mA |
| Operating Elements | 3.0 Teach, Man-, Man+ |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 65 |
| Range | 80.0mm |
| Red | Teach / Error |
| Reproducibility | < 2 % |
| Sensitivity Adjustment | Teach button;Remote teach |
| Service Voltage | 10 ... 35.0V DC |
| Switching Frequency | 1500.0 Hz |
| Switching Hysteresis (max.) | 12.0 % |
| Switching Output | pnp 200.0 mA NO/NC programmable |
| Temperature Drift | 0.3 %/K |
| Voltage Drop (max.) | 2.8 V |
| Wavelength | 880.0 nm |
| Yellow | Output |
