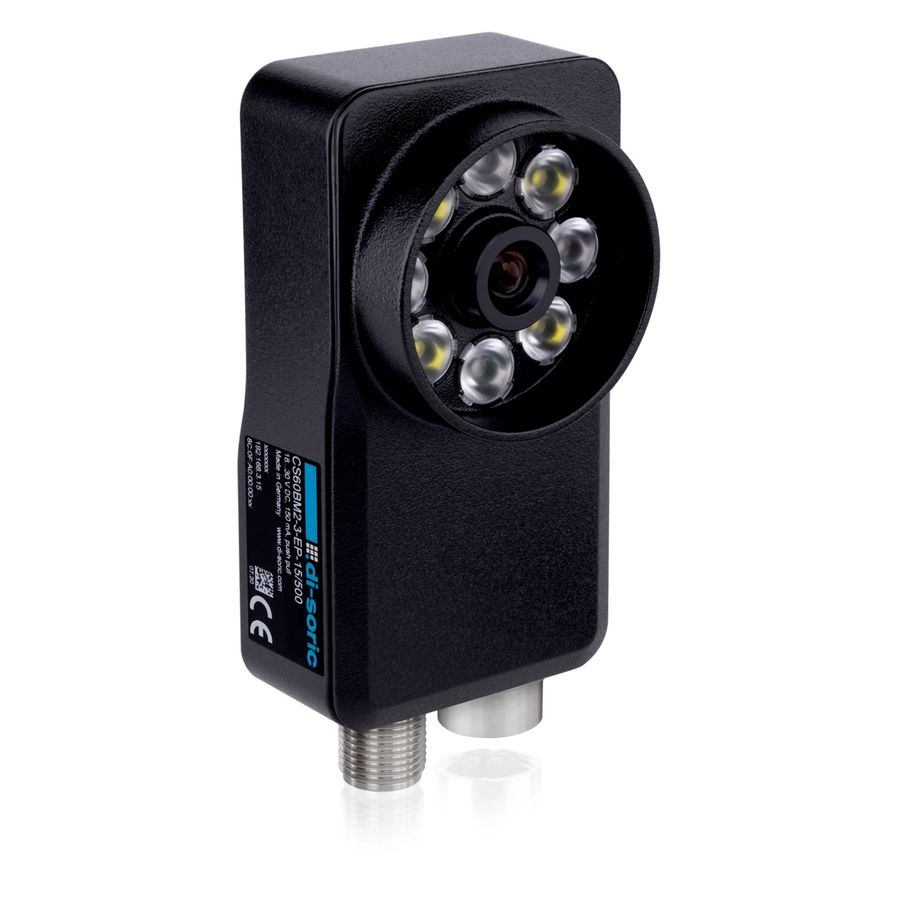

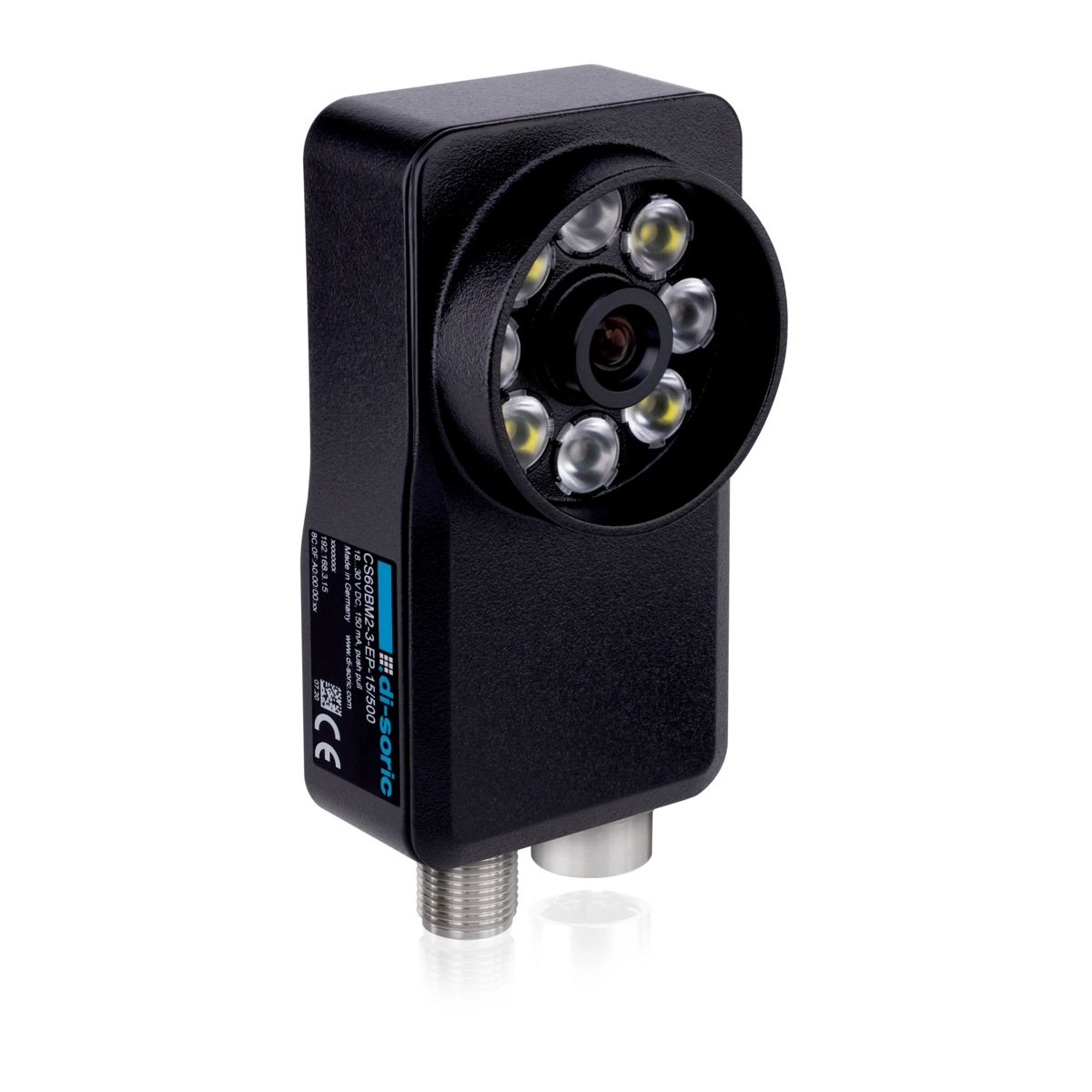

CS60-BM38-EP15/400

Ambient Temperature During Operation	0.0 ... 50.0°C
Cable	Connection cables max. 25 m
Color	Red / white switchable (internal)

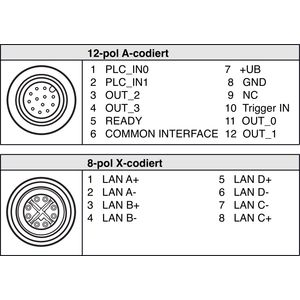

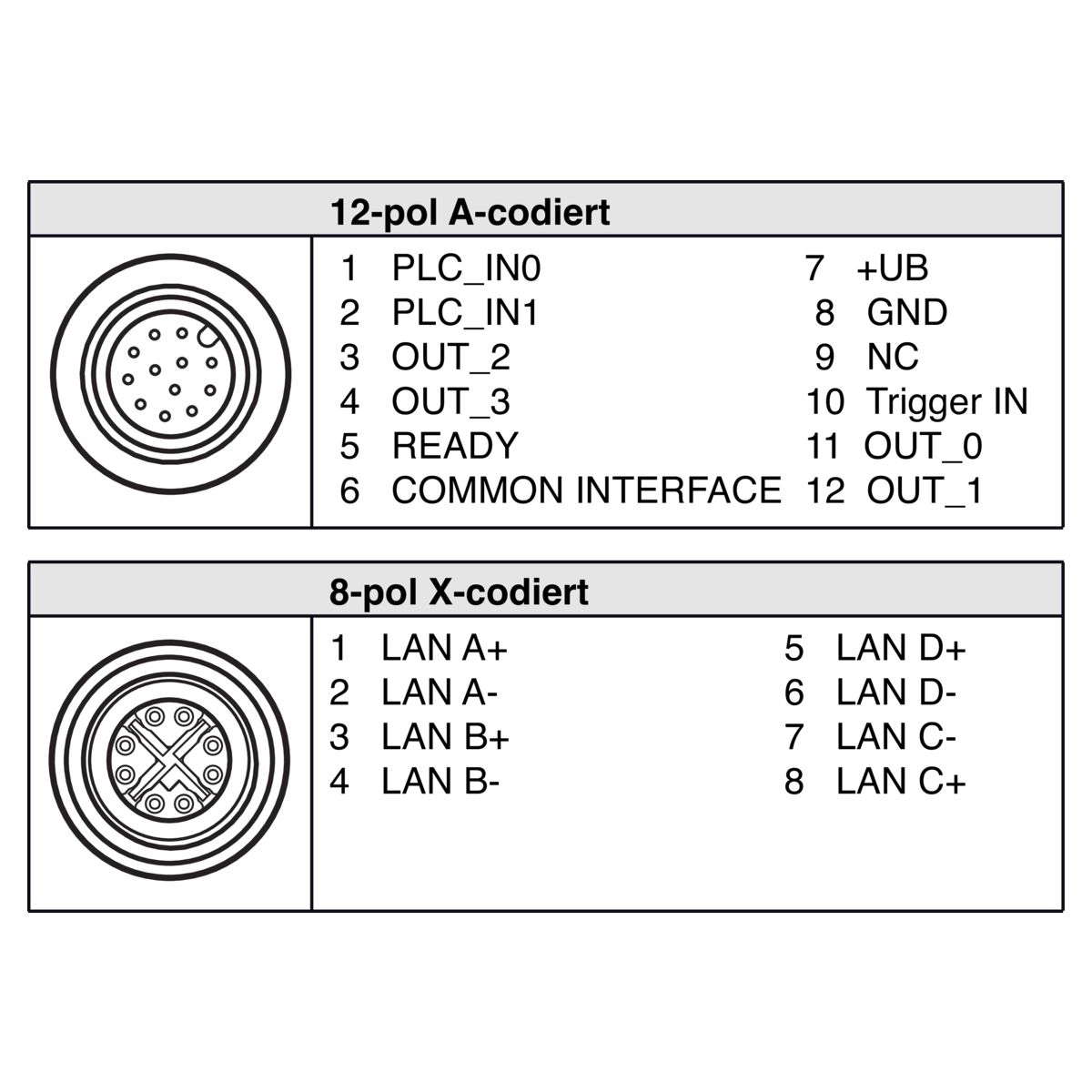

Connection	Connector M12 12-pin A-coded
Connection 2	Socket M12 8-pin X-coded

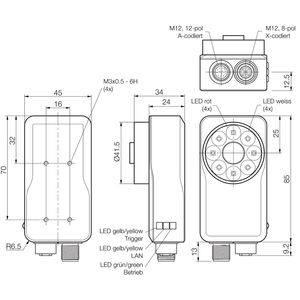

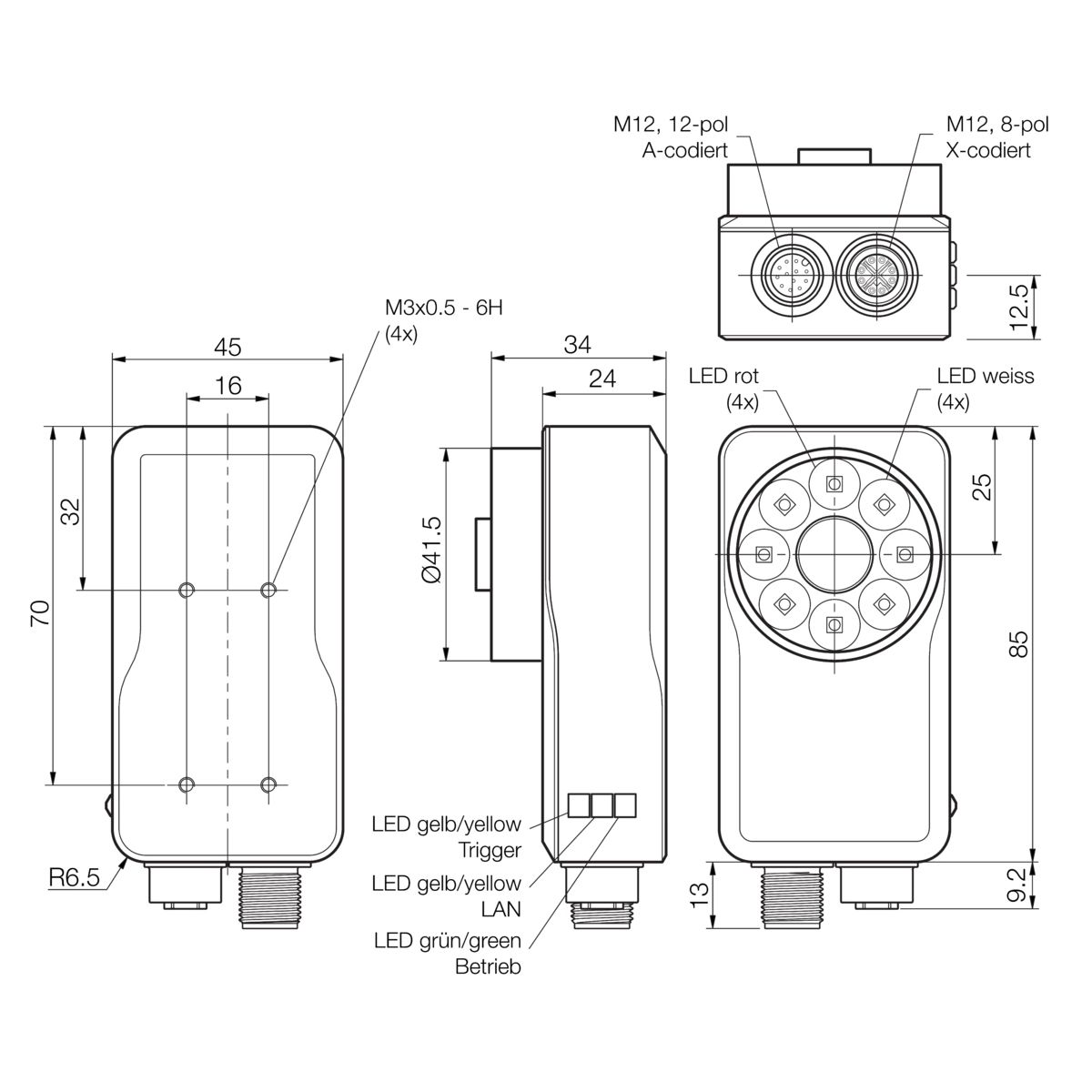

Design	Cuboid design
Flash Length	2.0 < ms
Focal Length	8.0 mm exchangeable S-mount lens
FPS Frames Per Second (max.)	30.0 Bilder/Sekunde
Green	Operation
Housing Material	Die-cast zinc Black powder-coated
Illumination Time Pulse	1.0
Inspection Tasks	Localization;Parts recognition;Counting;Measurement
Insulation Voltage Endurance	500.0 V
Interface	Ethernet;Digital Input/Output
Internal Lights	High power lighting white and red can be switched via software
Lens Connection	S-mount
Material	PMMA Window / optics
Model	CS 60
No Load Current (max.)	1000.0 mA 24.0 V DC
Note	EtherNet/IP from nVision-i 24.1
Optical Format	1/2.9"
Protection Class	III, operation on protective low voltage
Protection Type	IP 67
Protocols	TCP/IP;FTP/SFTP;Profinet;EtherNet/IP
Resolution	1456.0 Pixel 1088.0 Pixel
Risk Group (DIN EN 62471)	Risk group 1
Scope Of Delivery	CS60-BM38-EP15/400;O-S1-S-080-40;CS60-WINDOW
Service Voltage	18 ... 30.0V DC
Shutter	global
Switching Output	Push-pull 100.0 mA
Switching Output Number	4 (programmable);1 (Ready)
Type	IMX273
Vibration Shock Resistance	10 to 55 Hz / 1.0 mm / 30 g / 11 ms
Voltage Drop (max.)	2.0 V
Weight	265.0 g
Working Distance	50.0 mm 2000.0 mm
Yellow	DATA-Link;Trigger
