BS-Z-8-UND
Part Number: BS-Z-8-UND
Article Number: 203682
Technical Details
| Ambient Temperature During Operation | -30.0 ... 80.0°C |
|---|---|
| Characteristics | Metal nut |

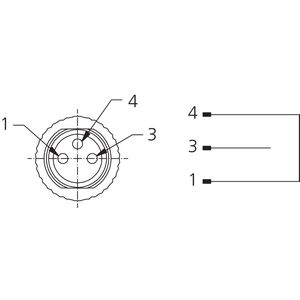

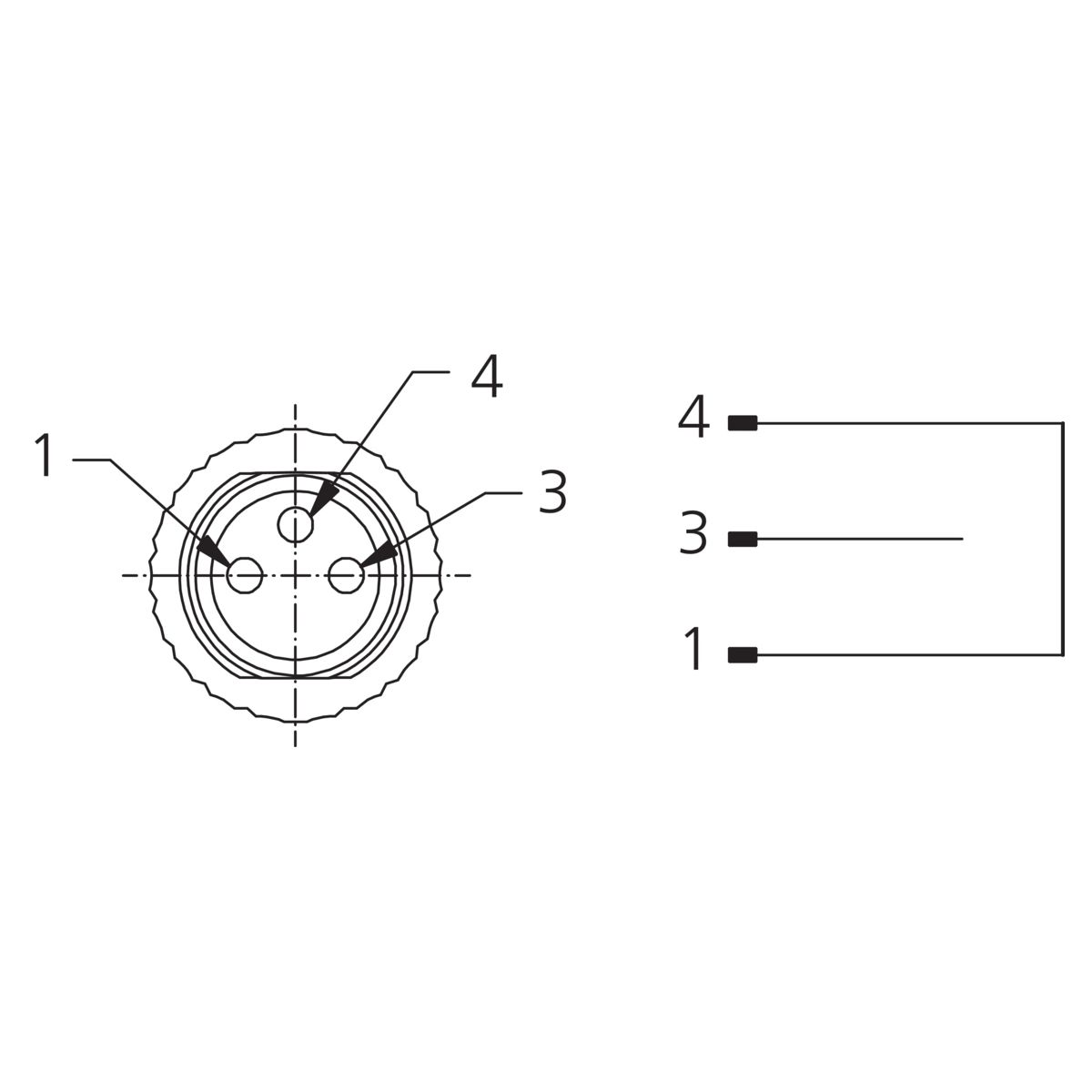

| Connection | Connector M8 3-pin |
| Connection 2 | Not available |
| Current Carrying Capacity | 3000.0 mA at 40° |
| Housing Material | Plastic;Metal |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 at tightening torque 0.4 Nm |
| Service Voltage | 60 |
| Switching Output | Not available |
| To Be Used For | Logic distributor AV4 AND/OR |
