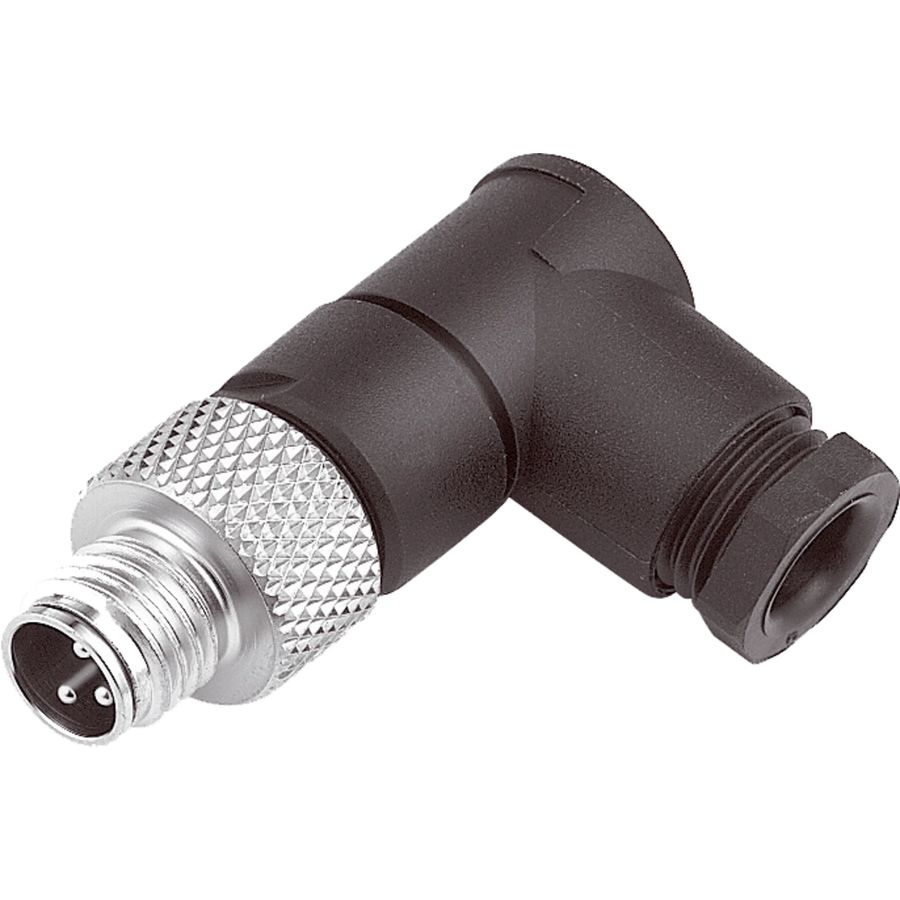

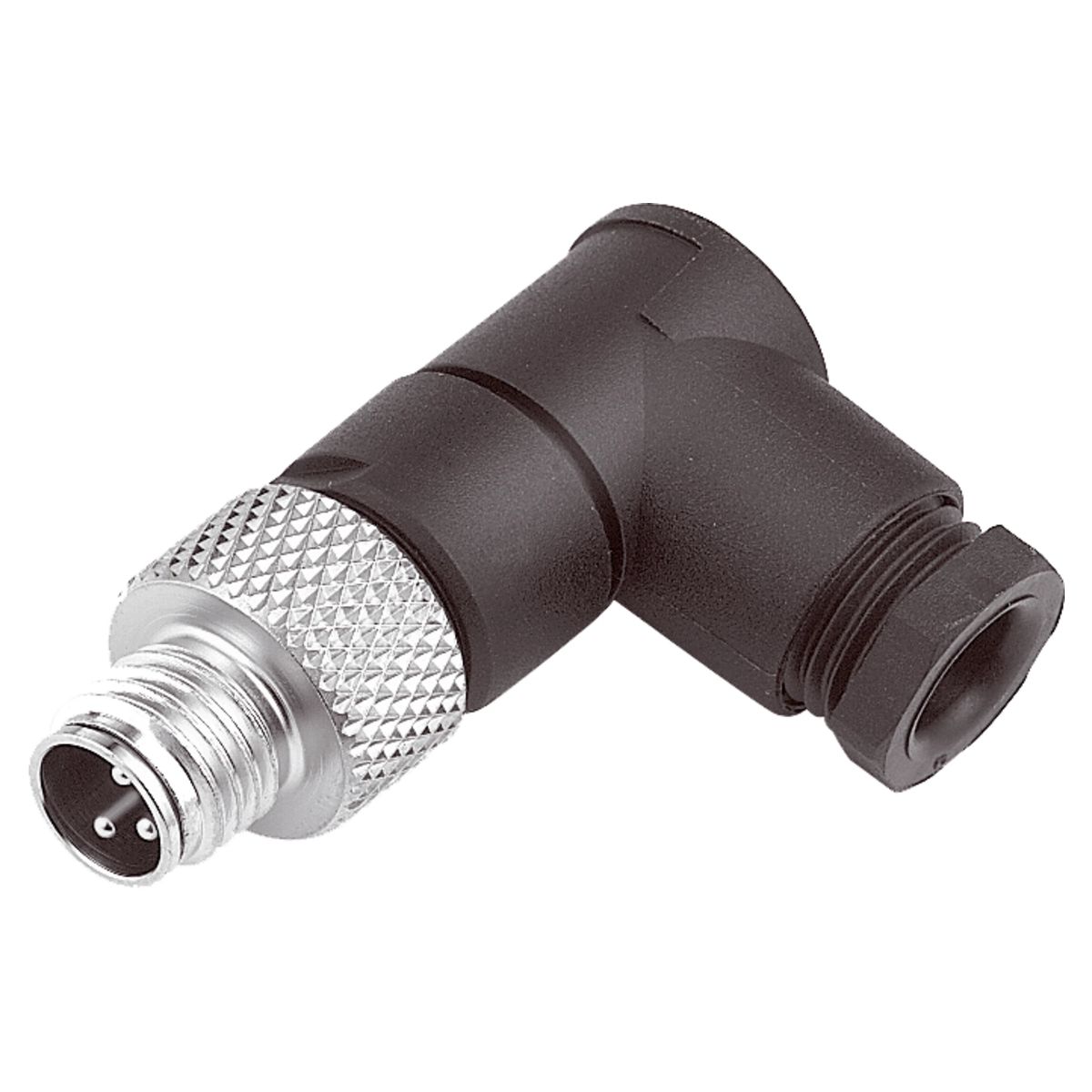

BS-W-8
Part Number: BS-W-8
Article Number: 200016
Technical Details

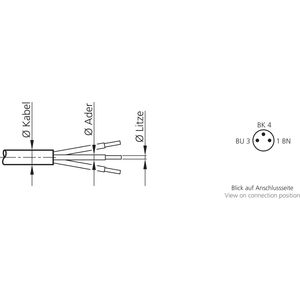

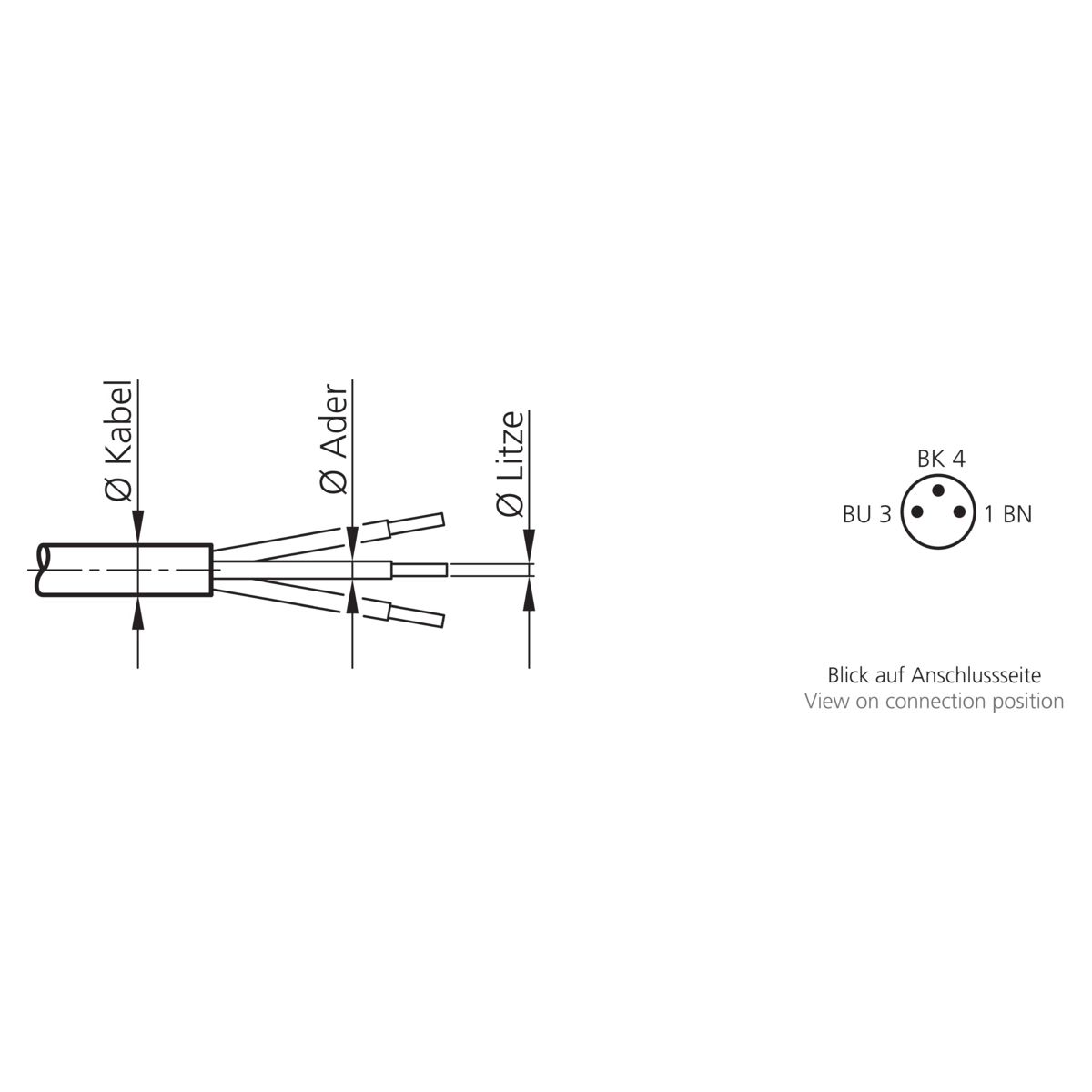

| Control Side Connection | Field-wireable Solder connection |
|---|---|
| Design | Angled |
| For Diameter Cable | 3.5mm ... 5.0mm |
| For Strand Cross Section | 0.25 mm² 0.34 mm² |
| Housing Material | Plastic |
| Protection Type | IP 67 |

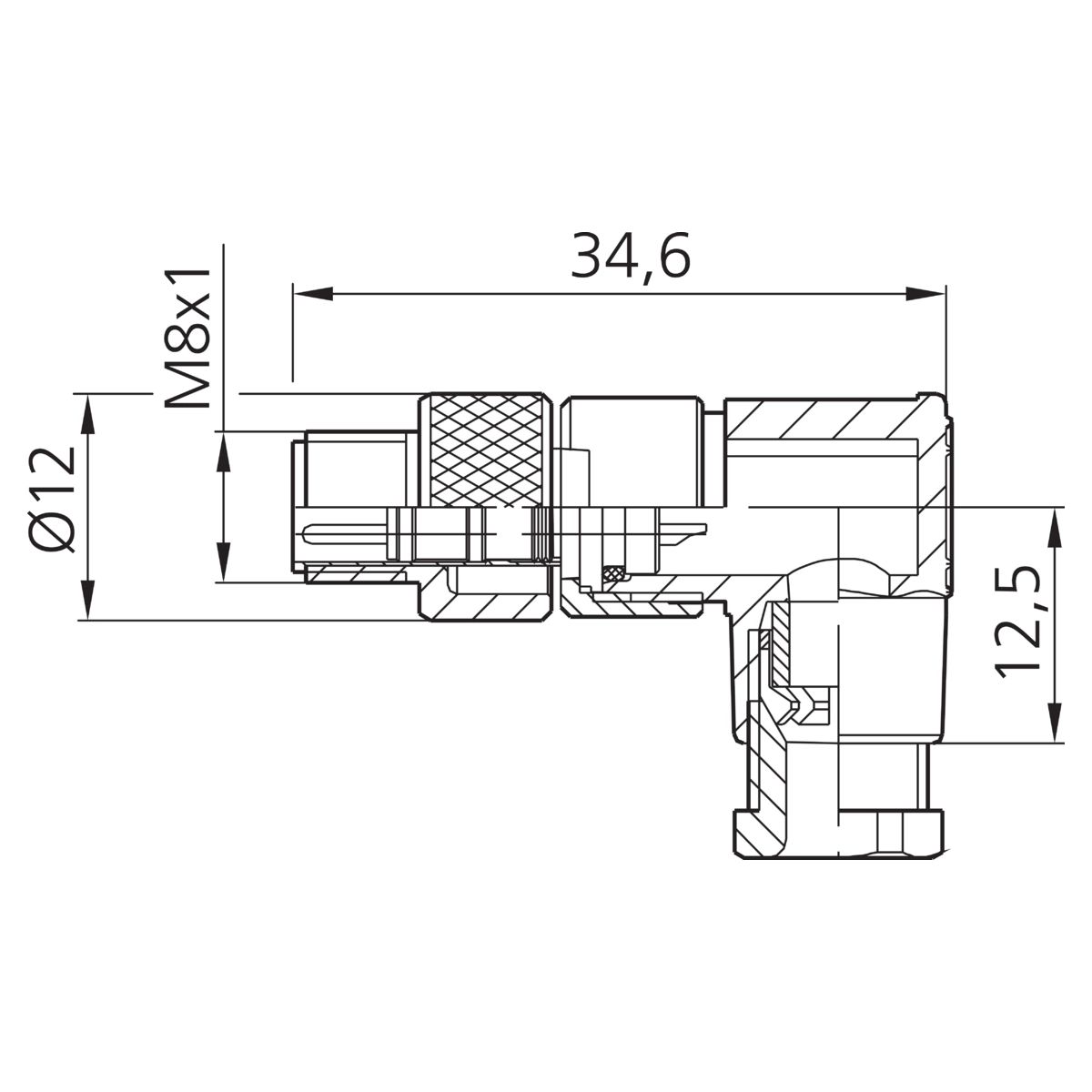

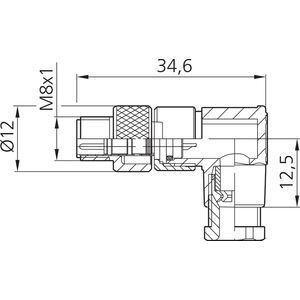

| Sensor Side Connection | Connector M8 x 1 3-pin |
