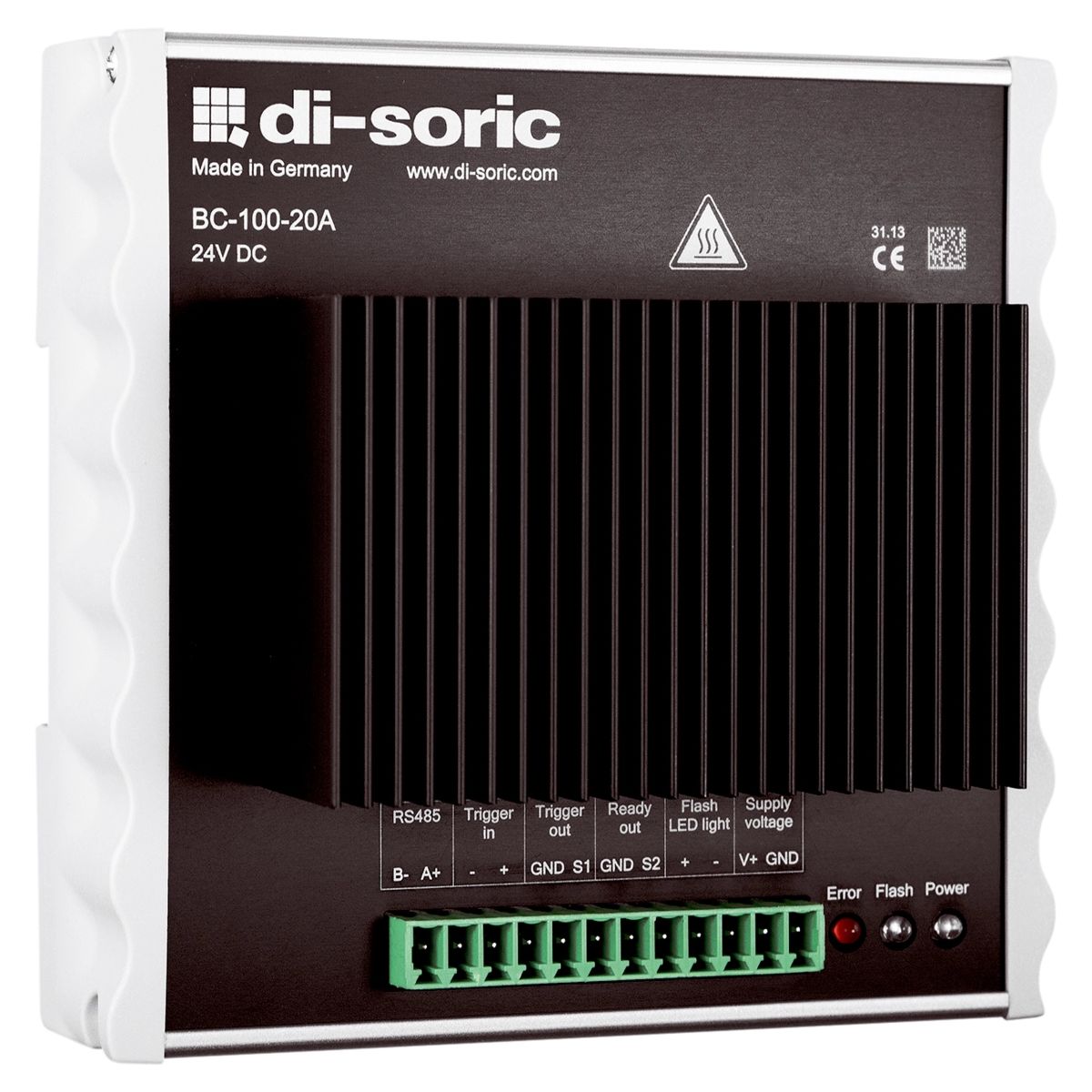

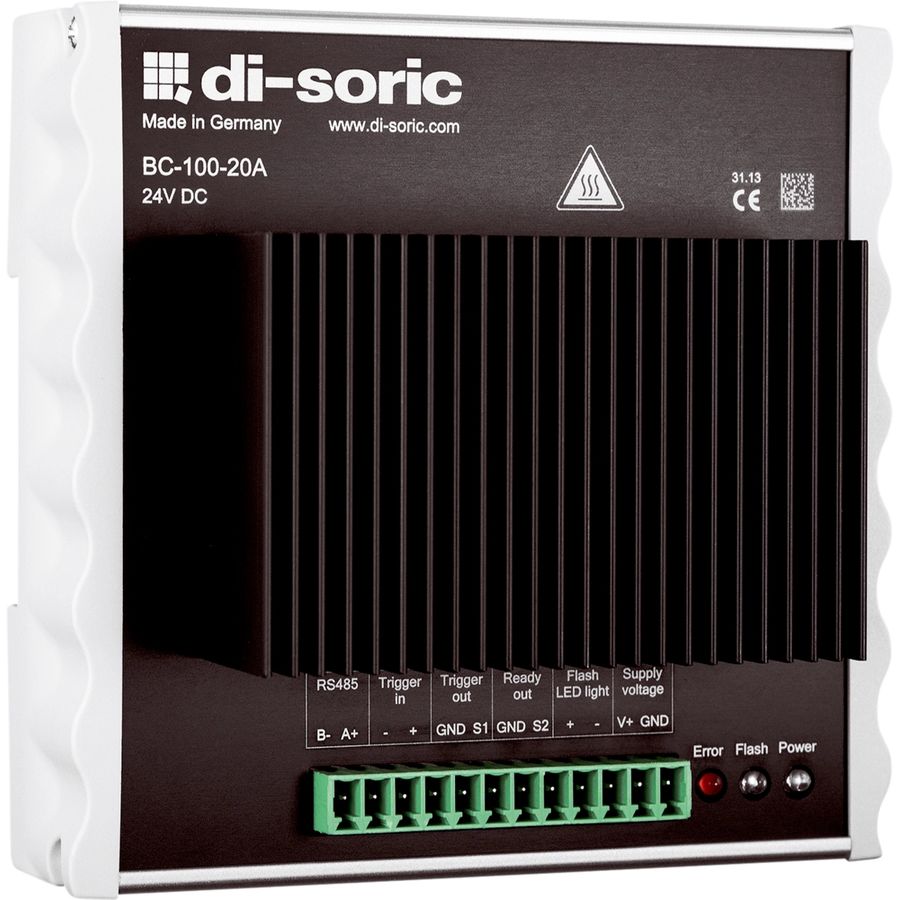

BC-100-20A
Part Number: BC-100-20A
Article Number: 207116
Technical Details
| Ambient Temperature During Operation | 0.0 ... 40.0°C |
|---|---|
| Average Peak Power Consumption | < 2.5 A / 6.0 A |
| Component | Flash controller for flashable lighting |

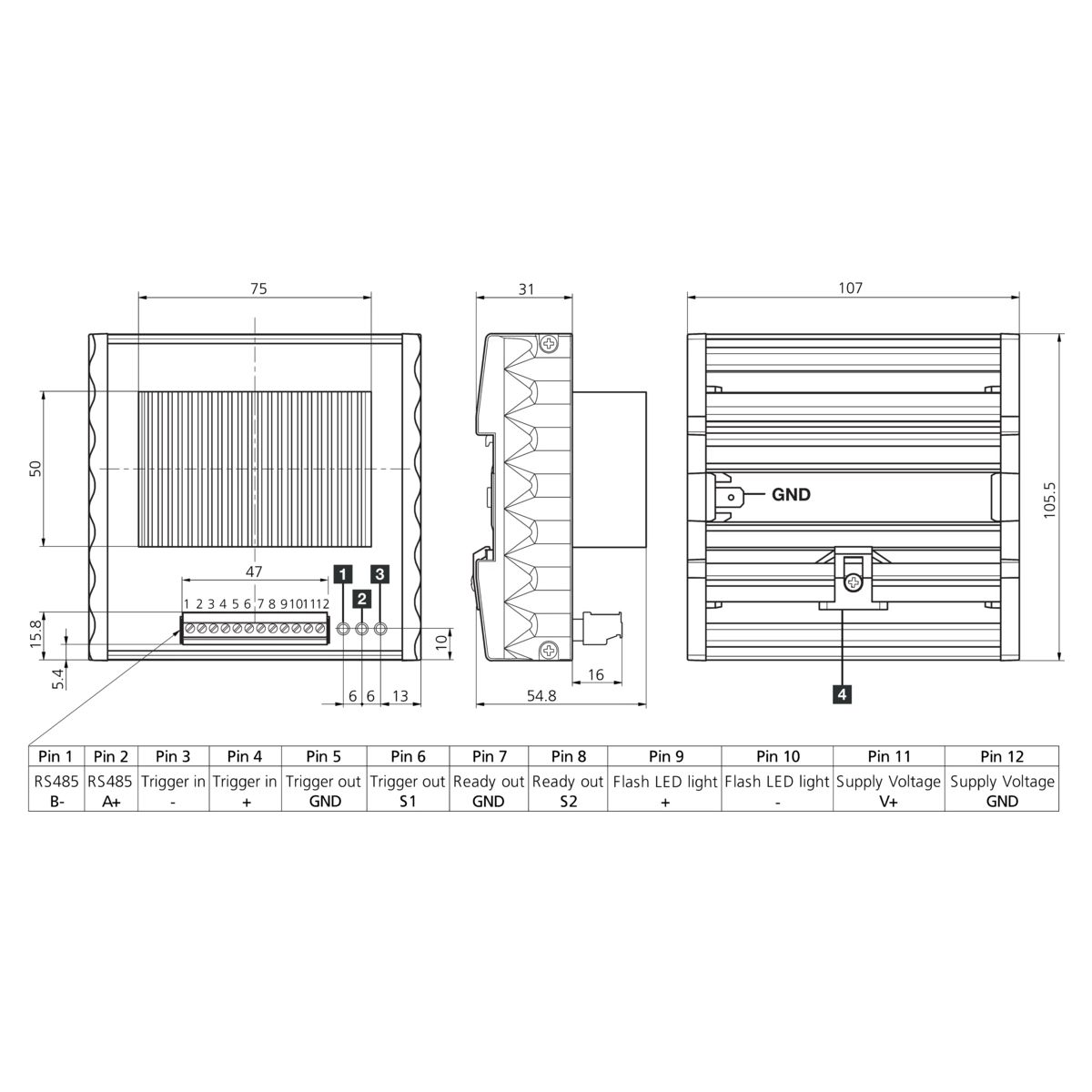

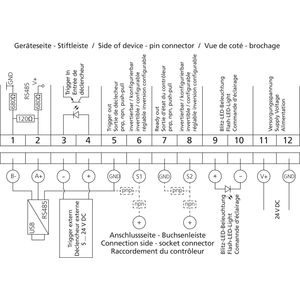

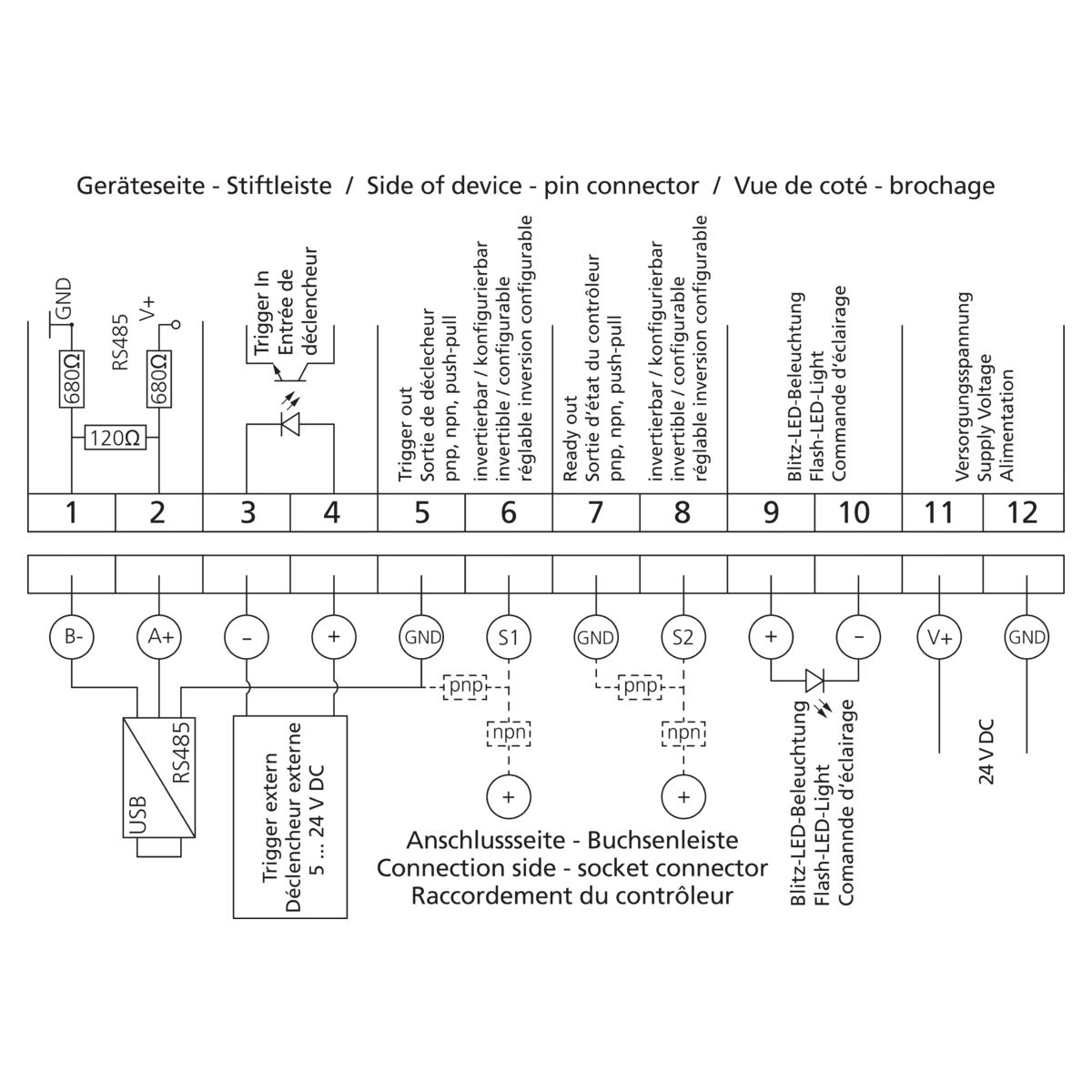

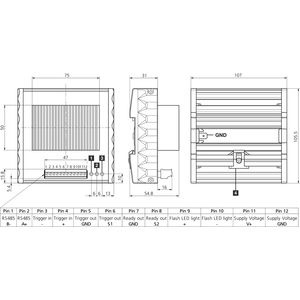

| Connection | Terminal strip, 12-pin |
| Green | Operation |
| Housing Material | Aluminum;Plastic PA Anodized;6.6 FR |
| Input Power | < 55 W (24 V DC) |
| Interface | RS485 |
| Inverse Polarity Protection | In pairs by terminal group |
| LED Constant Current (Configurable) | 0.1 A 1.8 A |
| LED Pulse Current (Configurable) | 0.1 A 20.0 A |
| Number Of Channels | 1.0 |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 40 |
| Pulse Cycle Time (Configurable) | 100.0 µs 60.0 s |
| Pulse Delay (Configurable) | > 50 µs (0 ... 2 A) / > 5 µs (2 ... 20 A) |
| Pulse Duration (Configurable) | 0.01 ms 50.0 ms |
| Red | Interference |
| Service Voltage | 24.0 |
| Shock Vibration Load | 30 g, 11 ms / 10 ... 55 Hz, 1.0 mm |
| Short Circuit Protection | In pairs by terminal group |
| Trigger Input | 5.0 V DC 24.0 V DC Potential-free, optical coupler |
| Yellow | Flash |
