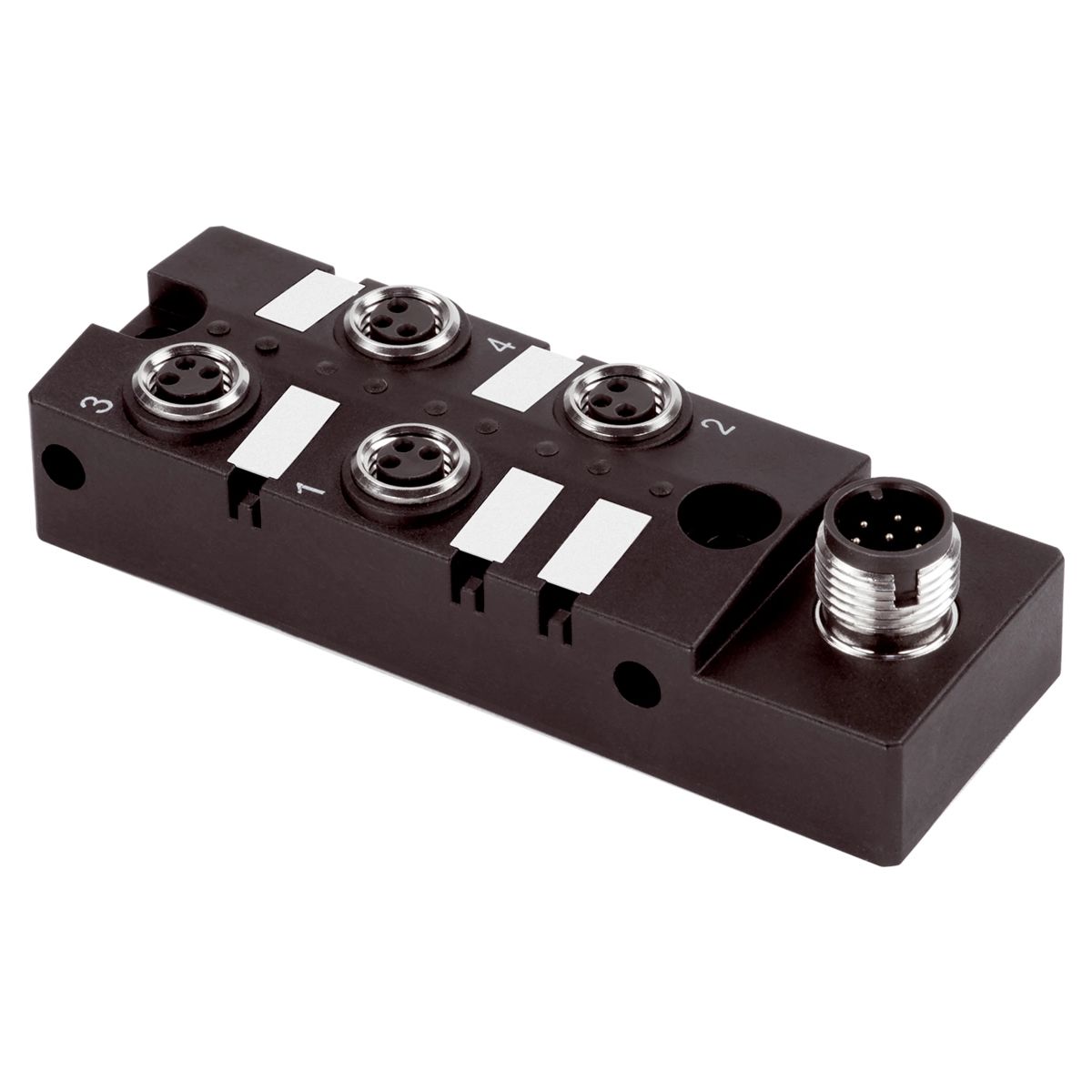

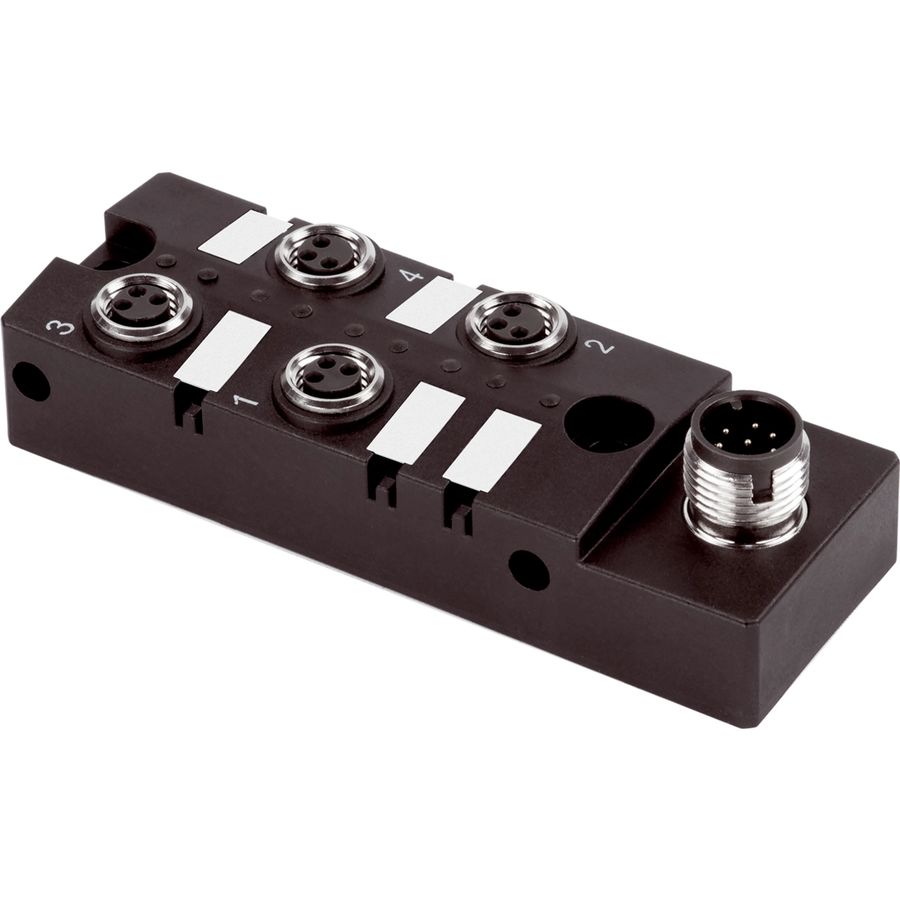

AV4-UND/ODER
Part Number: AV4-UND/ODER
Article Number: 203680
Technical Details
| Ambient Temperature During Operation | -30.0 ... 80.0°C |
|---|---|
| Connection | Connector M12 8-pin |
| Connection 2 | Socket M8 3-pin 4x |
| Current Carrying Capacity | 300.0 mA per logical contact |
| Green | Operating display |
| Housing Material | Plastic Viton |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 at tightening torque 0.4 Nm |
| Service Voltage | 10 ... 30.0V DC |
| Switching Output | pnp 4.0 pnp-OR 1x, pnp-AND 1x |
| Yellow | Switching status |
