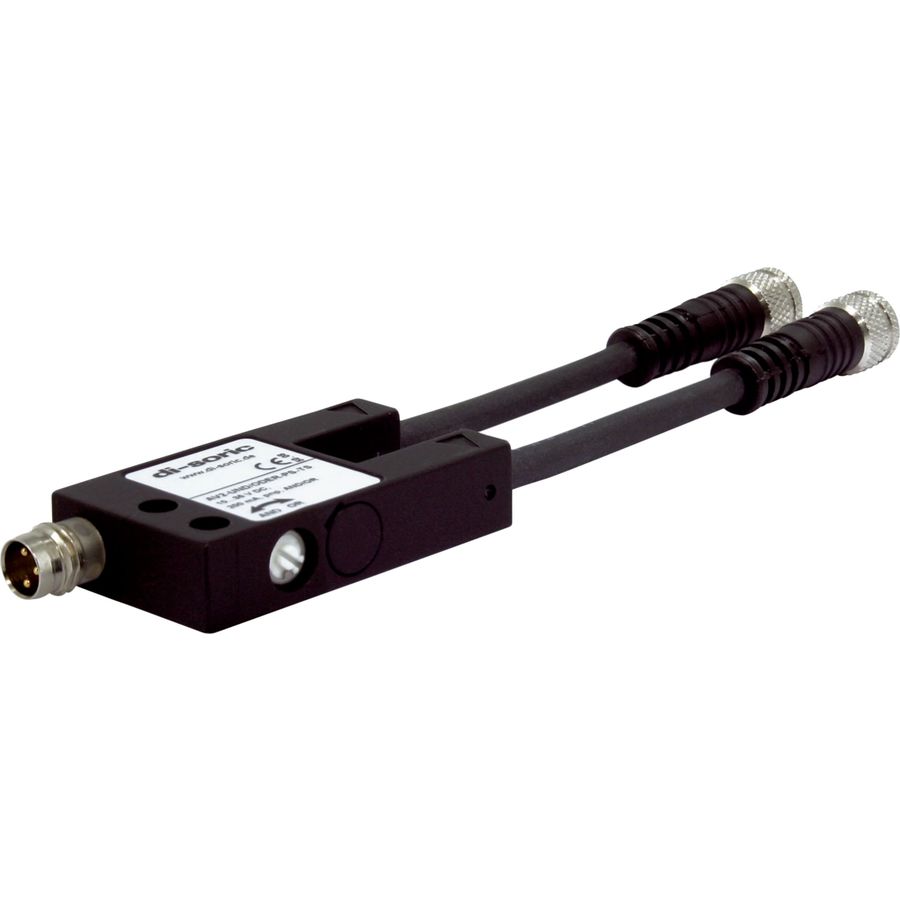

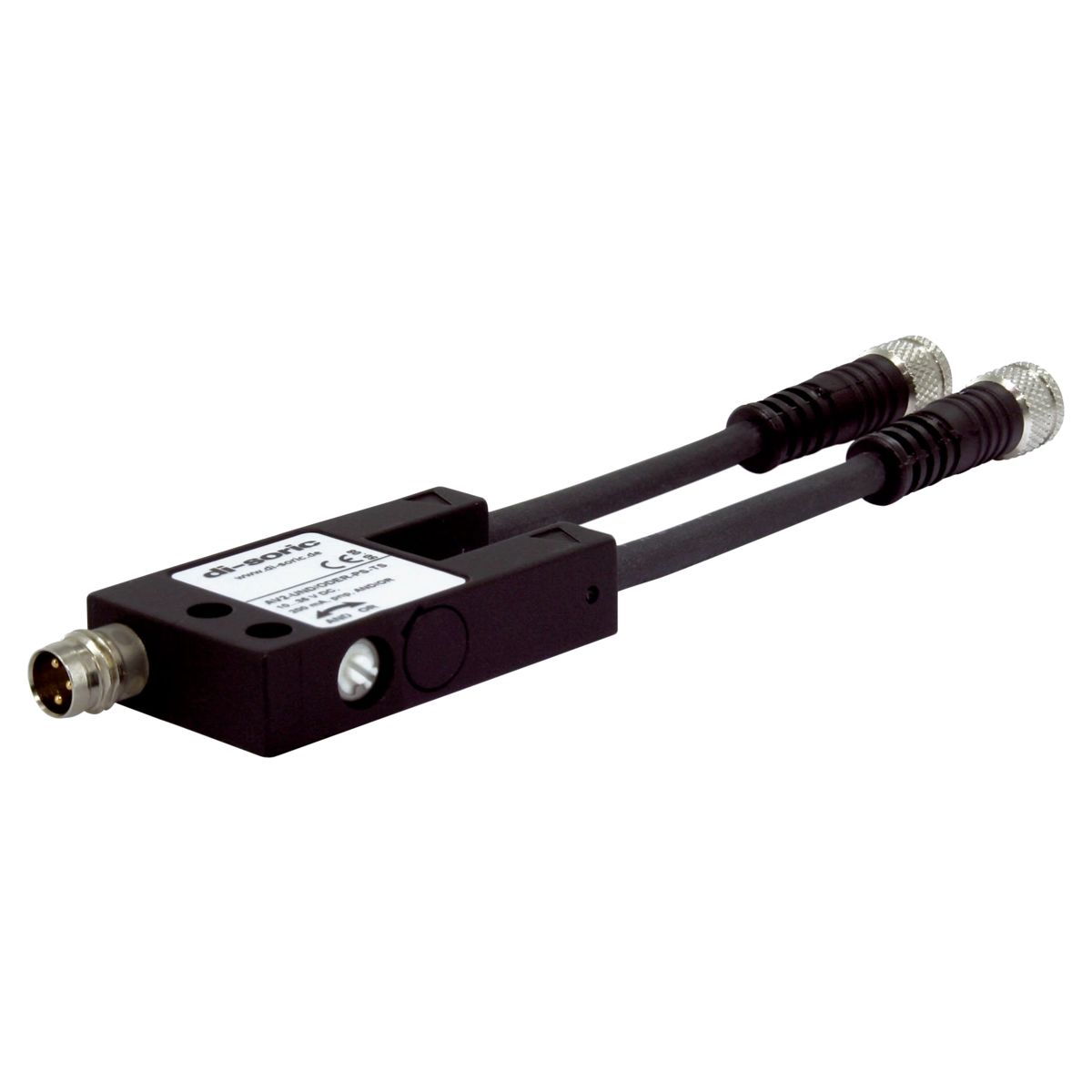

AV2-UND/ODER-PS-TS
Part Number: AV2-UND/ODER-PS-TS
Article Number: 204383
Technical Details
| Ambient Temperature During Operation | -25.0 ... 70.0°C |
|---|---|
| Connection | Connector M8 3-pin |
| Connection 2 | Pigtail;Socket M8 3-pin 2x |
| Housing Material | Die-cast zinc Black painted |
| No Load Current (max.) | 14.0 mA |
| Protection Class | III, operation on protective low voltage |
| Protection Type | IP 67 |
| Service Voltage | 10 ... 35.0V DC |
| Switching Output | pnp 200.0 mA AND/OR |
